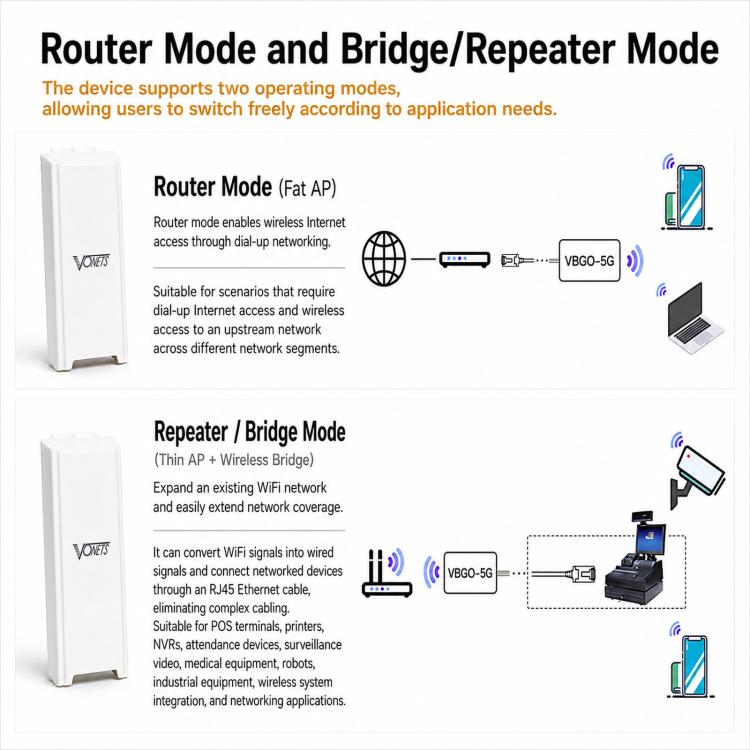

1. Wireless functions: Wireless relay/bridge/router
2. Wireless frequency band: 5.8GHz
3. Wireless protocols: 802.11ac/an/a/n
4. Wireless transmission rate: 1800Mbps
5. Operating voltage: 12V-48V
6. Dimensions: Approx. 9.7 x 5.7 x 2.9cm
Features:

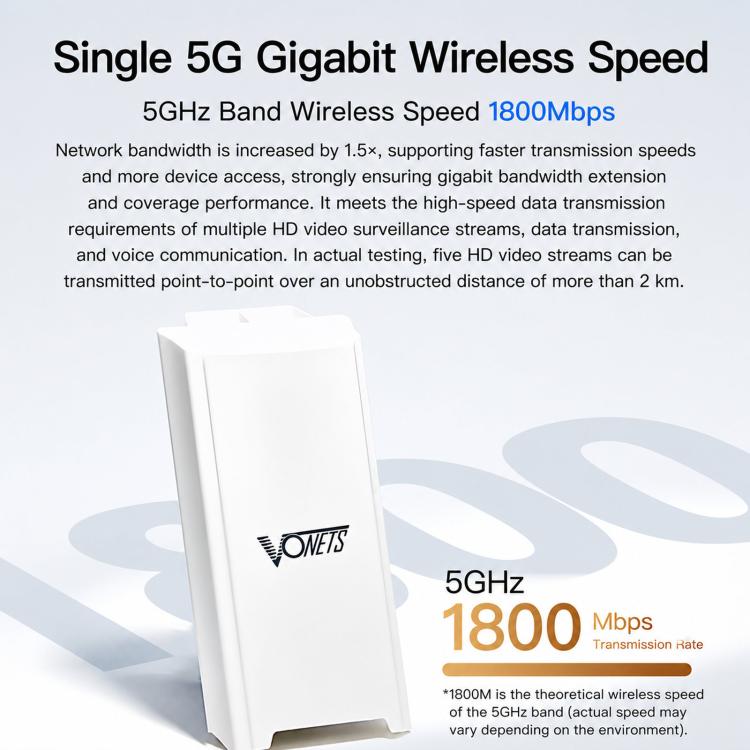

1. Utilizes the 5GHz frequency band (802.11ac standard) with a theoretical transmission rate of up to 1800Mbps, meeting the demands of multi-channel HD surveillance and high-volume wireless data transmission.
2. Features four built-in 7dBi high-gain directional antennas and four FEM signal amplification chips; point-to-point transmission distance reaches up to 2000 meters in unobstructed environments.

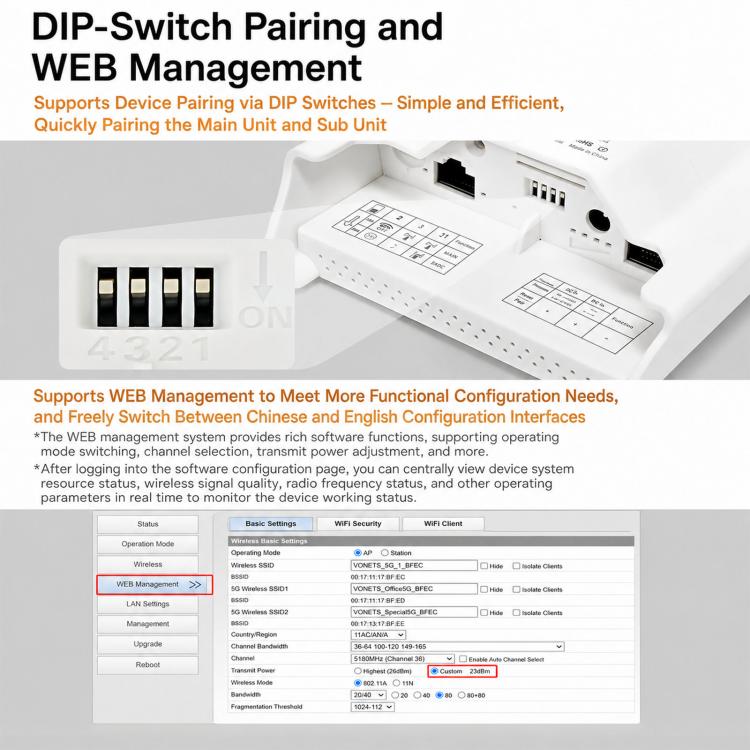

3. Supports quick master-slave device pairing via physical DIP switches; offers both Chinese and English web-based management interfaces for easy configuration of operating modes, channels, and power levels.

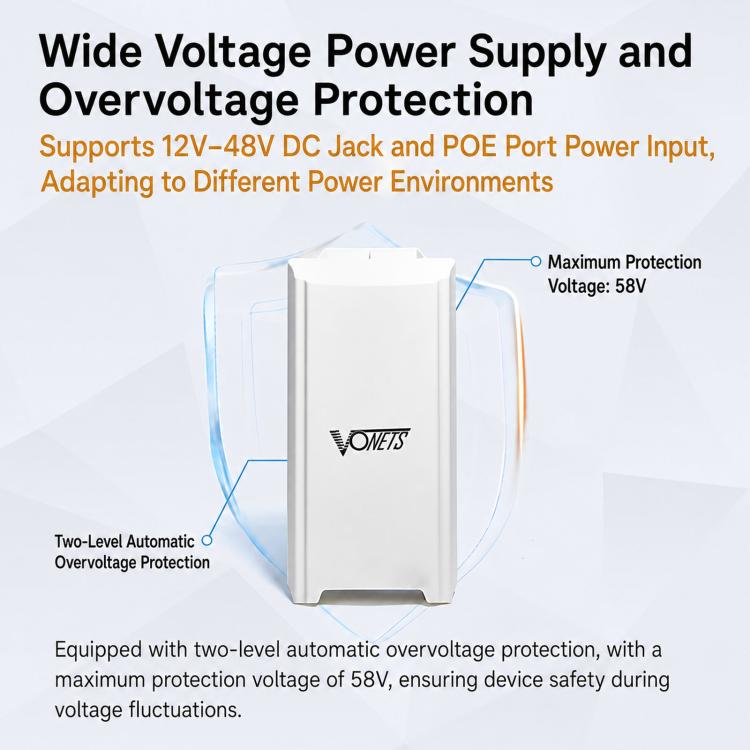

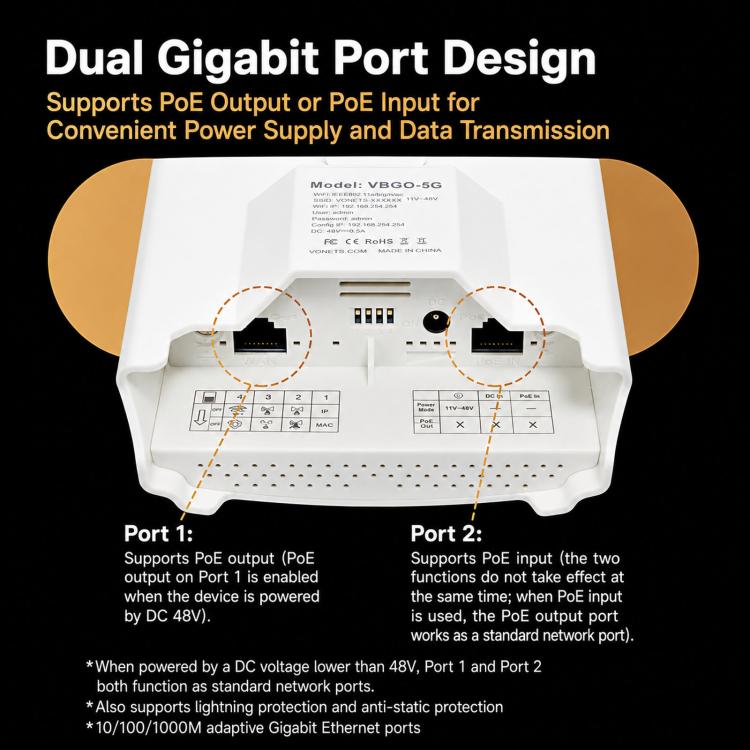

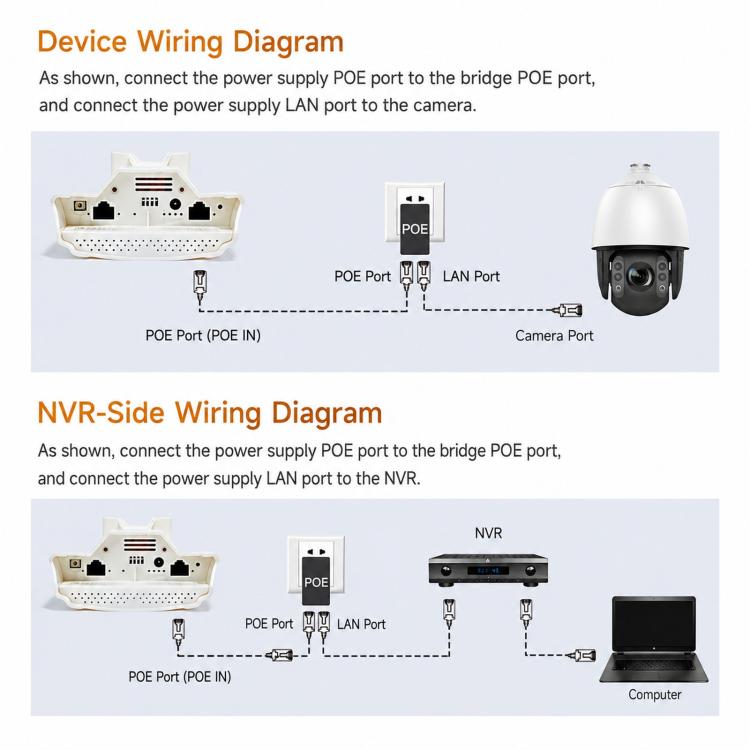

4. Supports wide-range DC 12V–48V power input and PoE input/output; includes two-stage automatic over-voltage protection (max. protection voltage: 58V) to enhance outdoor electrical safety.

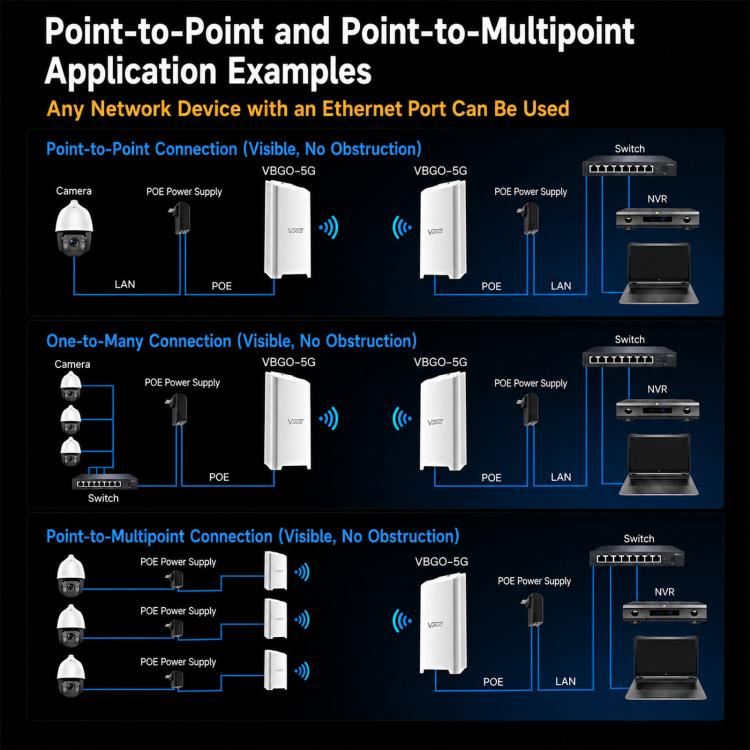

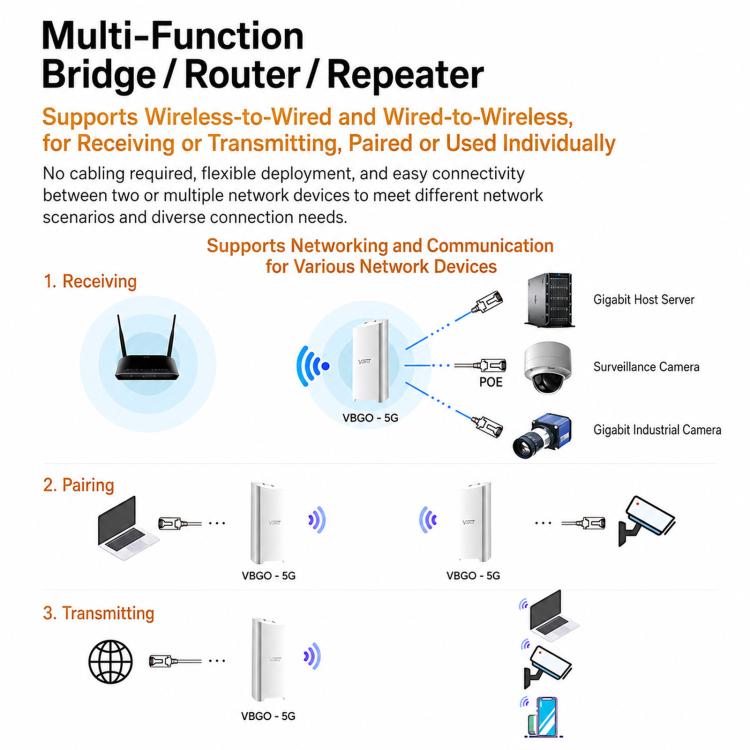

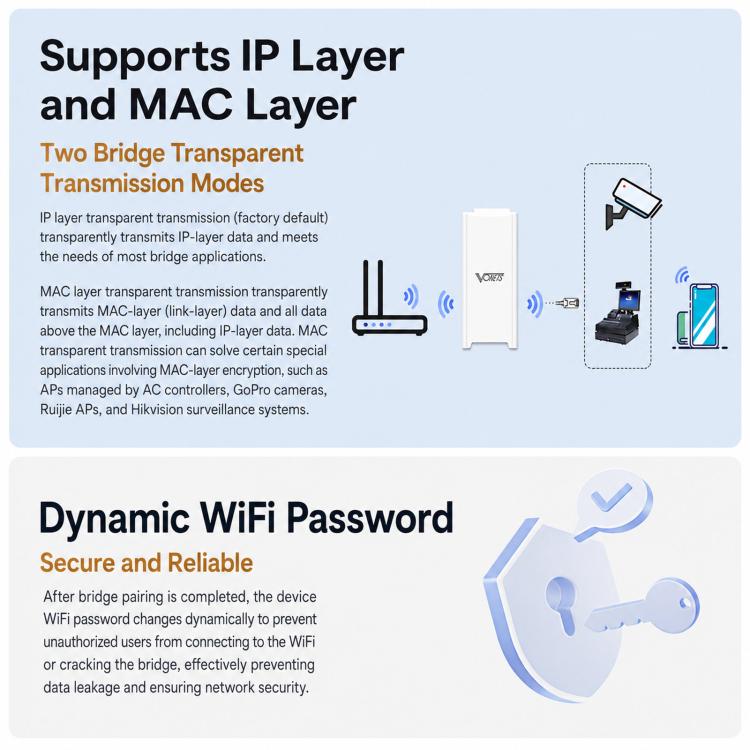

5. Supports wireless-to-wired and wired-to-wireless conversion (functioning as either a receiver or transmitter); can be used in paired sets or as standalone units.
6. Allows for flexible adjustment of transmission power in high-density deployment scenarios with significant interference, reducing inter-device signal interference and improving wireless signal stability.

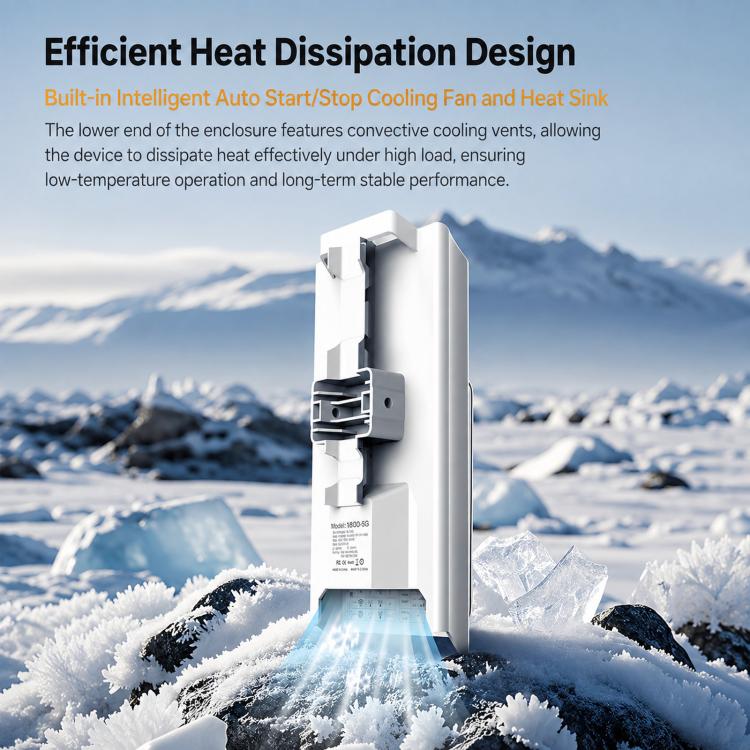

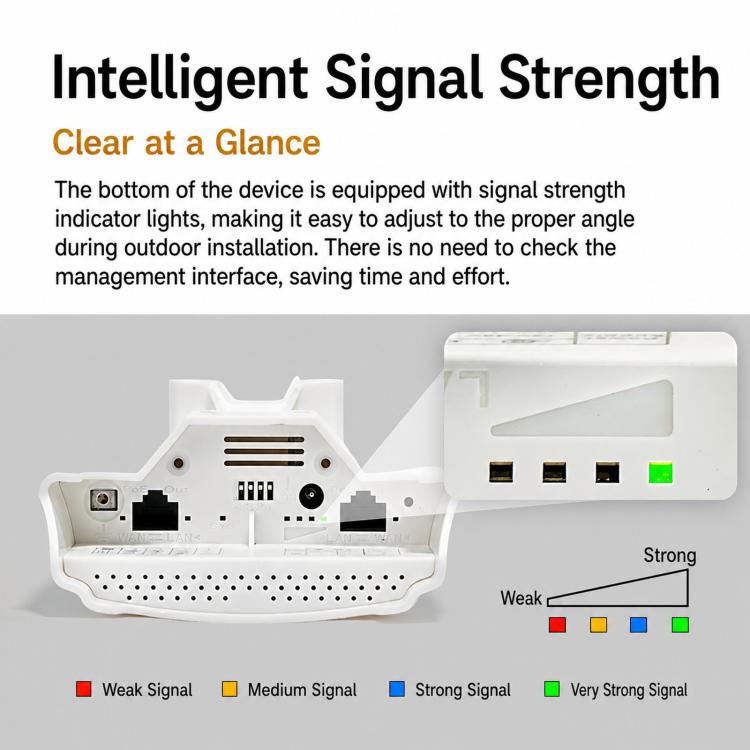

7. Equipped with convection cooling vents and an intelligent auto-start/stop cooling fan at the bottom; features a bottom-mounted signal strength indicator (Red/Yellow/Blue/Green) to facilitate alignment and angle adjustment during outdoor installation.
