1. WiFi Frequency Bands: 2.4GHz + 5GHz
2. Band Type: Dual-band
3. Wireless Transmission Rate: 300Mbps (2.4GHz) + 900Mbps (5GHz)
4. Functions: WiFi Router/Bridge/Repeater/AP
5. Wireless Transmit Power: 2.4GHz: 17dBm/18.5dBm; 5GHz: 19dBm/22dBm
6. Network Port Type: 1 x 100Mbps Ethernet port

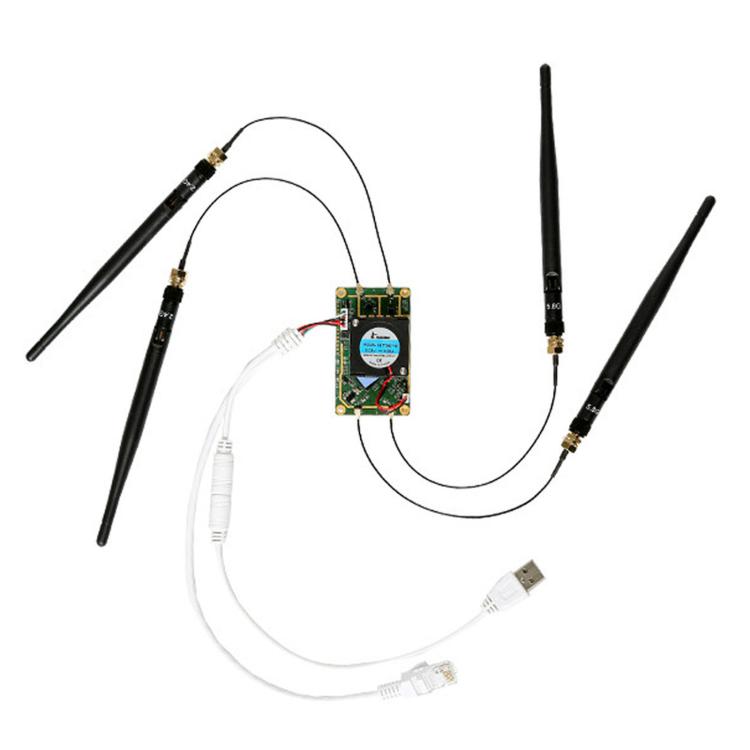

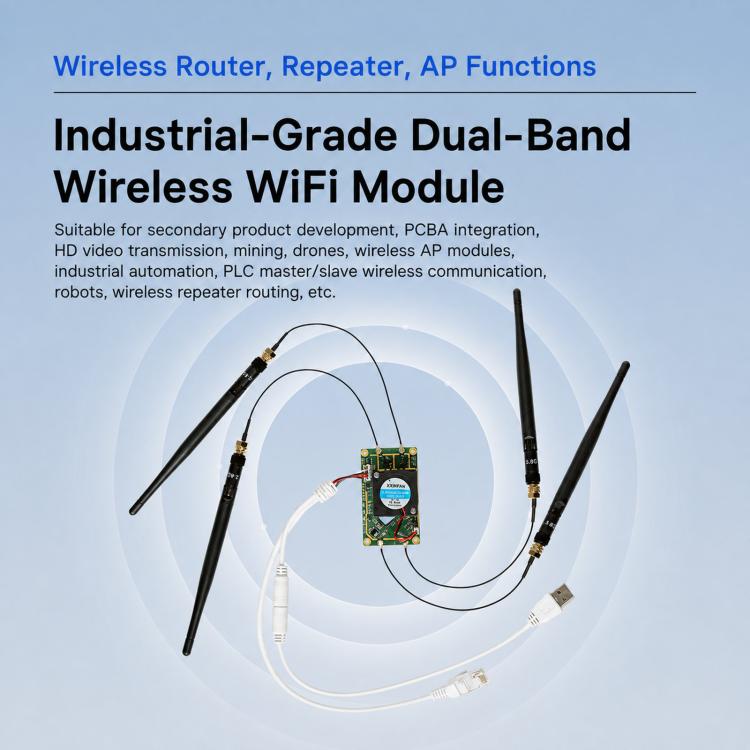

7. Antennas: 4 external antennas
8. Antenna Connector Type: IPEX Gen 1
9. Antenna Interface Type: SMA (Female/Jack)
10. IP and MAC Transparent Transmission: Supported
11. Max Stored Hotspots: 100
12. Max Scanned Hotspots: 256
13. Auto-reconnect Function: Supported
14. Firewall: Supported
15. Smart Fan Control (Auto Start/Stop): Supported
16. Serial Port: 1 x UART (TTL level)
17. Power Supply Voltage (Recommended Power): DC 5V-24V (10W)
19. Dimensions: Approx. 6.5 x 3.8 x 1.94 cm
Features:

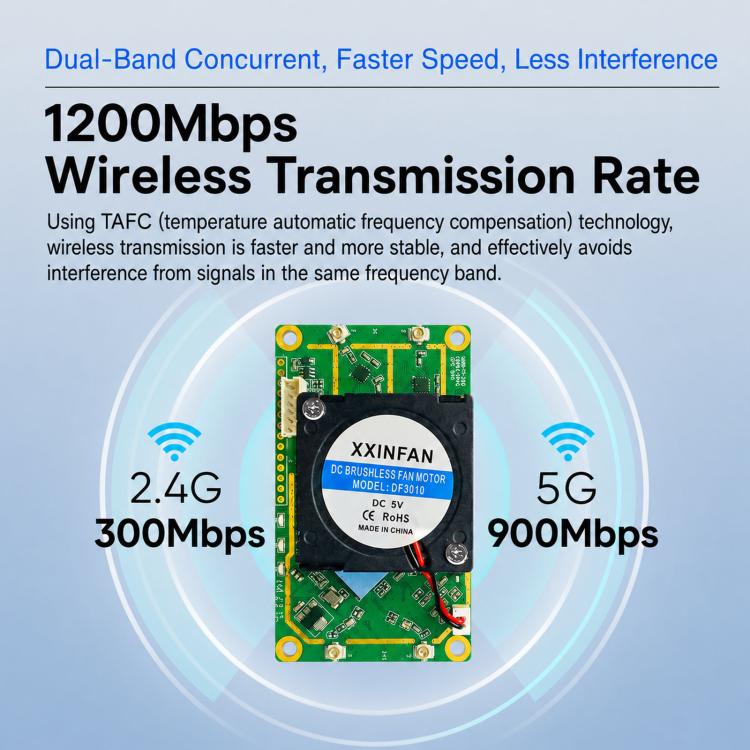

1. Utilizes TAFC (Temperature-Compensated Frequency Control) technology; supports simultaneous 2.4GHz (300Mbps) and 5GHz (900Mbps) dual-band operation with a total transmission rate of 1200Mbps, effectively reducing co-channel interference.

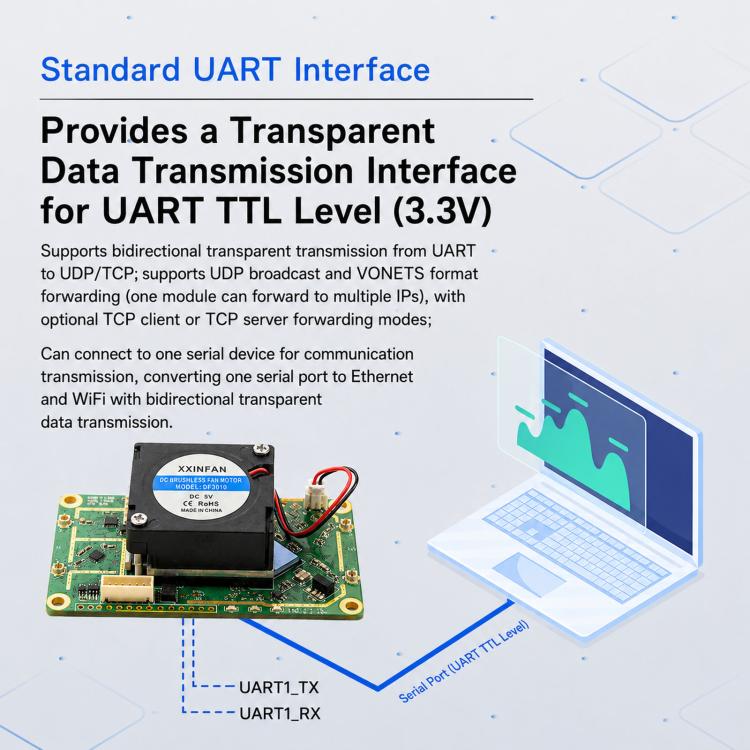

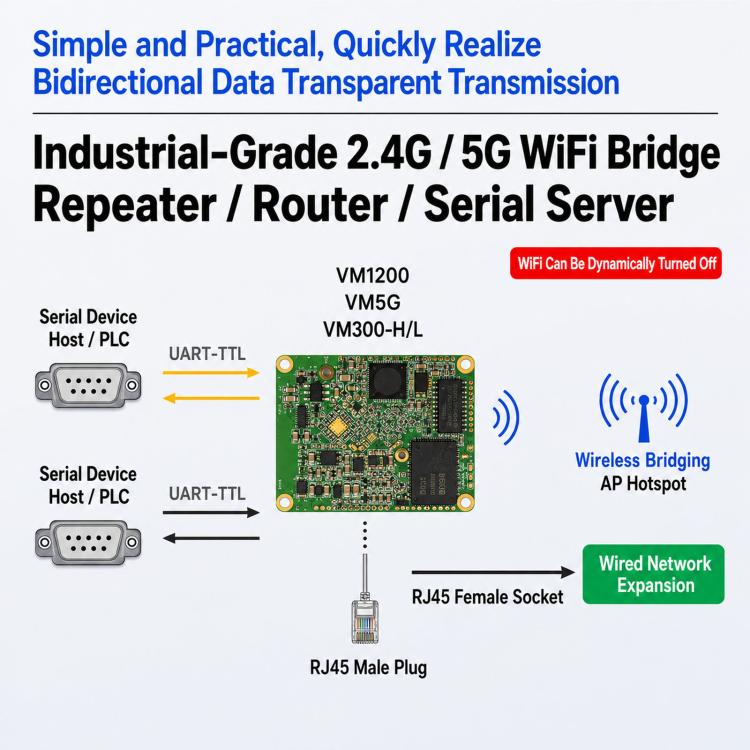

2. Provides a UART TTL (3.3V) transparent data transmission interface; supports bidirectional UART-to-UDP/TCP transparent transmission and multiple forwarding modes, enabling easy conversion between serial and Ethernet/WiFi communication.

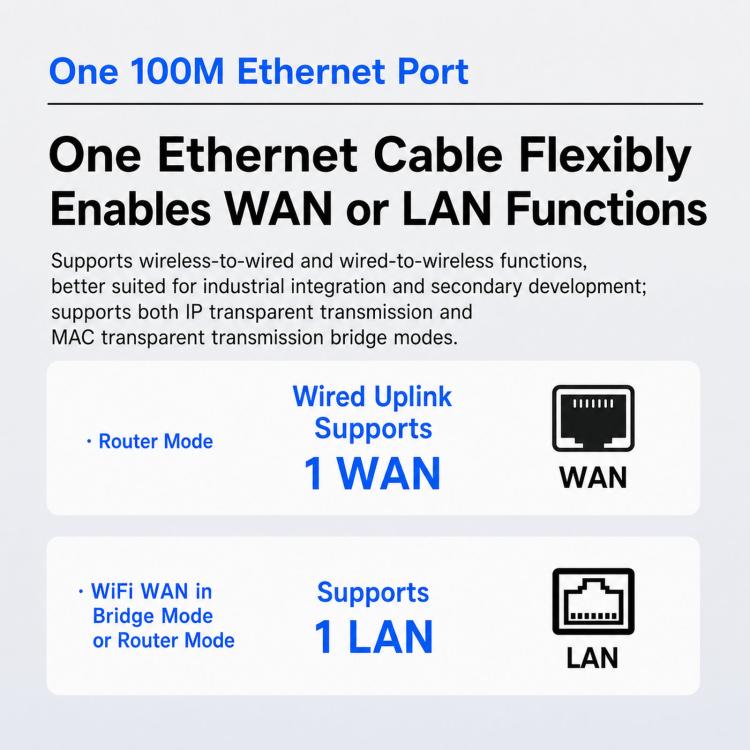

3. Equipped with one 10/100M adaptive Ethernet port, enabling wireless-to-wired or wired-to-wireless conversion.

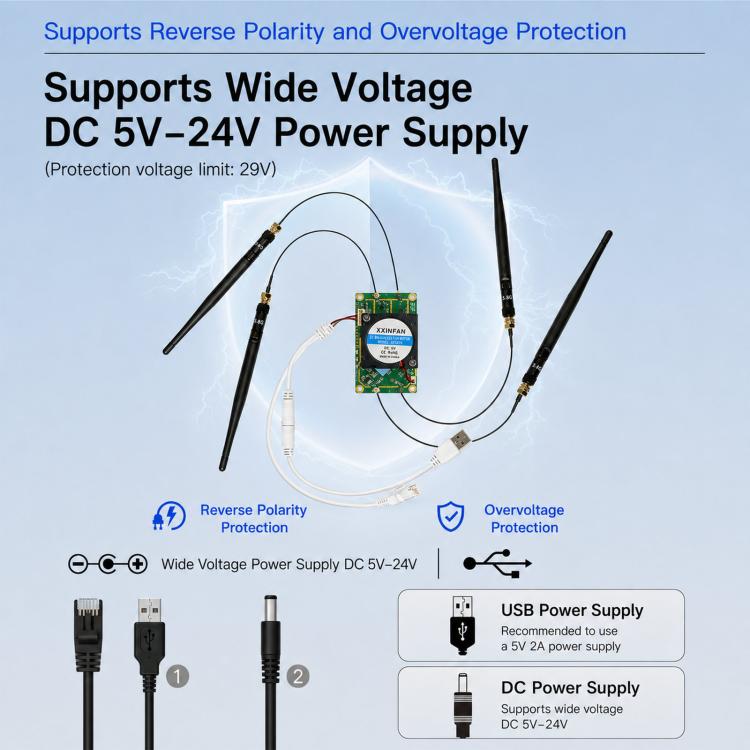

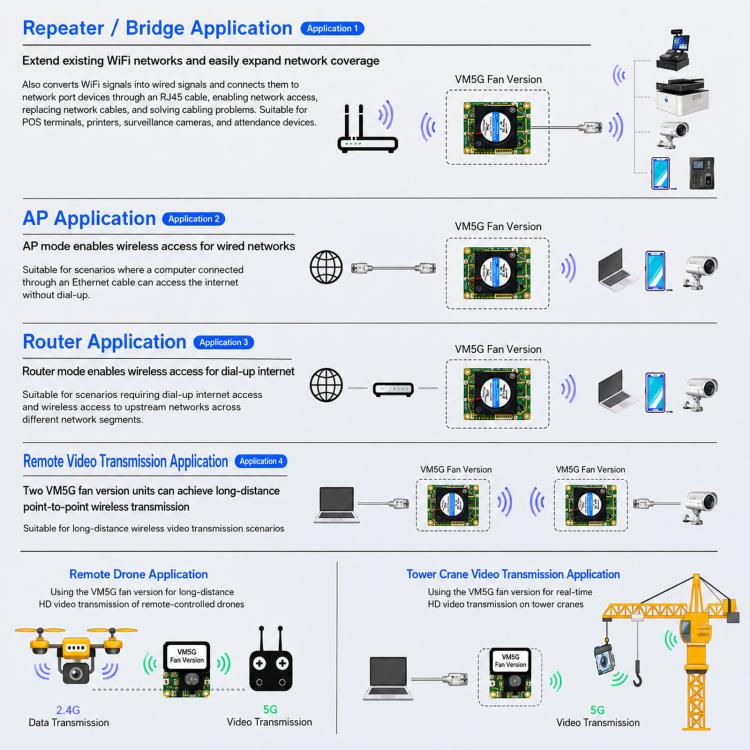

4. Supports switching between multiple operating modes, including Repeater/Bridge, AP, Router, and point-to-point long-range video transmission. 5. Supports a wide DC input voltage range of 5V–24V (with a 29V protection limit) and USB 5V/2A power supply; features reverse polarity and over-voltage protection mechanisms to enhance operational safety.

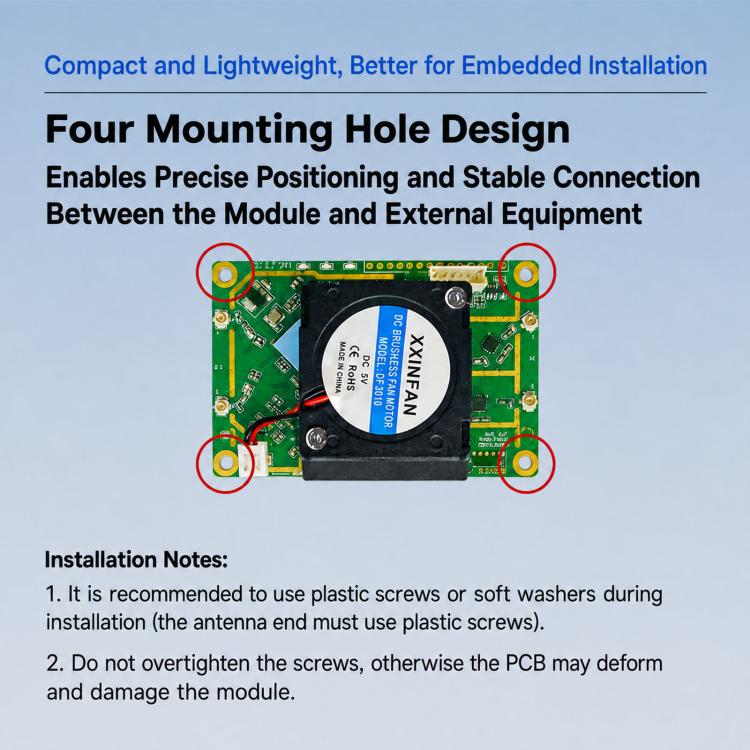

6. Compact design featuring four mounting holes for precise installation.

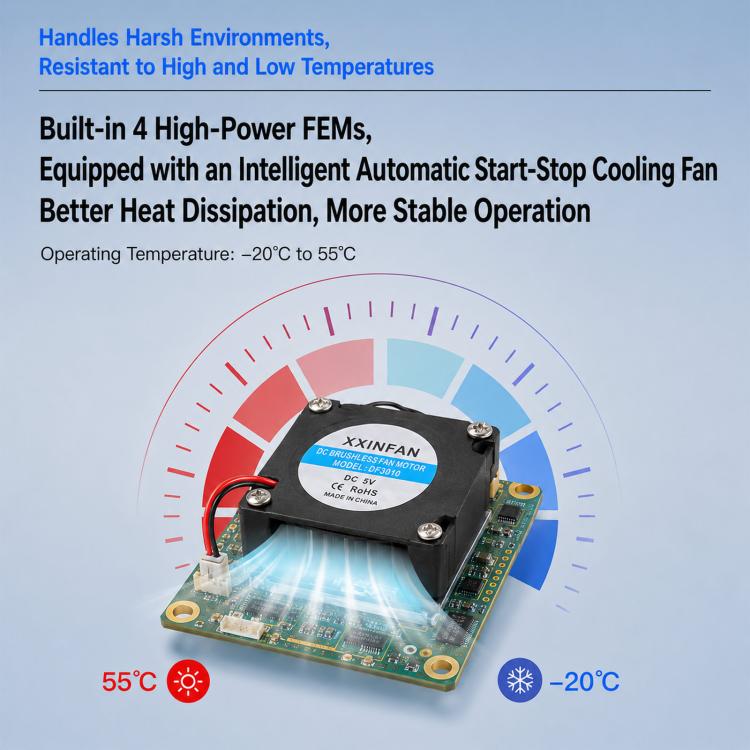

7. Equipped with four high-power FEMs and an intelligent, auto-start/stop cooling fan; ensures stable operation in environments ranging from -20 to 55 Degree Celsius
