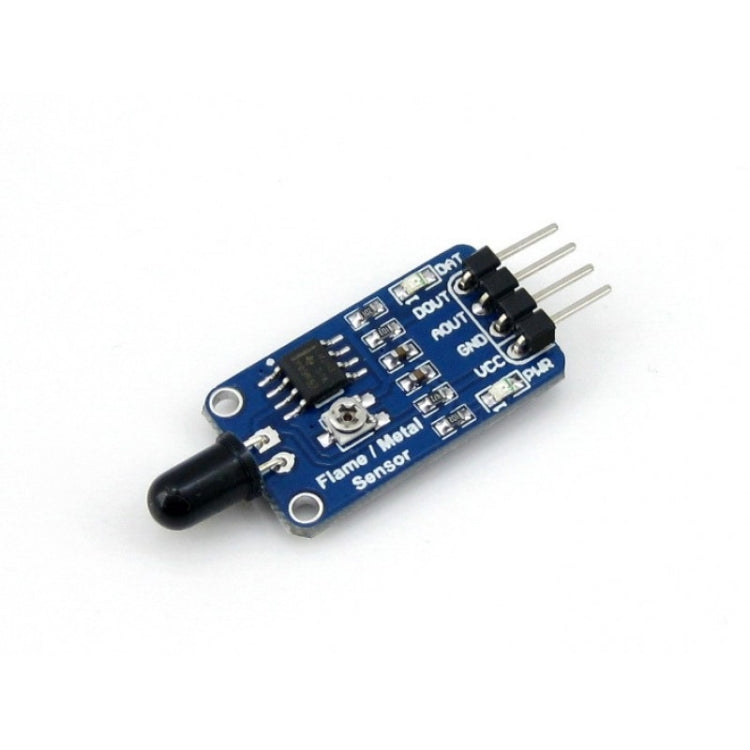

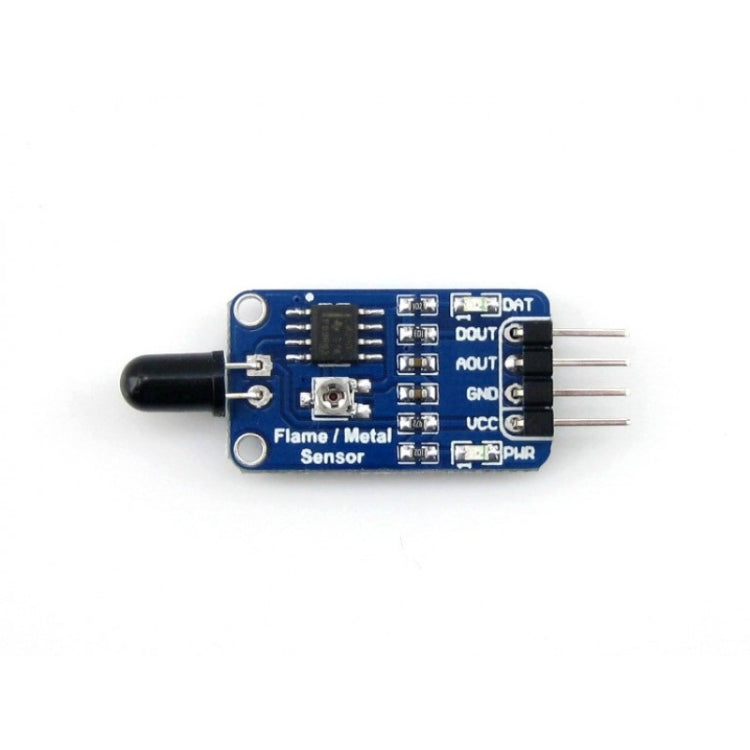

Wareshare Flame Sensor

Overview
1. Sensitive to flame spectrum
2. Features wide range voltage comparator LM393
3. Adjustable sensitivity
4. Signal output indicator

Specifications
1. Spectrum range: 760nm ~ 1100nm
2. Detection angle: 0 - 60 degree
3. Power: 3.3V ~ 5.3V
4. Operating temperature: -25 ~ 85 degree C
5. Dimension: 27.3mm * 15.4mm
6. Mounting holes size: 2.0mm

Applications
1. Fire detection
2. Fire fighting robot
3. Fire alarm
