Overview

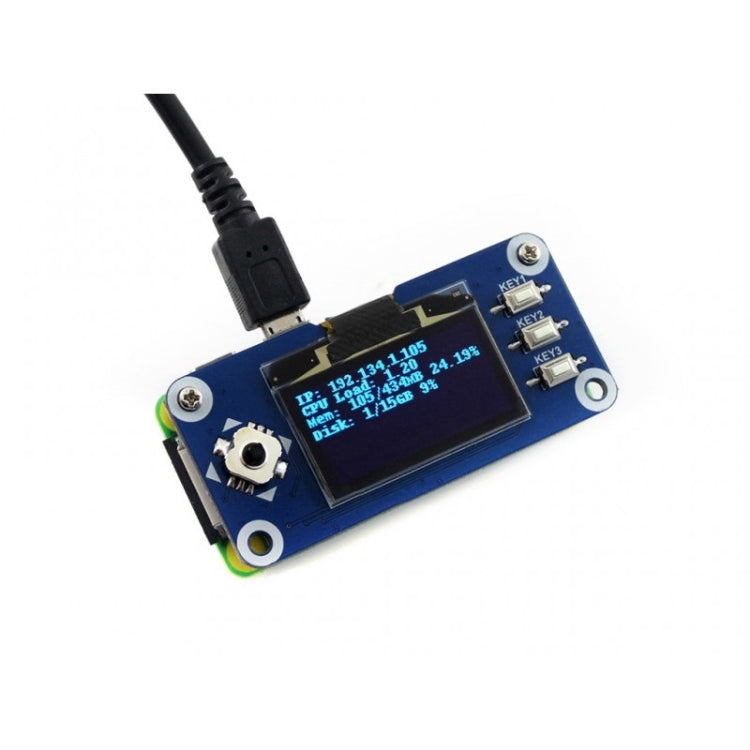

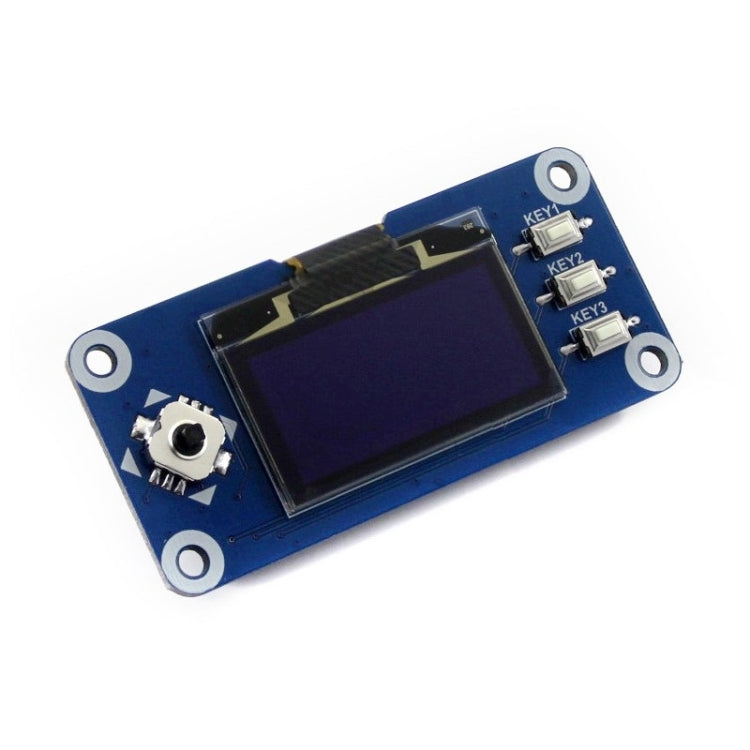

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features

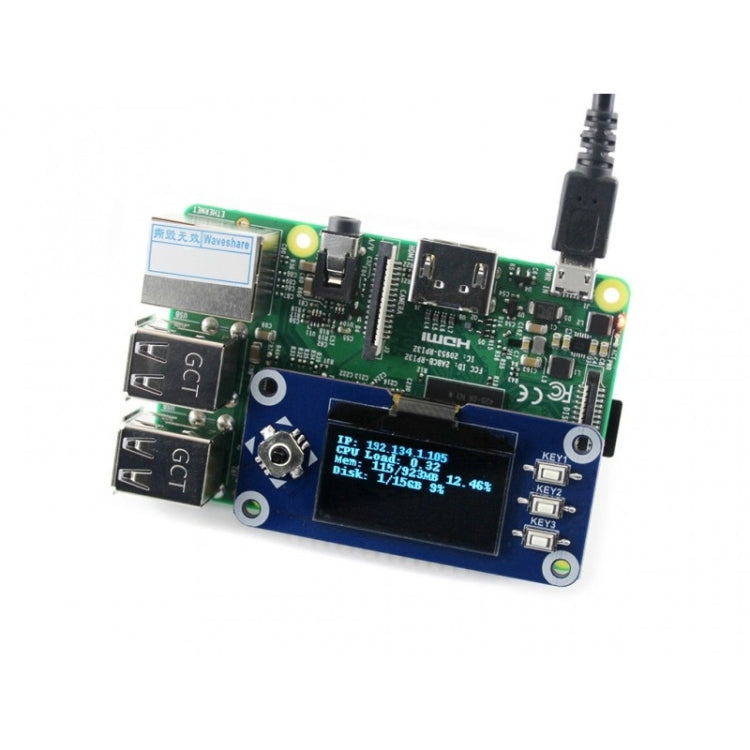

1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W

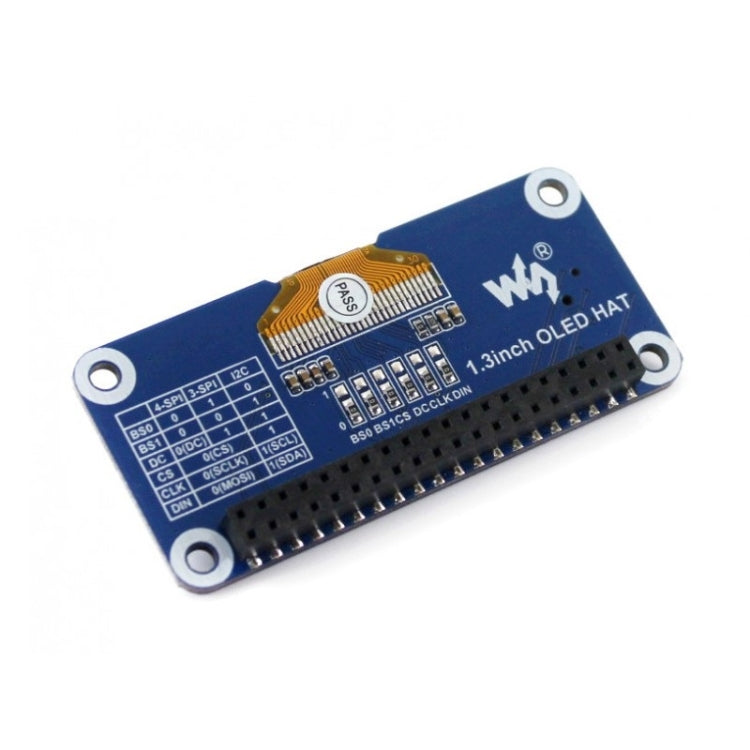

2. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
3. 1x joystick (5-position), 3x pushbuttons, handy and useful
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SH1106
2. Interface: 4-wire SPI, 3-wire SPI, I2C
3. Display color: blue
4. Resolution: 128x64
5. Operating voltage: 3.3V
This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
1. Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
2. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
3. 1x joystick (5-position), 3x pushbuttons, handy and useful
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SH1106
2. Interface: 4-wire SPI, 3-wire SPI, I2C
3. Display color: blue
4. Resolution: 128x64
5. Operating voltage: 3.3V
