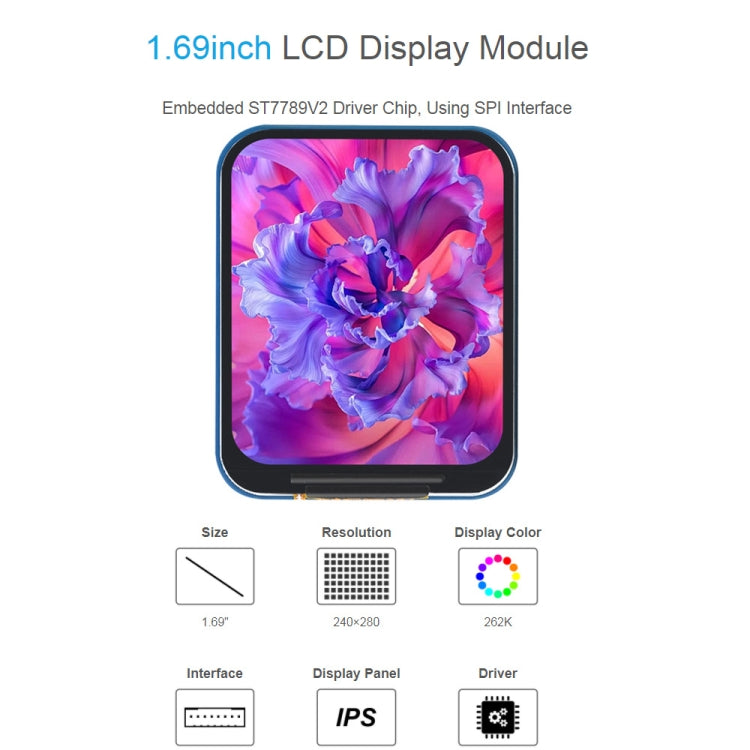

1. 1.69-inch LCD expansion board with built-in ST7789V2 driver chip
2. 240 × 280 resolution, 262K color, can clearly display color pictures

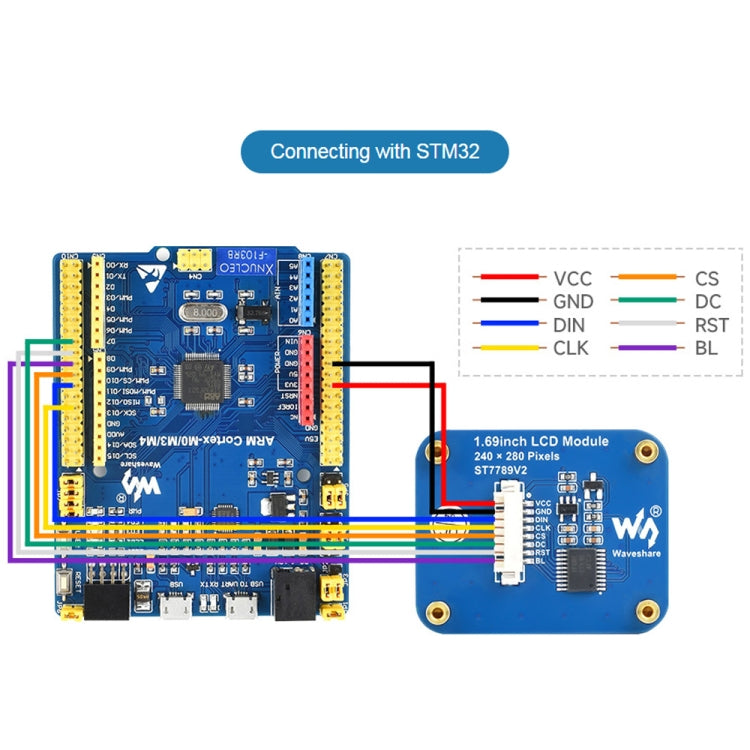

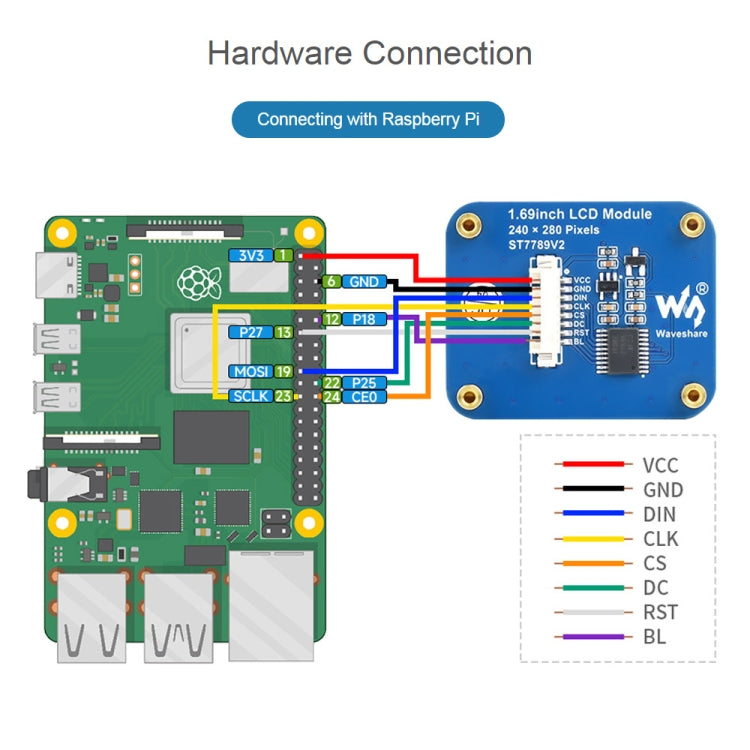

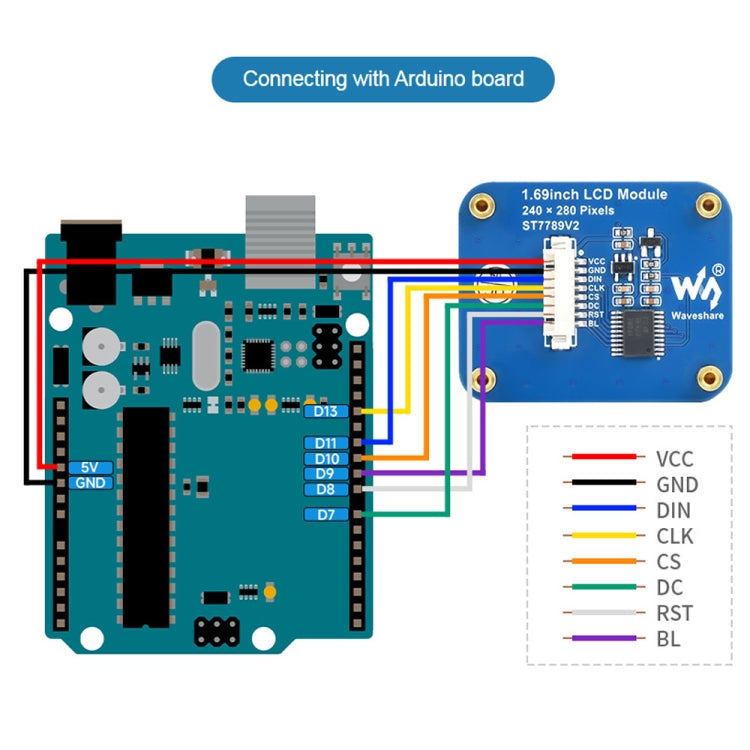

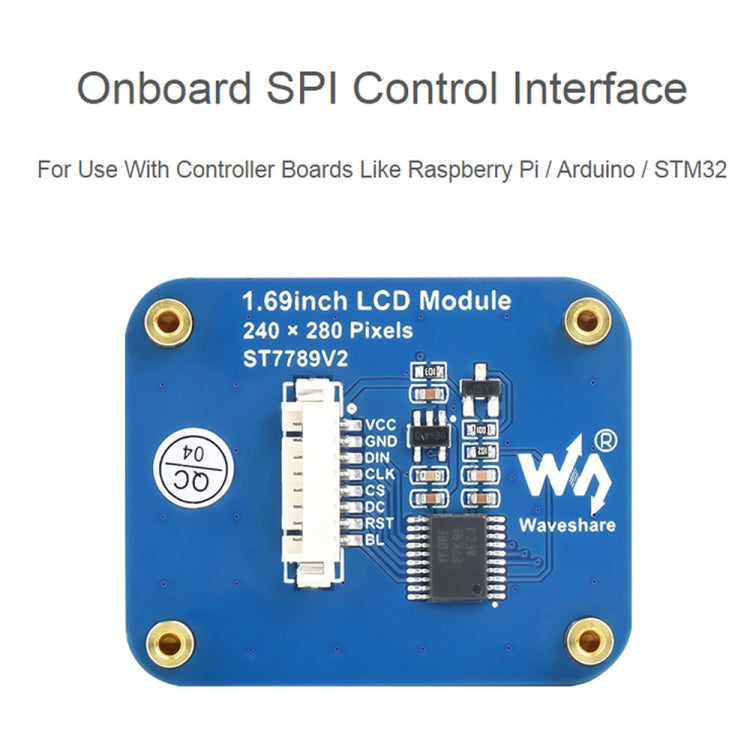

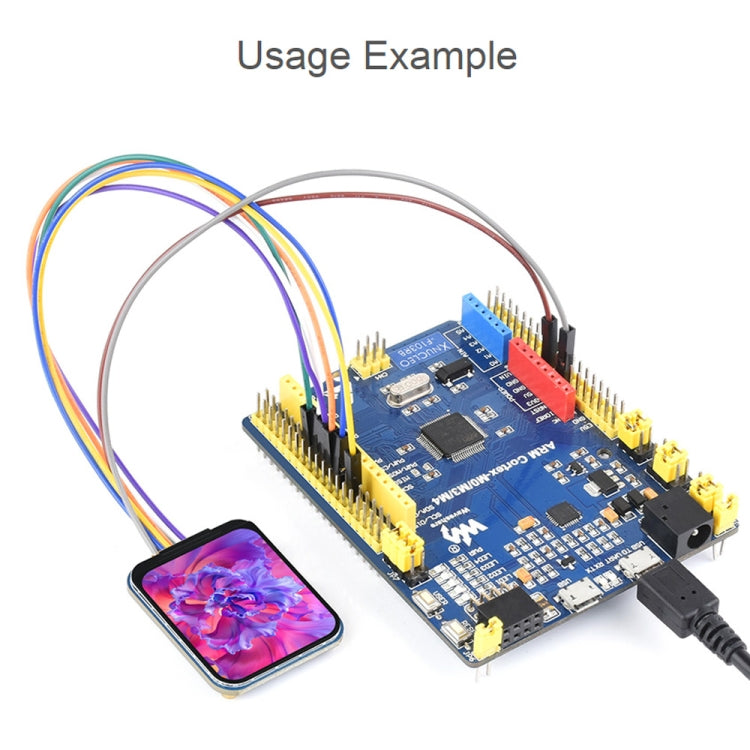

3. Use SPI control to ensure that too many interface pin resources are not occupied, and can be connected to main control boards such as Raspberry Pi / Arduino / STM32

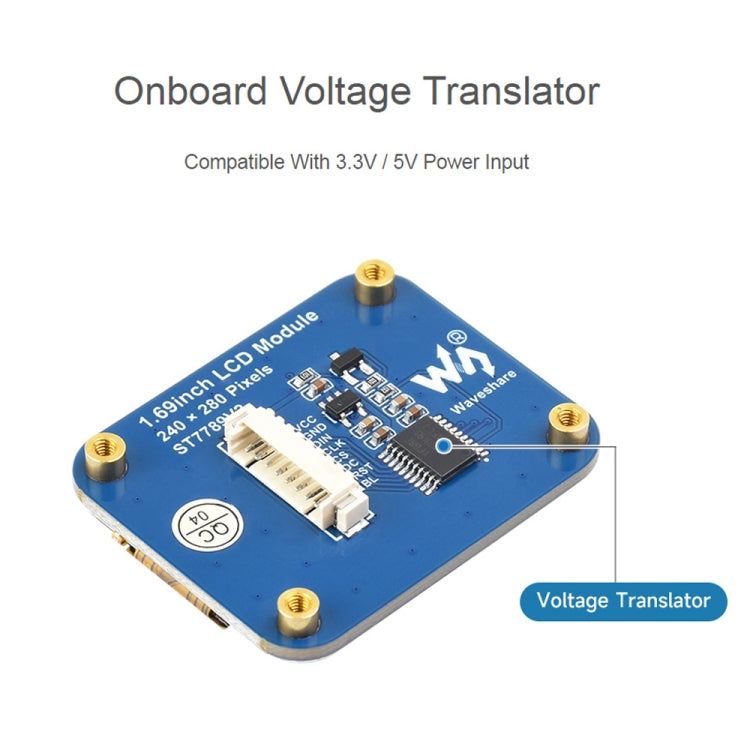

4. Onboard level conversion chip, compatible with 3.3V / 5V power input
5. Provide complete supporting information manuals (sample programs such as Raspberry Pi / Arduino / STM32)
Parameter:
1. Working voltage: 3.3V / 5V
2. Resolution: 240 × 280 pixels
3. Communication interface: 4-wire SPI

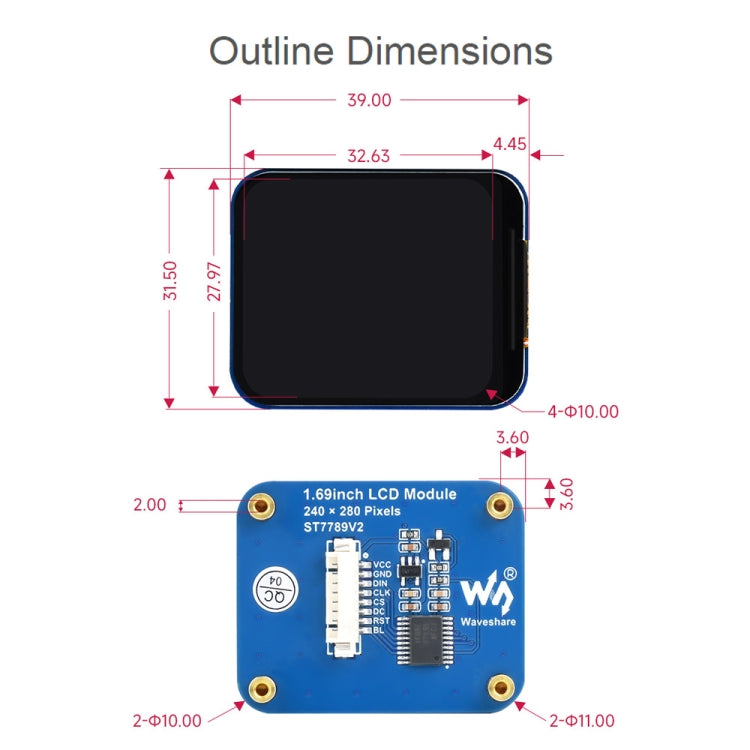

4. Display size: 27.97 × 32.63mm
5. Display panel: IPS
6. Pixel size: 0.11655 × 0.11655mm
7. Control chip: ST7789V2
8. Product size: 31.50 × 39.00mm
Packing list:
-1.69 inch LCD module × 1
-GH1.25 8 PIN cable 20cm × 1
