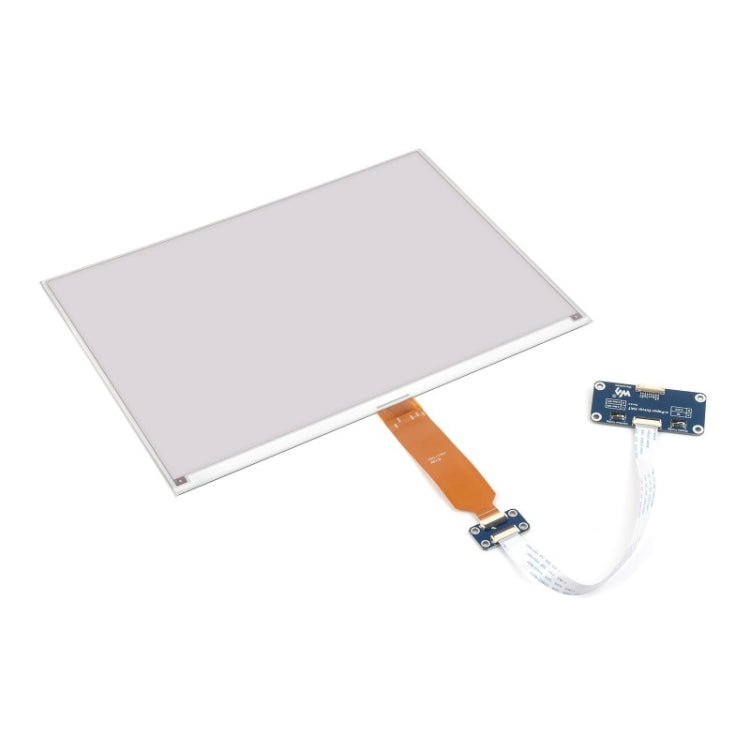

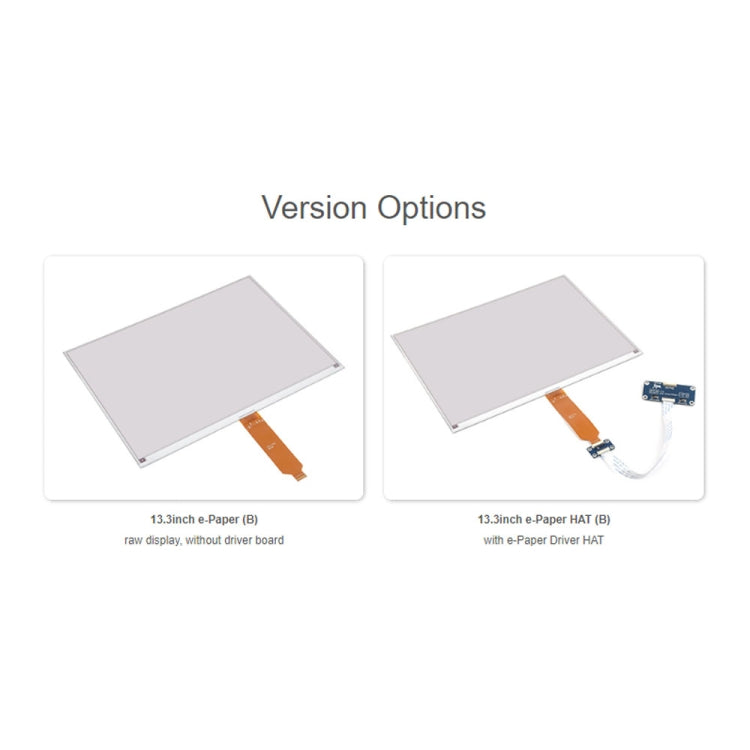

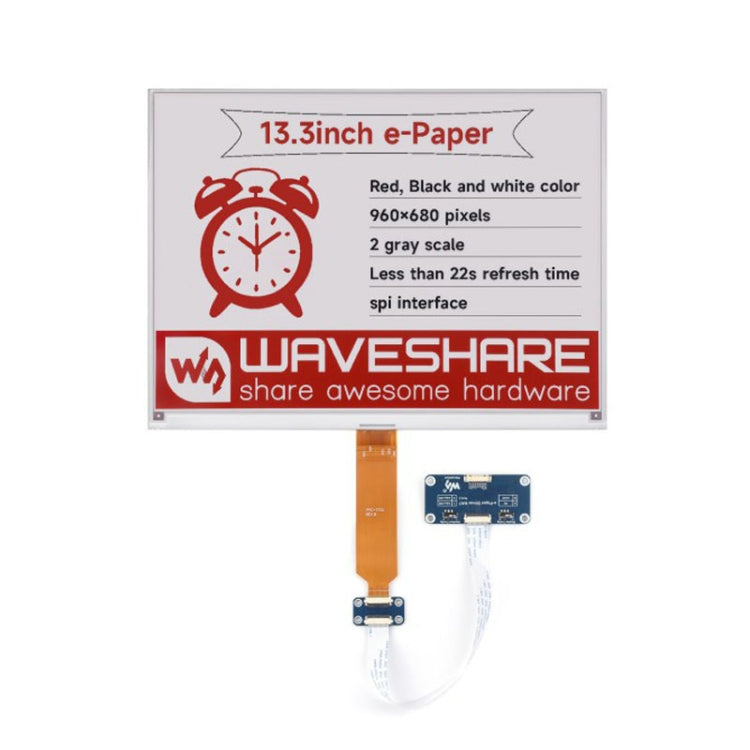

Waveshare 13.3inch 960×680 Pixels SPI Communication E-Ink Display, Spec: Module Version

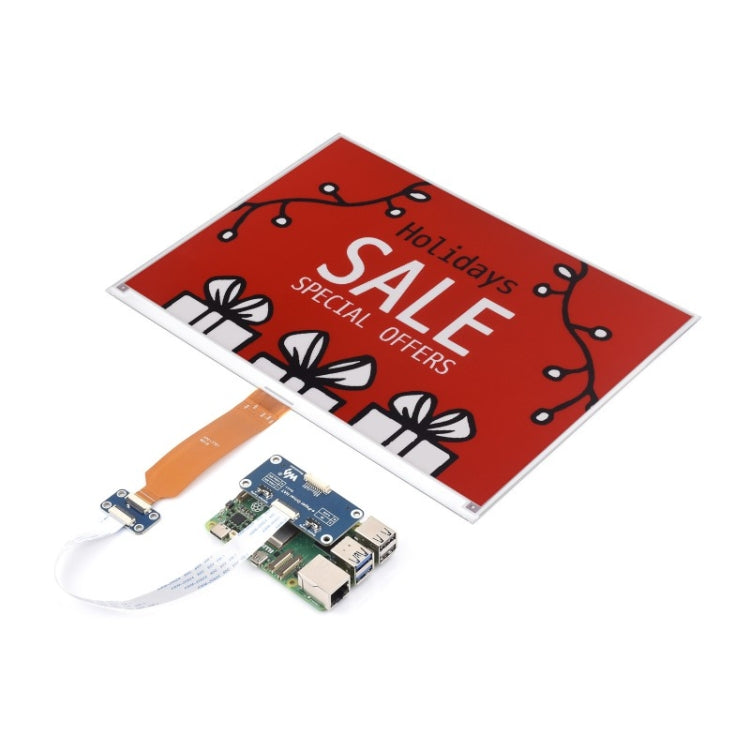

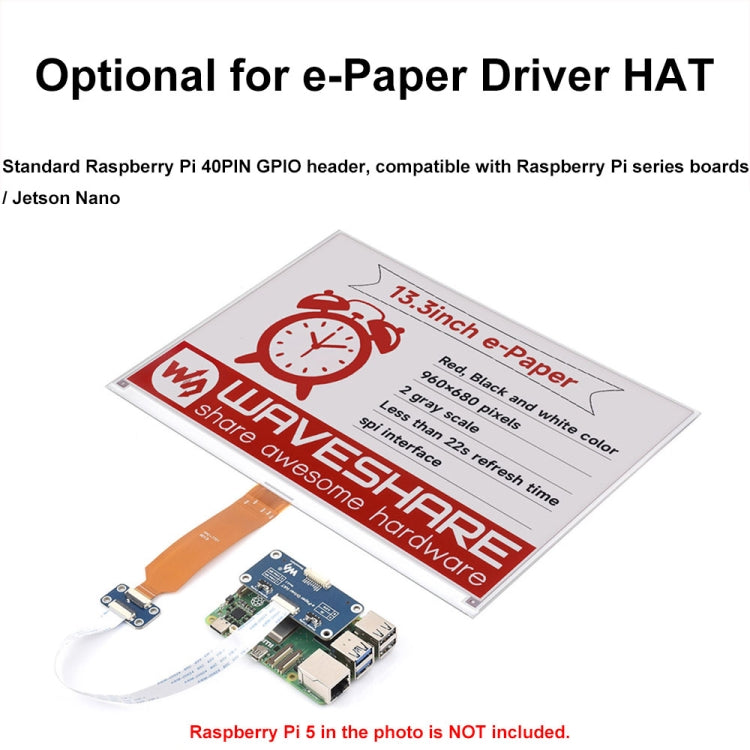

1. Based on Raspberry Pi4 OPIN GPIO interface design, suitable for Raspberry Pi series motherboards, Jetson Nano, RDKX3

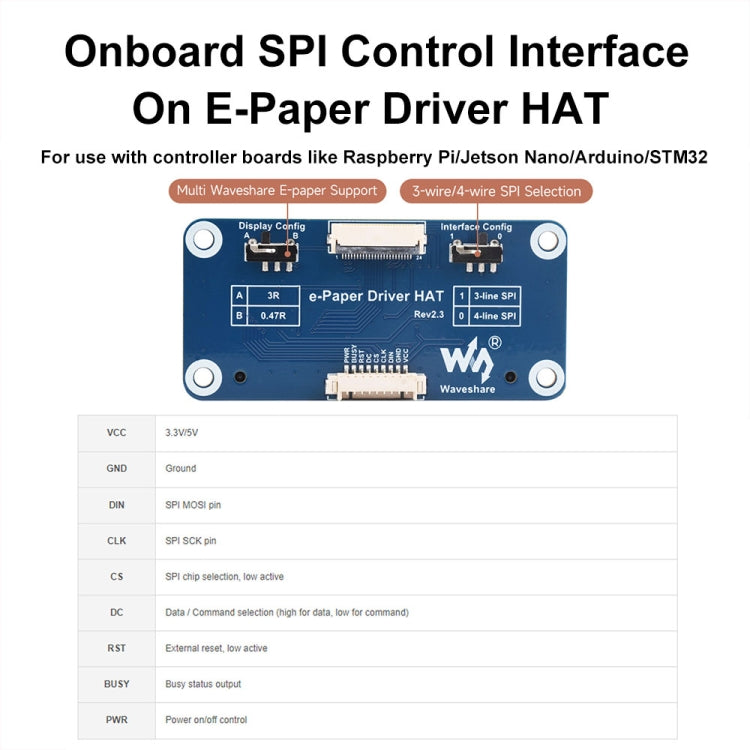

2. Reserved SPI control interface, can be connected to Raspberry Pi/Jetson Nano/RDK X3/Arduino/STM32 and other main control boards
3. Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
4. Module version working voltage: 3.3V/5V
5. Communication interface: 3-vire SPI, 4-wire SPI

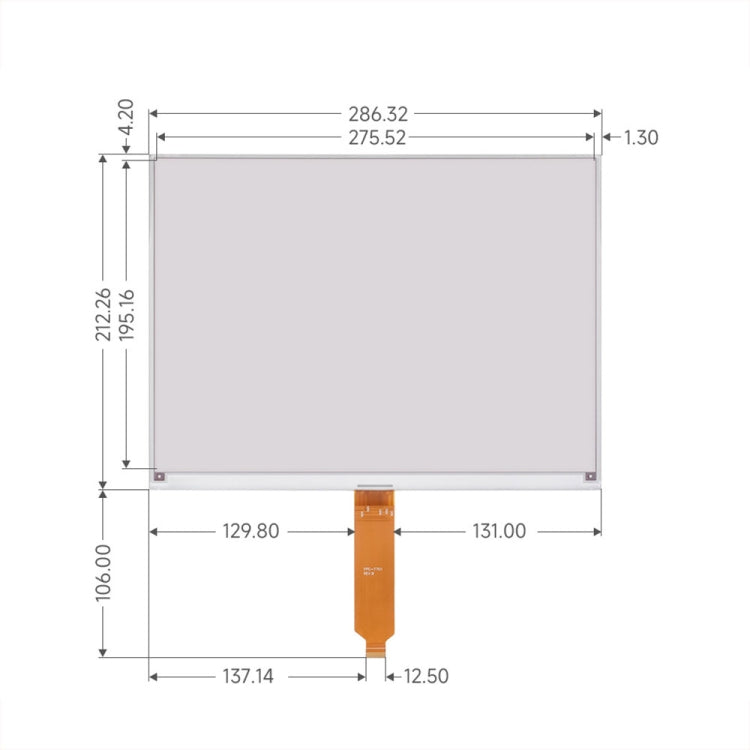

6. Screen size: 286.32 x 212.26 x 1.20mm
7. Display size: 275.52 x 195.16mm
8. Dot pitch: 0.287 x 0.287mm
9. Resolution: 960 x 680 pixels
10. Display color: red, black, white
11. Grayscale level: 2
12. Partial refresh: 2.9s
13. Global refresh: 22s
14. Refresh power consumption: 75mW
15. Sleep current: less than 0.01uA (close to 0)
16. Viewing angle: greater than 170 degrees
17. Application areas: for display applications such as shelf labels and industrial instruments
18. Weight: 164 grams

Packing list:
-Display x 1
-Driver board x 1
-Connecting wire x 1
-Copper column package x 1
