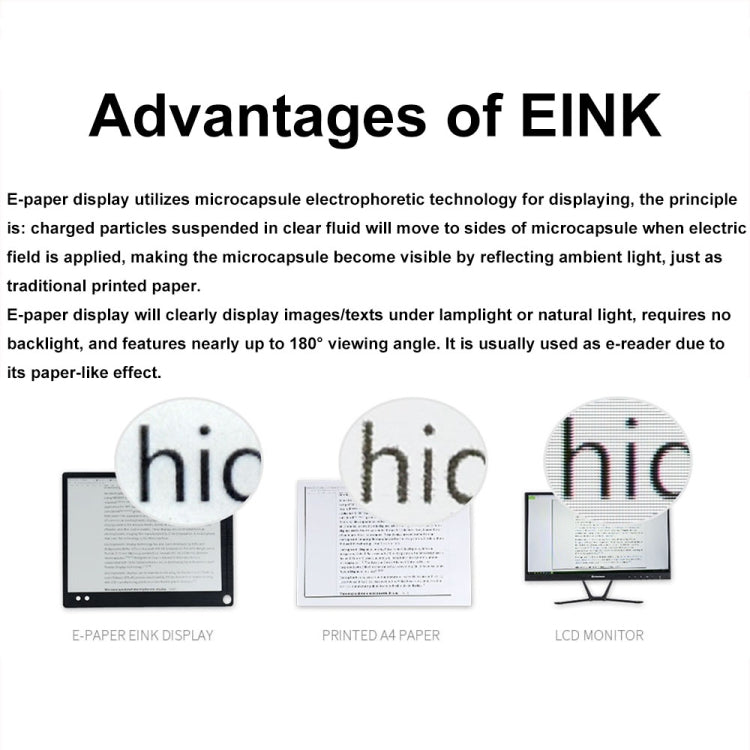

1. No backlight is required, and the display content of the last screen can be maintained for a long time when the power is off
2. The power consumption is very low, and basically only consumes power when refreshing

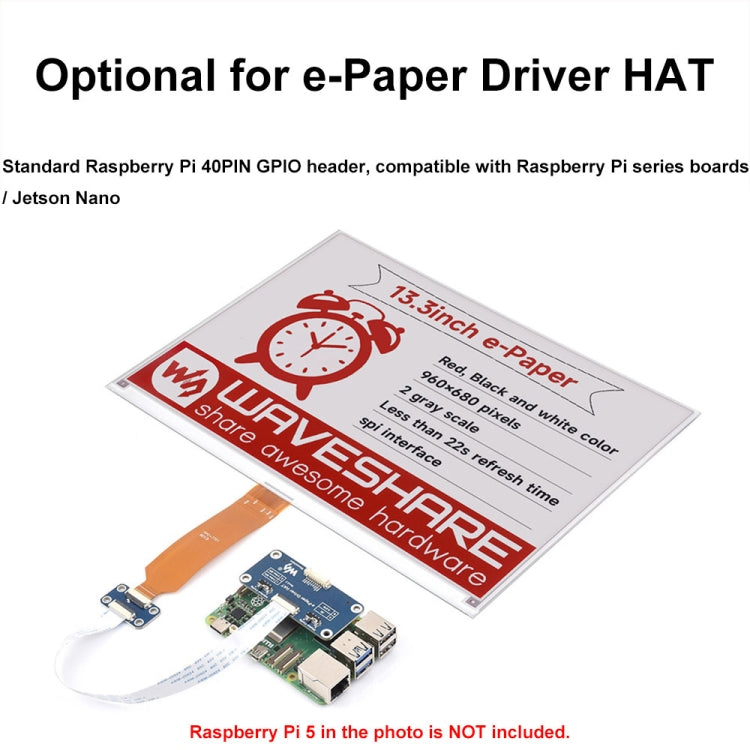

3. Provide a complete supporting data manual (driver board schematic, Raspberry Pi/Jetson Nano/RDKX3/Arduino/STM32 and other sample programs)

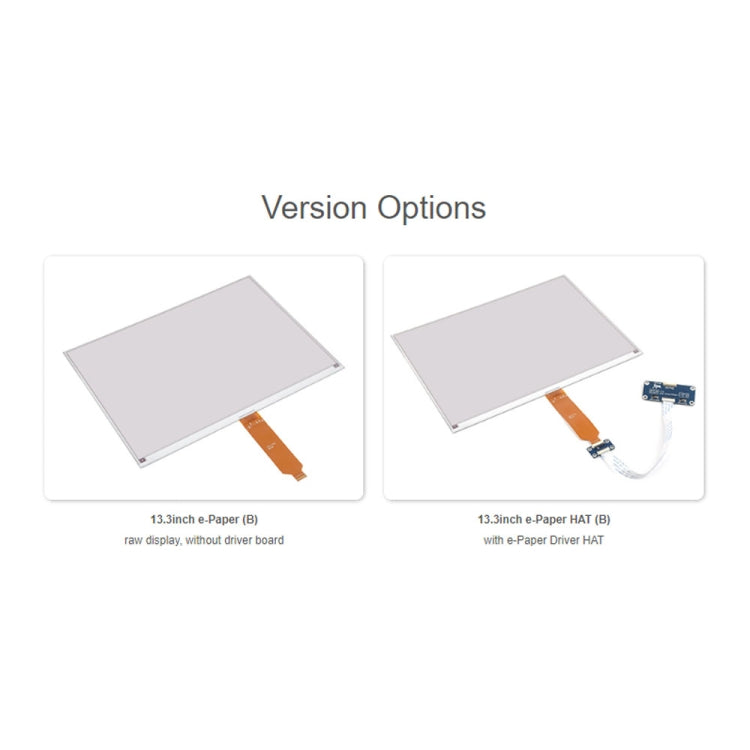

4. Bare screen version working voltage: 3.3V

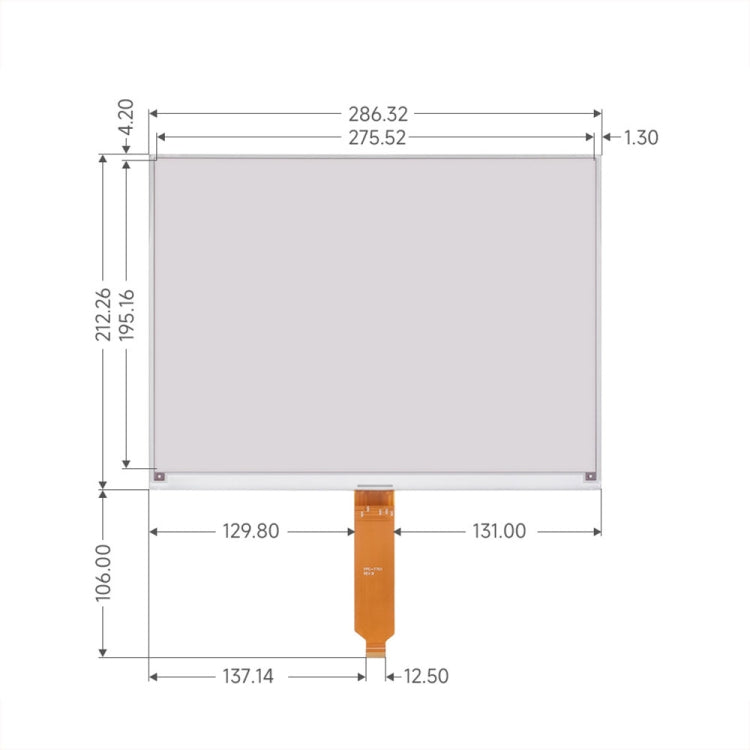

5. Screen size: 286.32 x 212.26 x 1.20mm
6. Display size: 275.52 x 195.16mm
7. Dot pitch: 0.287 x 0.287mm
8. Resolution: 960 x 680 pixels
9. Display color: red, black, white
10. Grayscale level: 2
11. Local refresh: 2.9s
12. Global refresh: 22s
13. Refresh power consumption: 75mW
14. Sleep current: less than 0.01 microamperes (close to 0)
15. Viewing angle: greater than 170 degrees

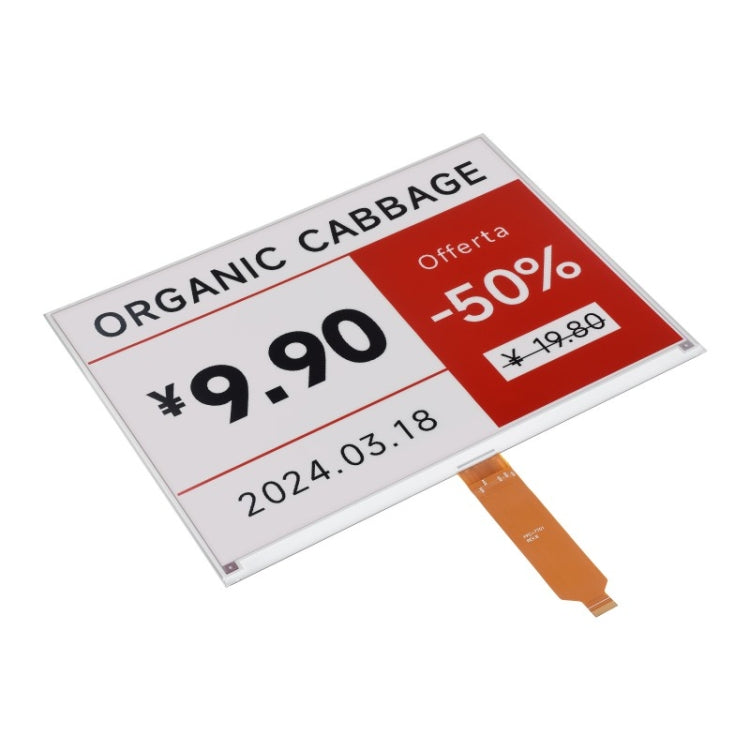

16. Application areas: for display applications such as shelf labels and industrial instruments
17. Weight: 164 grams
Packing list:
-Display x 1
