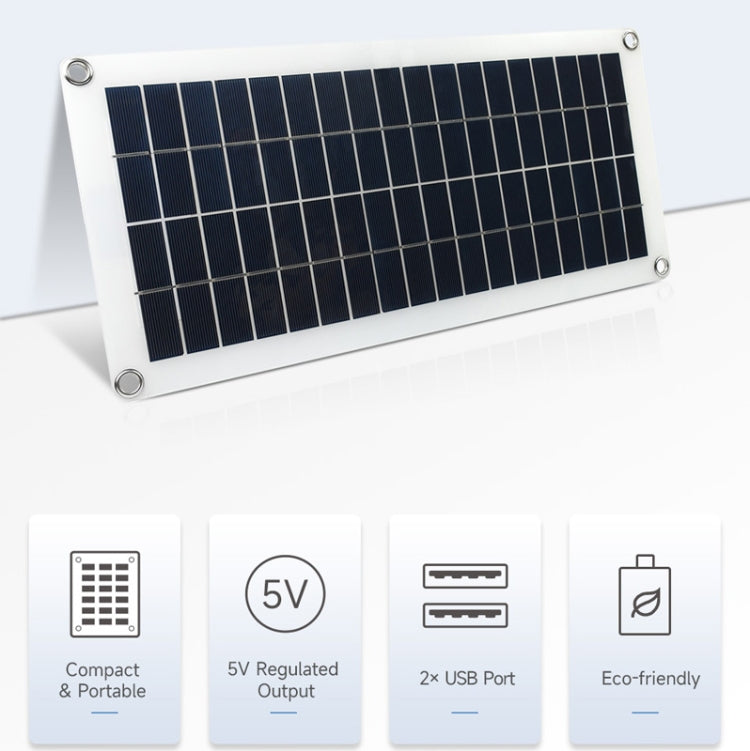

1. Using semi-flexible polysilicon solar panels, light and portable, easy to use outdoors

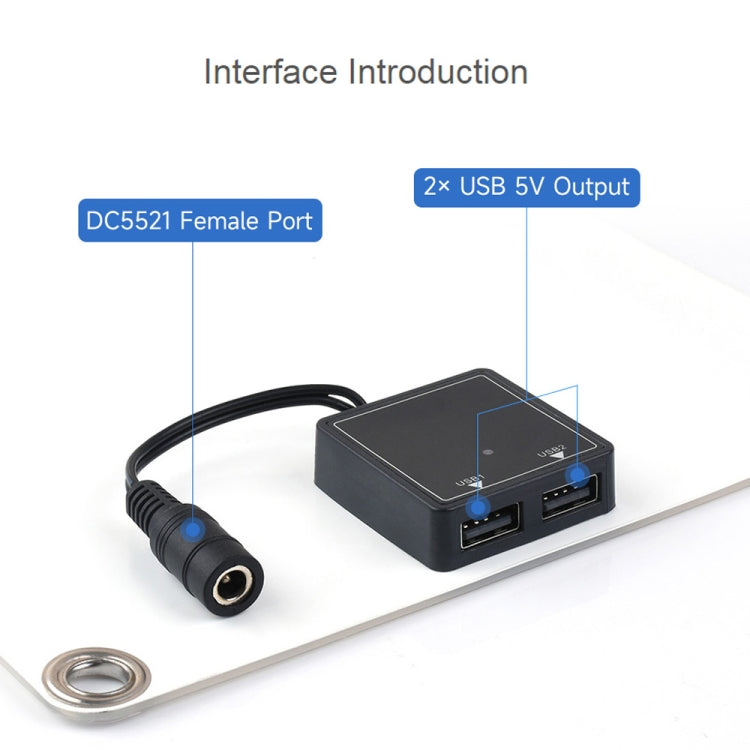

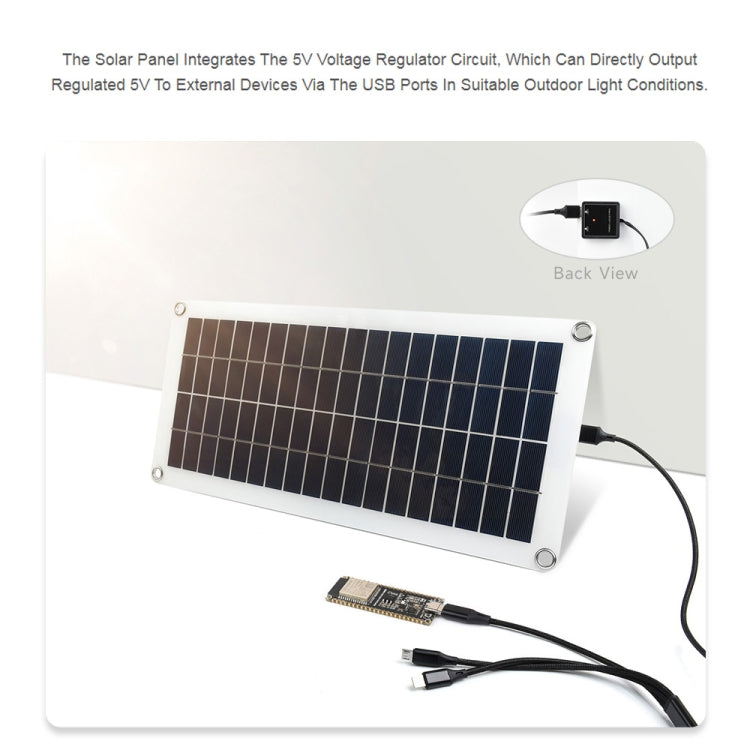

2. Integrate 5V voltage stabilizing circuit, and lead out 2 USB ports, which can be powered by external 5V devices through USB, with working indicator light

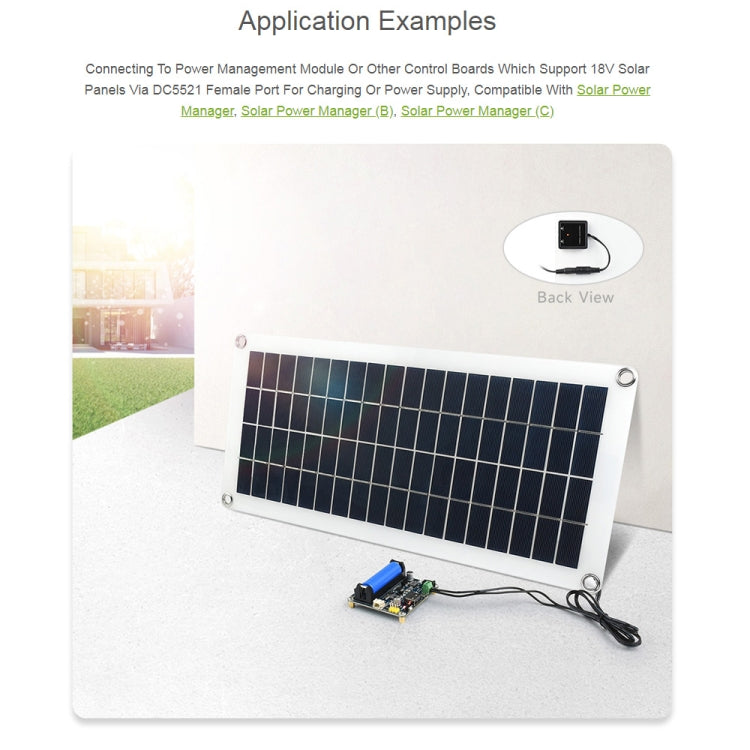

3. Reserve the DC5521 power interface, which can be used to connect to a power management module or controller that supports 18V solar panels
4. Comes with a variety of accessories and adapter cables for easy use
Parameter:
1. Solar cells: polysilicon
2. Surface material: semi-flexible laminate (not overbending)
3. Solar panel power: 10W
4. Output interface:
DC5521 female port
- The solar panel is not converted, and the power supply interface is directly output
- Working voltage: 18V +/-5%
- Working current: 600mA +/- 5% (Max)
- Open circuit voltage: 21.6V +/- 5%
Dual USB 5V ports:
- After the solar panel passes through the 5V voltage regulator circuit, the output power supply interface
- Working voltage: 5V (sufficient power and stable 5V output only if the sun is well illuminated; if there is no sunlight or the light is weak, the output voltage and power are insufficient, so it is not suitable for use)
- Output current: 1.5A (voltage regulator circuit can support 5V/3A output, but limited to -solar panel power, actual use of light and loss, 2-way total output up to 1.5A)

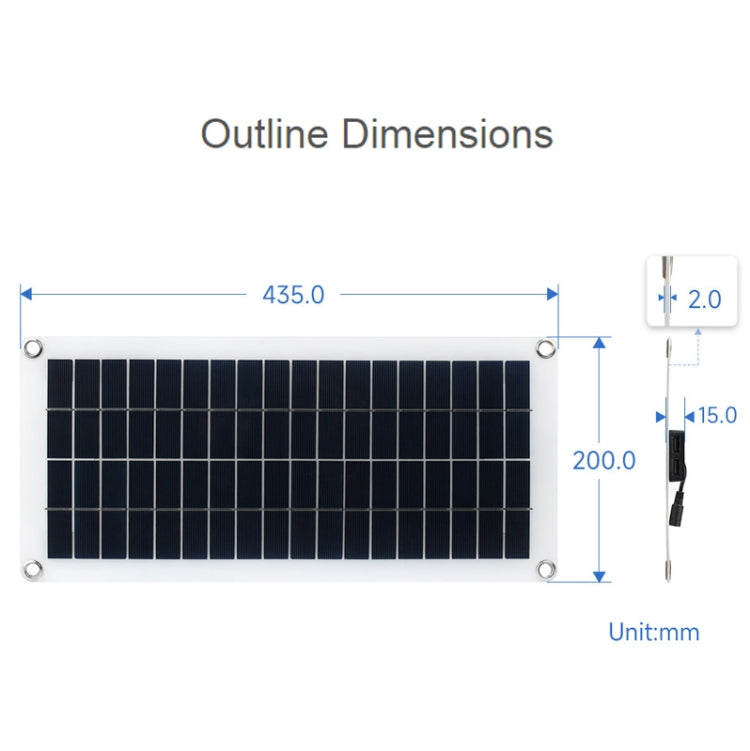

5. Product size: 435 × 200mm
Note: The above parameters are tested under standard conditions (1000W/m2 radiation intensity, 25 degrees Celsius temperature, AM1.5 air quality)
