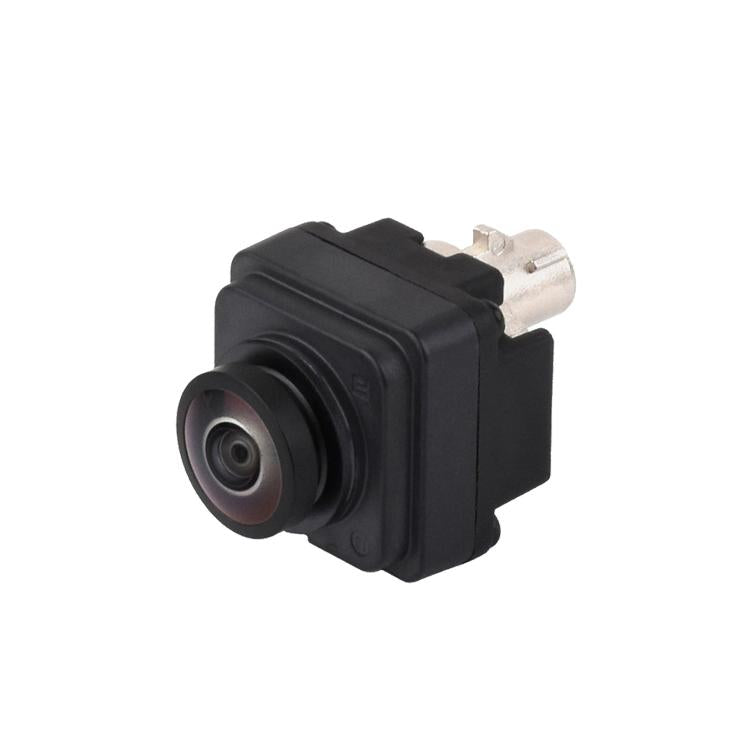

1. The GMSL-1MP-Camera-A camera module adopts a 1MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96701 GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.
Specifications:
1. Sensor:
--Model: 1.3MP RGGB
--Resolution: 1280 × 960
--CMOS Size: 1/3.55 inch
--Pixel Size: 3.0 μm × 3.0 μm
2. Lens: Field of View: 196-degree (H) × 151-degree (V)
3. ISP: Built-in
4. Frame Rate: 1280 × 960 at 30 fps
5. Output Format: YUV422 (8-bit)
6. Serializer:
--Model: MAXIM MAX96701
--I2C Address: 0x80 (8-bit address)

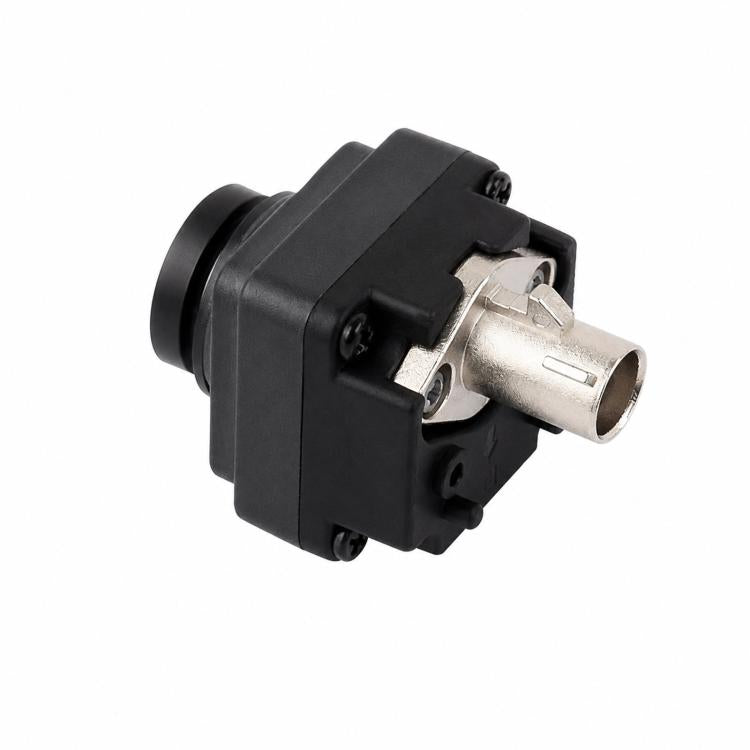

7. Camera Interface: TE Fakra (C Code)
8. Operating Voltage: 9 ~ 12V PoC
9. Operating Current: Less than 150 mA at 12V
10. Operating Temperature: -40 ~ 85 degrees Celsius
11. Protection Rating: IP67
