1. Working voltage: 3.3V/5V
2. Interface: 3-wire SPI, 4-wire SPI
3. Gray scale: 2
4. Full refresh time: 321
5. Refresh power: about 57mW

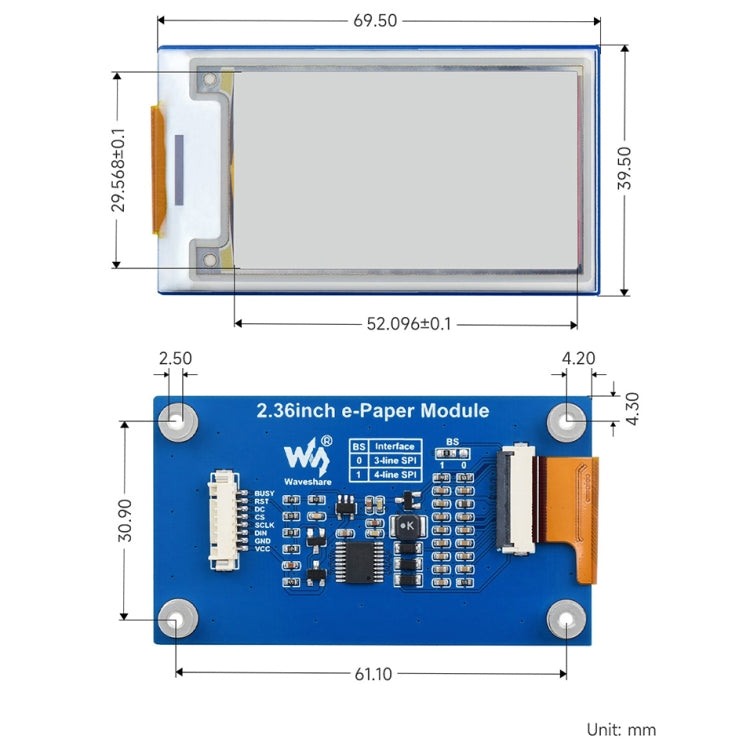

6. Dot pitch: 0.176 × 0.176mm
7. Standby current: about 0.01uA

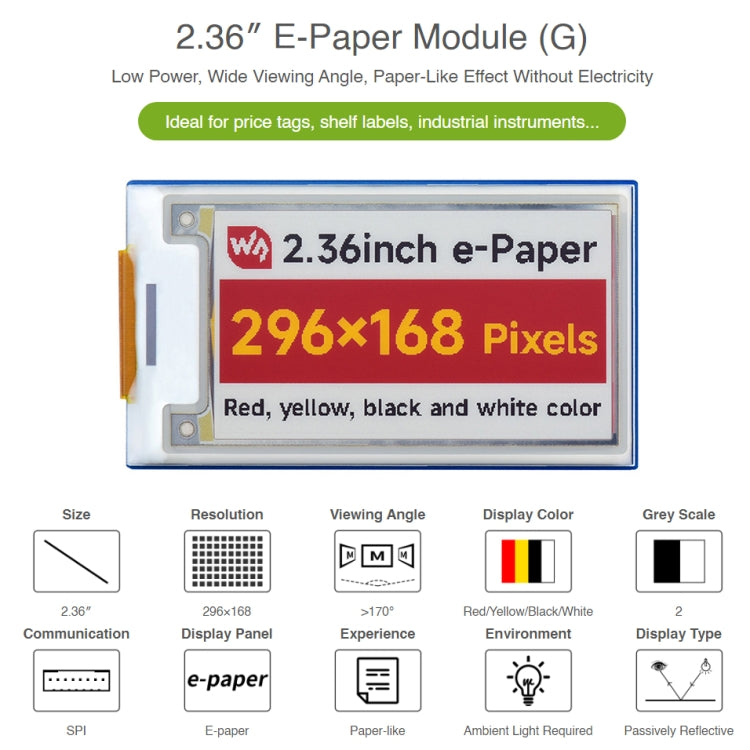

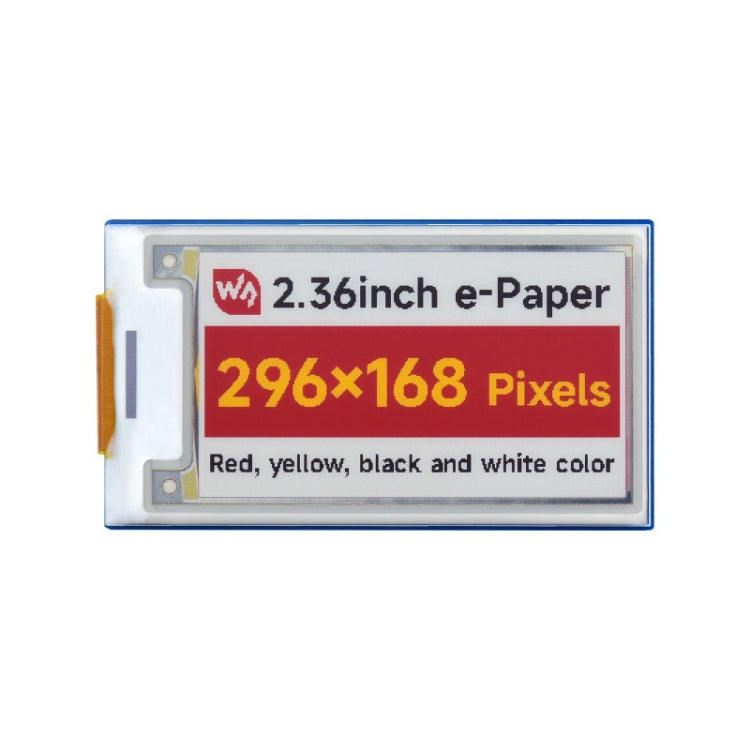

8. Resolution: 296×168 pixels
9. Without backlight, the last content can be displayed for a long time even if the power is cut off.
10. Ultra-low power consumption, basically only need to refresh.

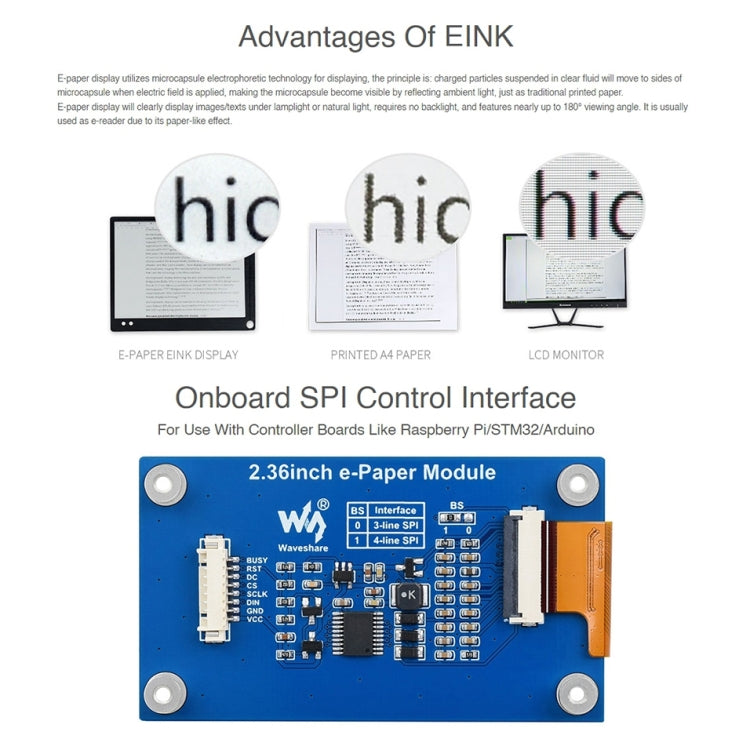

11. SPI interface for connecting Raspberry Pi / Jetson Nano / Arduino / STM32 and other controller boards.

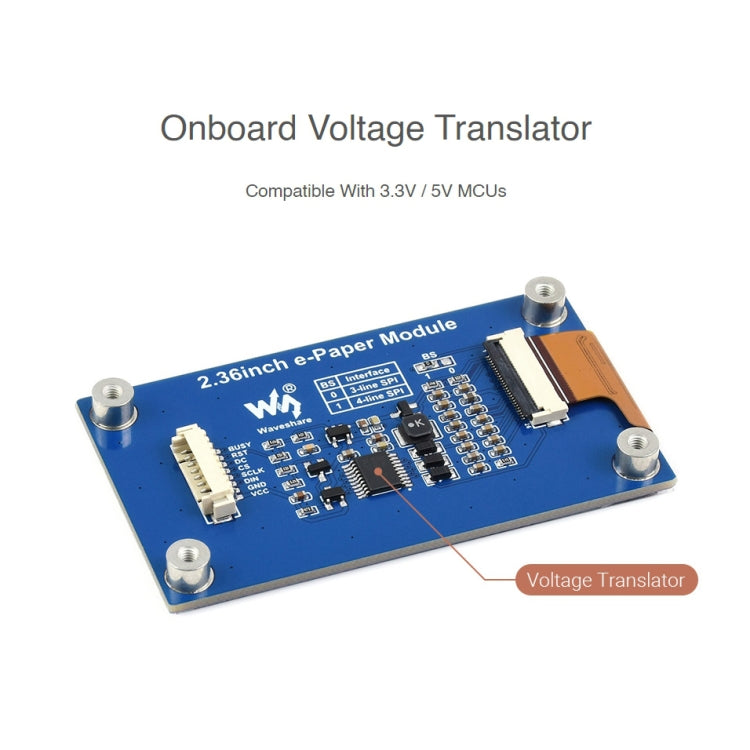

12. Onboard voltage converter, compatible with 3.3V/5V MC.
