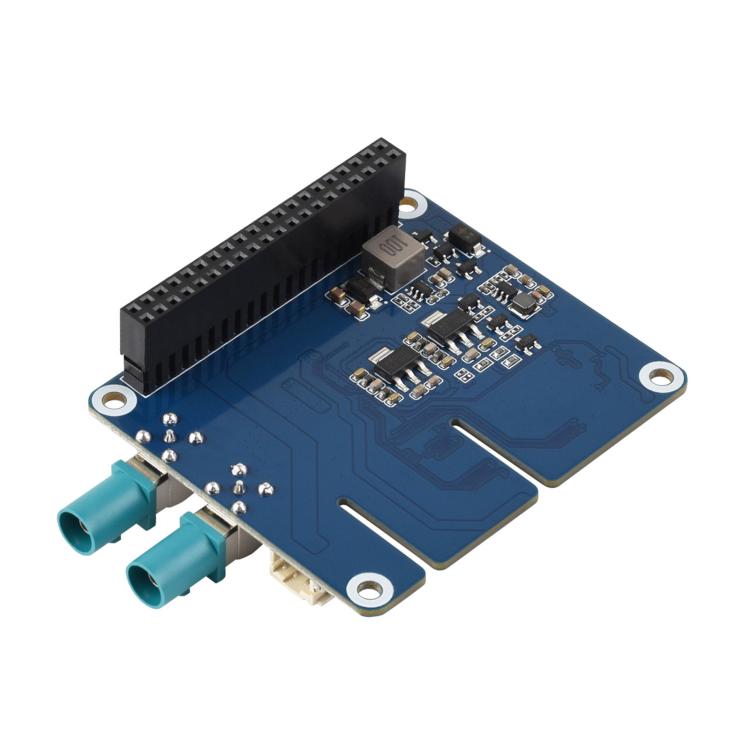

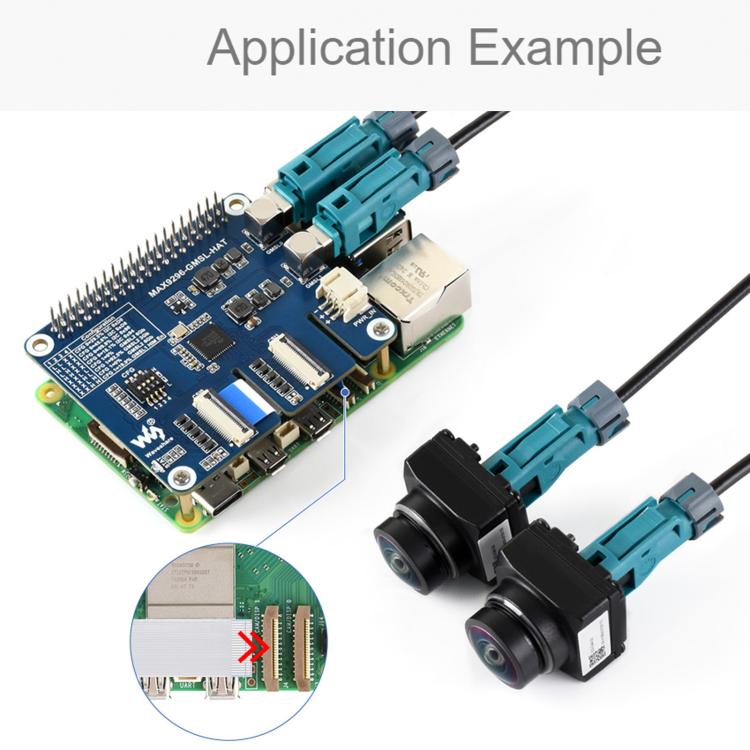

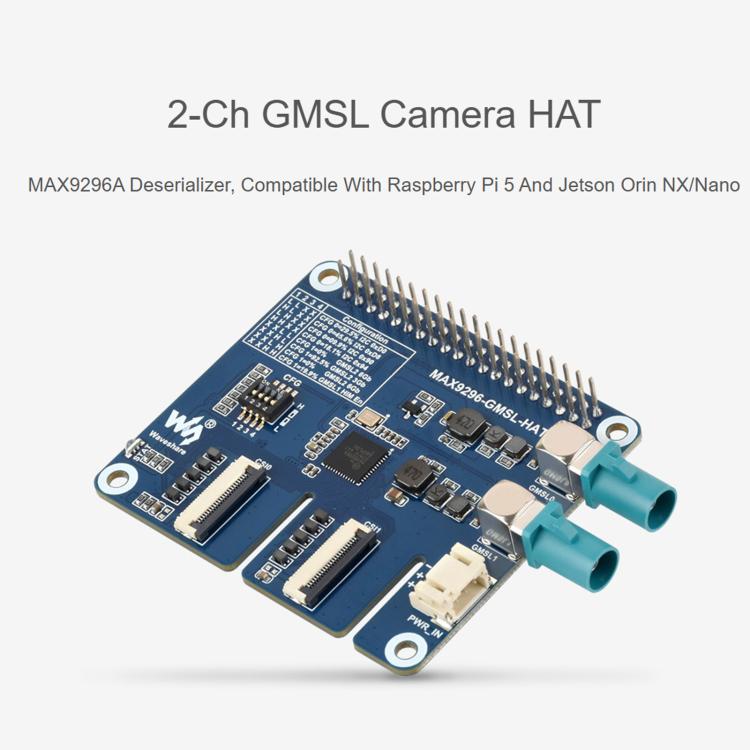

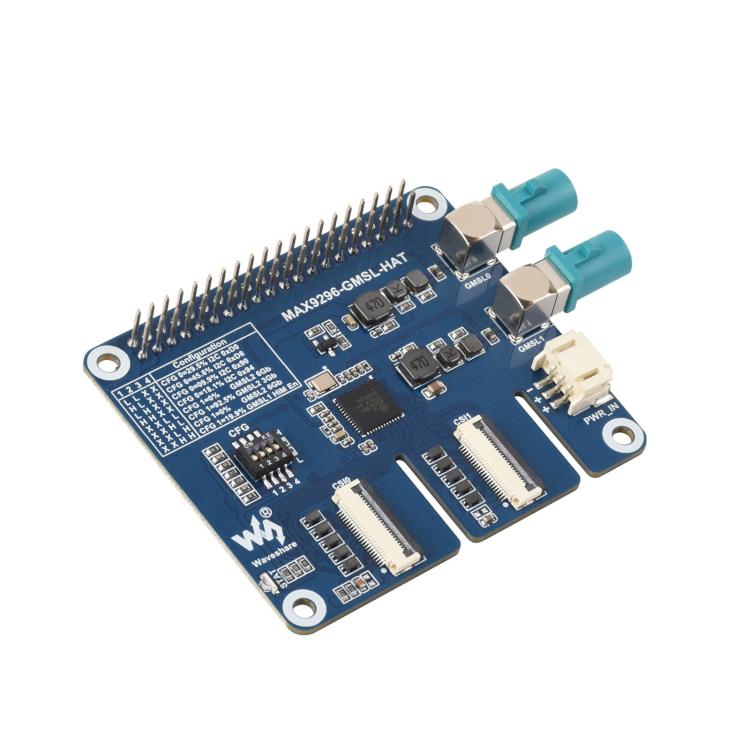

1. The MAX9296-GMSL-HAT is a GMSL camera HAT that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.
Specifications:

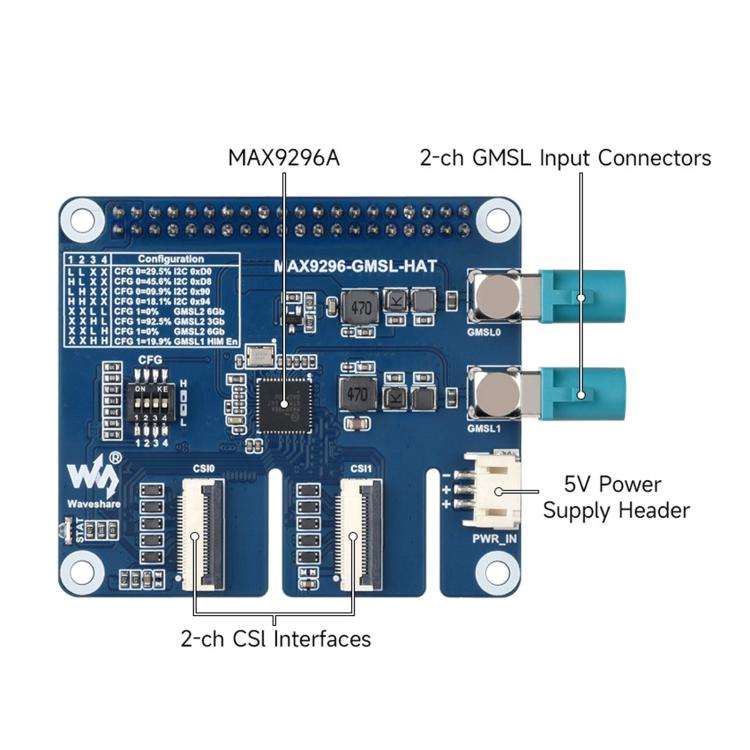

1. Deserializer: MAXIM (ADI) MAX9296A
2. Supported Mainboards: Compatible with Raspberry Pi 5 / Jetson Orin NX / Nano development kits
3. Supported Serializer Models: MAX9295, MAX96717, MAX96705, etc.
4. GMSL Input: 2 x GMSL2 (GMSL1 compatible) cameras
5. Input Interface: 2 × MATE_AX FAKRA Z connectors
6. Output Interface: 22-pin CSI interface
7. Supported GMSL Camera Models: ISX031, etc.
8. Power Supply: 5V
