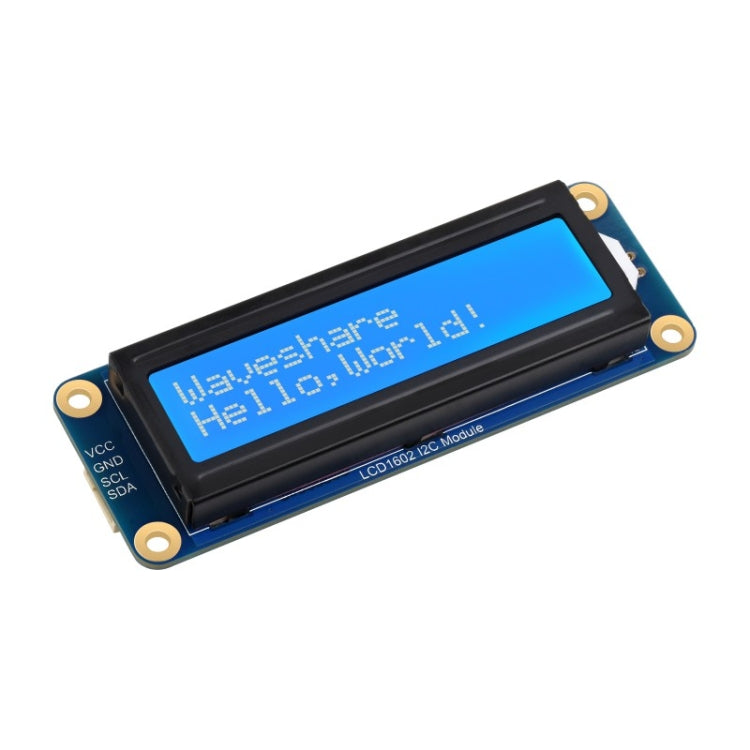

Waveshare 23991 LCD1602 I2C Module, White with Blue Background, 16x2 Characters, 3.3V/5V

Regular price
R 210.82
Sale price
R 210.82
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.


1. VCC: 3.3V - 5V power input
2. GND: ground wire
3. SCL: I2C clock pin
4. SDA: I2C data pin
5. Communication interface: I2C
6. LCD controller: AiP31068
7. Working voltage: 3.3-5V
8. Working temperature: minus 20-70 degrees Celsius
9. Display panel: Character LCD

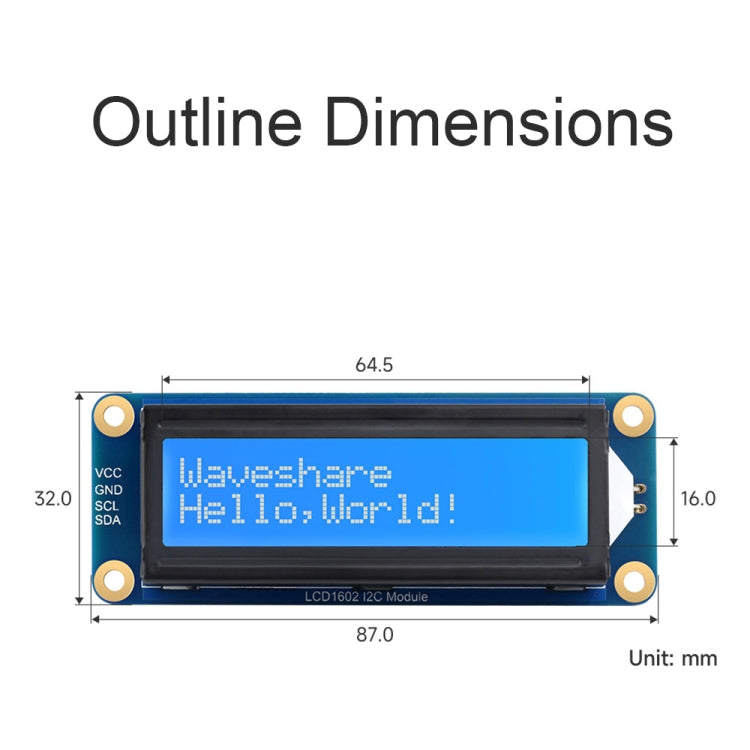

10. Display size: 64.5 x 16.0mm
11. Characters: 16 x 2
12. Product size: 87.0 x 32.0 x 13.0mm
13. Built-in character LCD panel LCD1602
14. I2C control interface, only need two signal pins, saving IO resources
15. Compatible with 3.3V/5V working voltage
16. Comes with online development resources and manuals (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)
