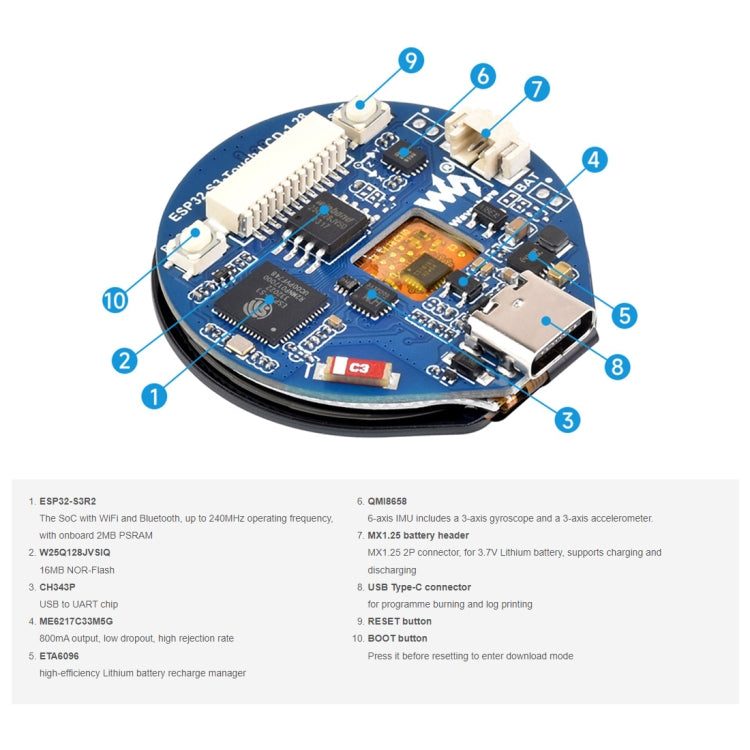

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240 MHz
2. Support 2.4 GHz WiFi (802.11b/g/n) and Bluetooth5 (LE), onboard antenna
3. Built-in 512KB SRAM and 384KB ROM, stacked 2MB PSRAM and external 16MB Flash
4. Adopt Type-C interface, no need to worry about whether to insert it in the right or wrong direction

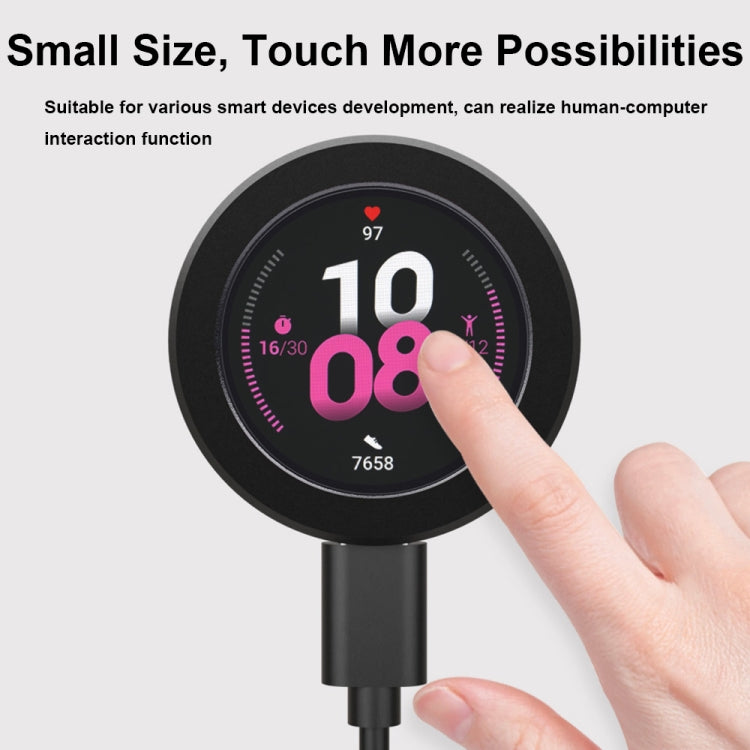

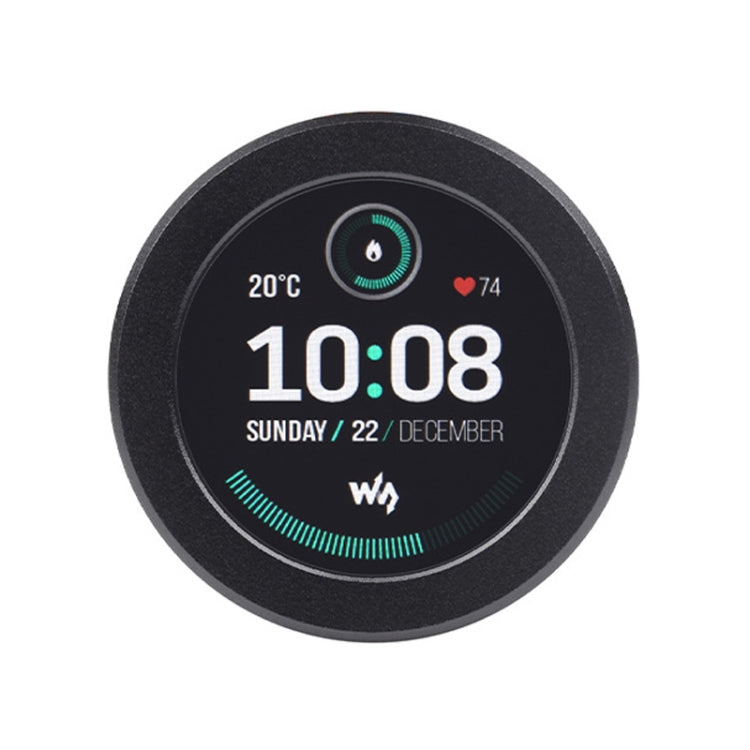

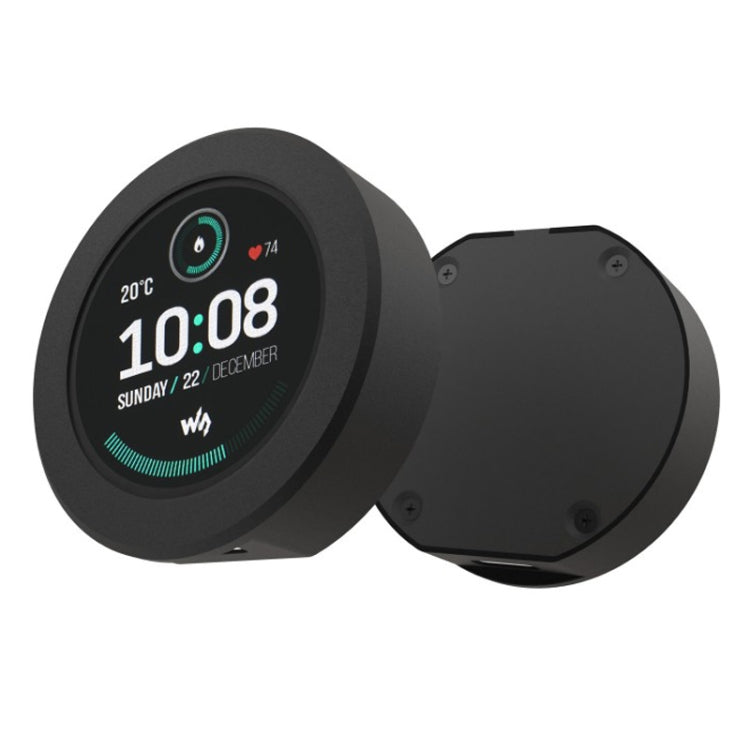

5. Onboard 1.28-inch capacitive touch LCD screen, 240 x 240 resolution, 65K color

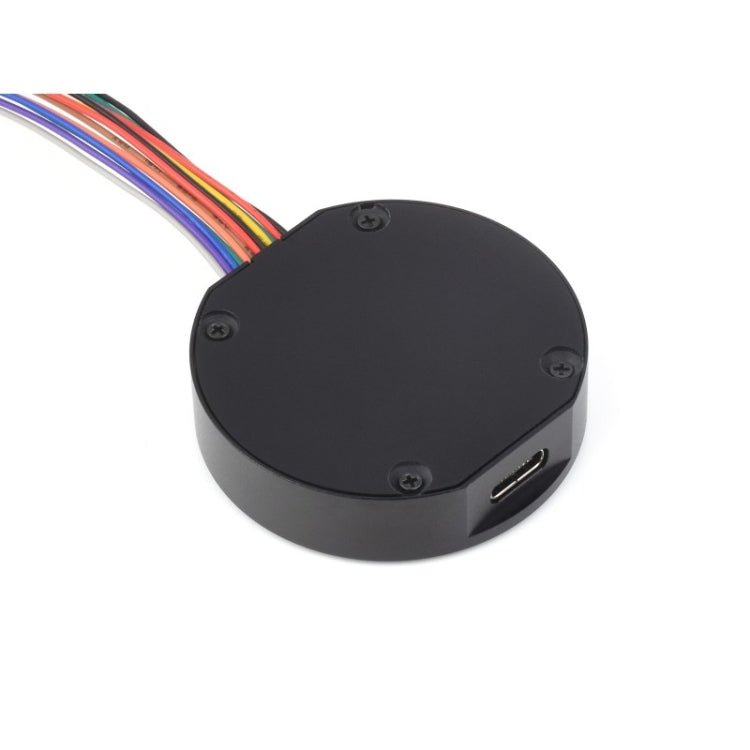

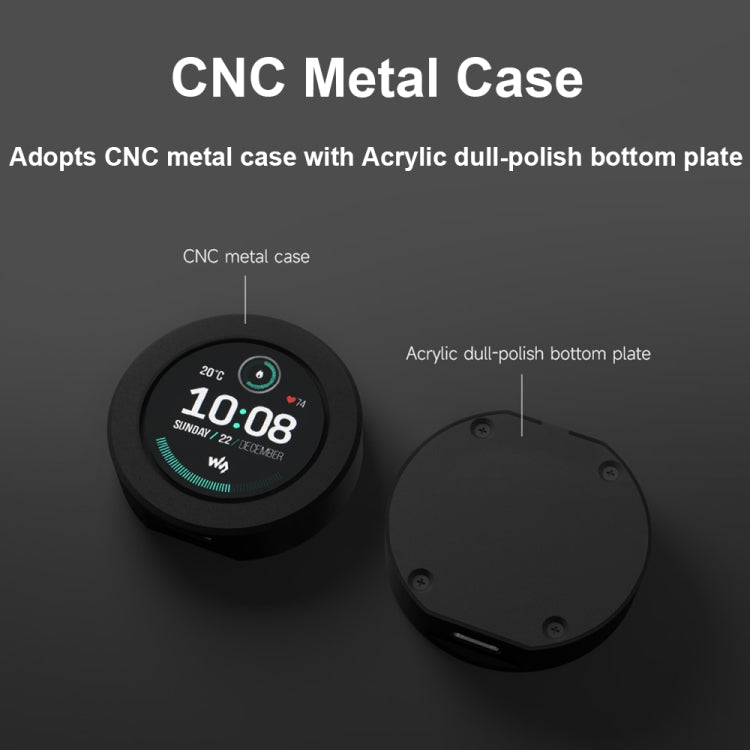

6. The upper shell is made of CNC metal material, and the back is equipped with an acrylic matte base
7. Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture
8. Onboard 3.7V MX1.25 lithium battery charging and discharging interface

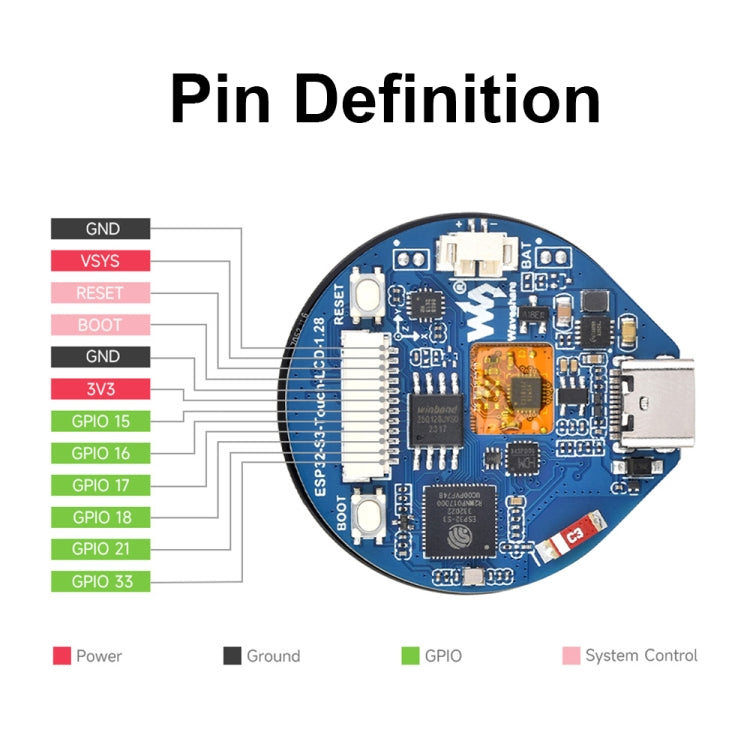

9. Lead out 6 GPIO SH1.0 connector
10. Supports flexible clock, module power individual setting and other precise control to achieve multi-scenario low power consumption mode
11. Integrated USB serial port full-speed controller, GPIO can flexibly configure peripheral functions
12. Product size: 48 x 48 x 12.5mm
