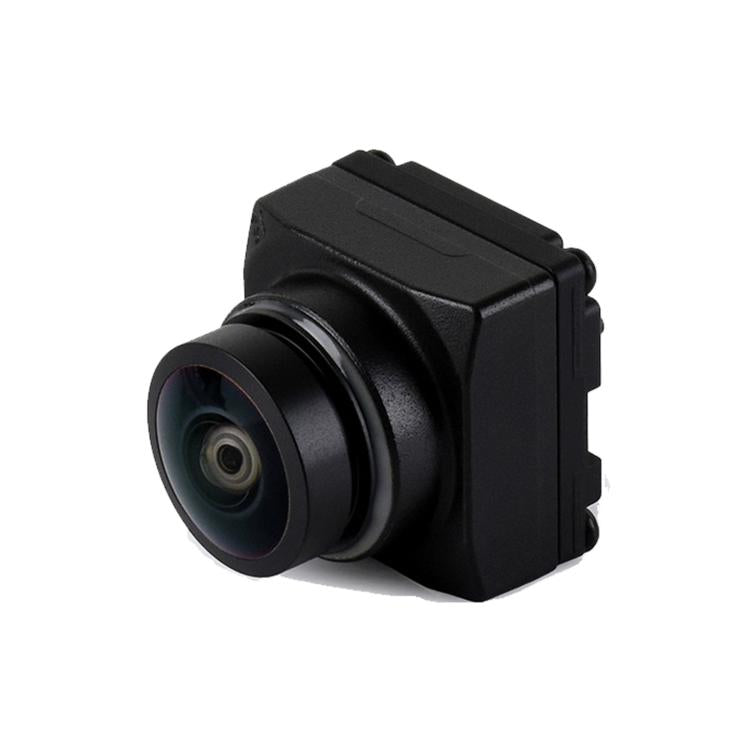

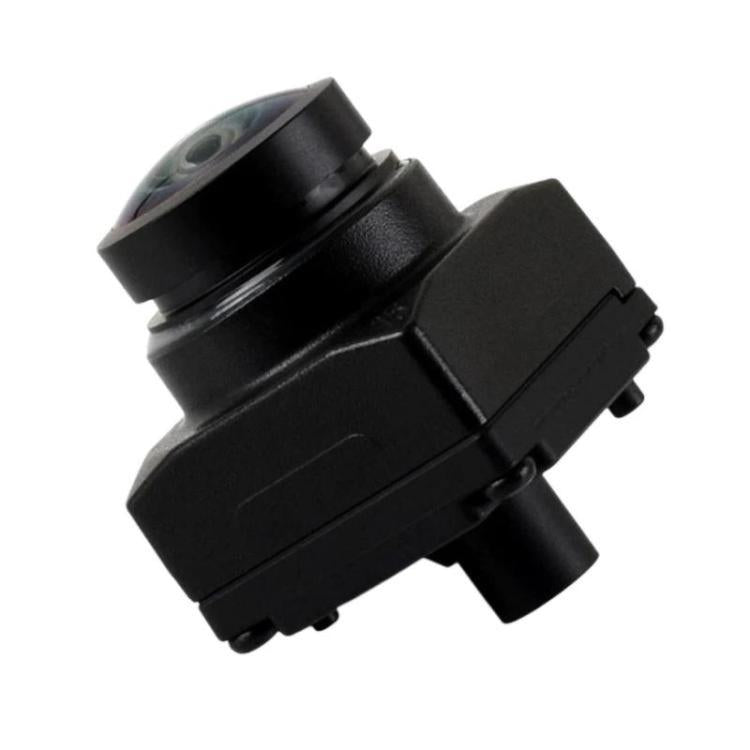

1. The GMSL-2MP-Camera camera module utilizes an automotive-grade 2MP CMOS image sensor, integrates a MAXIM MAX96717F GMSL serializer, and features a built-in professionally tuned Image Signal Processor (ISP) for clear and stable imaging performance. The entire housing achieves an IP67 protection level and comes standard with an AA lens, which undergoes precise focusing and dispensing fixation before leaving the factory, ensuring high reliability for harsh environments such as automotive applications.
Parameters:
Sensor:
1. Model: 2.51MP RGGB
2. Resolution: 1920 x 1080
3. CMOS Size: 1/2.57 inch
4. Pixel Size: 3.0 x 3.0 um
Lens:
1. Field of View (FOV): 118.4 deg (H) x 62.6 deg (V)
2. Aperture (F.No): 2
3. Focal Length (EFL): 3.04 mm
4. Depth of Field (DOF): 0.47 m to infinity (Fixed focus at 1.4 m)
5. Distortion Rate: Less than -92.2%
6. Image Signal Processor (ISP): Built-in
7. Frame Rate: 1920 x 1080 @ 30fps
8. High Dynamic Range (HDR): Supported
9. LED Flicker Mitigation (LFM): Supported
10. Output Format: YUV422 @ 8-bit
11. Serializer:
--Model: MAXIM MAX96717F
--I2C Address: 0x80 (8-bit address)

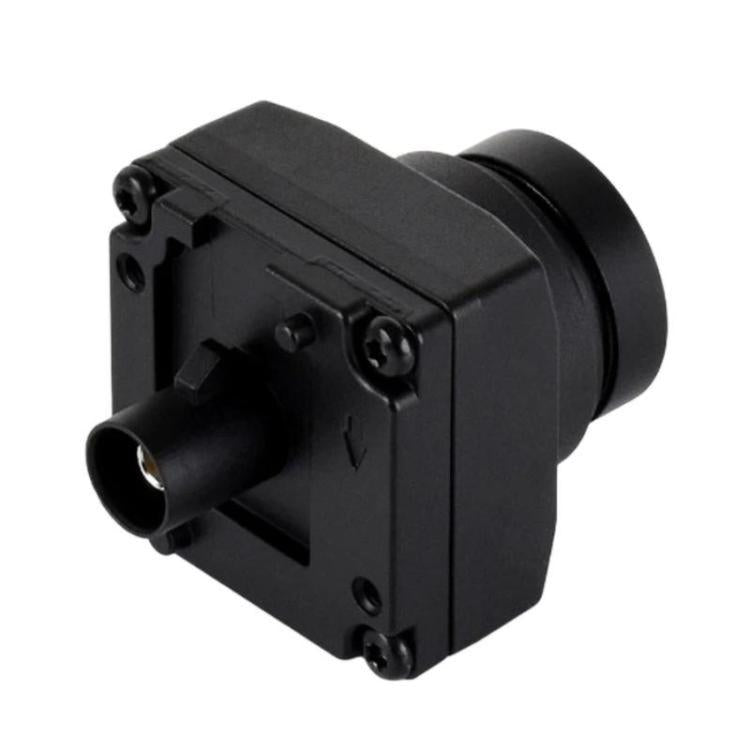

12. Camera Interface: Fakra Z Code
13. Operating Voltage: 9 ~ 12V PoC
14. Operating Current: Less than 200mA @ 12V
15. Operating Temperature: -40 ~ 85 deg C
16. Protection Level: IP67
