1. Operating voltage: bare board version: 3.3V; Module version: 3.3V/5V
2. Communication interface: 3-wire SPI, 4-wire SPI

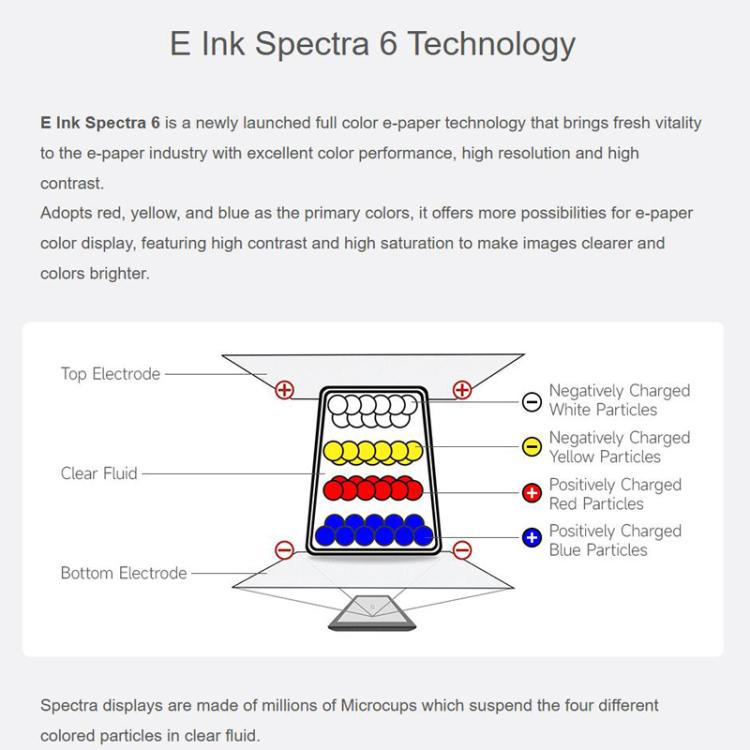

3. Display colors: E6 full color
4. Gray scale levels: 2
5. Global refresh rate: 15s
6. Viewing angle: >170°
7. Refresh power consumption: <100mW
8. Sleep current: <0.01μA (near 0)
9. Resolution: 600 x 400 pixels
10. Display size: 76.2 x 50.8 mm
11. Pixel pitch: 0.127 x 0.127 mm

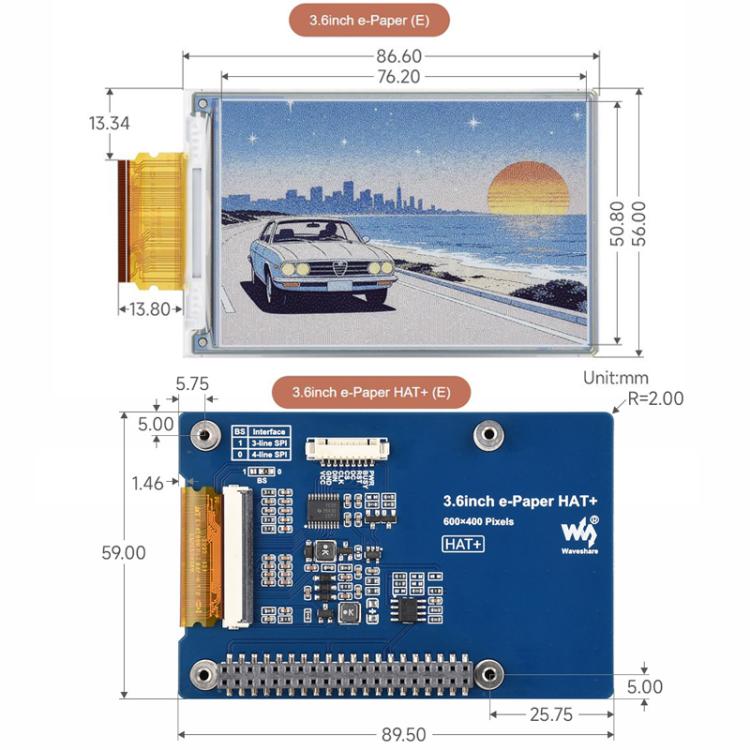

12. Size: bare panel version about 86.6 x 56 x 0.78 mm, module version about 89.5 x 59 mm
Features:
1. No backlight required; retains the last displayed content for an extended period after power loss
2. Extremely low power consumption; power is consumed primarily during refresh cycles
3. Comprehensive supporting documentation provided (driver board schematics, example programs for Raspberry Pi, Jetson Nano, Arduino, STM32, ESP32, etc.)

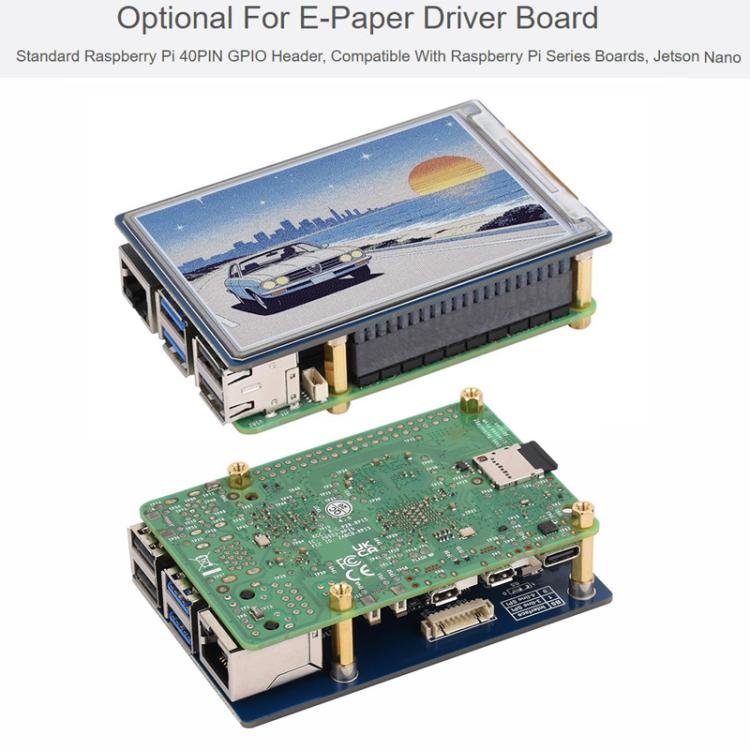

4. The module board is designed based on the Raspberry Pi 40-pin GPIO interface, making it compatible with Raspberry Pi and Jetson Nano
5. The module board adopts the Raspberry Pi HAT+ standard, enhancing the interoperability of expansion boards. This helps developers design and develop faster, use various external devices more easily, and expand the functionality and performance of the Raspberry Pi

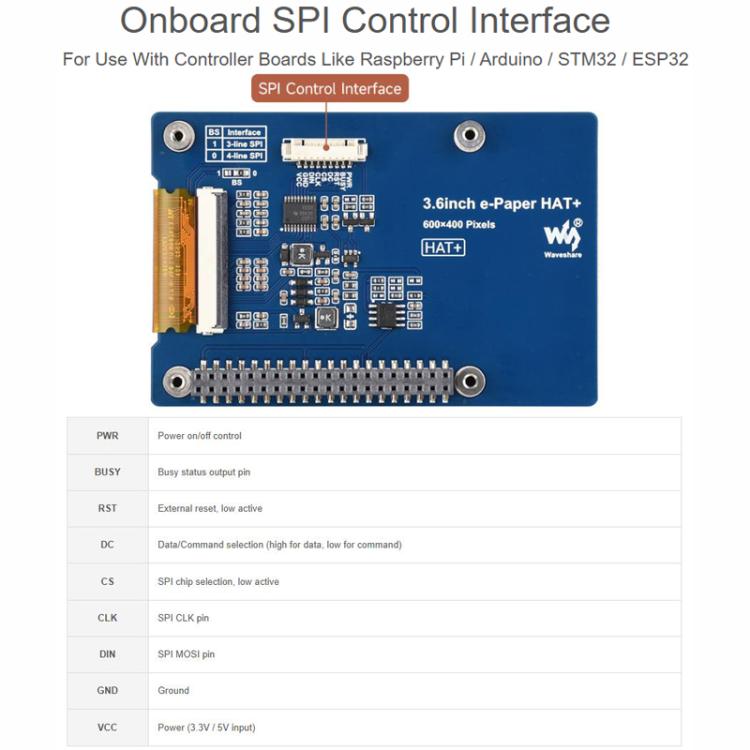

6. The module version includes a reserved SPI communication interface, facilitating connection to host boards such as Raspberry Pi, Arduino, STM32, and ESP32

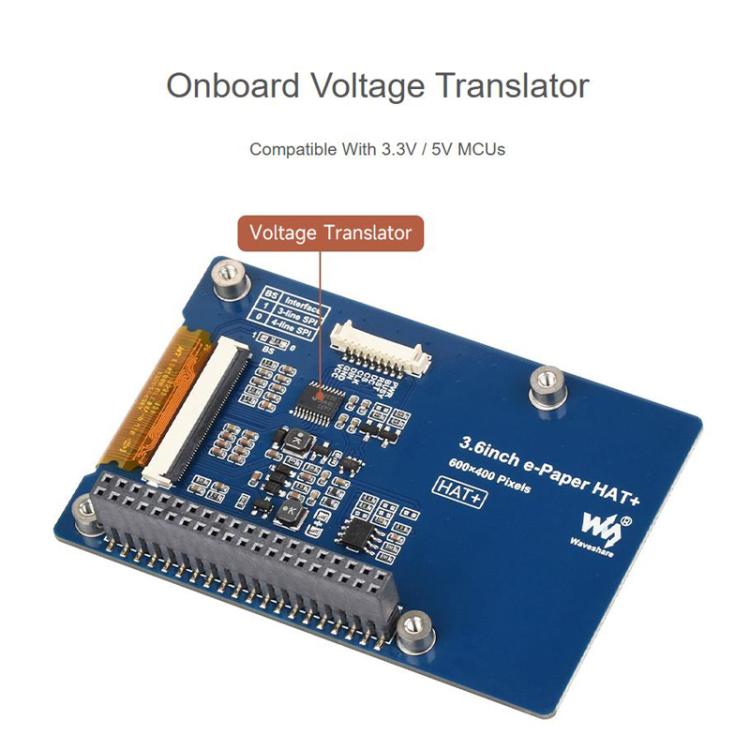

7. The module version features an onboard level-shifting chip, enabling compatibility with both 3.3V and 5V interfaces.
