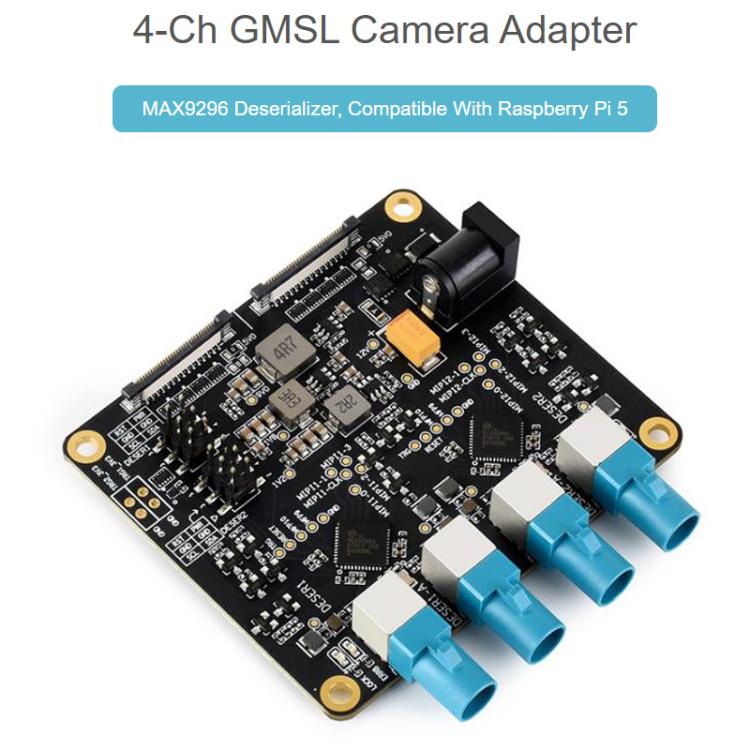

1. Support simultaneous connection of up to four GMSL cameras
2. Support up to 2 x 8M resolution (3840 x 2160) or 4 x 3M resolution (1920 x 1536) video signals
3. Adopt the MAX9296 deserializer solution
4. Support synchronous signal connection of cameras via GPIO

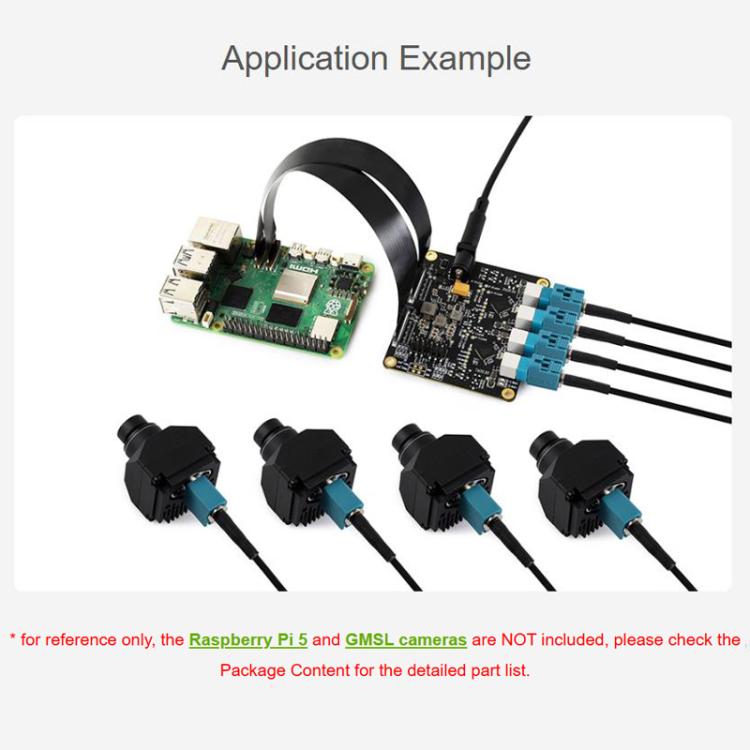

5. Support Raspberry Pi 5 motherboard
Parameters
1. Demultiplexer: MAXIM (ADI) MAX9296
2. Supports master control: Raspberry Pi 5
3. Supports serial converter models: MAX9295, MAX96717 and MAX96705, etc.

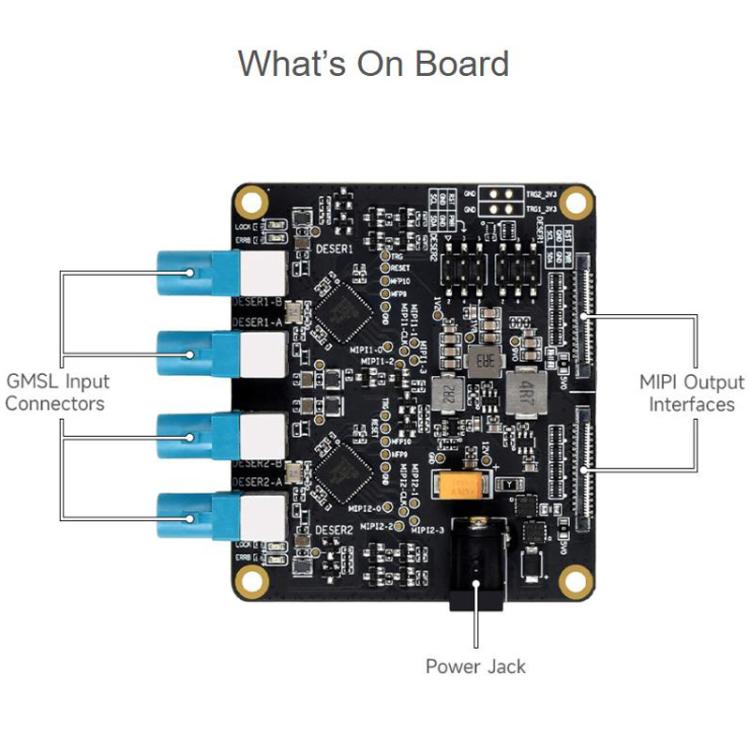

4. Input: GMSL 1/2 (FAKRA Z connector x 4)
5. Output: MIPI CSI (22PIN CSI interface x 2)
6. Supported: GMSL camera models: ISX031, etc.
7. Power input: 12V/1A (5.5 x 2.1mm)
8. Operating temperature: -20°C - 65°C
Packaging list:

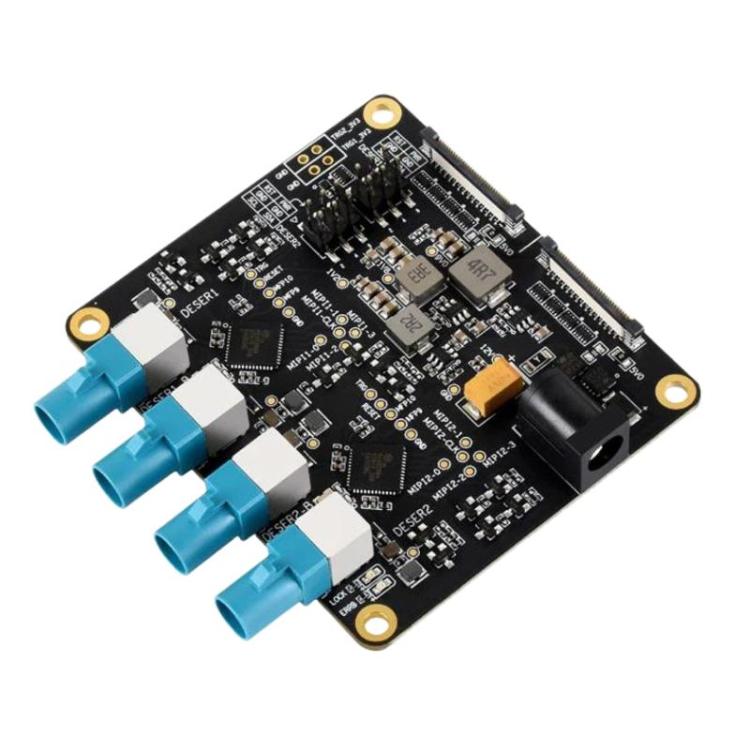

- GMSL-Module-Board-4CH-A x 1
- 22-pin FPC connector x 2
- Power adapter 12V/2A x 1
