1. Utilizing the ESP32-C6-WROOM-1 series module, equipped with a 32-bit RISC-V single-core processor with a clock frequency of up to 160 MHz, and a built-in 16MB Flash memory
2. Integrating Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, featuring superior radio performance

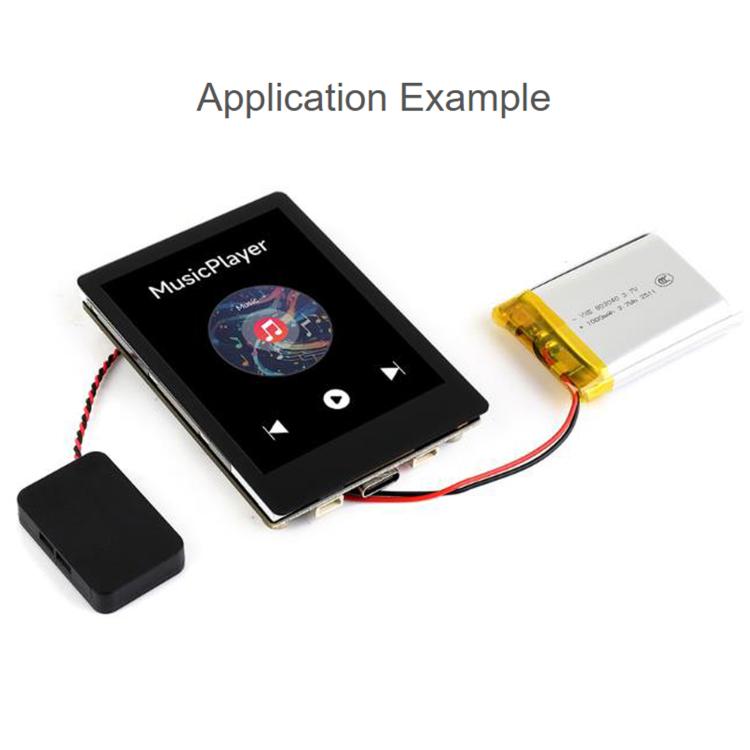

3. Equipped with a battery charging management module, with a reserved 3.7V MX1.25 lithium battery interface, allowing for external battery power supply
4. Utilizing the Type-C interface, eliminating the need to worry about the orientation of insertion, enhancing user convenience and device compatibility

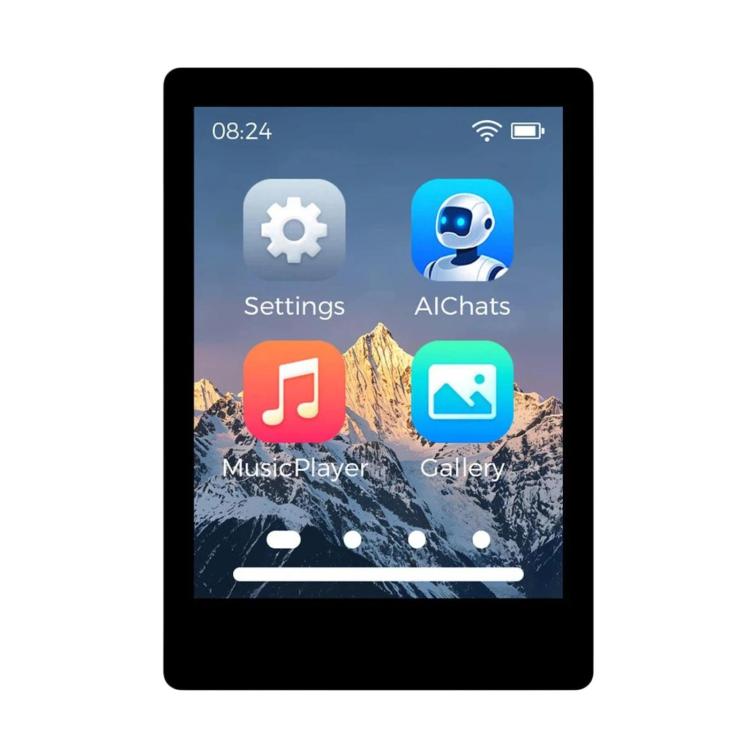

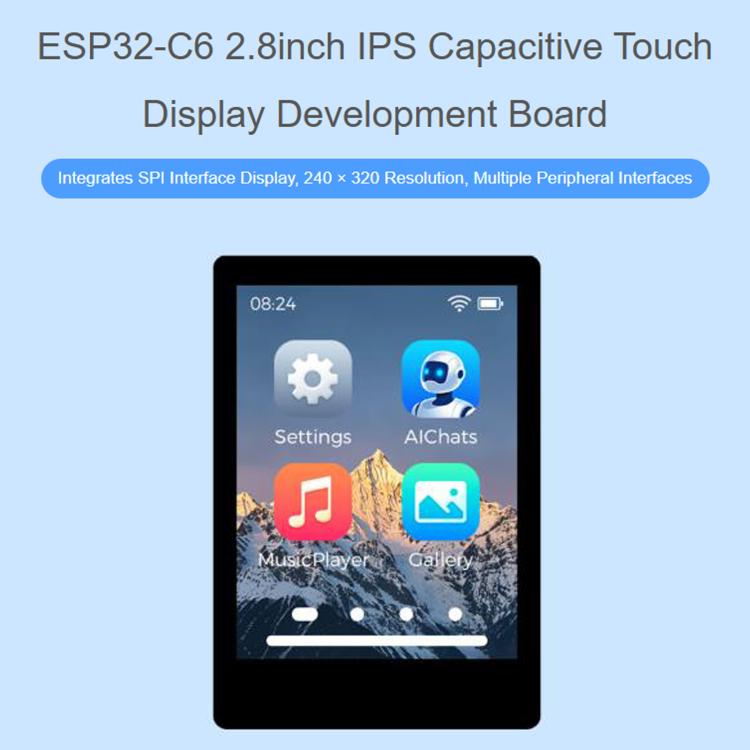

5. Equipped with a 2.8-inch LCD screen, with a resolution of 240 x 320 pixels and 262K color
6. Supports I2C interface control for capacitive touch and interrupts

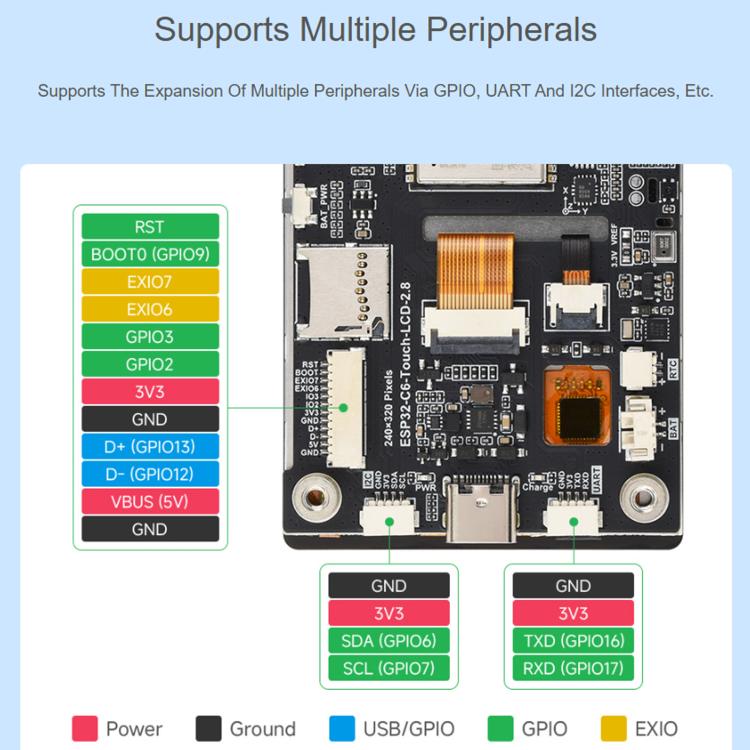

7. Exports UART, I2C, and some IO interfaces, integrating a full-speed USB serial port
8. Equipped with QMI8658 six-axis sensor, RTC clock sensor, SHTC3 temperature and humidity sensor, and a Micro SD card slot, etc
9. Supports flexible clocks and various power modes for accurate control, enabling low-power modes in multiple scenarios
10. Equipped with ES8311 audio codec chip, NS4150B power amplifier chip, microphone and speaker, enabling smooth gaming with Xiaozhi AI
11. Supports ESP-IDF / Arduino development environments, with abundant resources and easy to get started
12. Packaging list: ESP32-C6-Touch-LCD-2.8 host x 1, SH1.0 12PIN connection cable 100mm x 1, SH1.0 4PIN connection cable 100mm x 2, 8-ohm 2W speaker x 1

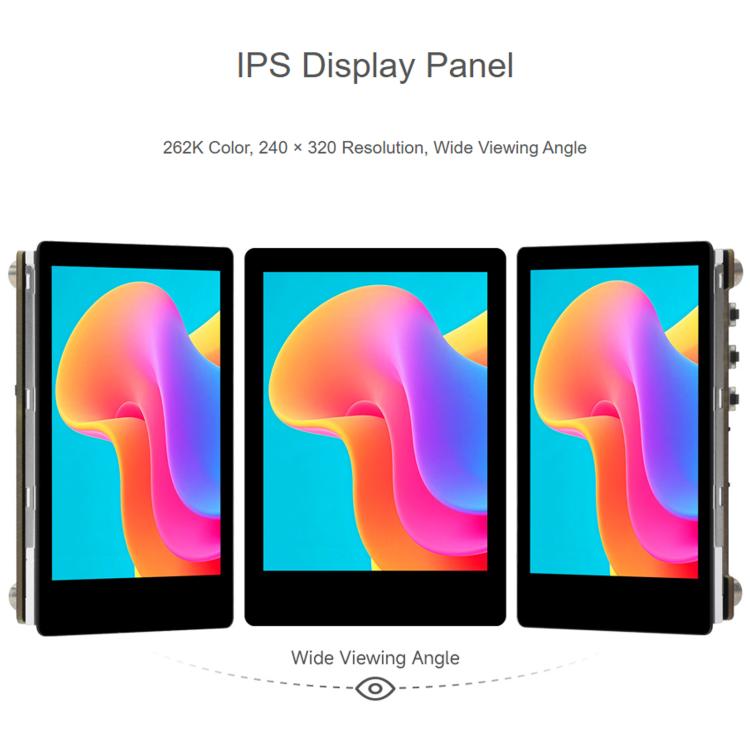

LC screen parameters:
1. Display panel: IPS
2. Display size: 2.8 inches
3. Display resolution: 240 x 320 pixels
4. Display color: 262K
5. Communication interface: 4-wire SPI
6. Driving IC: ST7789
7. Touch IC: CST3530
8. Touch type: capacitive sensing type
9. Effective screen size: about 5.76 x 4.32 cm
