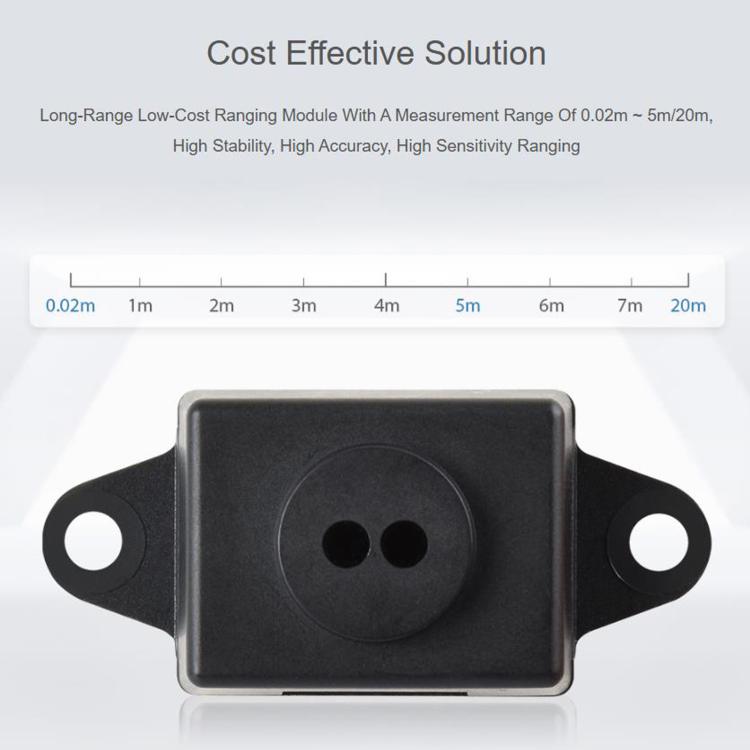

1. Typical measurement range: 0.02m - 5m
2. Error: ±(1% - 3%)
3. Field of View (FOV): 3° ± 0.5°
4. Refresh rate: 30Hz (This parameter supports batch customization, with a maximum of 90Hz)
5. Anti-environmental light capability: 100K Lux
6. Operating temperature: -20°C to +70°C
7. Operating humidity: 35% to 80% RH
8. Laser safety level: LASER CLASS 1
9. Wavelength: 940nm

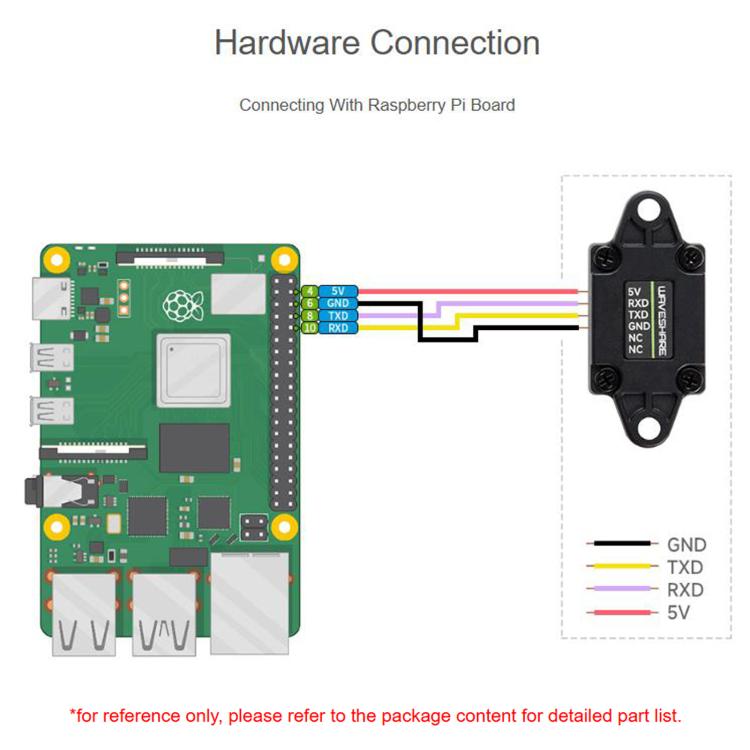

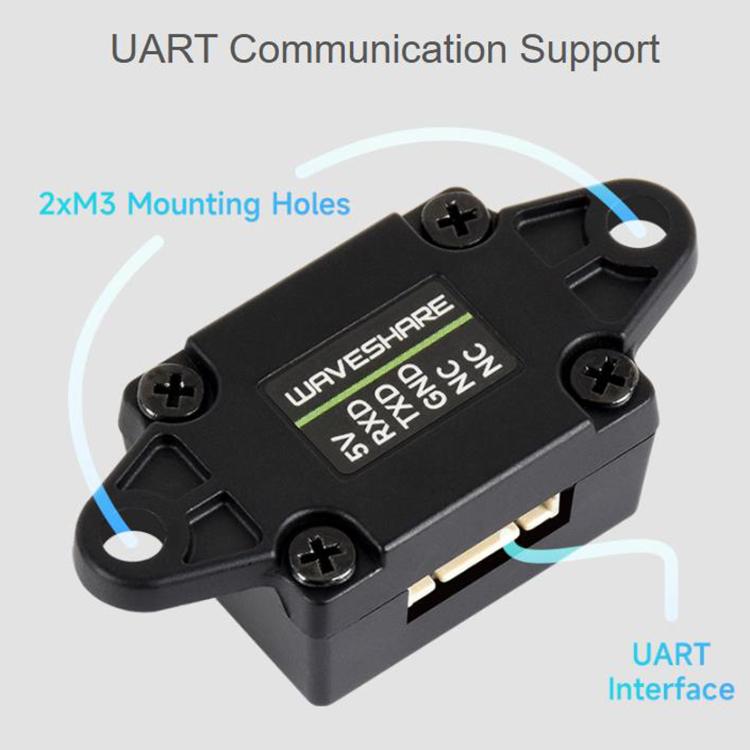

10. Communication interface: UART
11. Communication baud rate: 115.2Kbps
12. Supply voltage: 4V - 5.6V
13. Communication level: 3.3V
14. Product power consumption: 100mW - 140mW
15. Storage temperature: -40°C to +80°C
16. Shell material: PC

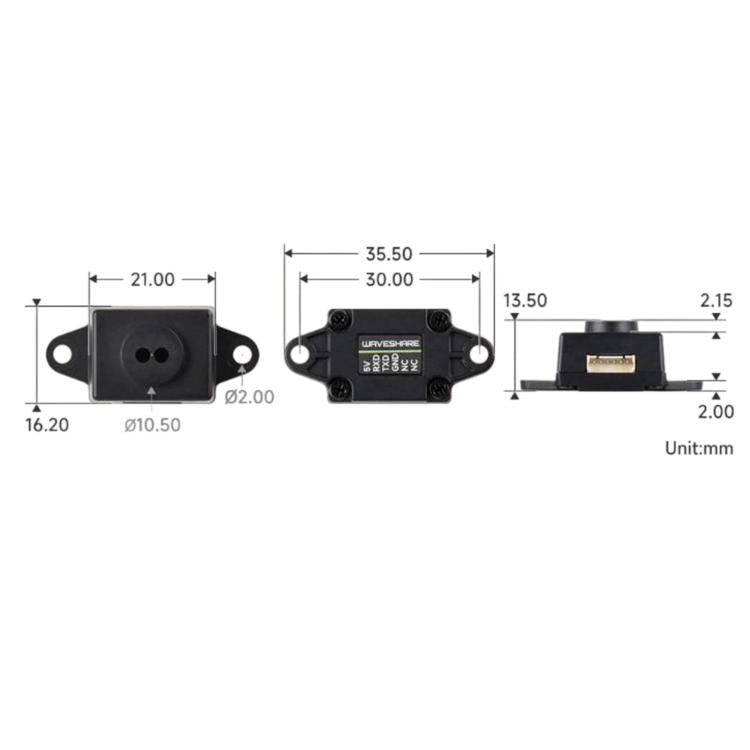

17. Size: about 3.55 x 1.62 x 1.35 cm
18. Weight: about 3.6g

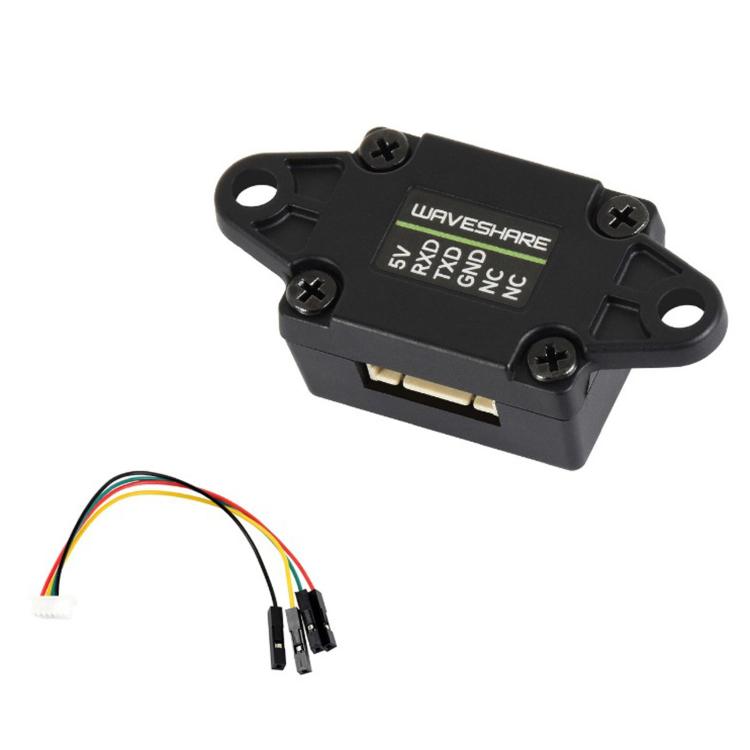

19. Packaging list: TOF MINIF Range Sensor (B) x 1, MX1.25 4PIN connector cable 100mm x 1
