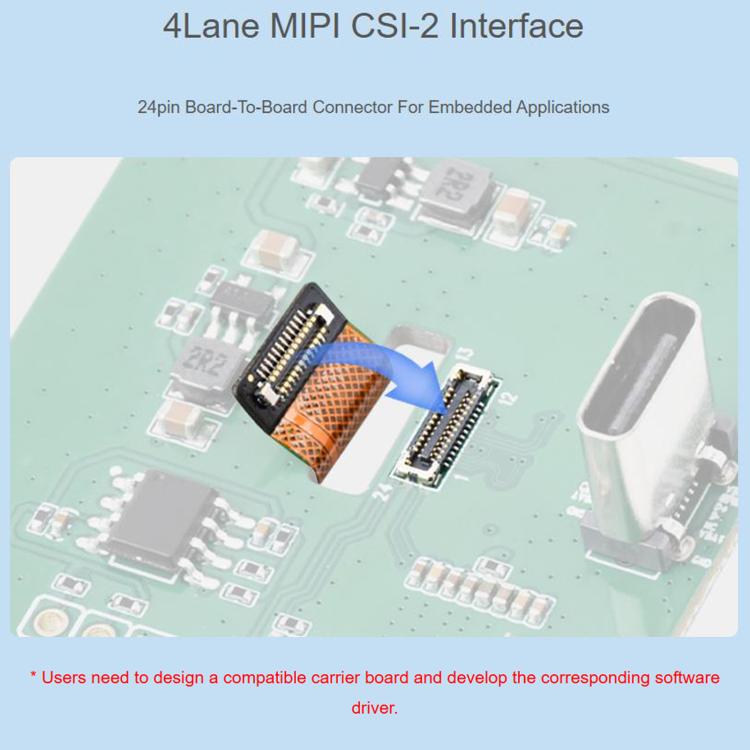

1. MIPI CSI-2 4-Lane interface, using 24-pin board-to-board connector, suitable for embedded scenarios

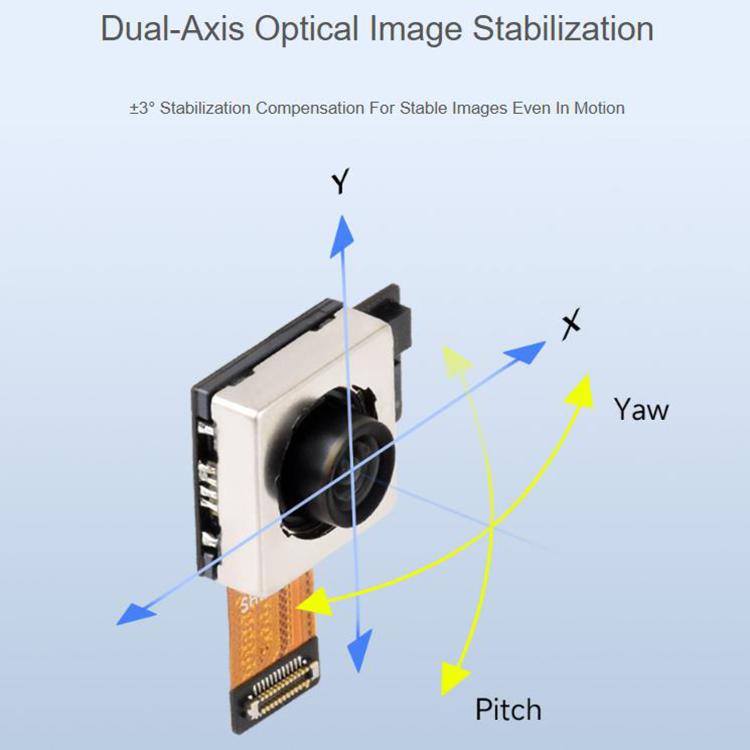

2. Dual-axis OIS optical stabilization system, ±3° shake compensation, ensuring stable motion images
3. Built-in open-loop VCM, supporting automatic focusing, and automatically adjusting according to the shooting distance

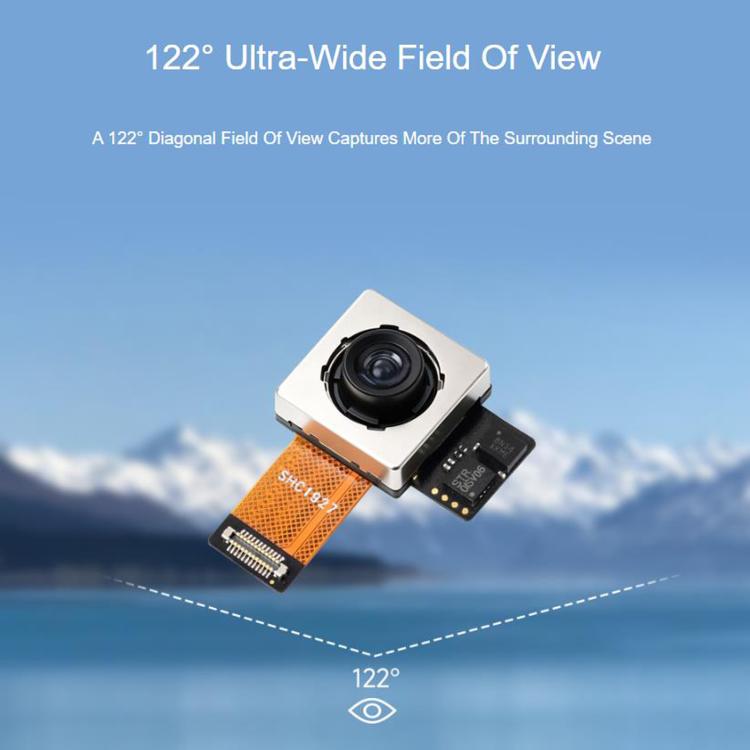

4. The module provides a 122° diagonal field of view, capable of capturing a larger environmental range

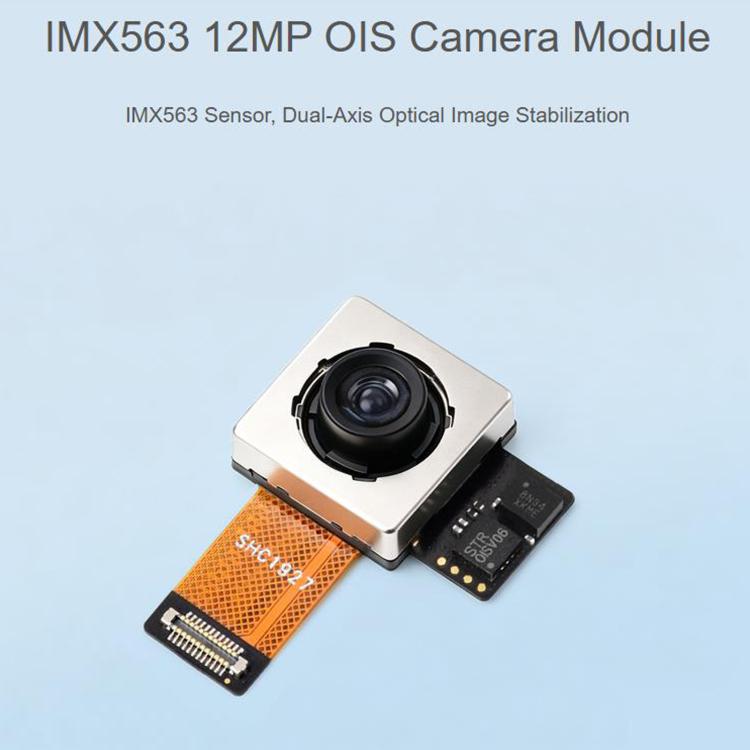

5. Equipped with Sony IMX563 12-megapixel CMOS image sensor, featuring high sensitivity, low noise, and fast response performance
Parameters
1. Sensor model: for Sony IMX563
2. Resolution: 4032 x 3024 (12 million pixels)
3. CMOS size: 1/2.55 inch
4. Pixel size: 1.4 x 1.4 micrometers
5. Field of View (FOV): 122° (D) x 107.2° (H) x 90.1° (V)
6. Aperture (F.No): 2.2
7. Focal length (EFL): 2.17mm
8. Depth of Field: 10cm to infinity
9. Distortion: less than 5.6%
10. Focusing mode: automatic focusing
11. Filter: built-in 650nm filter
12. Shake reduction: OIS optical shake reduction (shake reduction angle ±3 degrees, greater than 25dB)
13. VCM driver IC focusing: DW9800V
14. VCM driver IC OIS: AKM7323
15. Frame rate: 120fps Full resolution / 240fps 4K2K / 960fps 1080p
16. Output format: RAW 10/8 bit
17. Interface: 24PIN board-to-board connector
18. Operating temperature: -20°C to 70°C
