Overview

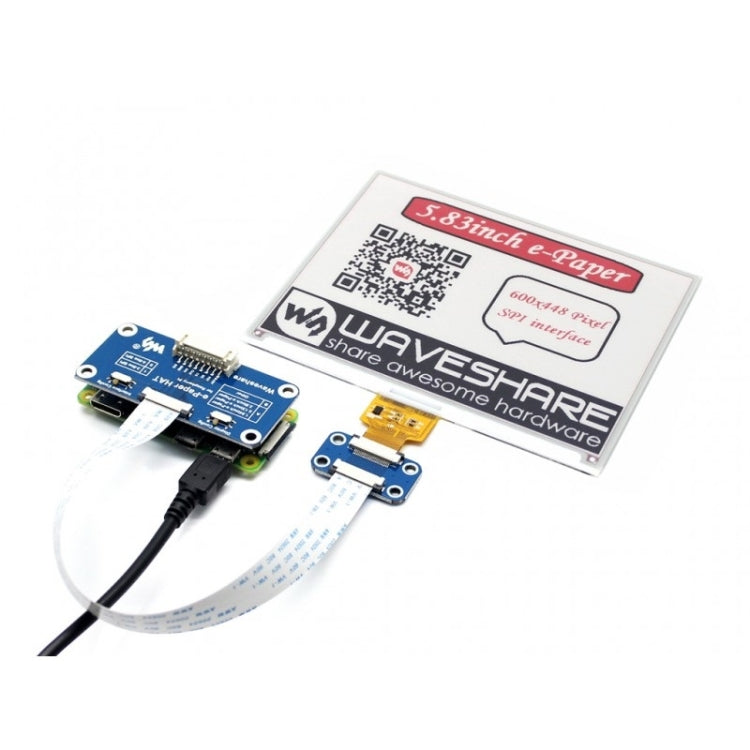

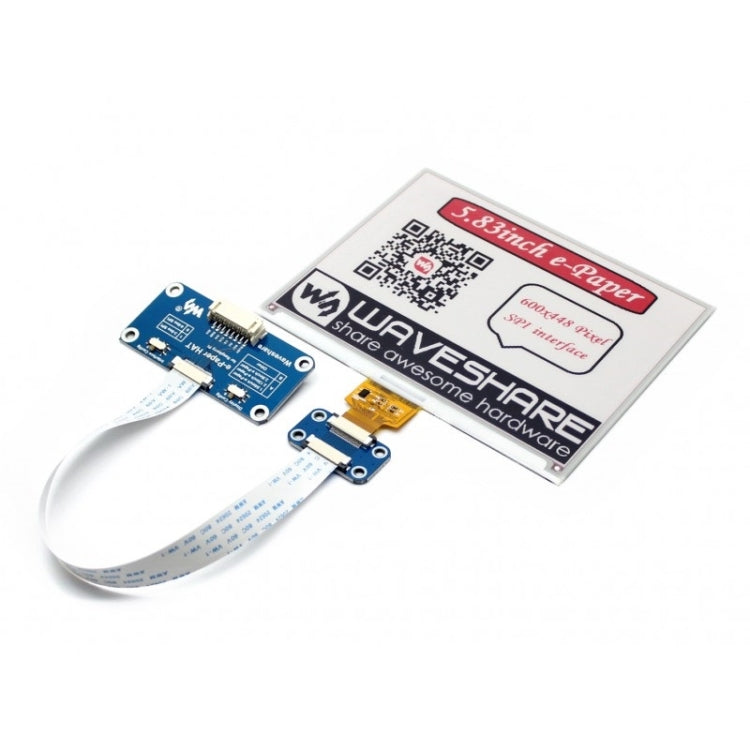

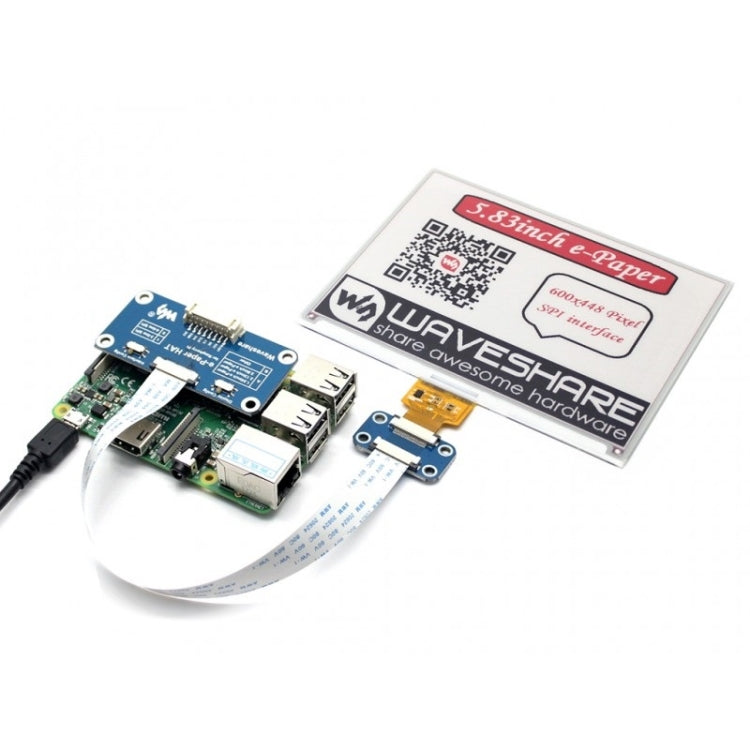

1. This is an E-Ink display HAT for Raspberry Pi, 5.83 inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
2. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V~5V
2. Interface: SPI
3. Outline dimension: 125.40mm x 99.50mm
4. Display size: 118.80mm x 88.26mm
5. Dot pitch: 0.198 x 0.197
6. Resolution: 600 x 448
7. Display color: Red, black, white
8. Grey level: 2
9. Full refresh time: 14s
10. Refresh power: 26.4mW(typ.)
11. Standby power: <0.017mW
12. Viewing angle: >170 degree
Package Contents

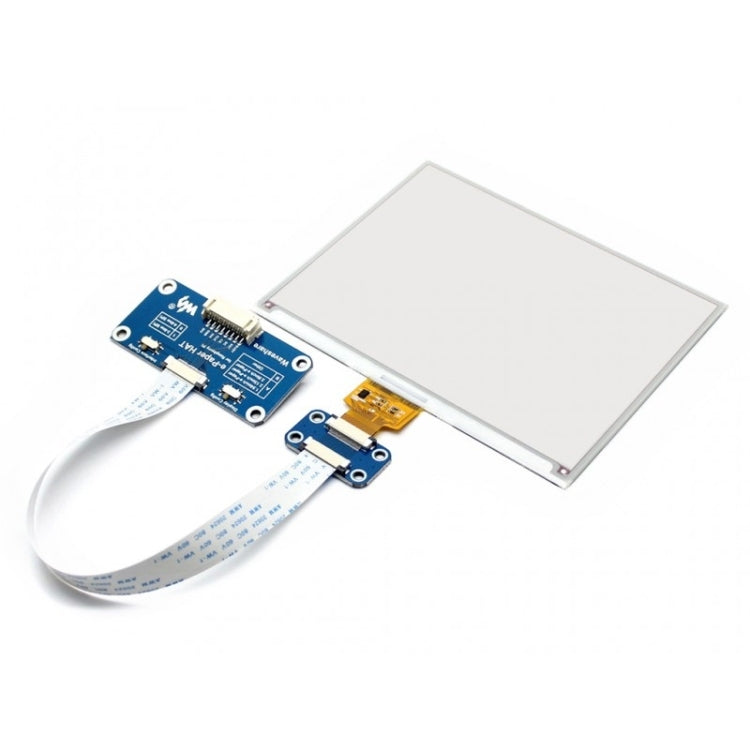

1.5.83 inch e-Paper (B) x1
2. e-Paper Driver HAT x1
3. RPi screws pack (2pcs) x1
4. PH2.0 20cm 8Pin x1
