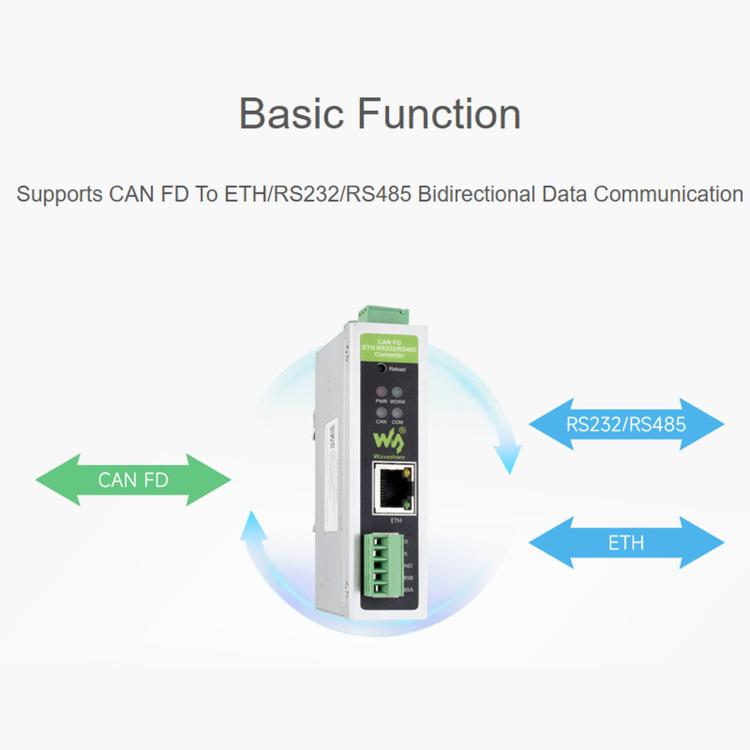

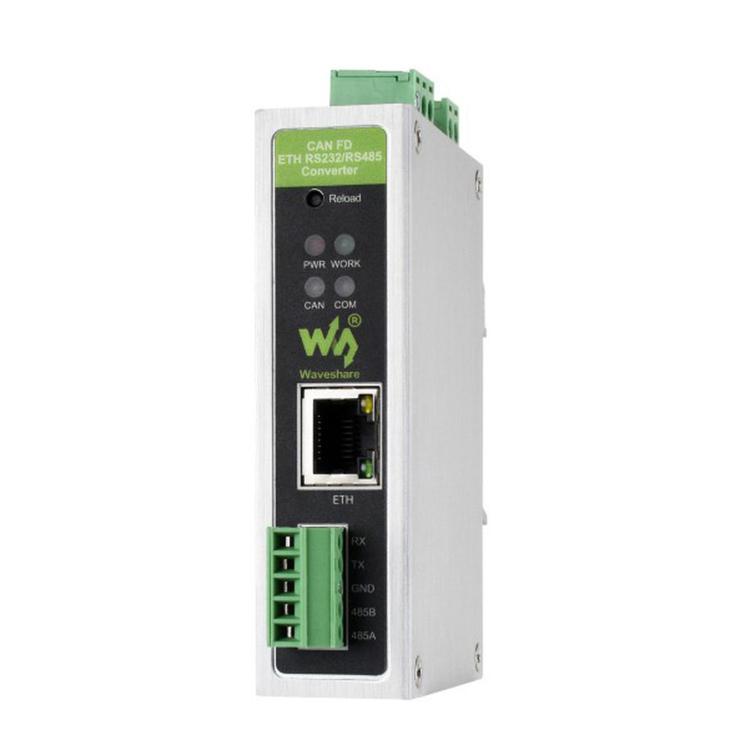

1. The CAN FD ETH RS232/RS485 Converter is a DIN-rail mountable device designed for bidirectional conversion between CAN FD and Ethernet/RS485/RS232 interfaces. It features high speed, low latency, stable performance, ease of use, and excellent cost-effectiveness. Supporting five data conversion modes—Transparent, Transparent with ID, Standard Protocol, Modbus, and Custom Frame Header/Footer—it enables interconnection between CAN networks and Ethernet or serial devices and is compatible with CAN FD and CAN 2.0A/2.0B protocols.
2. Built with an industrial-grade design, the device operates reliably within a temperature range of -40C to 85C and supports a wide power input range of 9V to 36V. It accommodates baud rates of 5 Kbps to 1 Mbps for the arbitration field and 100 Kbps to 5 Mbps for the data field.
3. The device supports configuration via host-side software and features a built-in 120Ω bus resistor (selectable via DIP switch) and DIN-rail mounting capability, ensuring convenient and efficient setup and installation. Basic
Specifications:
1. Operating Voltage: DC 9V–36V

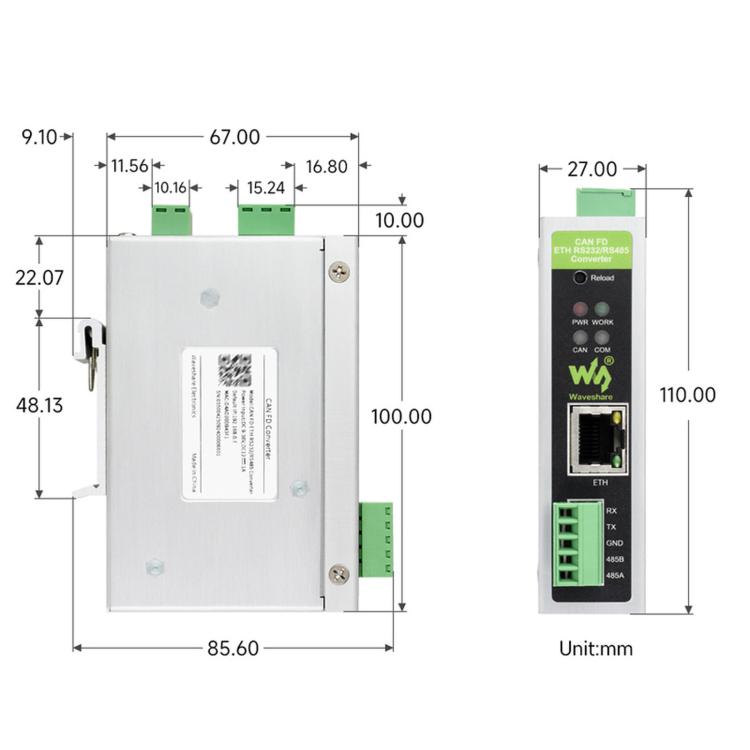

2. Dimensions: 110 × 27 × 85.6 mm
3. Mounting: DIN-rail mounting
4. Reload Button: Long press to restore factory settings
5. Indicators: POWER, WORK, COM, and CAN

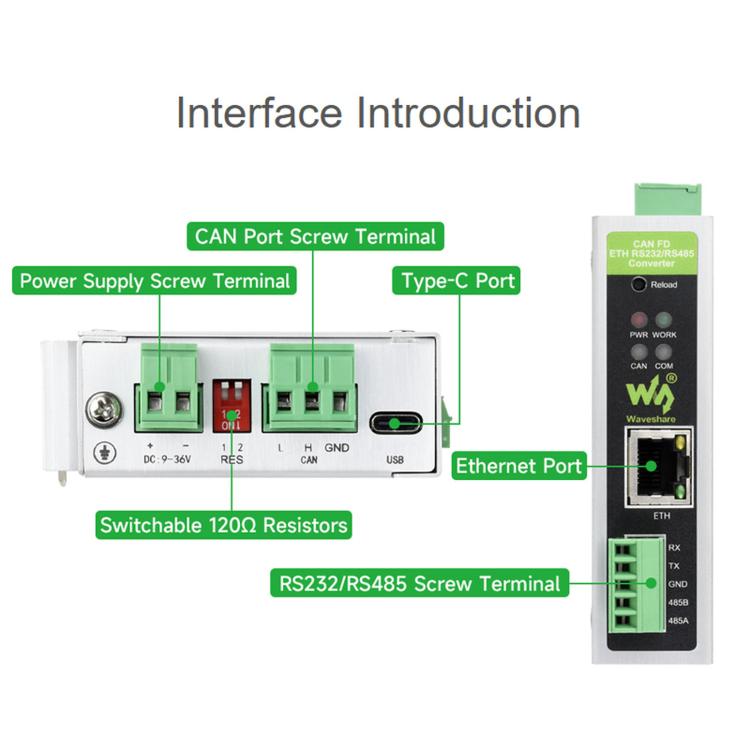

Interface Specifications:
1. CAN Port: 1 CAN port; supports CAN FD; compatible with CAN 2.0A/2.0B

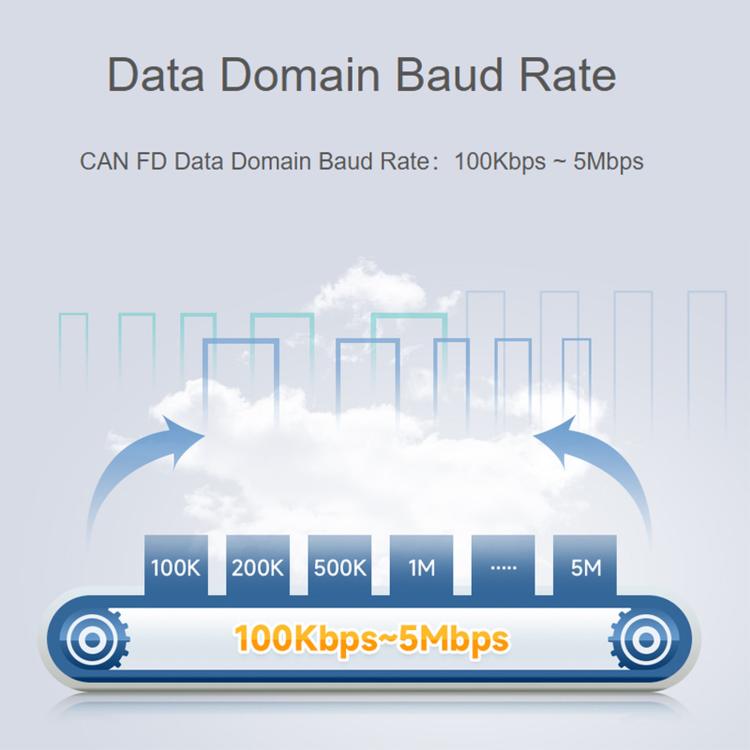

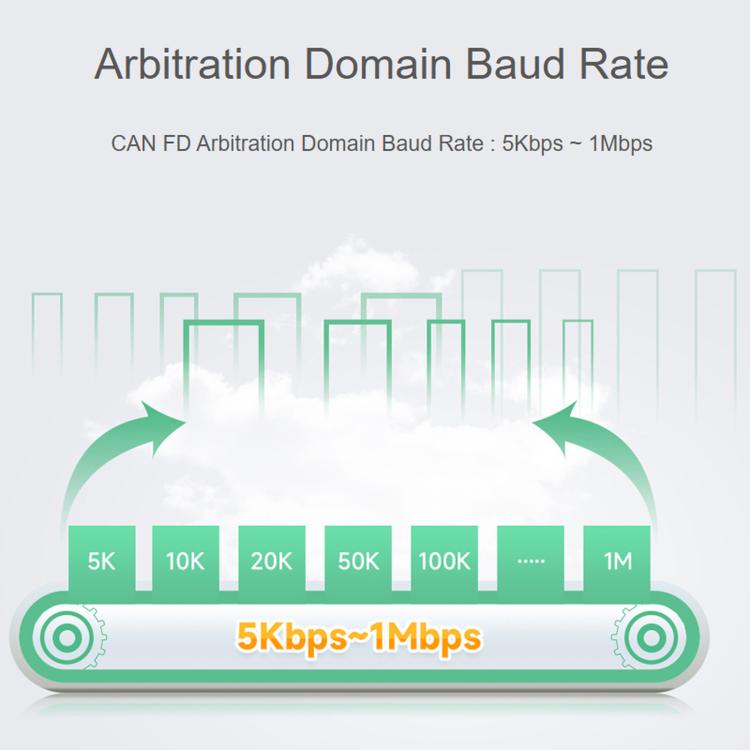

2. CAN Baud Rate: Arbitration phase: 5 Kbps–1 Mbps; Data phase: 100 Kbps–5 Mbps
3. Termination Resistor: Two built-in 120Ω resistors; setting either DIP switch to ON connects one 120Ω resistor in parallel; setting both to ON connects two 120Ω resistors in parallel
4. Ethernet Port: RJ45, 10/100 Mbps, auto-MDI/MDIX
5. Serial Port: Supports one RS485 or RS232 connection
Software Functions:
1. Modbus Gateway: Ethernet: CAN (FD) to Modbus TCP (Master/Slave); Serial: CAN (FD) to Modbus RTU (Master/Slave)
2. Transmit Messages: Supports configuration of up to 64 transmit messages
3. Receive Messages: Supports configuration of up to 64 receive messages

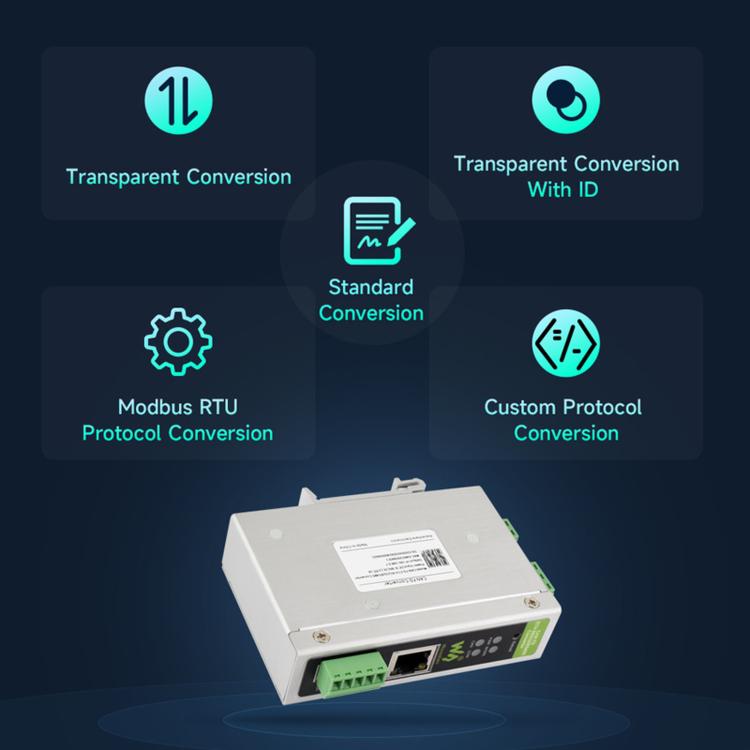

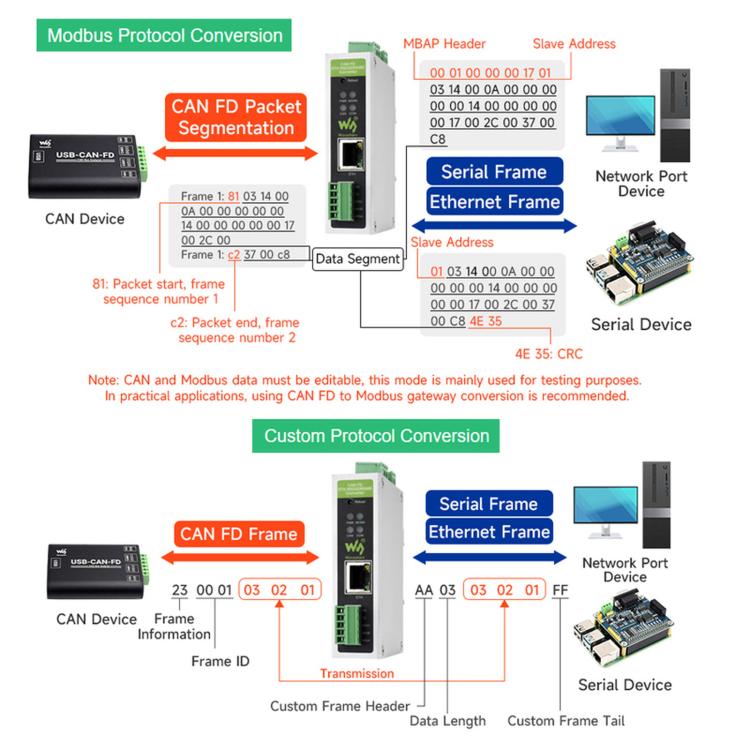

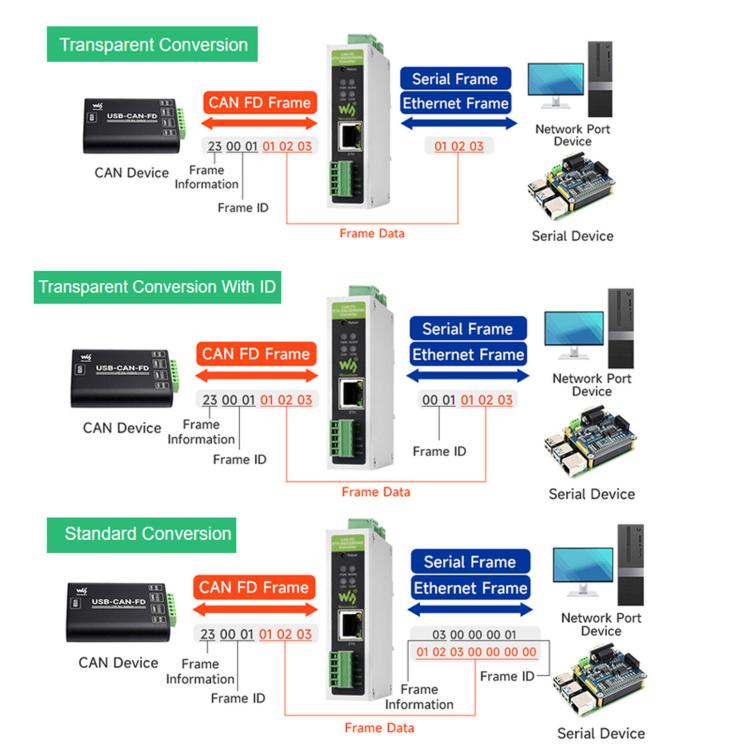

4. Conversion Modes: Transparent conversion, transparent conversion with ID, standard conversion, Modbus conversion, and custom frame header/footer conversion
5. CAN ID: Supports standard frames and extended frames

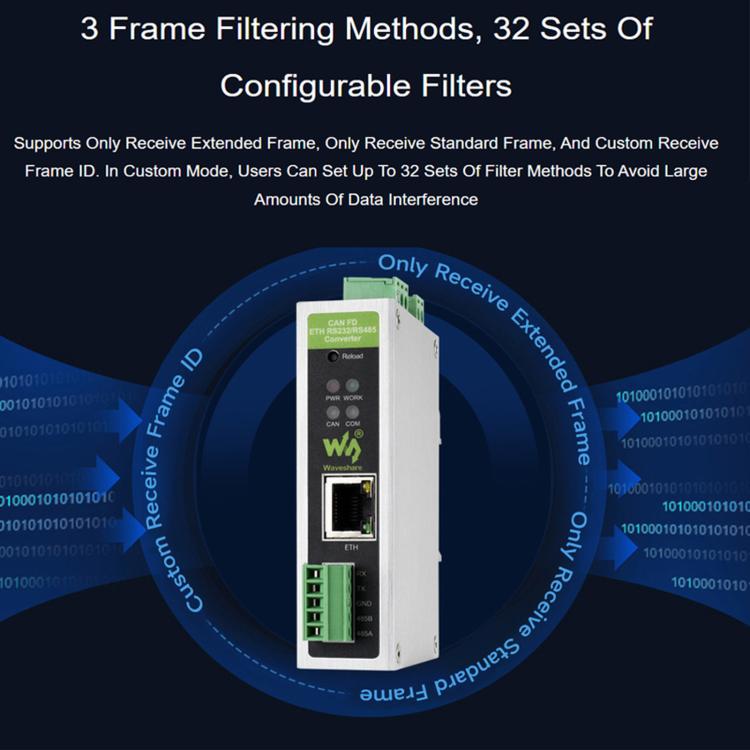

6. Frame ID Filtering: Supports standard frames only, extended frames only, and custom input frame IDs (up to 32 groups)
7. Packetization (Frame Count/Time): Supports custom frame count and custom time interval for packetization (Ethernet port)
8. Conversion Direction: Supports bidirectional conversion, Serial/Ethernet to CAN only, or CAN to Serial/Ethernet only
9. Firmware Upgrade: Supports firmware upgrades via host software
10. Parameter Configuration: AT commands Configuration via commands and host-side software

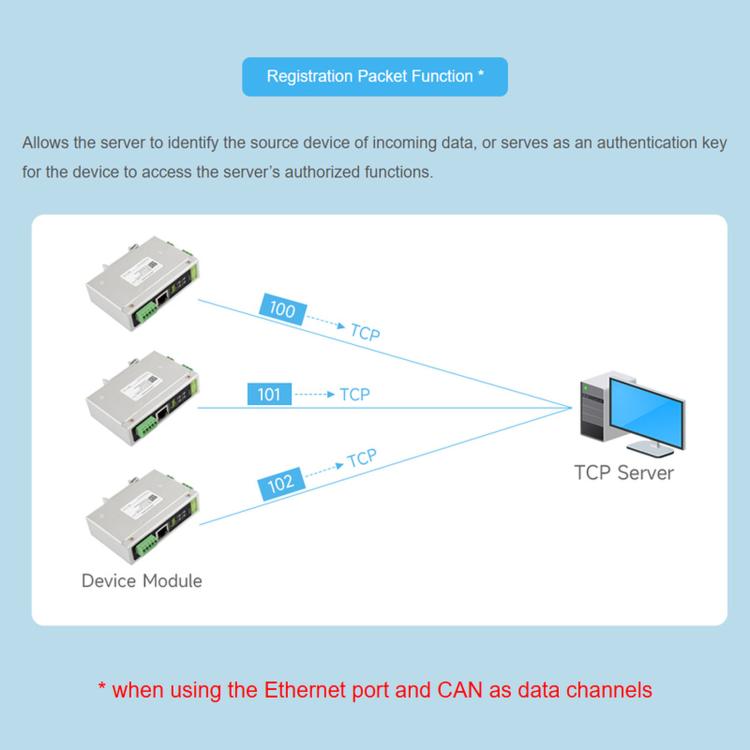

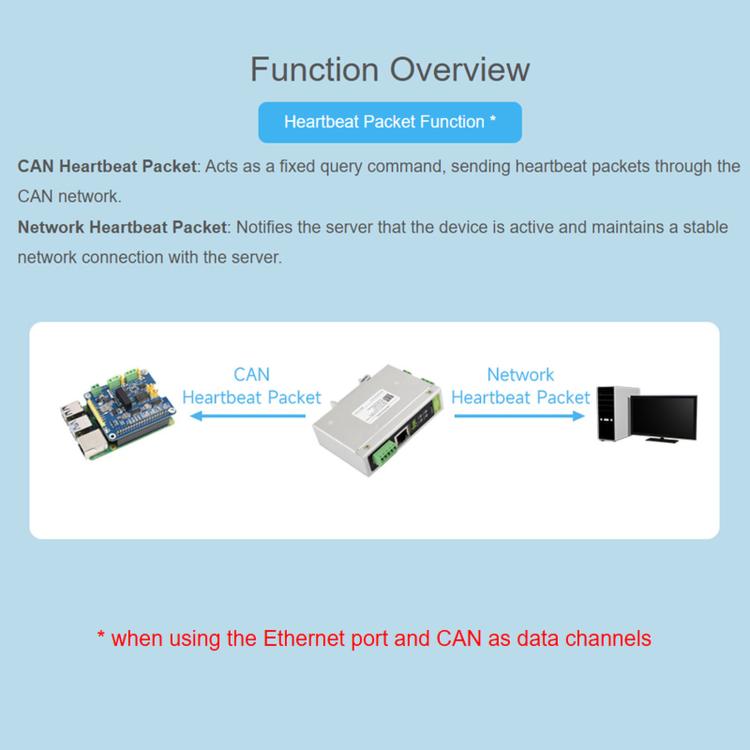

11. Other functions: Supports heartbeat packets and registration packets; operating modes include normal, loopback, and listen-only (for the Ethernet port)
Protection parameters:

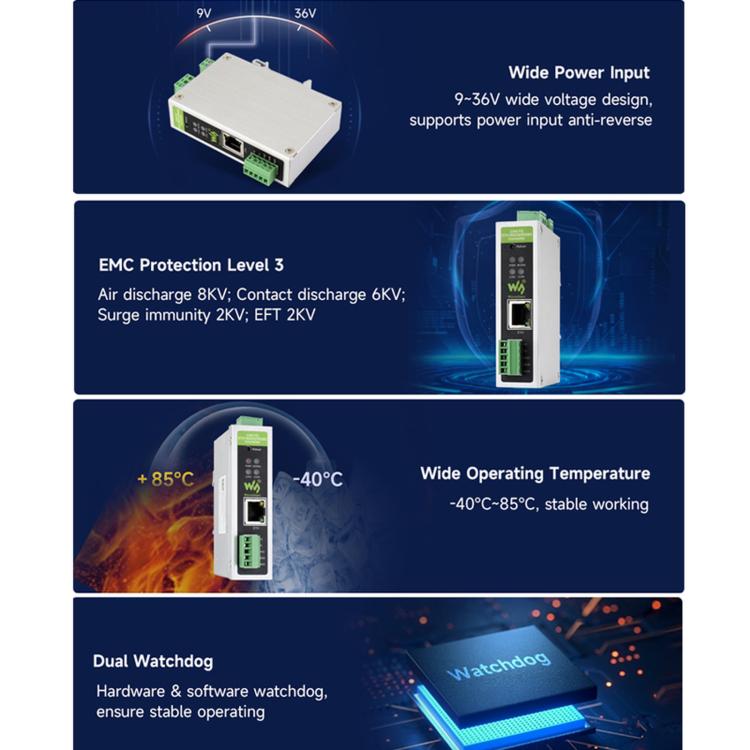

1. Electrostatic discharge (ESD) protection: Air discharge 8 kV, contact discharge 6 kV
2. Electrical fast transient (EFT) immunity: Power circuit 2 kV; RS485/RS232 circuit 1 kV; CAN circuit 1 kV; Ethernet port circuit 1 kV
3. Surge immunity test: Power circuit (differential mode 1 kV, common mode 2 kV); CAN circuit (common mode 2 kV); serial port circuit (common mode 2 kV); Ethernet port circuit (common mode 2 kV)
