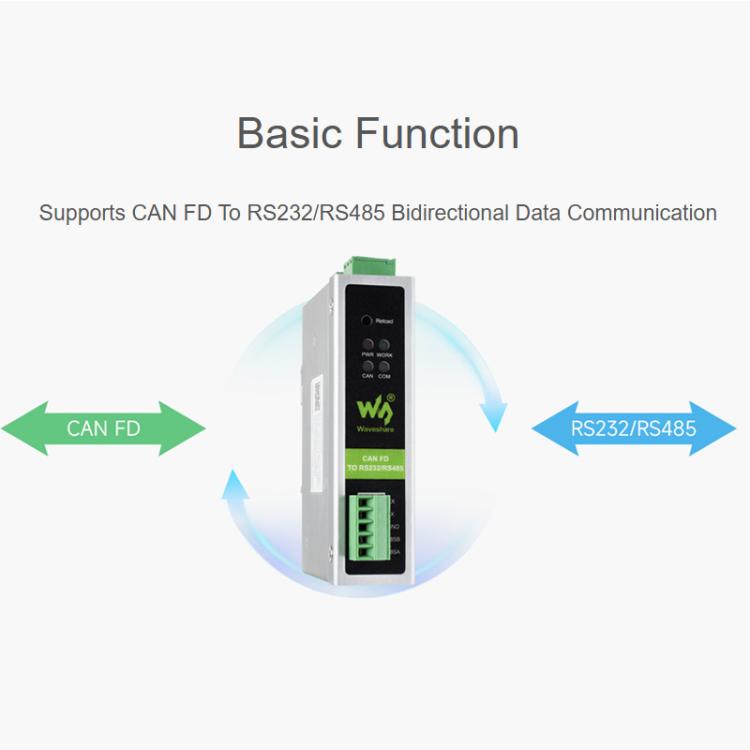

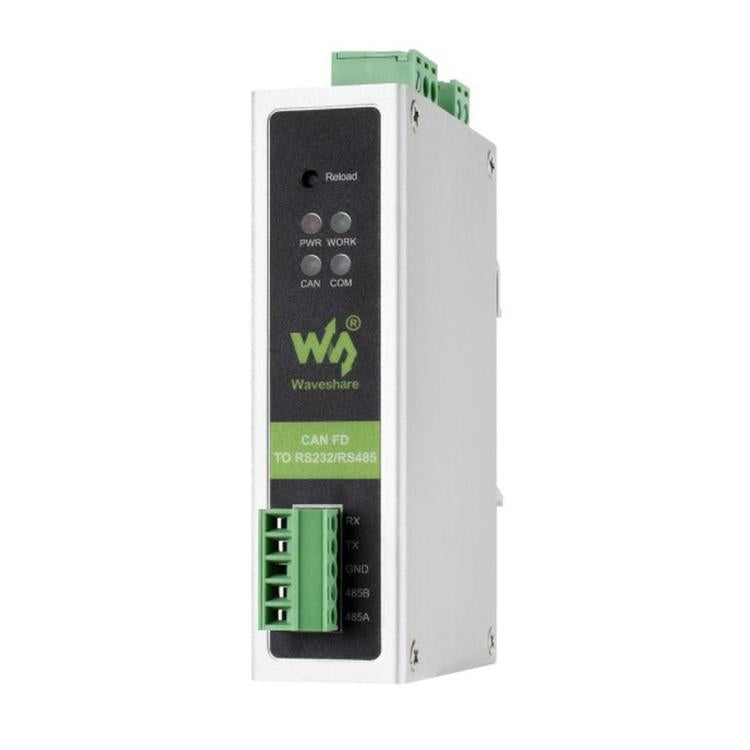

1. The CAN FD to RS232/RS485 converter is a DIN-rail mountable device designed for bidirectional data conversion between CAN FD and RS232/RS485 interfaces. It features high speed, low latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes—Transparent, Transparent with ID, Standard Protocol, Modbus, and Custom Frame Header/Footer—enabling interconnection between CAN and serial devices, while remaining compatible with CAN FD and CAN 2.0A/2.0B protocols.
2. Built with an industrial-grade design, the device operates reliably within a temperature range of -40C to 85C and supports a wide input voltage range of 9V to 36V. It accommodates baud rates of 5 Kbps to 1 Mbps for the arbitration field and 100 Kbps to 5 Mbps for the data field.
3. The device supports configuration via host software and features a built-in 120Ω bus resistor (selectable via DIP switch). Designed for DIN-rail mounting, it offers convenient configuration and efficient installation.
Basic Parameters:
1. Operating Voltage: DC 9V–36V

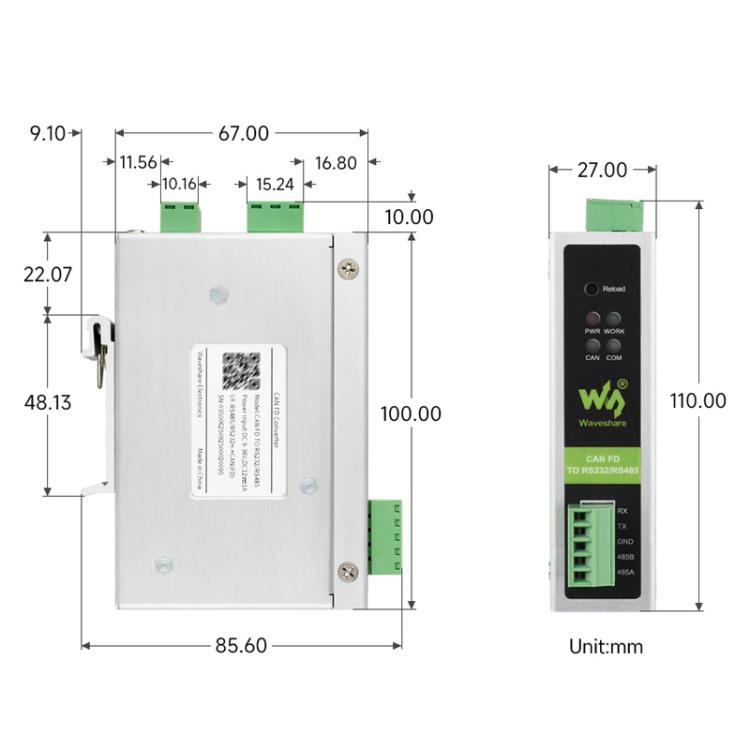

2. Dimensions: 110 × 27 × 85.6 mm
3. Mounting Method: DIN-rail mounting
4. Reload Button: Long press to restore factory settings
5. Indicators: POWER, WORK, COM, and CAN
Interface Parameters:
1. CAN Port Specifications: 1 CAN port; supports CAN FD; compatible with CAN 2.0A/2.0B

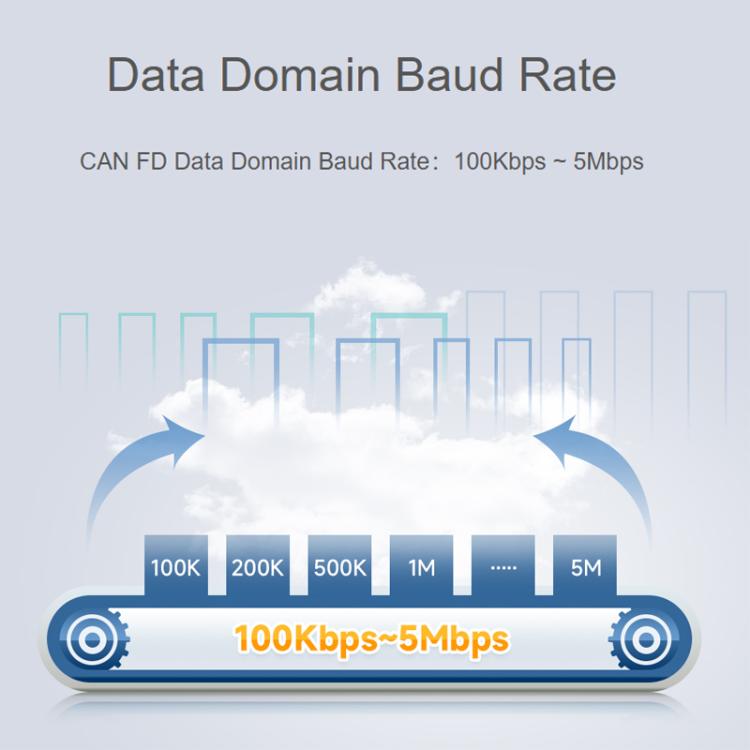

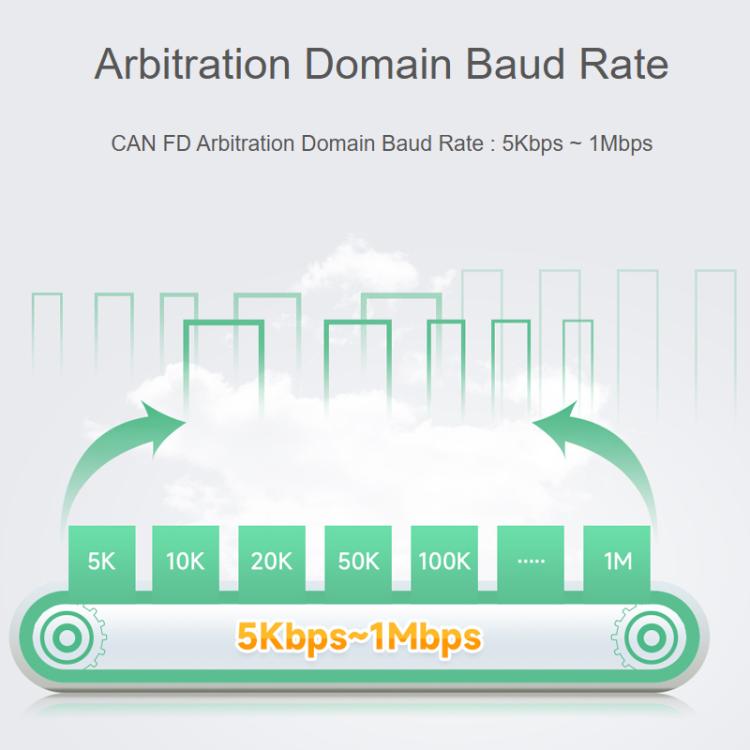

2. CAN Port Baud Rate: Arbitration phase: 5 Kbps–1 Mbps; Data phase: 100 Kbps–5 Mbps

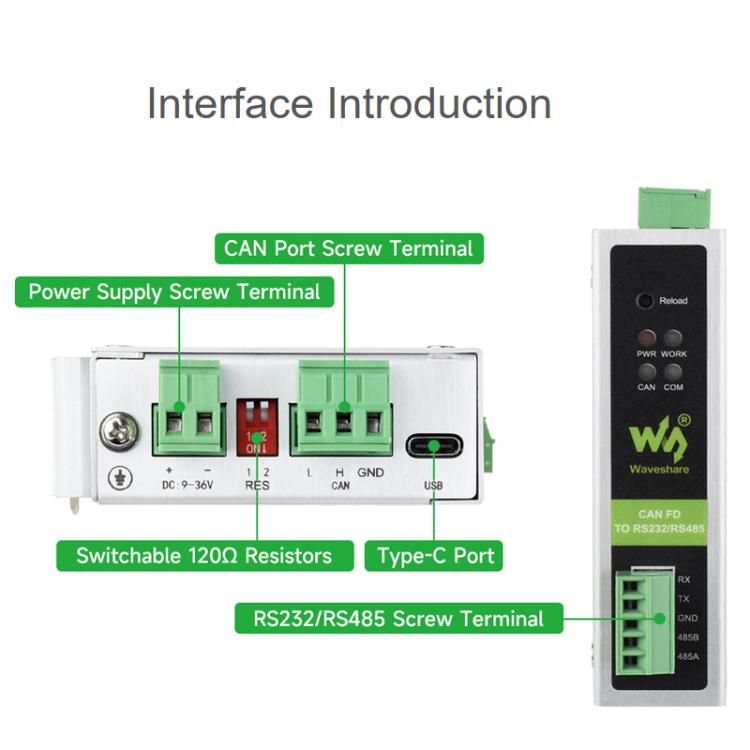

3. Termination Resistors: Two built-in 120Ω resistors; setting either DIP switch to ON connects one 120Ω resistor in parallel; setting both to ON connects two 120Ω resistors in parallel
4. Serial Port Specifications: Supports one RS485 or RS232 connection
Software Functions:
1. Modbus Gateway: CAN FD to Modbus RTU (Master/Slave)
2. Transmit Messages: Supports configuration of up to 64 transmit messages
3. Receive Messages: Supports configuration of up to 64 receive messages

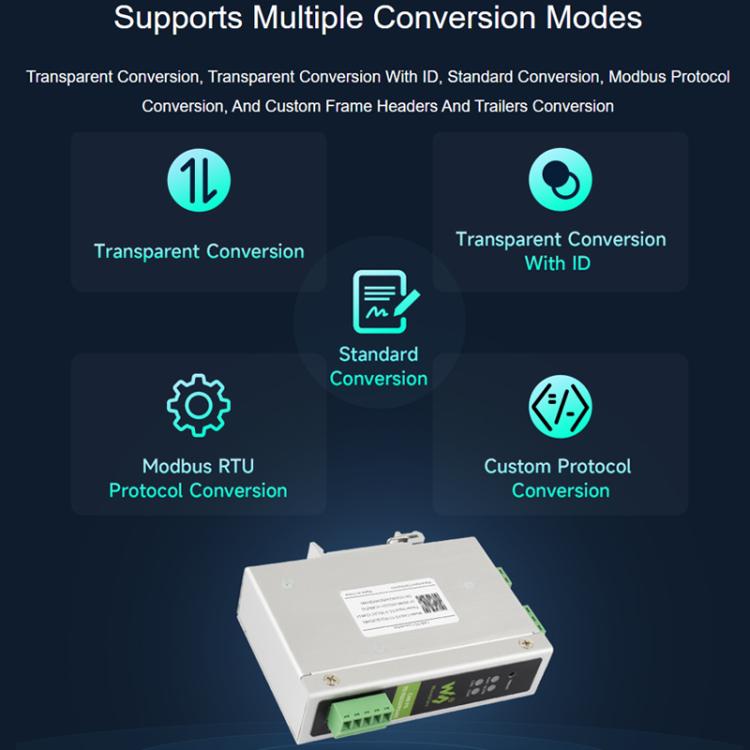

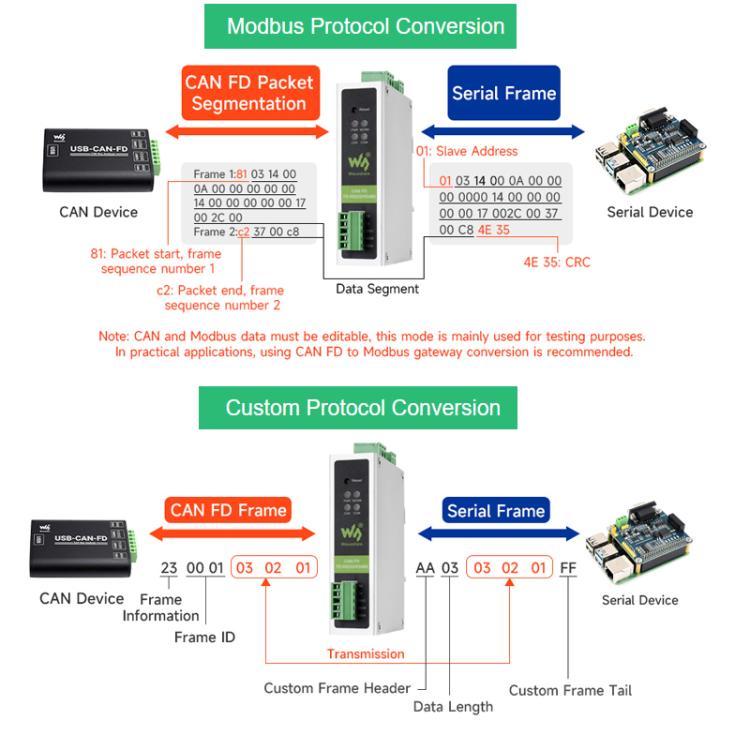

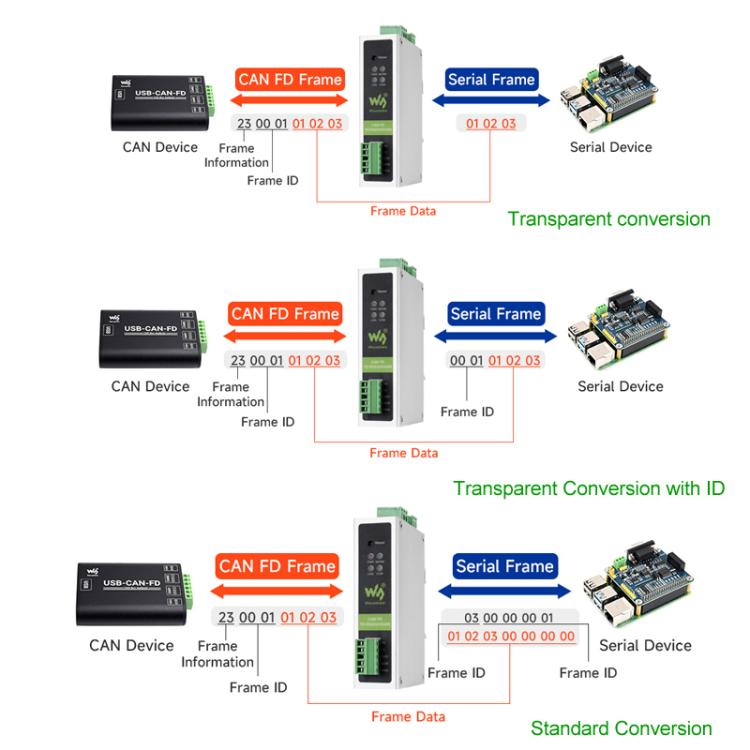

4. Conversion Modes: Transparent conversion, transparent conversion with ID, standard conversion, Modbus conversion, and custom frame header/footer conversion
5. CAN ID: Supports standard frames and extended frames

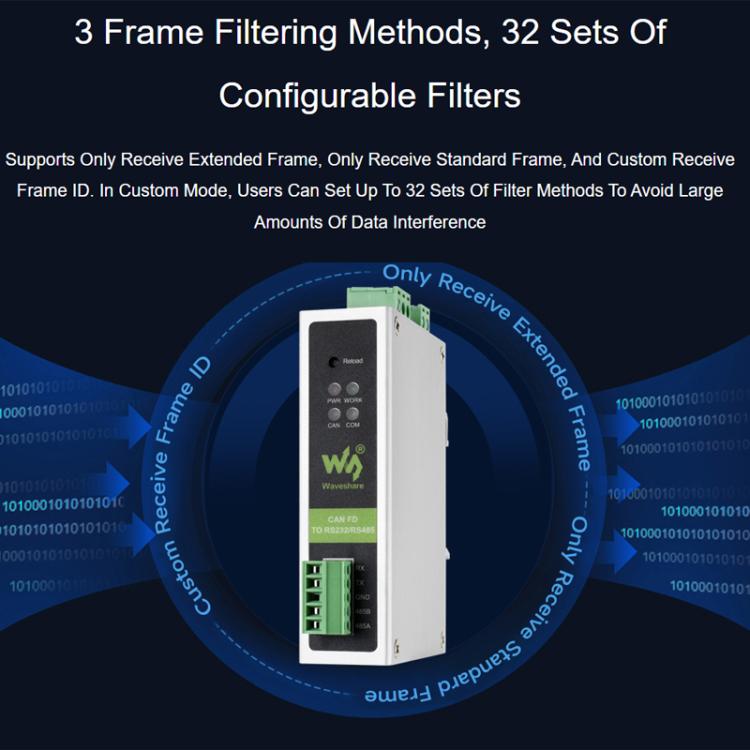

6. Frame ID Filtering: Supports standard frames only, extended frames only, and custom input frame IDs (up to 32 groups)
7. Conversion Direction: Supports bidirectional conversion, serial-to-CAN only, and CAN-to-serial only
8. Firmware Upgrade: Supports firmware upgrades via host PC software
9. Parameter Configuration: AT commands or host PC software configuration
Protection Parameters:
1. ESD Protection: Air discharge 8 kV, contact discharge 6 kV
2. Electrical Fast Transient (EFT): Power circuit 2 kV; RS485/RS232 circuit 1 kV; CAN circuit 1 kV
3. Surge immunity test: Power supply circuit—differential mode 1 kV, common mode 2 kV; CAN circuit—common mode 2 kV.
