Specification

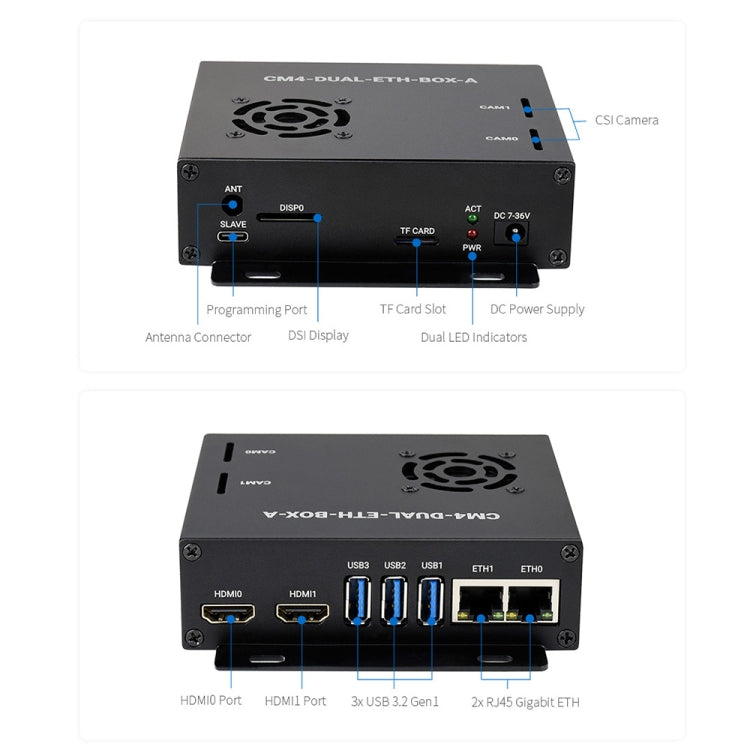

1. USB: USB 3.2 Gen1 x 3
2. GPIO: Raspberry Pi 40 PIN GPIO x 1
3. HD media interface: HDMI x 2, support 4K 30fps output
4. DSI display: MIPI DSI x 2 (15pin 1.0mm FPC)
5. CSI camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
6. Power input: 7V - 36V
7. FAN: 5V / 12V (Allows speed adjustment and measurement)
8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. RJ45 Ethernet: Dual Gigabit Ethernet

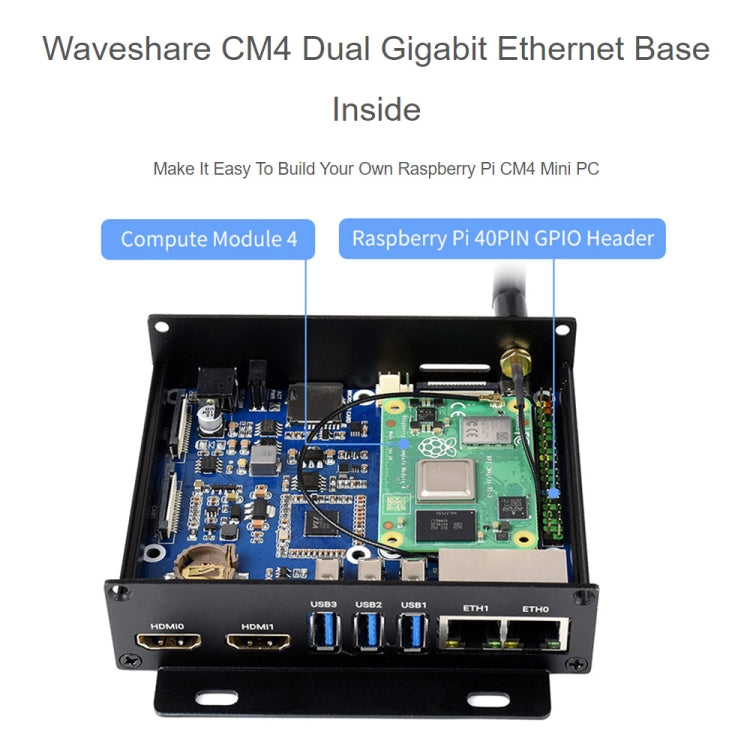

10. CM4 slot: Suitable for all variants of Compute Module 4
11. SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

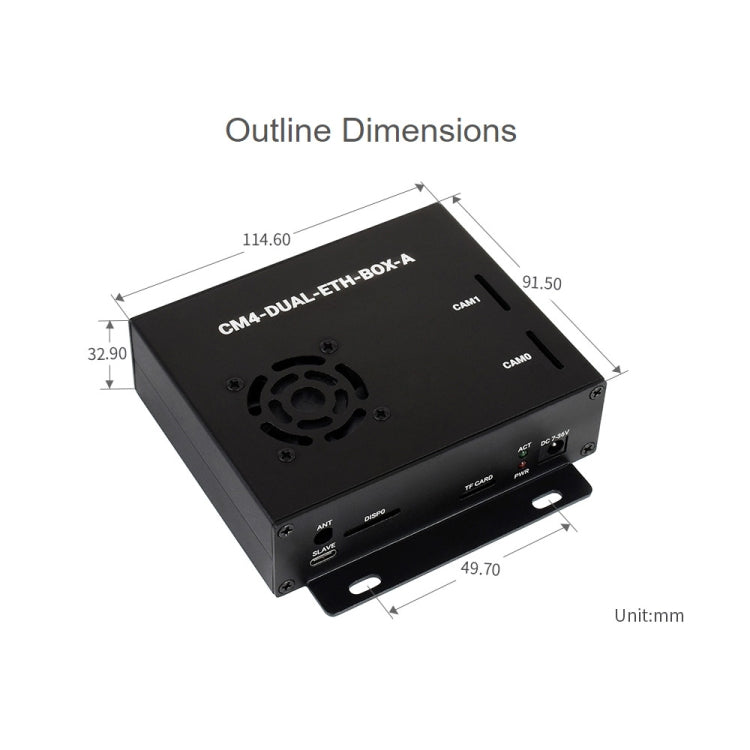

12. Size:109.0 x 91.5mm
Package List

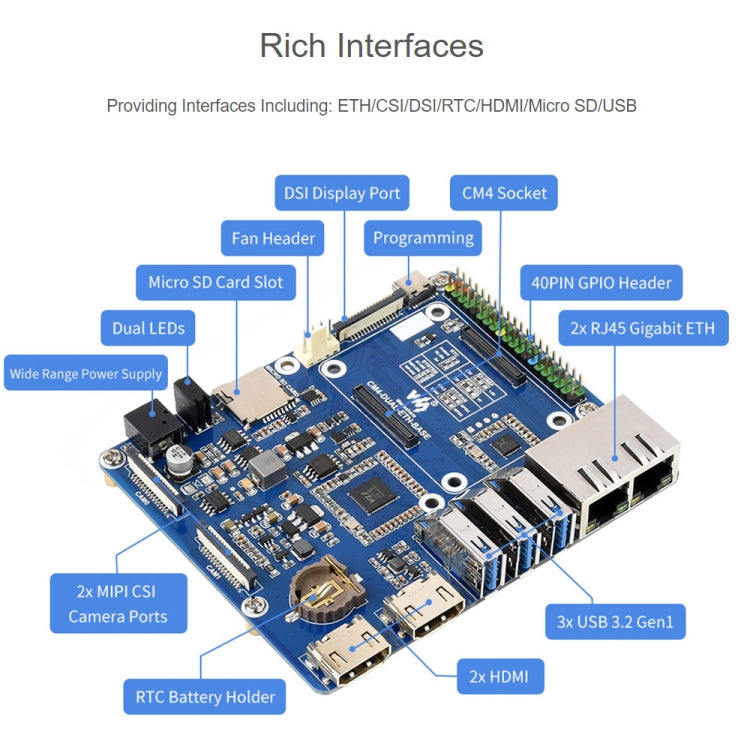

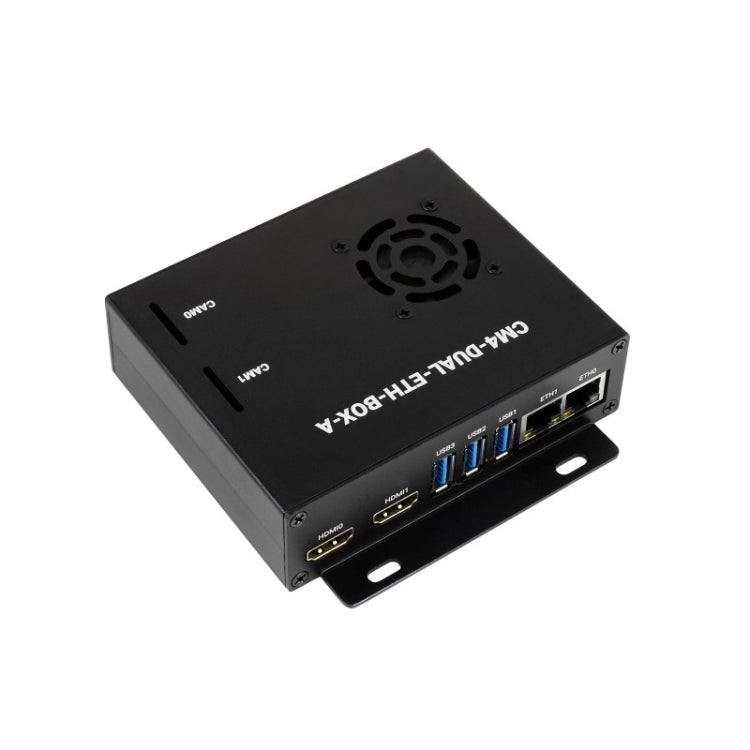

1. CM4-DUAL-ETH-BASE x 1
2. Metal case (top and bottom) x 1

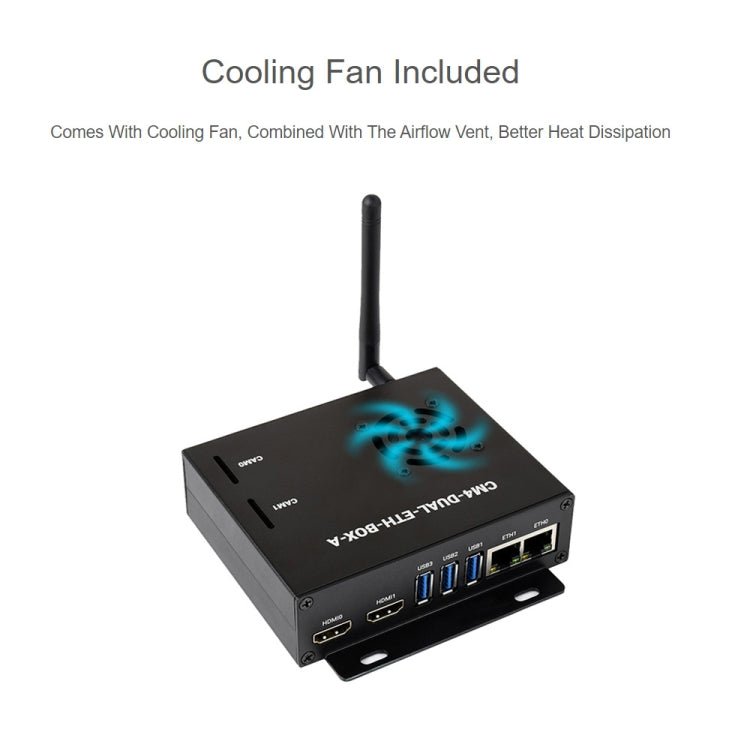

3. Fan-4010-PWM-12V x 1
4. Screwdriver x 1
5. Screws pack x 1

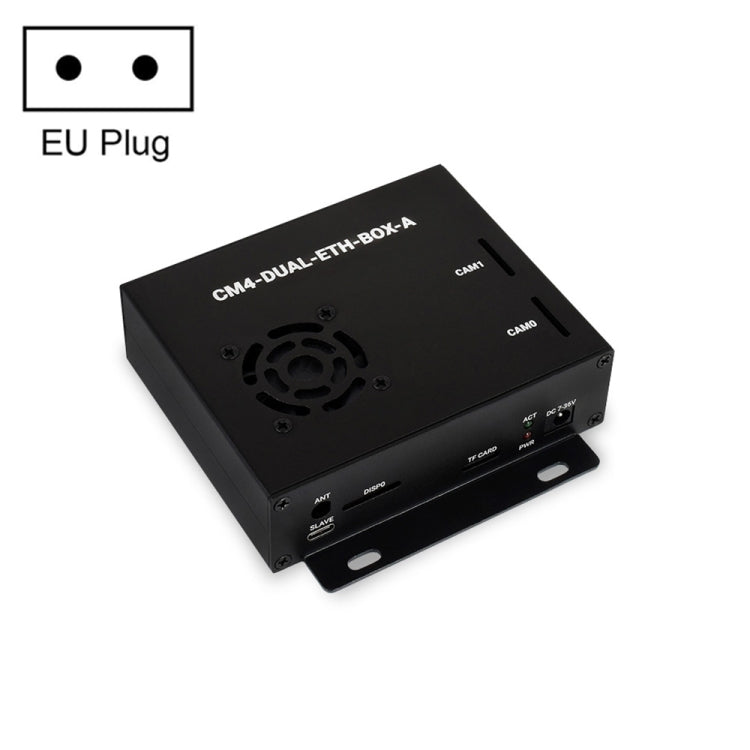

6. 12V 2A power adapter x 1
