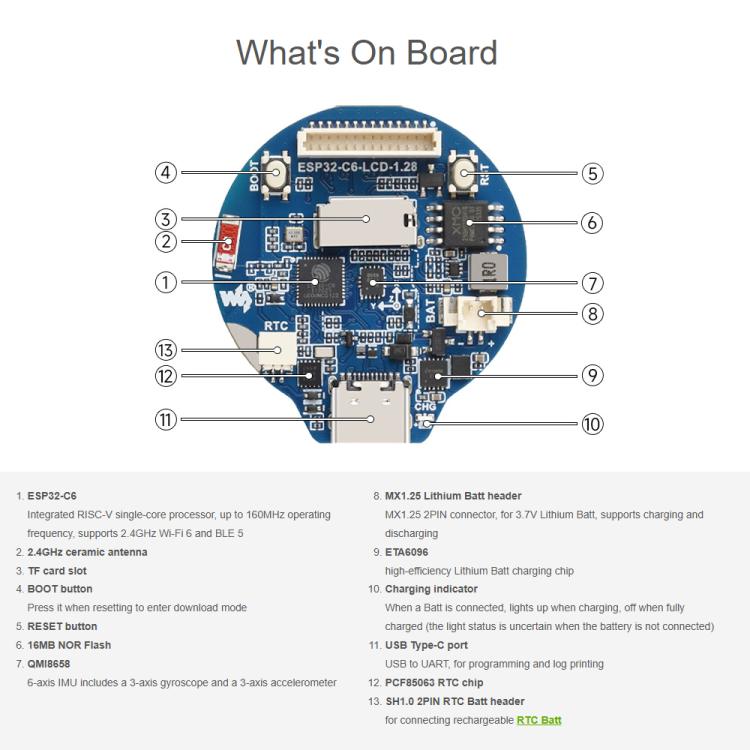

1. Powered by ESP32-C6 high-performance 32-bit RISC-V processor with main frequency up to 160 MHz.

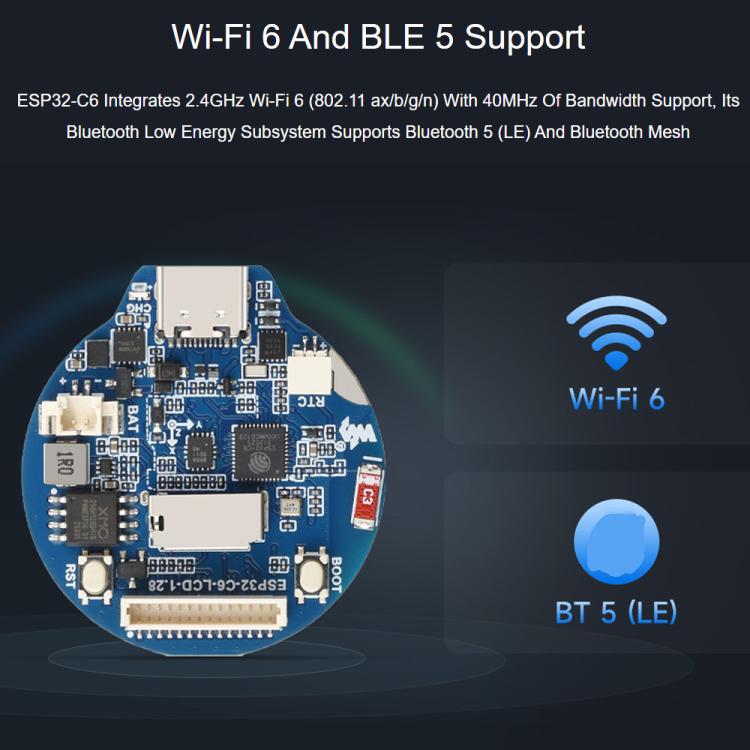

2. Integrates Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, delivering excellent RF performance.
3. Built-in 512 KB HP SRAM, 16 KB LP SRAM, and 320 KB ROM, with external 16 MB Flash memory.
4. Uses a Type-C connector, eliminating worry about plug orientation.

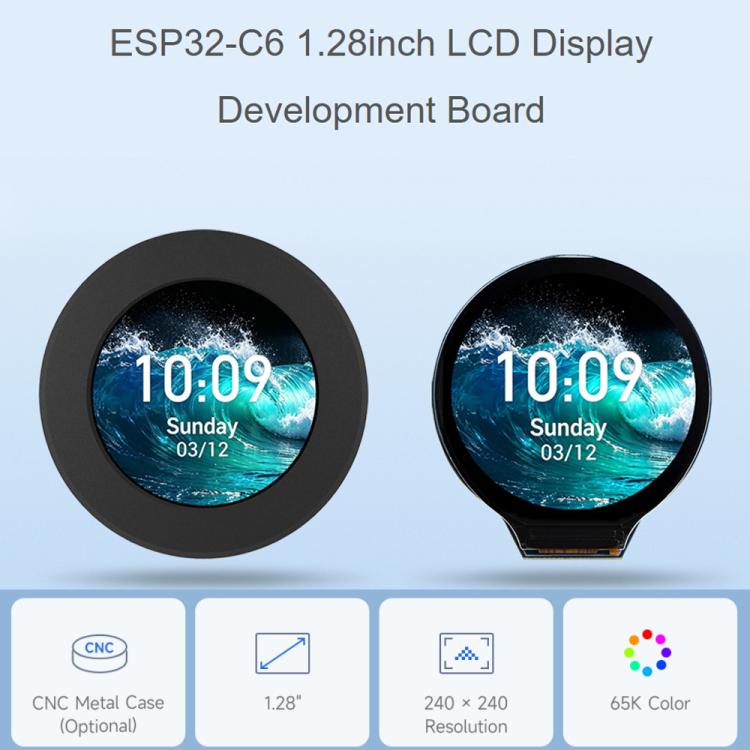

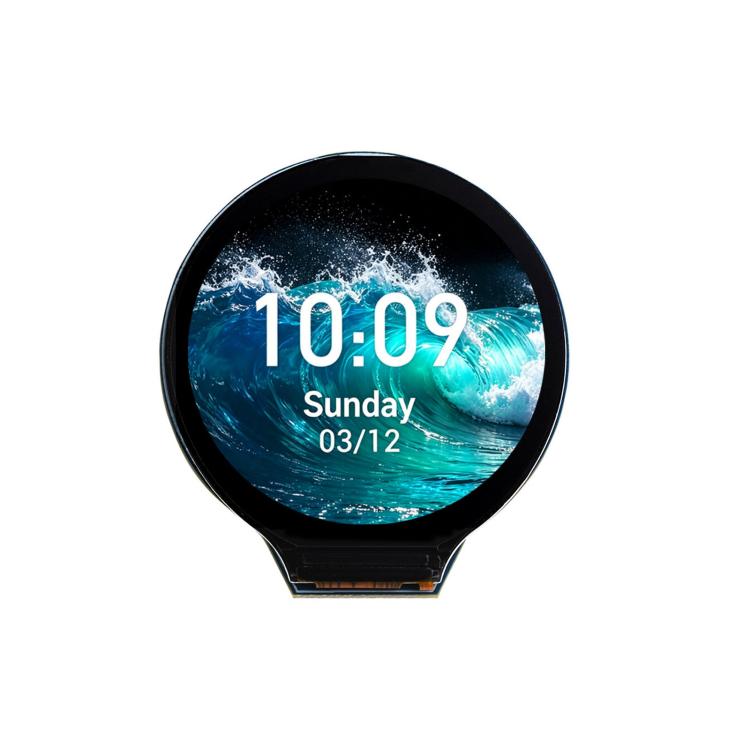

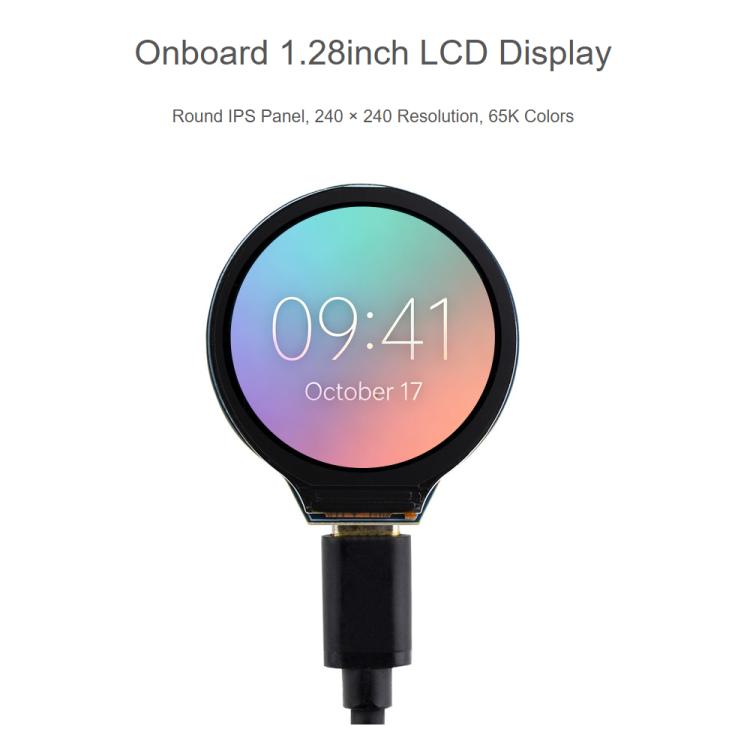

5. Onboard 1.28-inch capacitive LCD screen with 240 x 240 resolution and 65K color for clear displaying of colorful images.

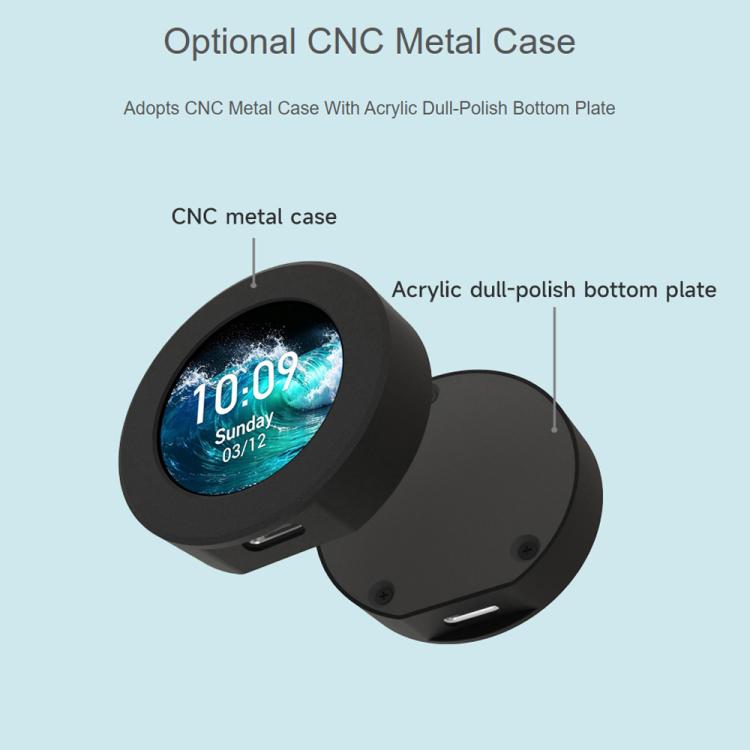

6. CNC metal top enclosure paired with an acrylic frosted back plate (optional).
7. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).
8. Onboard PCF85063 RTC chip for easy implementation of Real-Time Clock functions.
9. Onboard 3.7V MX1.25 lithium battery charging and discharging interface.

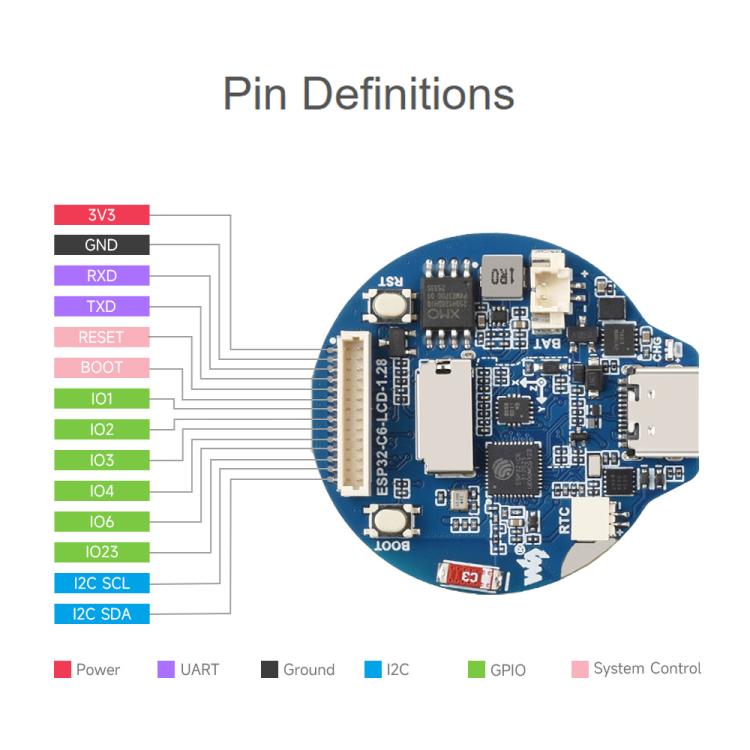

10. Onboard SH1.0 14-PIN expansion header, routing out 6 GPIOs, 1 UART, and 1 I2C.
11. Onboard MicroSD (TF) card slot for storage expansion and high-speed data transfer, enhancing flexibility.
LCD Parameters:
1. Display Panel: IPS
2. Display Size: 1.28 inches
3. Display Resolution: 240 x 240 pixels
4. Display Colors: 65K
5. Display Brightness: 400 cd/m2
6. Contrast Ratio: 1100:1
7. Communication Interface: SPI
8. Driver IC: GC9A01A
