1. Powered by ESP32-C6 high-performance 32-bit RISC-V processor, with clock speed up to 160MHz.

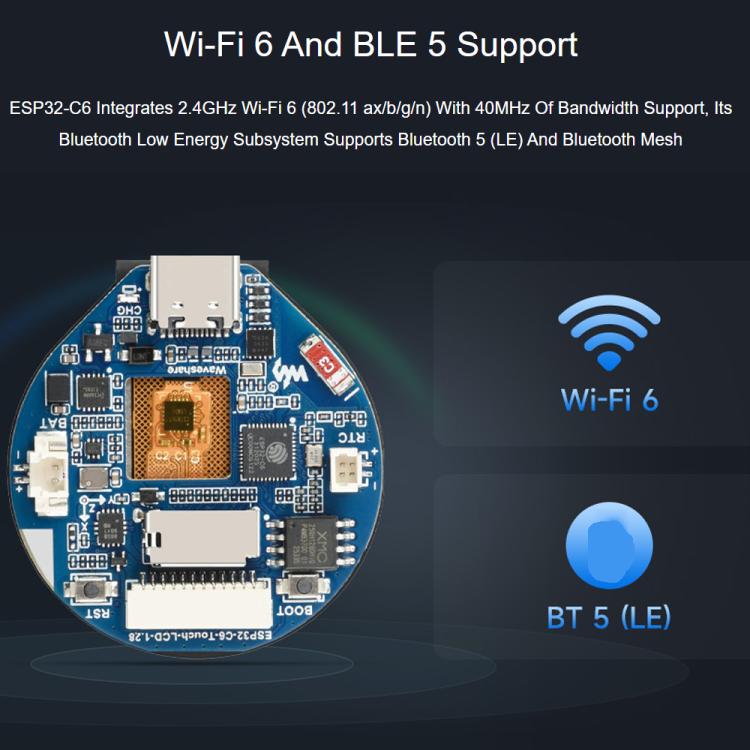

2. Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance.
3. Built-in 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, with external 16MB Flash memory.
4. Equipped with a Type-C interface, supporting reversible plug orientation for convenient use.

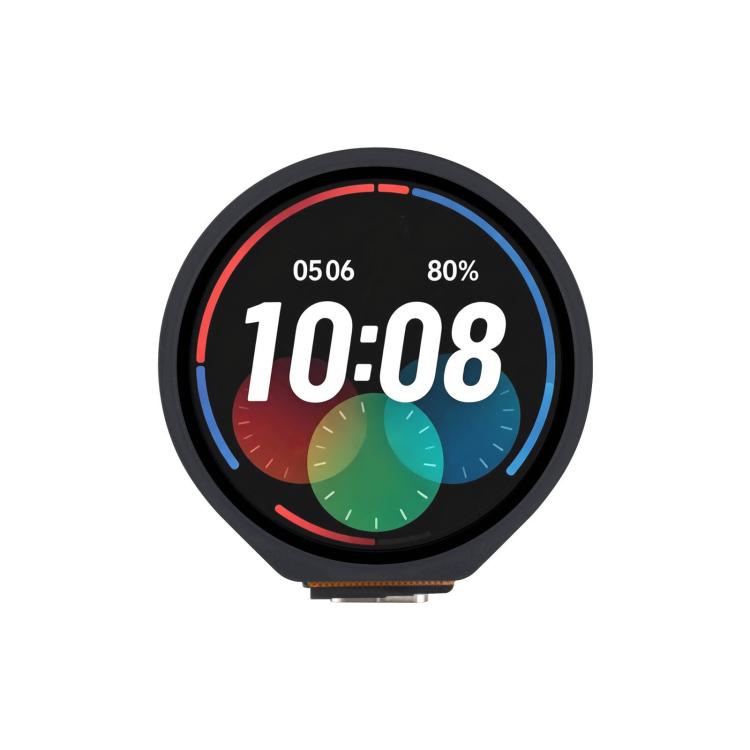

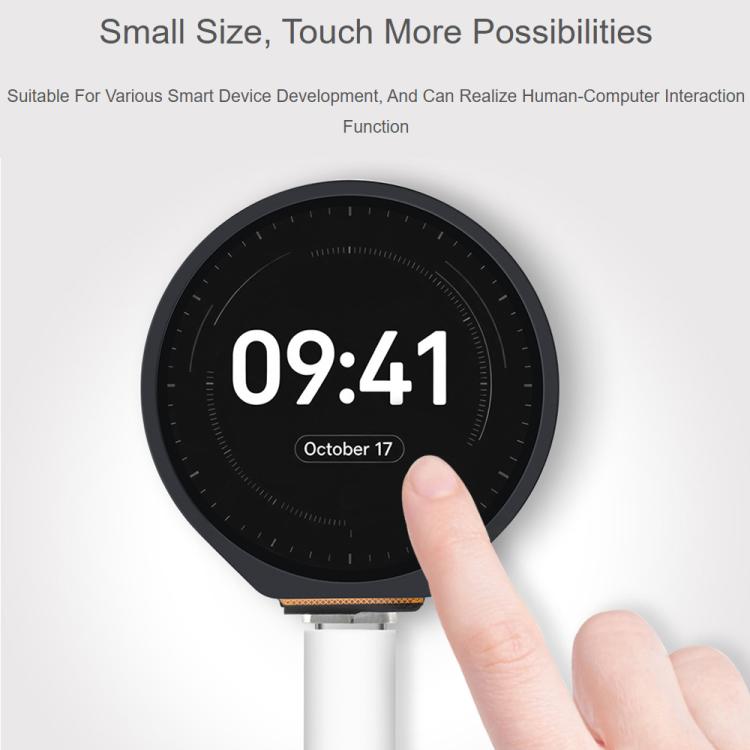

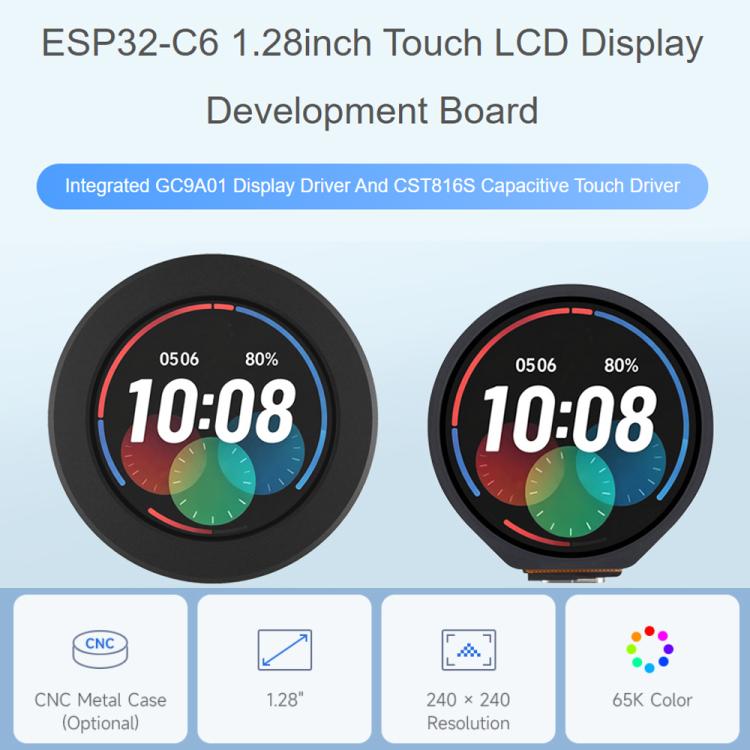

5. Onboard 1.28-inch capacitive touch LCD screen with 240 x 240 resolution and 65K colors, capable of clearly displaying colorful images.

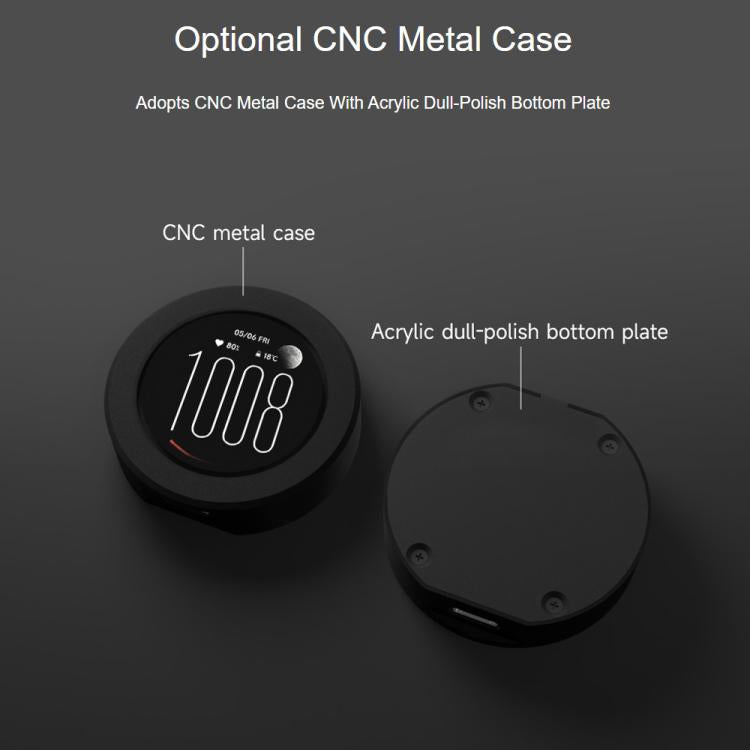

6. Top case made of CNC metal material, with an acrylic frosted back plate on the rear (optional).
7. Onboard QMI8658 6-axis Inertial Measurement Unit (3-axis accelerometer, 3-axis gyroscope).
8. Onboard PCF85063 RTC chip to easily meet RTC functional requirements.
9. Onboard 3.7V MX1.25 lithium battery charging and discharging interface.

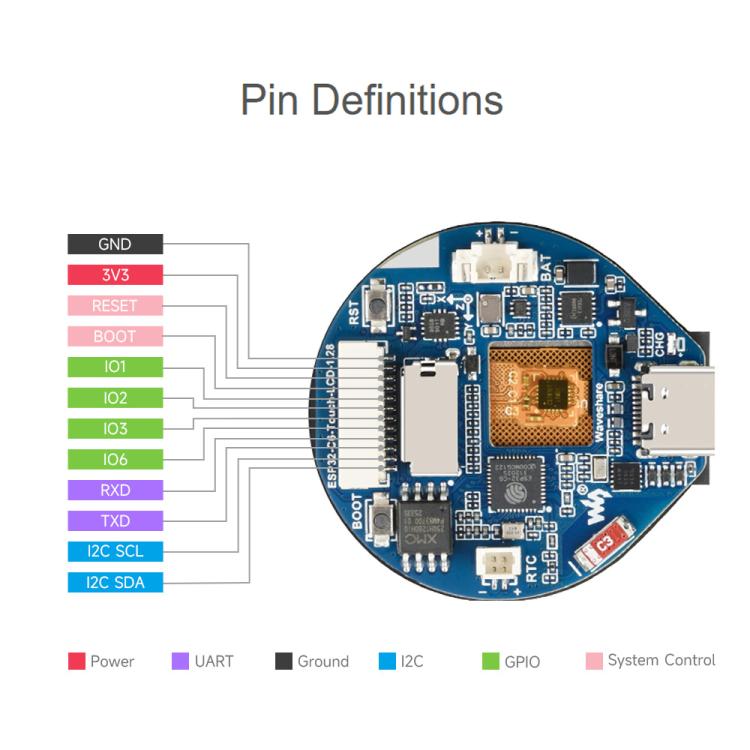

10. Onboard SH1.0 12PIN expansion interface, exposing 4 GPIOs, 1 UART, and 1 I2C.
11. Onboard TF card slot for storage expansion and high-speed data transmission, enhancing operational flexibility.
LCD Screen Parameters:
1. Display Panel: IPS
2. Display Size: 1.28 inch
3. Resolution: 240 x 240 pixels
4. Display Colors: 65K
5. Brightness: 400 cd/m2
6. Contrast Ratio: 1100:1
7. Communication Interface: SPI
8. Driver IC: GC9A01A
9. Touch Support: Yes
10. Touch IC: CST816S
