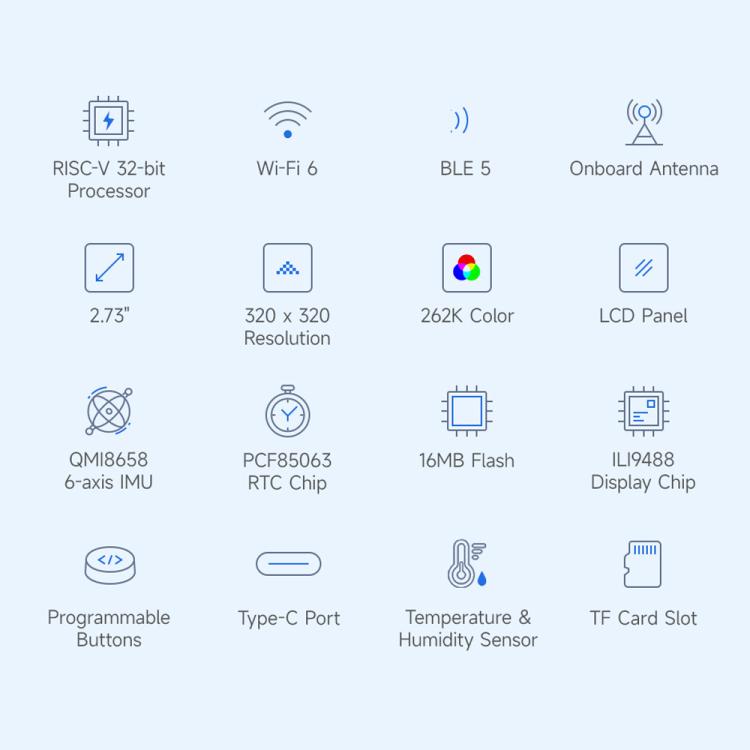

1. This microcontroller development board integrates a 2.73-inch LCD display, three user-customizable buttons, a TF card slot, a lithium battery charge management chip, a 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), an RTC real-time clock, a temperature and humidity sensor, and other peripheral resources into a compact form factor. It meets various application needs such as GUI display, button interaction, data logging, posture detection, environmental sensing, and battery power supply, making it convenient for developers to quickly build and embed into actual products.
2. Powered by the ESP32-C6 high-performance 32-bit RISC-V processor, with a main frequency up to 160MHz.

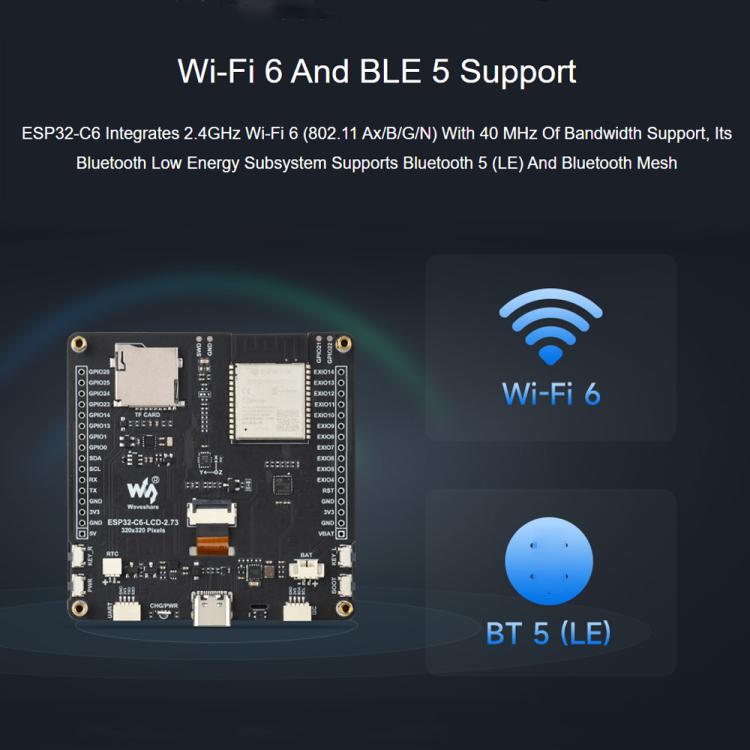

3. Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, featuring excellent RF performance with an onboard antenna.
4. Built-in 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, with external 16MB Flash.

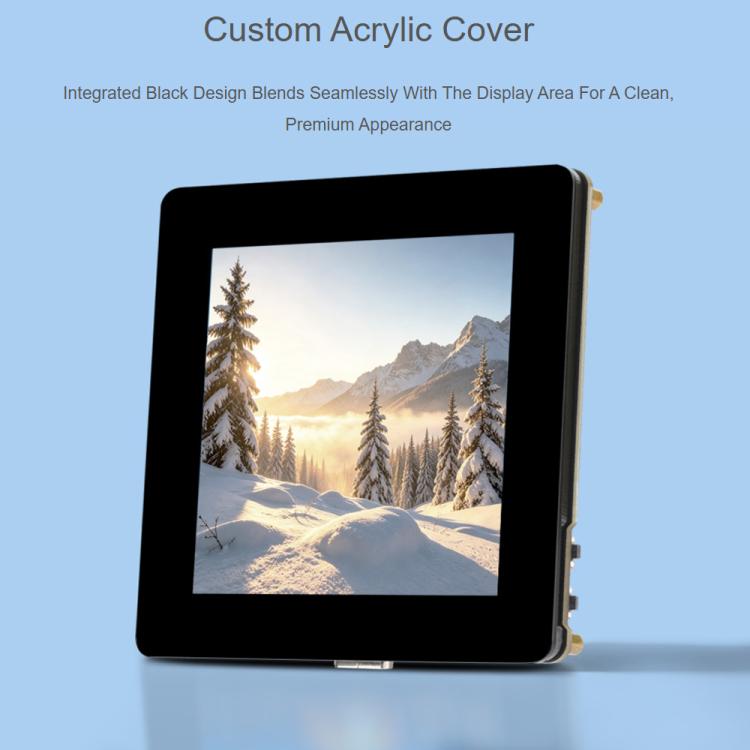

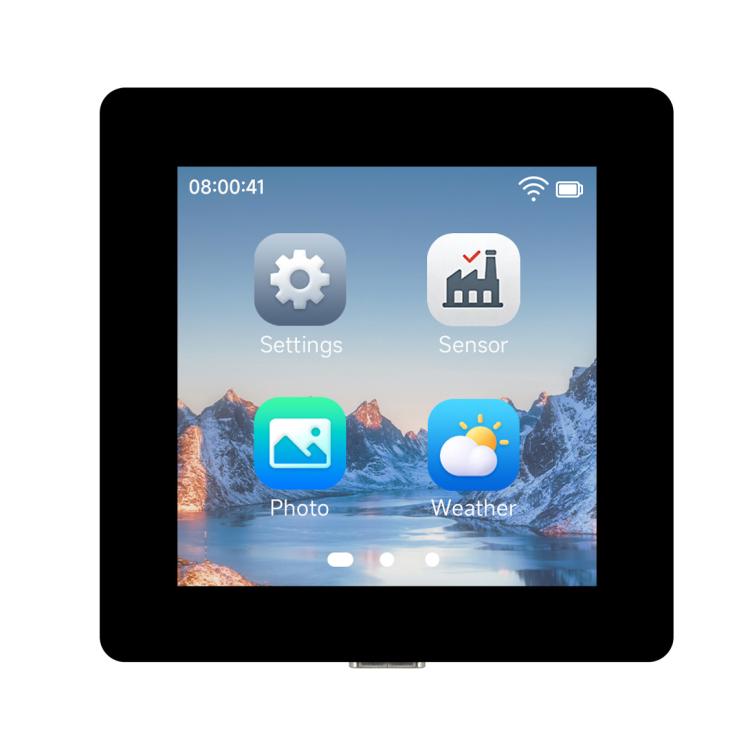

5. Onboard 2.73-inch LCD display, usable for graphical interfaces, status information, data curves, and other visual content.
6. Onboard three user-customizable buttons, facilitating menu switching, parameter settings, human-machine interaction, and other functions.
7. Onboard TF card slot, supporting external storage expansion for images, logs, configuration files, or collected data storage.
8. Onboard lithium battery charge management chip, supporting portable battery-powered application development.
9. Onboard 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), applicable for posture detection and interactive control.
10. Onboard RTC real-time clock, supporting time logging, offline timing, and related applications.
11. Onboard temperature and humidity sensor, usable for environmental data collection and monitoring.
12. Adopts USB Type-C interface for convenient power supply, program flashing, and debugging.
13. Supports development environments such as ESP-IDF / Arduino, rich in resources and easy to get started with.

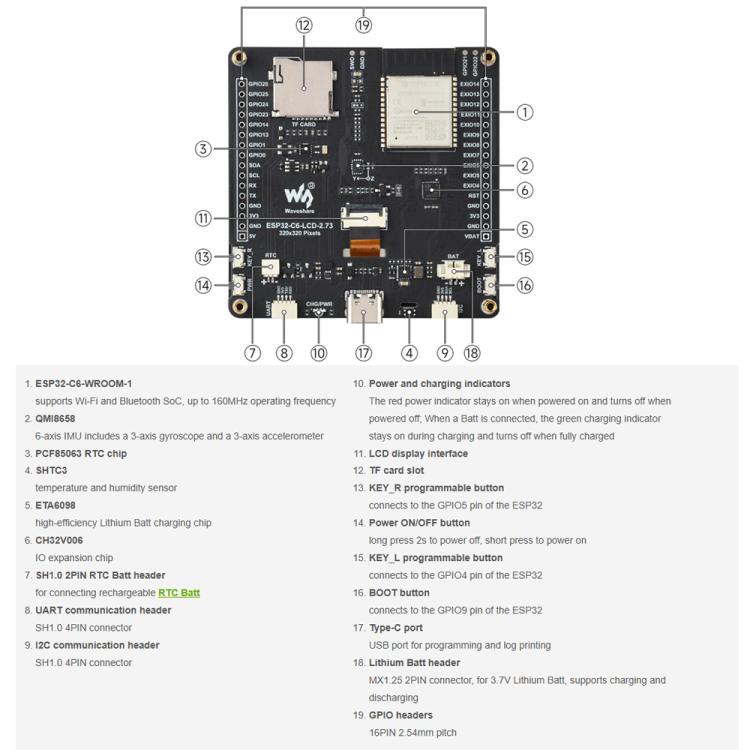

14. Leads out multiple GPIOs and peripheral interfaces for convenient connection to sensors, actuators, and other modules.
LCD Screen Parameters:
1. Display Panel: LCD
2. Display Size: 2.73 inch
3. Display Resolution: 320 x 320 pixels
4. Display Colors: 262K
5. Display Brightness: 620cd/m2
6. Contrast Ratio: 1200 : 1
7. Communication Interface: SPI
8. Driver IC: ILI9488
