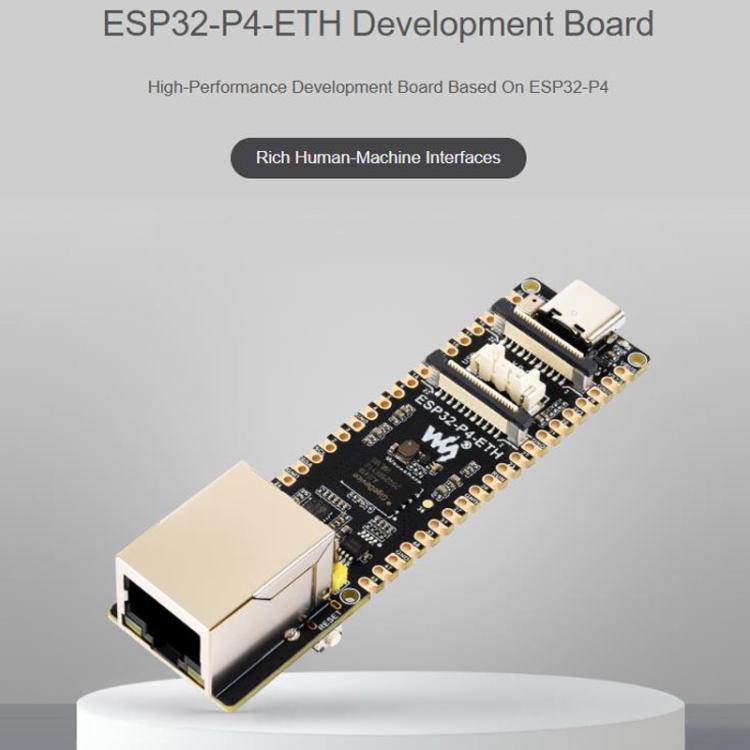

1. High-performance MCU featuring RISC-V 32-bit dual-core and single-core processors
2. 128KB high-performance ROM, 16KB low-power ROM, 768KB high-performance secondary storage, 32KB low-power SRAM, 8KB register cache
3. Robust image and voice processing capabilities, with interfaces including JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder
4. 32MB PSRAM stacked within the chip package, with externally integrated 32MB NOR Flash

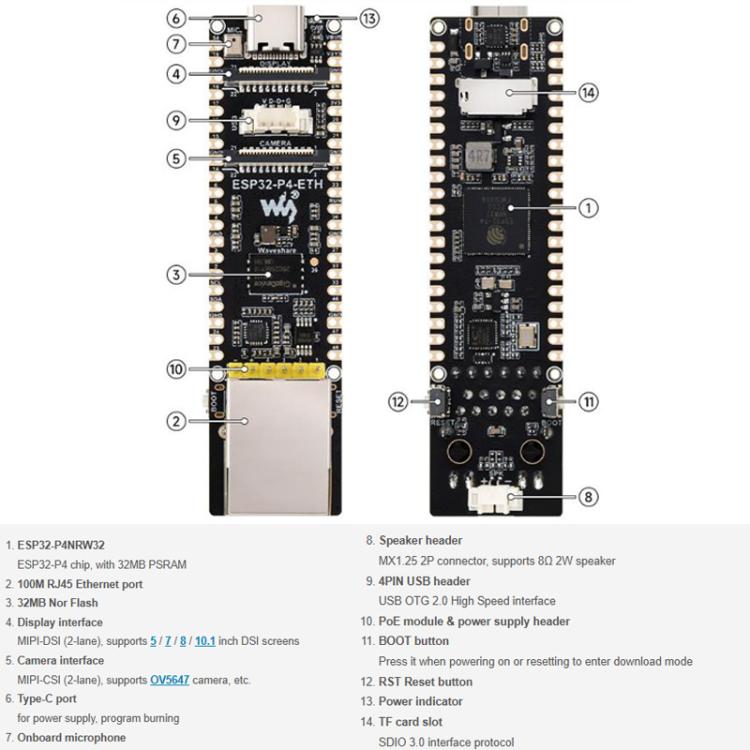

5. On-board peripheral interfaces include MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, and speaker terminals

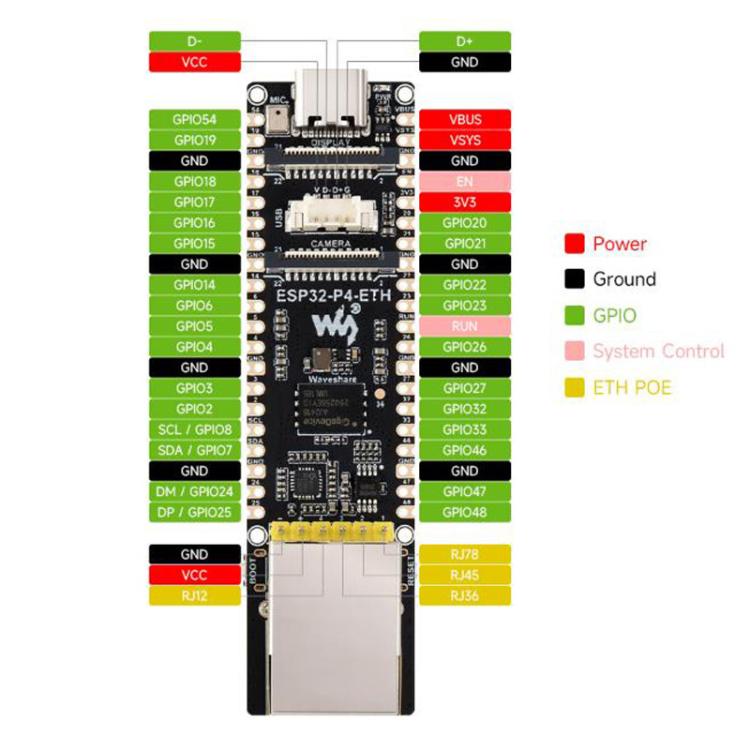

6. On-board 2 × 20 pin headers provide 27 additional programmable GPIOs
7. Security mechanisms: Secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Supports hardware access protection for Access Permission Management (APM) and privilege separation
8. Flexible power supply options: Supports both PoE and USB Type-C interface power solutions
9. Supports PoE module integration, enabling networked power delivery via a single Ethernet cable to PoE devices
10. Supports mainstream AI platforms, enabling integration with online large-model platforms such as Doubao and DeepSeek AI models
ESP32-P4-POE-ETH-KIT-B package contents:
- ESP32-P4-ETH-M x 1
- 10.1-DSI-TOUCH-A x 1
- PoE module x 1
- Screw pack x 1
- 8 ohms 2W speaker x 1
- Pi5-Camera-Cable-200mm x 1
- FFC 15-Pin flat cable x 1
- RPi Camera (B) x 1
- MX1.25 4-Pin to USB Cable x 1
- MIPI-DSI-Cable-12cm x 1
- MX1.25 2-pin to 2.54mm 3-pin adapter cable x 1
- FFC cable 22-pin approx. 200mm (opposite direction) x 2
- MX1.25 2-pin to MX1.25 4-pin about 150mm x 1
- Copper pillar package x 1
