1. High-performance MCU featuring RISC-V 32-bit dual-core and single-core processors
2. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
3. Robust image and voice processing capabilities, with interfaces including JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder

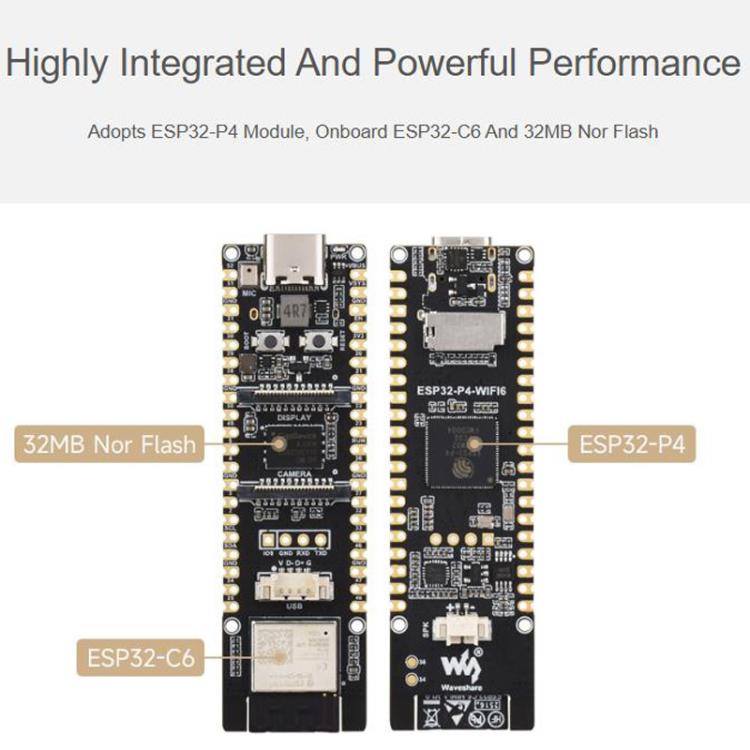

4. On-chip stacked 32MB PSRAM, externally integrated 32MB Nor Flash

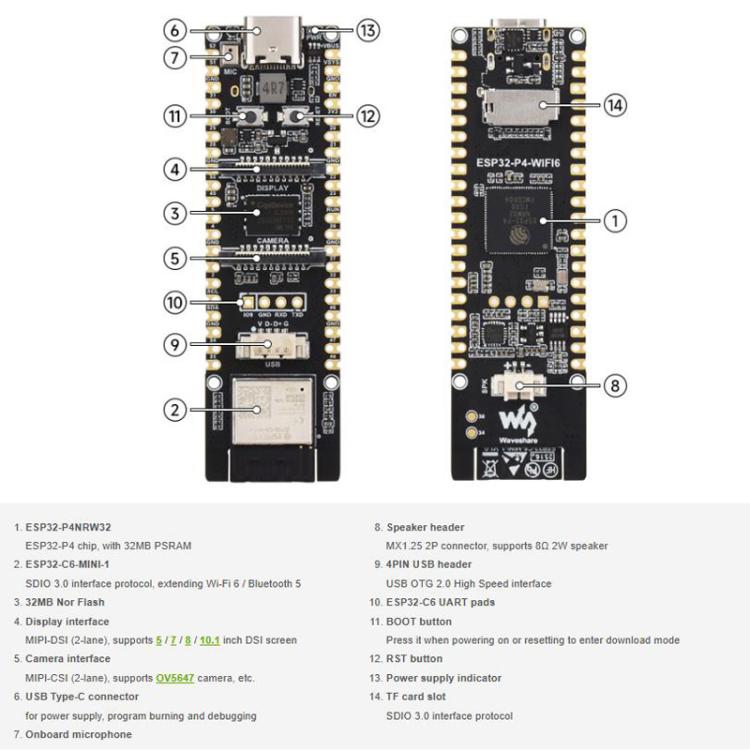

5. On-board interfaces include MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone, and speaker terminals
6. On-board 2 × 20 header pins expose 27 additional programmable GPIOs
7. Security mechanisms: Secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection for Access Permission Management (APM) and privilege separation
8. Meets multimedia development requirements for low cost, high performance, and low power consumption
9. Onboard ESP32-C6 chip extends ESP32-P4 with 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE. Communicates via SDIO interface protocol for stable connections and efficient data transfer

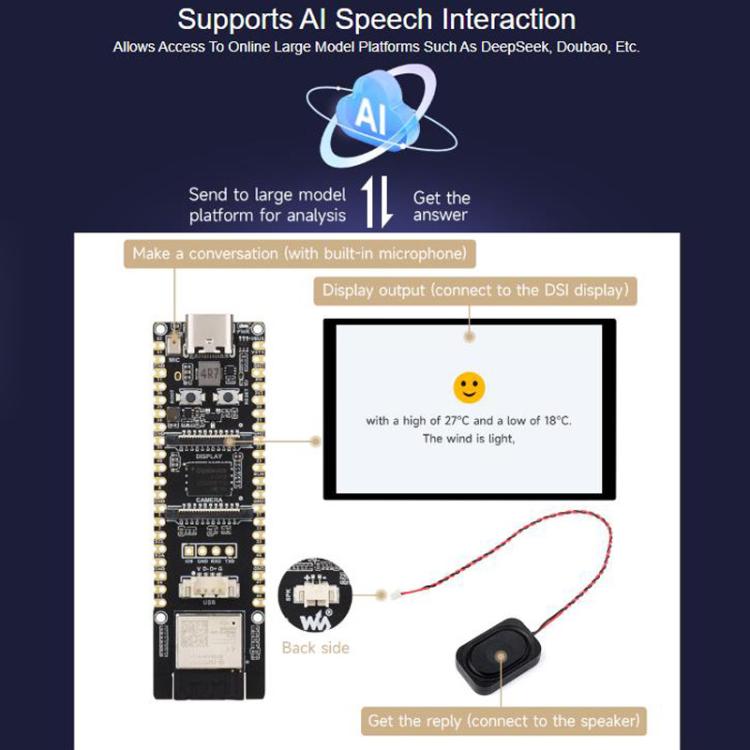

10. Supports mainstream AI platforms, enabling integration with online large-model platforms like Doubao and DeepSeek
ESP32-P4-WIFI6-KIT-B Package Contents:
- ESP32-P4-WIFI6-M x 1
- 10.1-inch display x 1
- Speaker x 1
- Camera x 1
- FFC 15-pin ribbon cable x 1
- Pi5-Camera-Cable-200mm x 1
- MX1.25 4-pin to USB x 1
- DSI ribbon cable x 1
- FFC 22-pin ribbon cable x 2
- MX1.25 2-pin to 2.54mm 3-pin x 1
- MX1.25 2-pin to MX1.25 4-pin x 1
- Copper pillar package x 4
