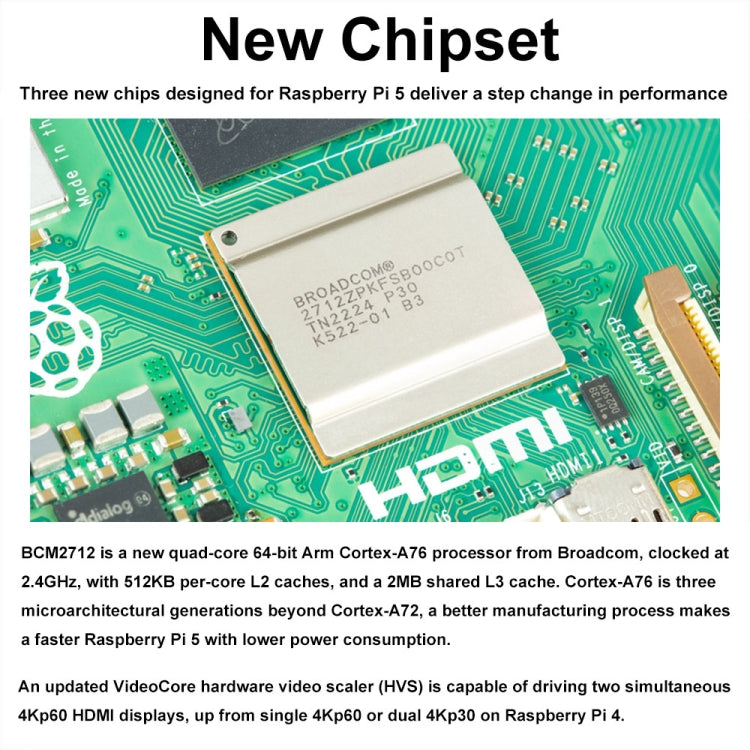

1. 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB L2 cache and 2MB shared L3 cache
2. VideoCore VII GPU @800MHz, supports OpenGL ES 3.1 and Vulkan1.2
3. Dual 4Kp60 HDMI display outputs
4. 4Kp60 HEVC decoder
5. LPDDR4X-4267 SDRAM (2GB/4GB/8GB memory optional)
6. 2.4GHz/5GHz dual-band 802.11ac Wi-Fi
7. Bluetooth 5.0/Bluetooth Low Energy (BLE)
8. High-speed Micro SD card interface, supports SDR104 mode
9. 2 × USB 3.0 ports, supports 5Gbps simultaneous operation
10. Gigabit Ethernet, supports PoE+ (requires separate PoE+ HAT, coming soon)
11. 2 × 4-lane MIPI DSI/CSl interface
12. PCle 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
13. Provides 5V/5A DC power via USB-C, supports PD
14. Raspberry Pi 40PIN GPIO interface
15. Real-time clock (RTC), powered by an external battery (need to be purchased separately)
16. Onboard power button, you can shut down/start up without disconnecting the power
17. Application areas: mini host, smart home, smart manufacturing project development, etc.

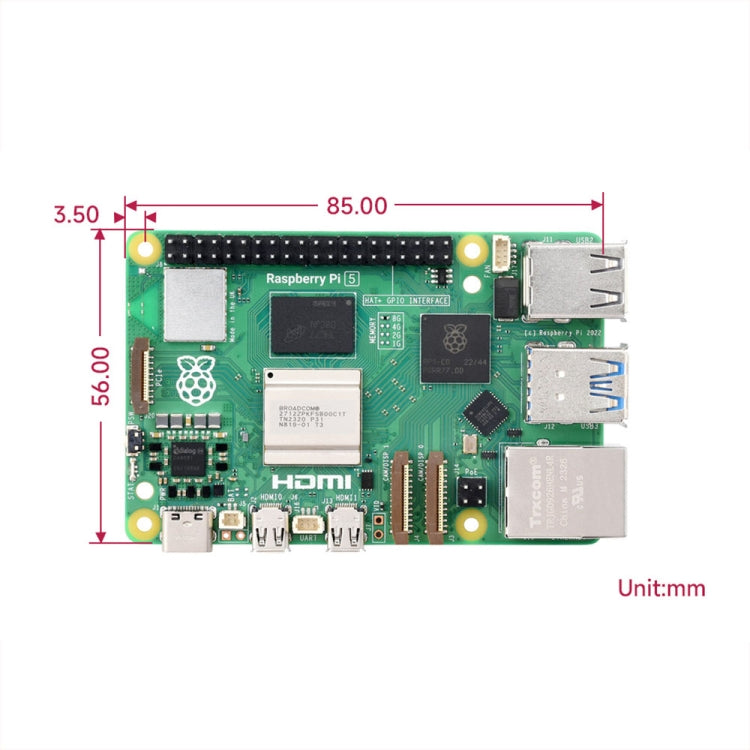

18. Product size: 85 x 56mm
19. Weight: 62g
Packing list:

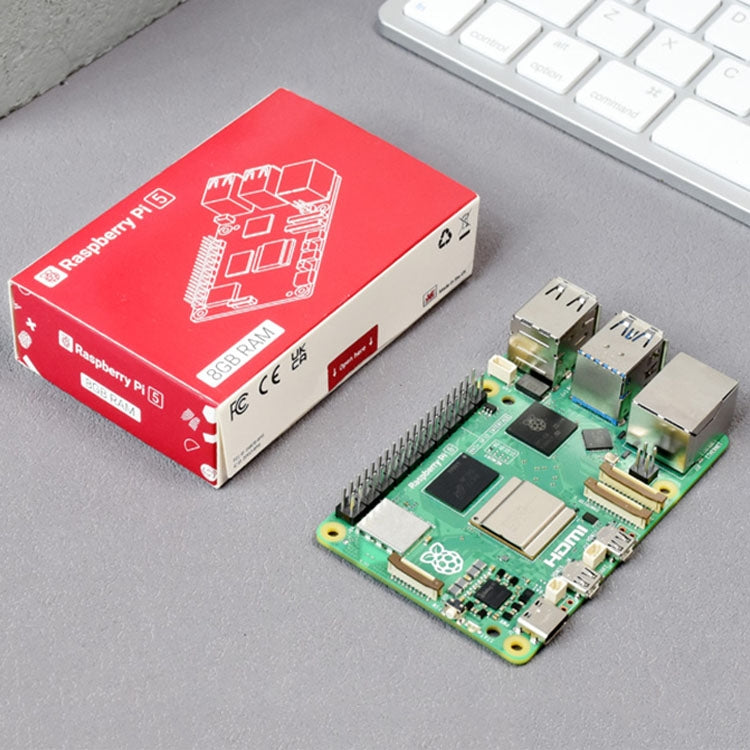

- Development board x 1
