1. Pixel: 8 million
2. Sensor chip: IMX678
3. Interface type: USB 2.0
4. Camera:
- Sensor size: 1/1.8 inch
- Aperture(F): 2.4
- Focal length (EFL): 4.2mm
- Field of view (FOV): 93 degrees (D) / 86 degrees (H) / 55 degrees (V)
- Focus mode: fixed focus
- Aberration: less than -1.2%
- Infrared filter: 650nm filter
- Shutter mode: Rolling shutter
5. Image:
- Supported formats: MJPG, YUY2
- Still picture resolution: 3840 x 2160
- MJPG: 30FPS 3840 x 2160, 30FPS 2880 x 2160, 30FPS 2048 x 1536, 30FPS 1920 x 1080, 30FPS 1600 x 1200, 30FPS 1280 x 960, 30FPS 1280 x 720, 30FPS 800 x 600, 30FPS 640 x 480
- YUY2: 1.5FPS 3840 x 2160, 1.5FPS 2880 x 2160, 3.75FPS 2048 x 1536, 3.75FPS 1920 x 1080, 5FPS 1600 x 1200, 7.5FPS 1280 x 960, 10FPS 1280 x 720, 10FPS 1024 x 768, 20FPS 800 x 600, 20FPS 640 x 480
6. Operating voltage: 5V +/- 5%
7. Operating current: 250mA

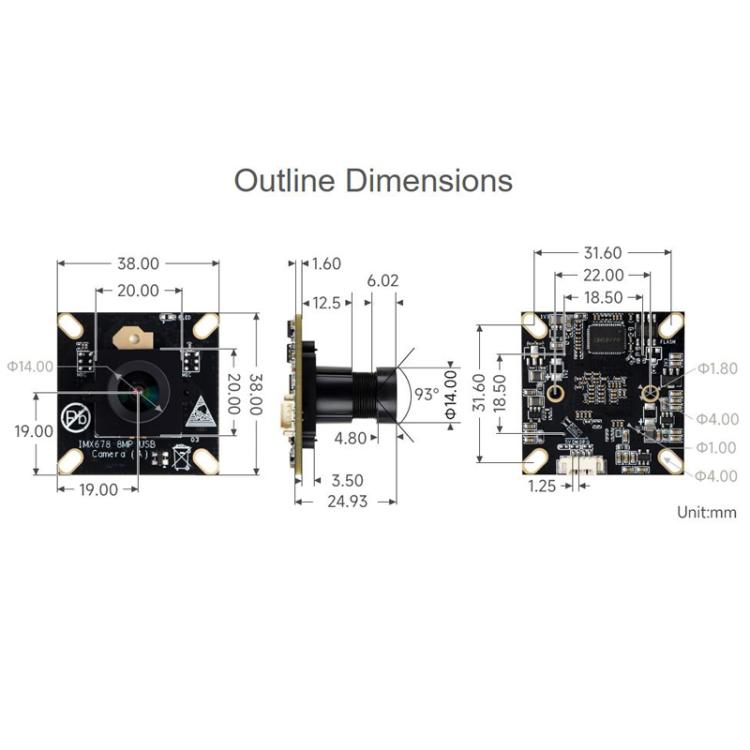

8. Size: about 3.8 x 3.8 x 2.5cm
Features:
1. HD resolution, IMX678 8-megapixel, far and near the scene are clear, high-definition images easily fixed
2. Excellent low-light performance, even in low-light environments can provide excellent image quality, in the dark environment still maintain a clear picture quality
3. USB 2.0 interface, driver-free, can be easily connected with various USB hosts
