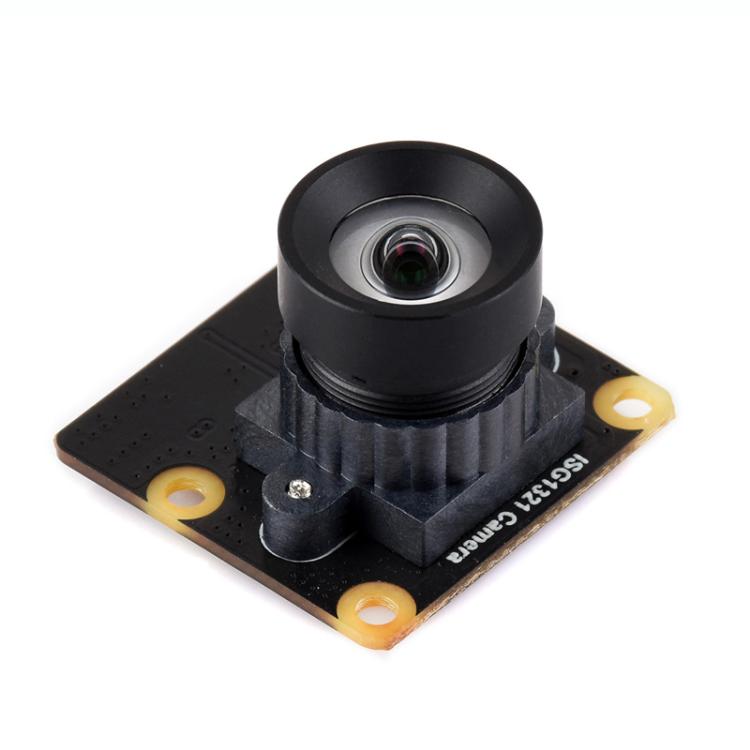

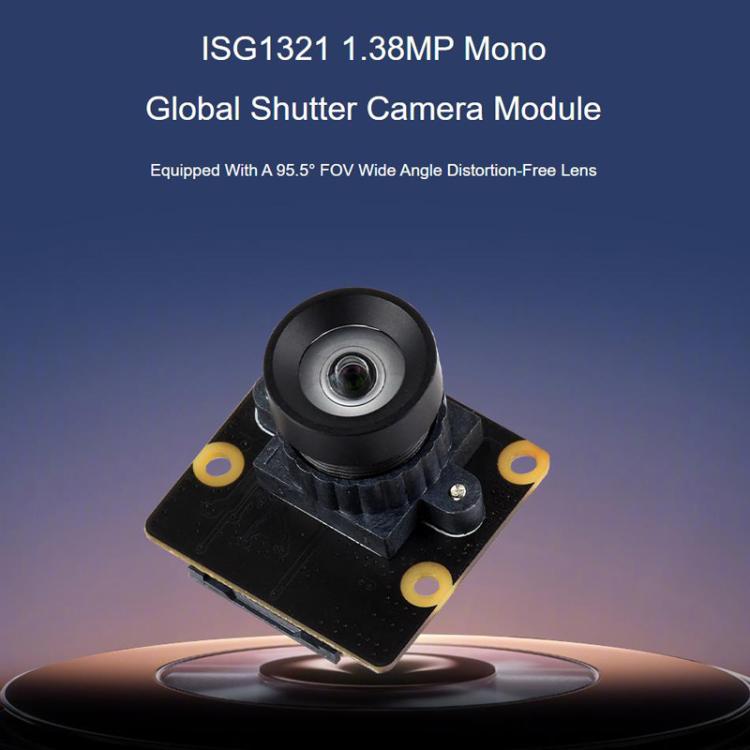

1. Photochip: ISG1321
2. CMOS size: 1/4 inch
3. Camera type: black and white
4. Pixel: 1.38 million (1280 x 1080)
5. Shutter mode: global shutter
6. Output frame rate: up to 120 FPS

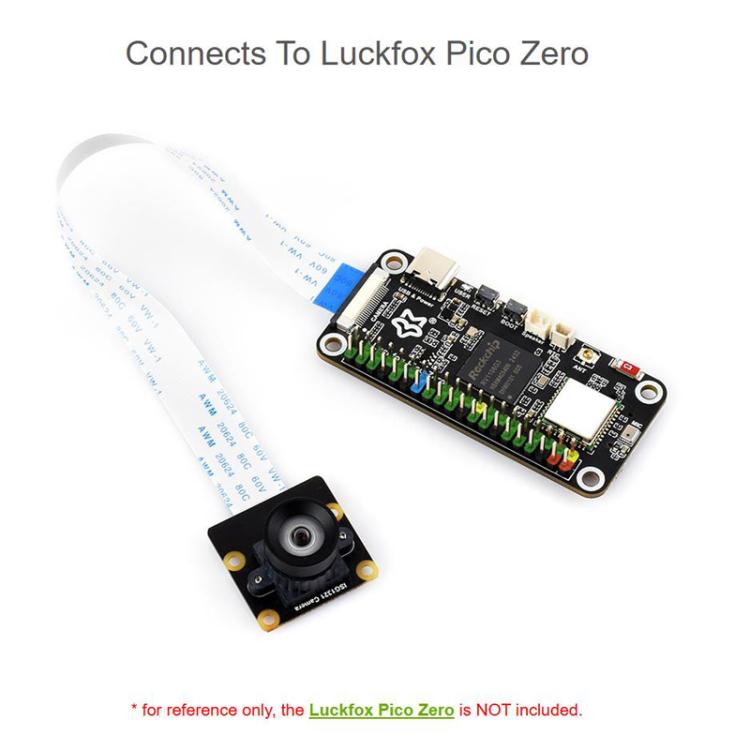

7. Interface: MIPI-CSI (2-lane)
8. Aperture: F2.4
9. Aberration: less than 1%
10. Field of view: 95.5 degrees
11. Focal length: 2.88mm
12. Focus mode: manual focus
13. Application scenarios: machine vision, logistics reading and industrial inspection
14. Size: about 2.5 x 2.4 x 1.66cm
Features. 1:

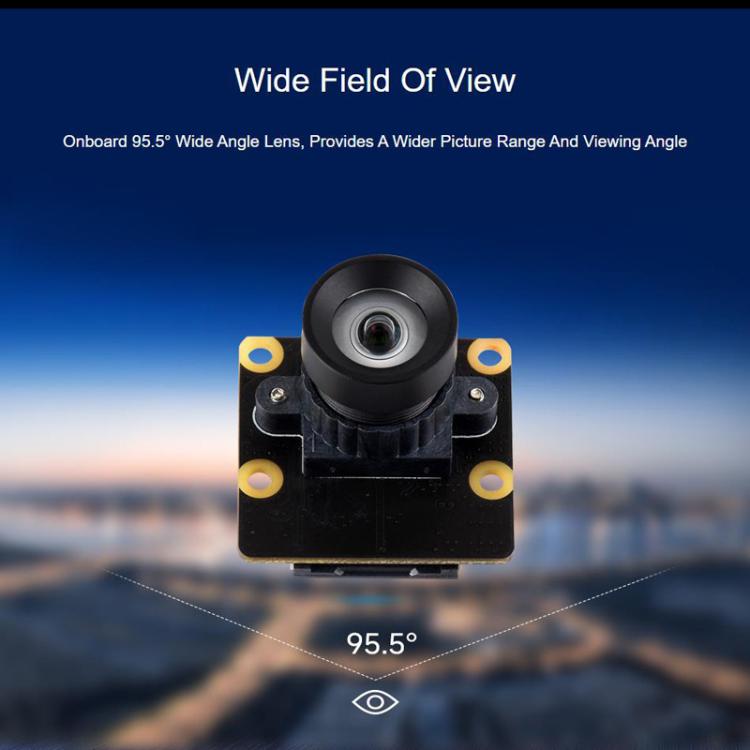

1. Equipped with 95.5 degree wide-angle lens, presenting a wider range of images, no longer limited to a narrow viewing angle

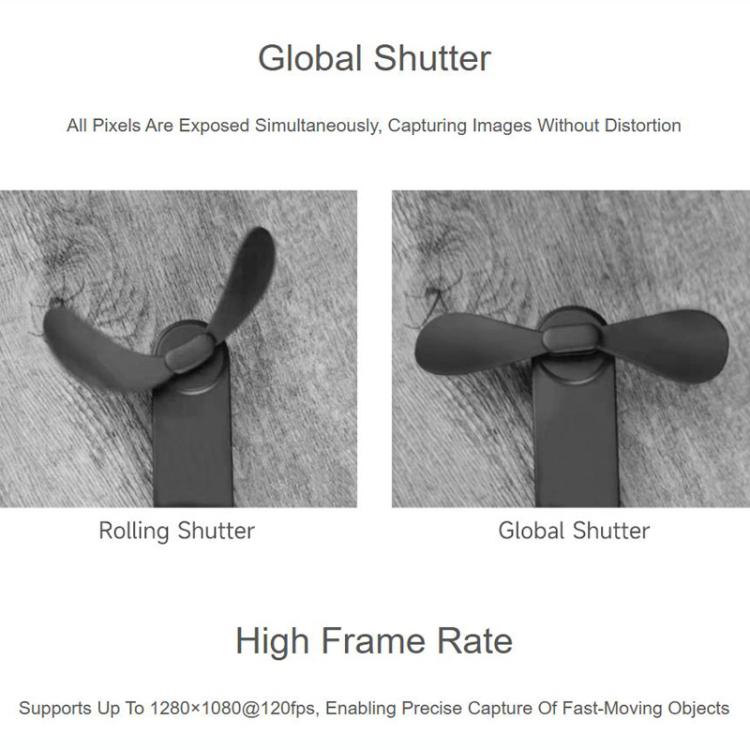

2. Global shutter, all pixels are exposed at the same time, the captured image is not easy to produce distortion.
3. Support up to 1280 x 1080 120fps, accurately capture fast-moving objects
