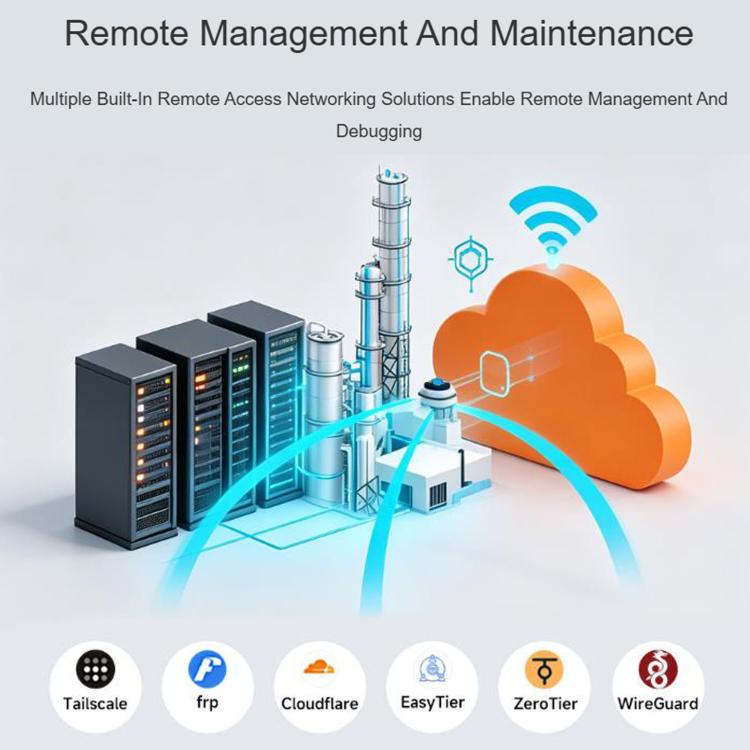

1. It is equipped with multiple remote networking solutions, enabling remote management and debugging

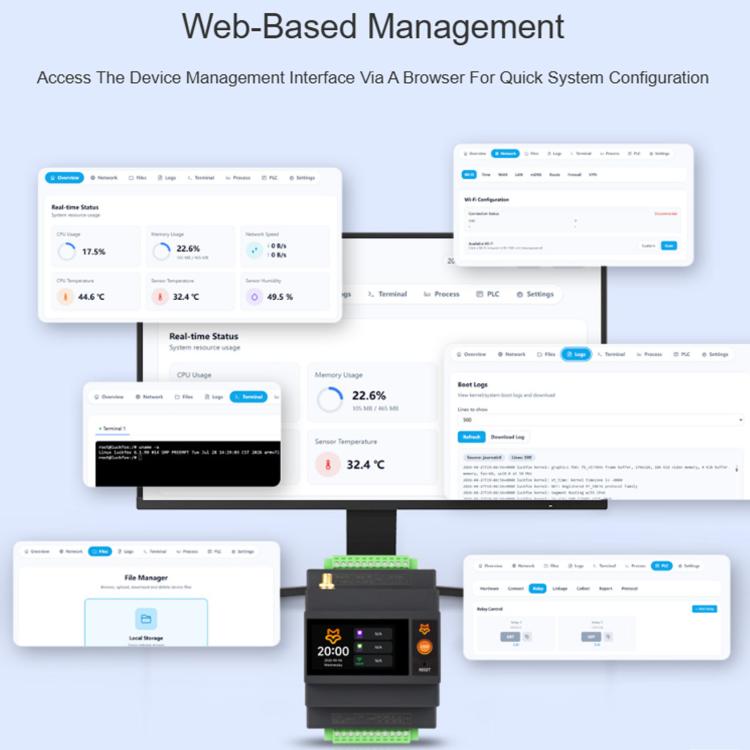

2. It supports opening the device management backend through a browser, allowing for quick system configuration
3. It runs on the Linux system, with a complete ecosystem and support for multiple language development

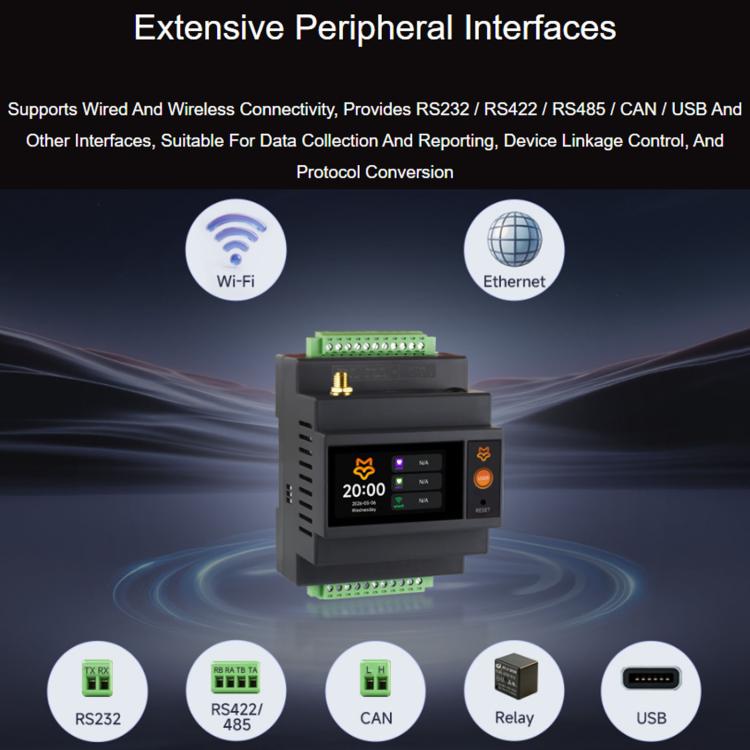

4. It has multiple peripheral interface options, supporting wired and wireless network connections, and providing interfaces such as RS232/RS422/RS485/CAN/USB, suitable for various scenarios including data acquisition and reporting, linkage control, and protocol conversion
5. It has a wide range of application scenarios, including industrial control, smart home, and smart agriculture
Parameters
1. Main controller: RK3506B
2. Core: triple-core ARM cortex-A7 (1.2GHz)
3. Memory: built-in 512MB DDR3L
4. Storage: eMMC (8GB)
5. Screen: 1.9-inch LCD touchscreen, resolution 170 × 320
6. USB: native USB OTG 2.0 x 1
7. Hub: expansion USB HOST 2.0 x 1
8. Network port: 10/100M ethernet port x 2
9. Wireless communication: built-in 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
10. CAN: CAN x 1
11. Serial port: RS232 x 1, RS422/RS485 x 1 (function determined by wiring)
12. Relay channels: 2 channels
13. Relay contact Type: normally open (NO) x 1, normally closed (NC) x 1
14. Relay contact load: less than or equal to 10A 250V AC or less than or equal to 10A 30V DC
15. Buttons: customized button x 1 (used for default firmware upgrade), RESET button x 1
Standard version packaging list:
- Luckfox Lyra PLC x 1
- Glue stick antenna x 1
- USB Type-A to Type-C cable approximately 1 meter x 1
- SH1.0 3PIN connection cable approximately 100mm x 2
- SH1.0 4PIN connection cable 100mm x 4
- Snap-on plug 6mm x 1
