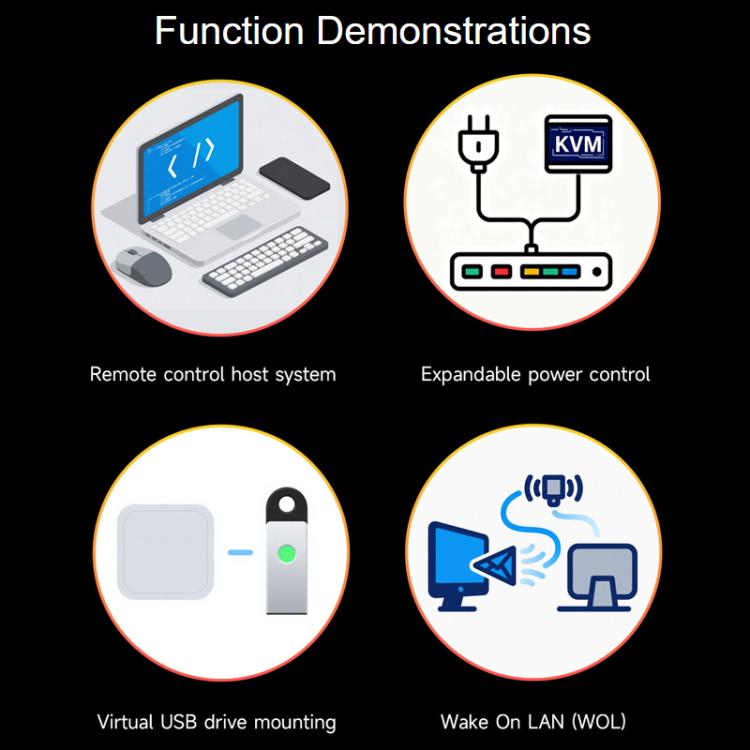

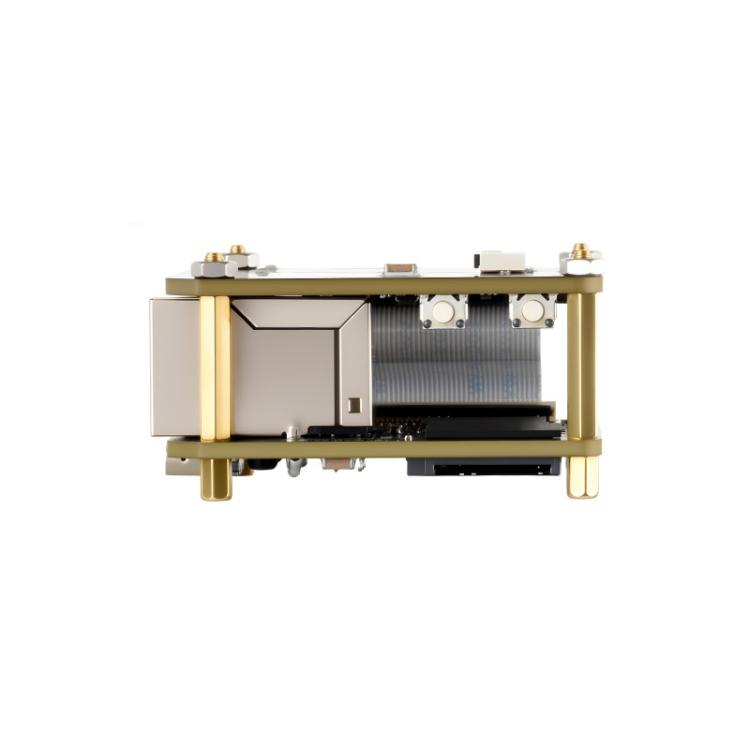

1. Luckfox PicoKVM is a lightweight IP KVM management tool that supports remotely acquiring the screen of a target device and simulating HID input over the network, enabling contactless maintenance and management of development boards, computers, and servers. This product features stable, low-latency video capture and remote control capabilities, making it widely applicable to scenarios such as remote computer control and server maintenance.

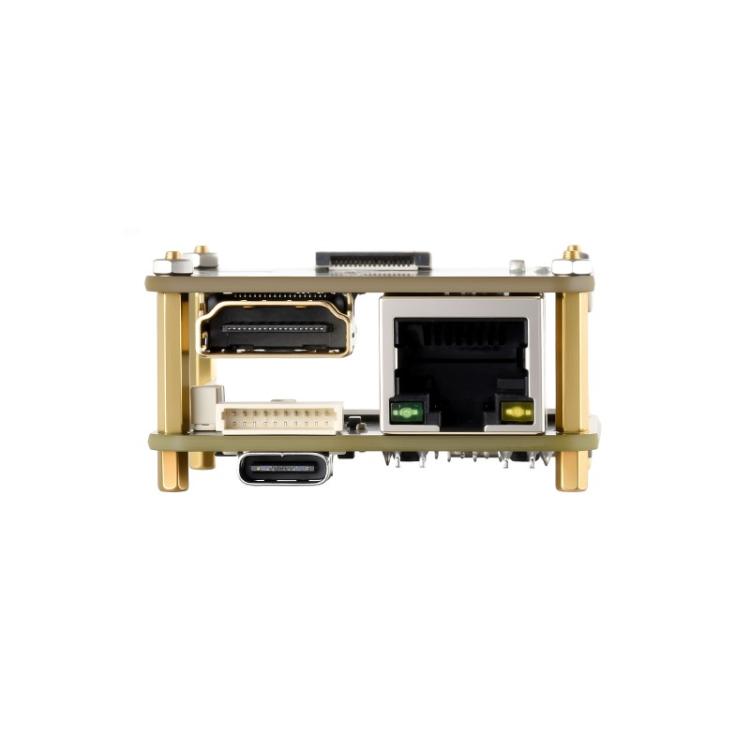

2. Onboard HDMI input interface: Can be recognized as a monitor by a computer for screen capture.
3. Onboard USB interface: Supports mouse, keyboard, and U disk device emulation.
3. Onboard 100Mbps Ethernet interface: Used for video and control signal transmission.

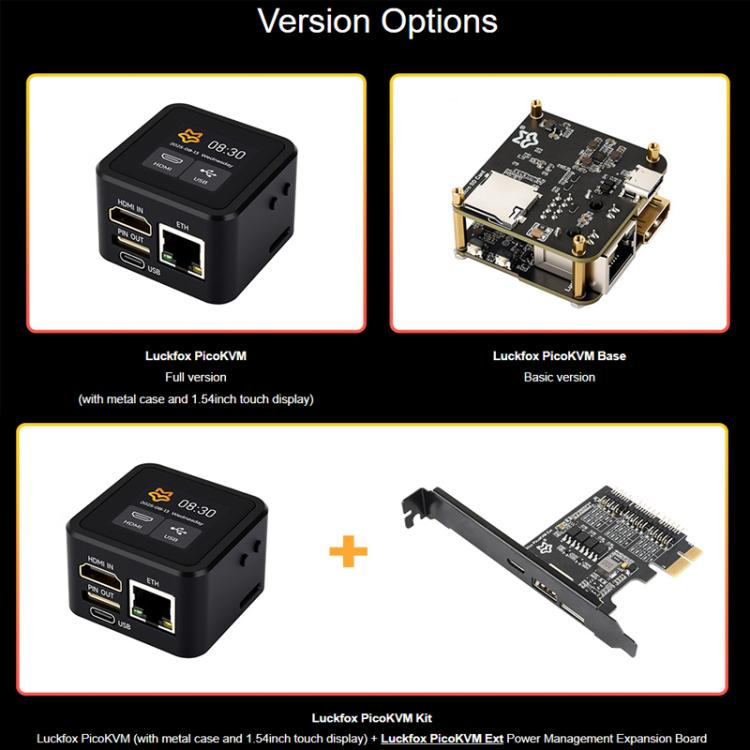

4. 1.54-inch touch screen: Displays IP address, connection status, and system operating status (Basic version does not have a screen).

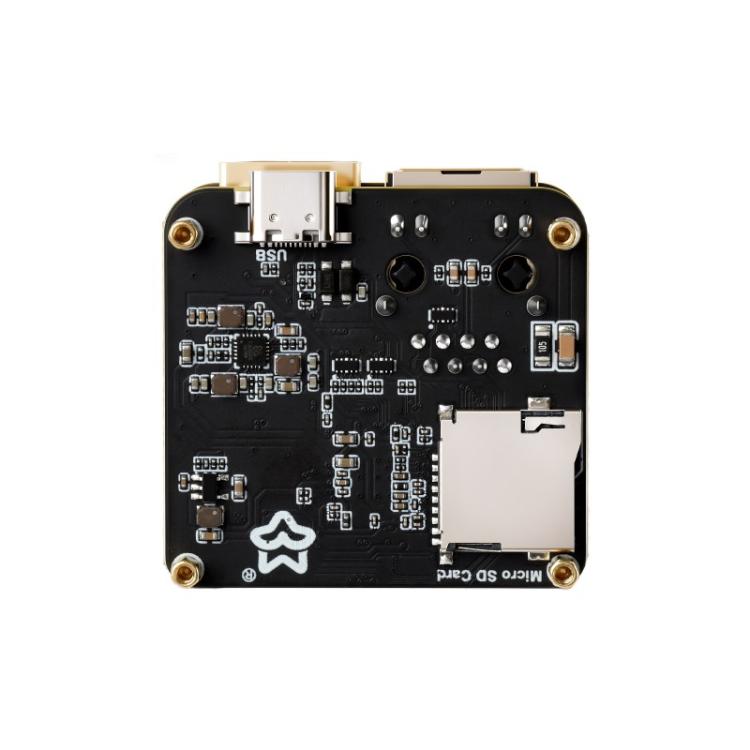

5. Micro SD card slot: Supports storage expansion.
6. 10 expansion interfaces: Can be used for host power on/off control.
Function Support:
1. Main Controller: RV1106G3
2. Core: 1 x A7@1.2G
3. Memory: 256M DDR3
4. Hard Drive: 8G eMMC
5. System: PicoKVM
6. Resolution: 1080P@60fps
7. Video Encoding: H264
8. Video Latency: 80ms ~ 200ms
9. Audio Transmission: Supported
10. UEFI/BIOS Support: Yes
11. Emulated USB Keyboard and Mouse: Yes
12. Emulated USB Storage: Yes
13. UEFI/BIOS Access: Yes
14. Wake-on-LAN (WOL): Yes
15. Web Terminal: Yes
16. Custom Scripts: Yes
17. Serial Terminal: 1 channel
18. Storage Expansion: Micro SD card
19. Power Control: GPIO control
20. Ethernet: 100Mbps
21. LCD Display: 1.54-inch 240 × 240 resolution touch screen (Only the full version includes a screen)
22. Power Input: Type-C
23. Dimensions:
-- Full version: 48.50 × 48.50 × 29.00 (mm)

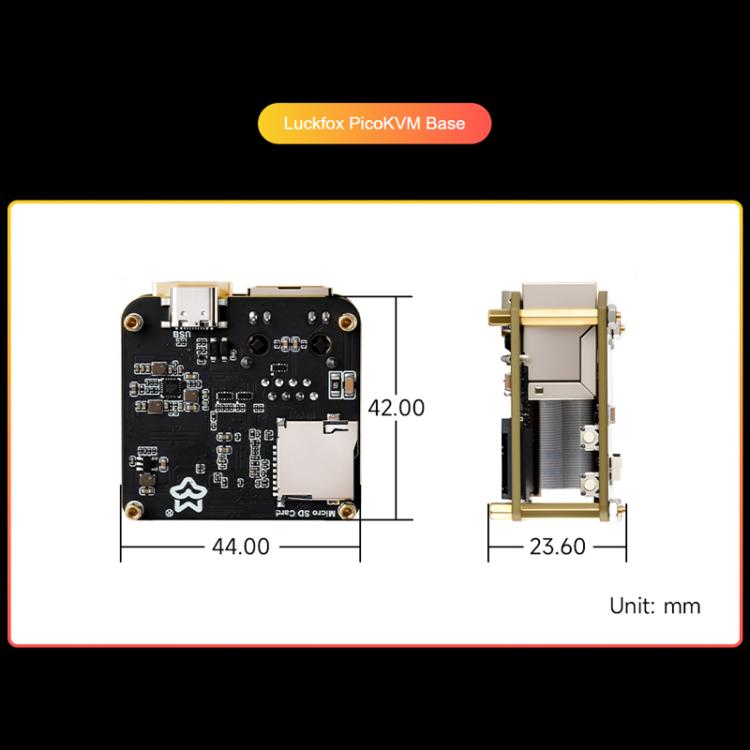

-- Basic version: 44.00 x 42.00 x 23.60 (mm)
