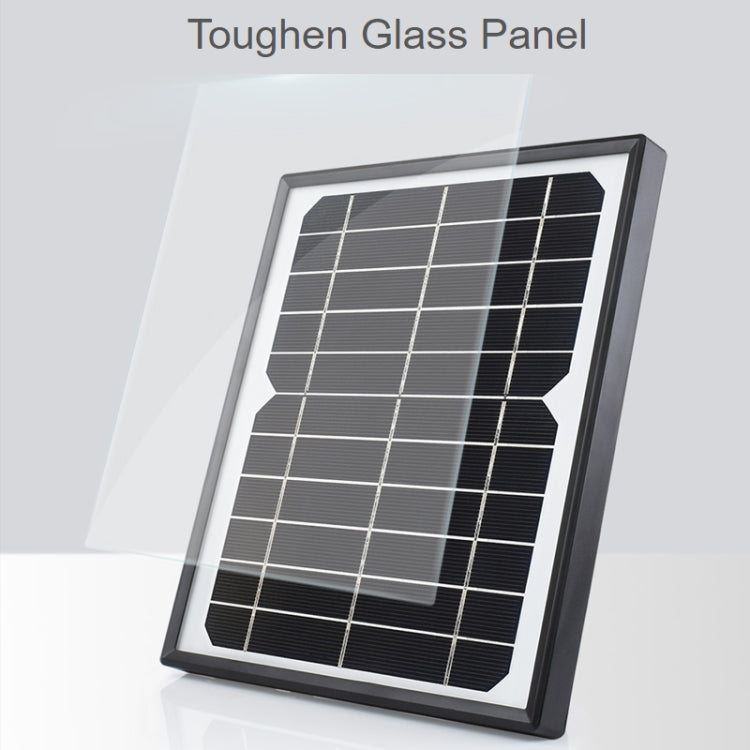

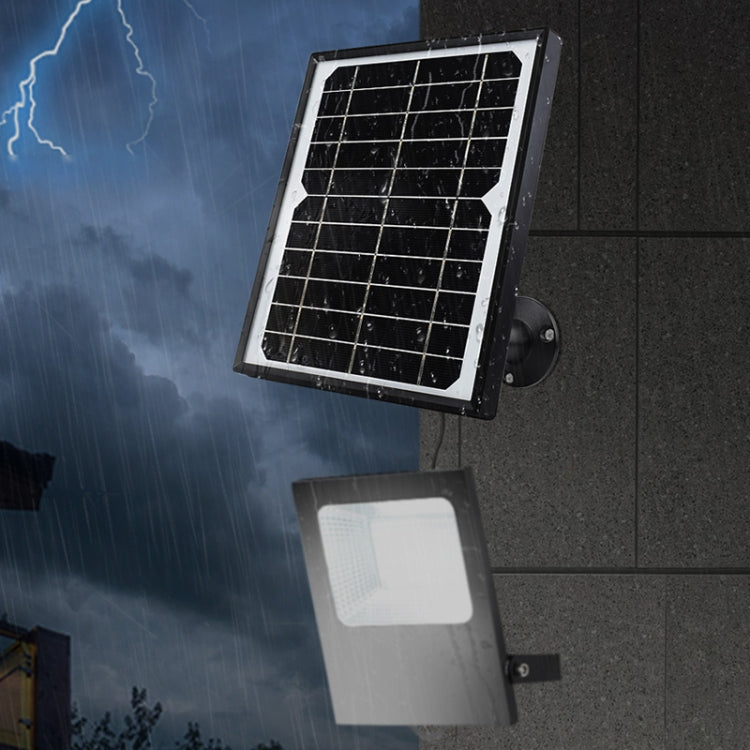

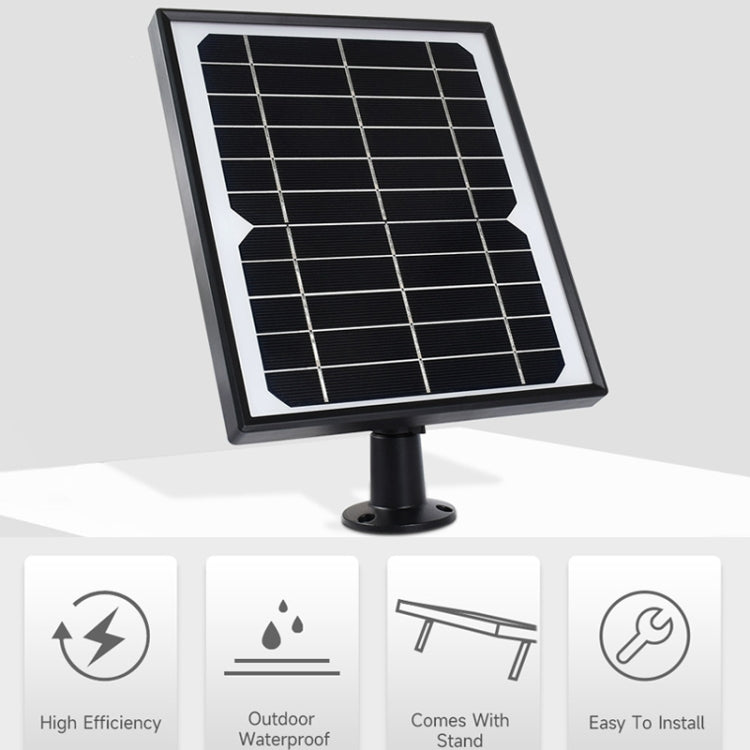

1. High efficiency, outdoor waterproof, self-contained bracket, easy to install

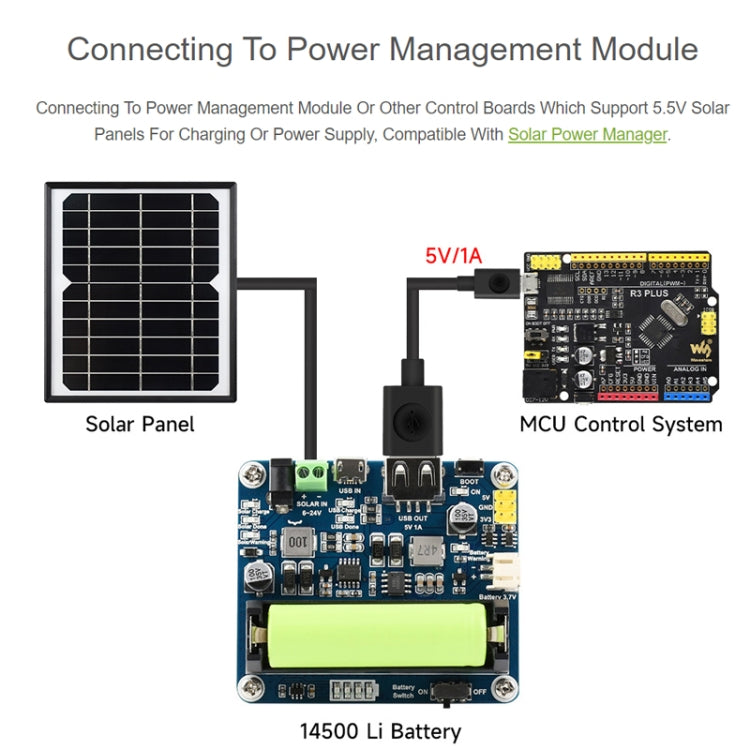

2. Connect the power management module or other control boards that support 5.5V solar panel charging or power supply, compatible with solar power managers
3. Working voltage: 5.5v
4. Working current: 1000mA
5. Open circuit voltage: 7.2v
6. Short circuit current: 1090mA
7. Output interface: micro USB, USB/Type-C
8. Solar power: 6w

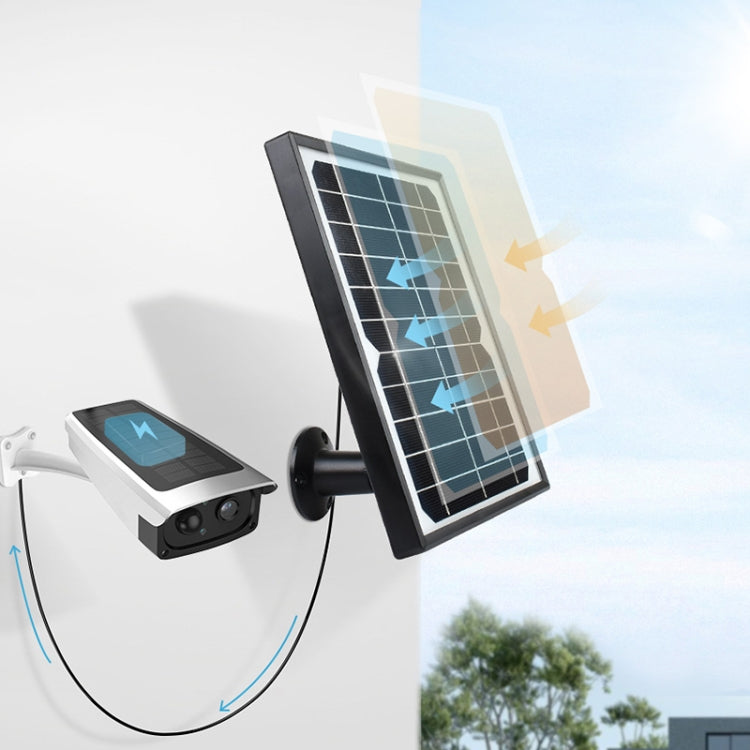

9. Application examples: It can be directly connected to low-power outdoor smart electronic devices to support 5.5V solar panels through USB ports, such as monitoring equipment, doorbells, fans, emergency lights, etc.

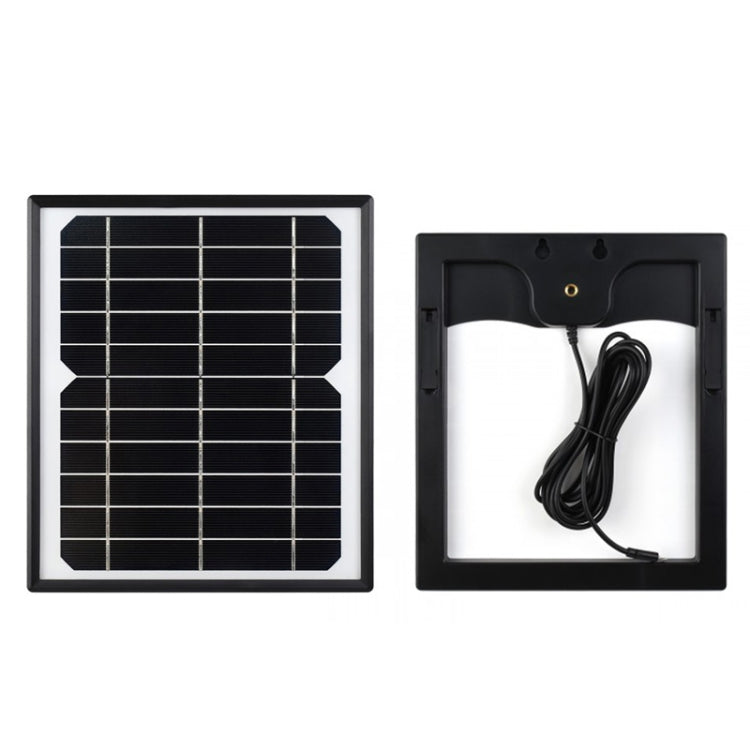

10. Cable length: 3 meters

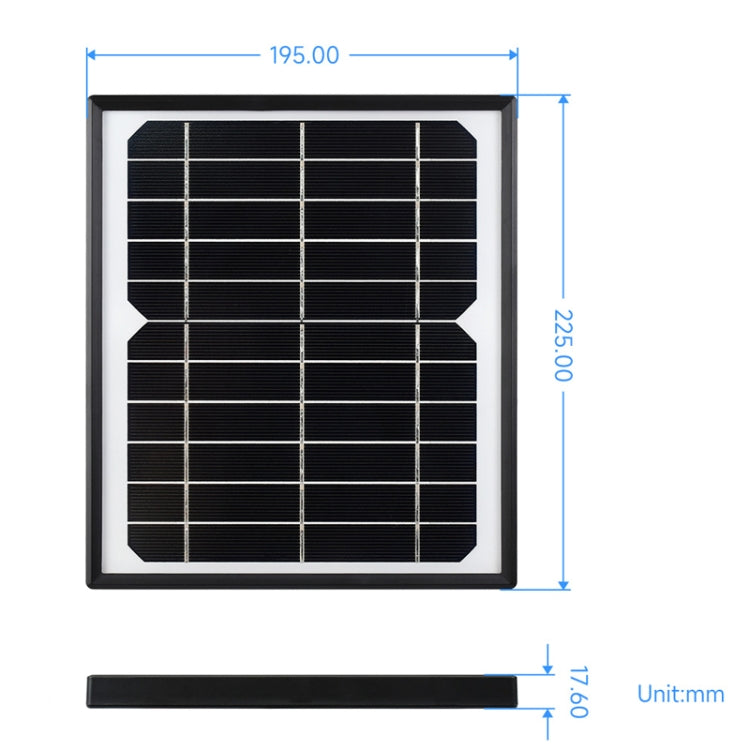

11. Size: 225x195x17.6mm

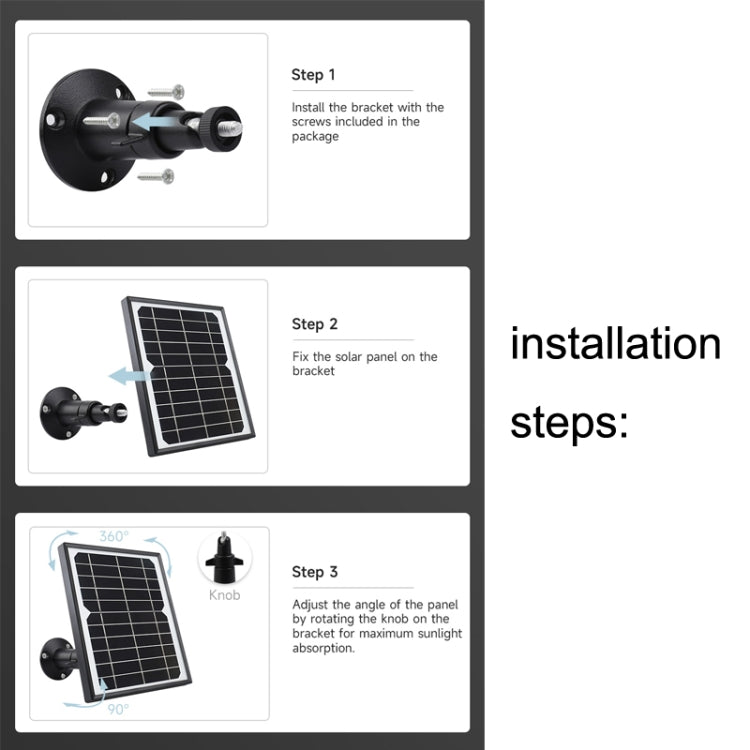

installation steps:

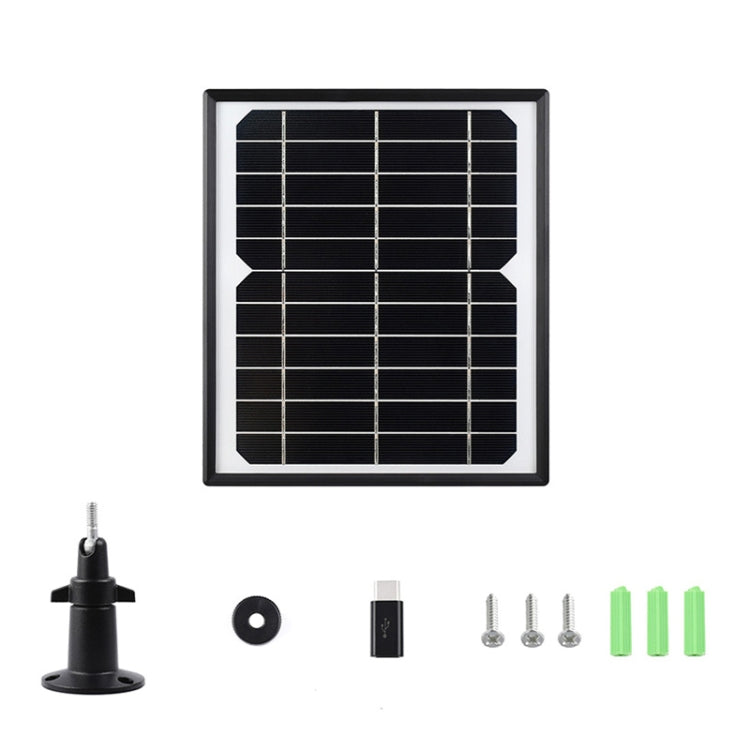

1. Install the stand with the screws included in the package
2. Fix the solar panel on the bracket
3. Adjust the angle of the panel by rotating the knob on the stand to maximize sunlight absorption
