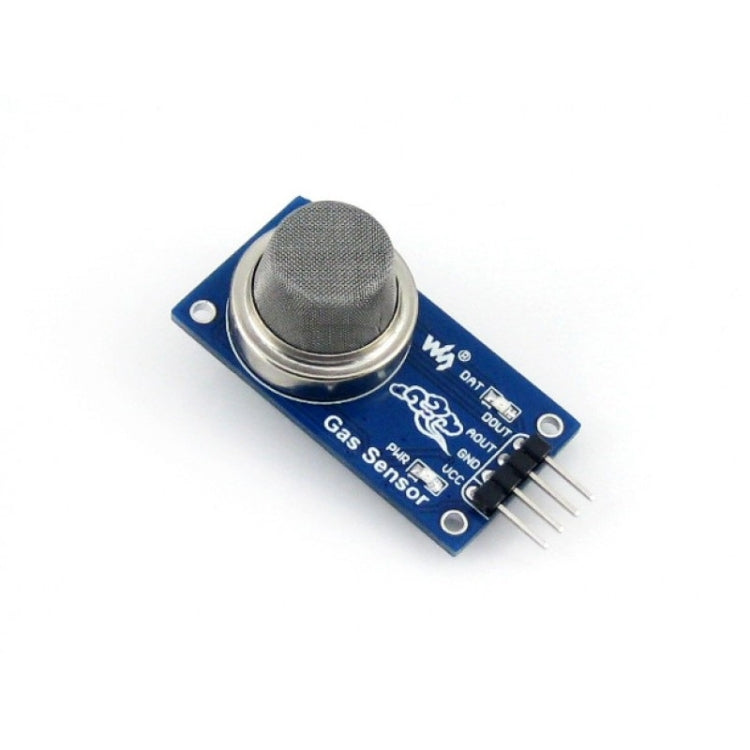

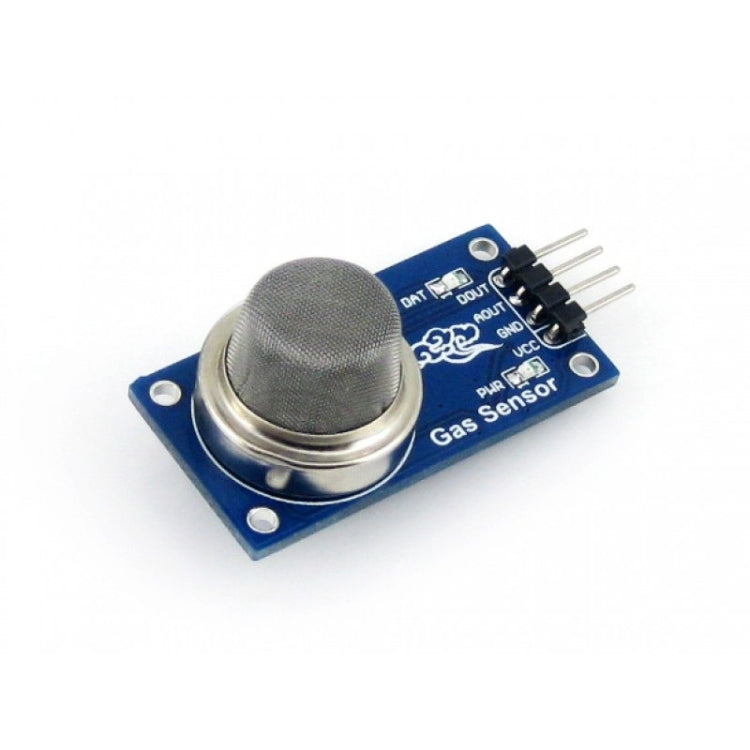

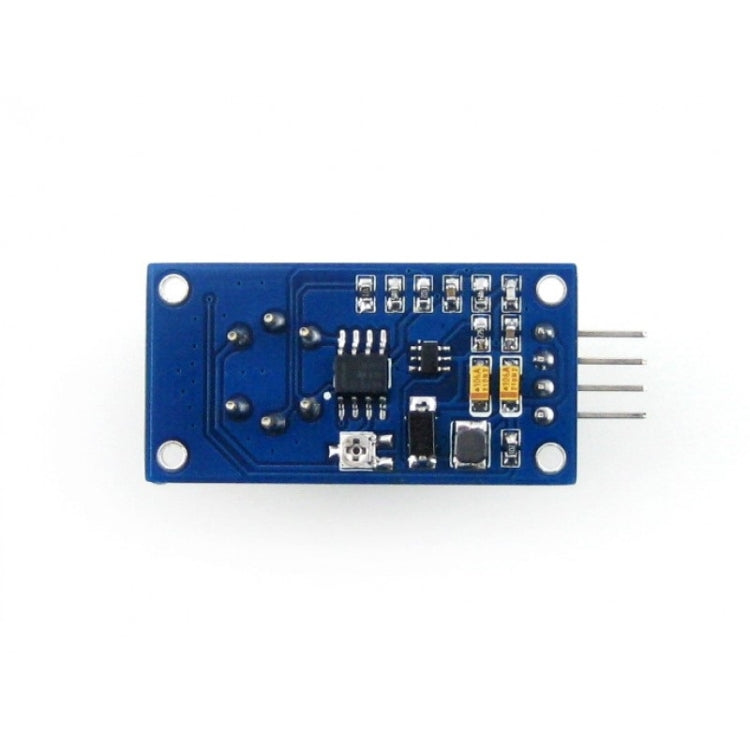

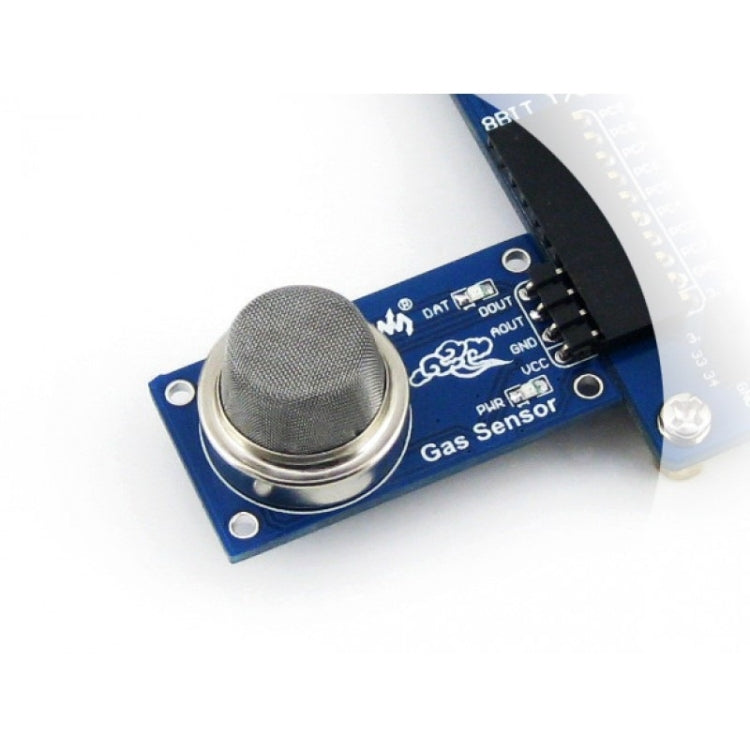

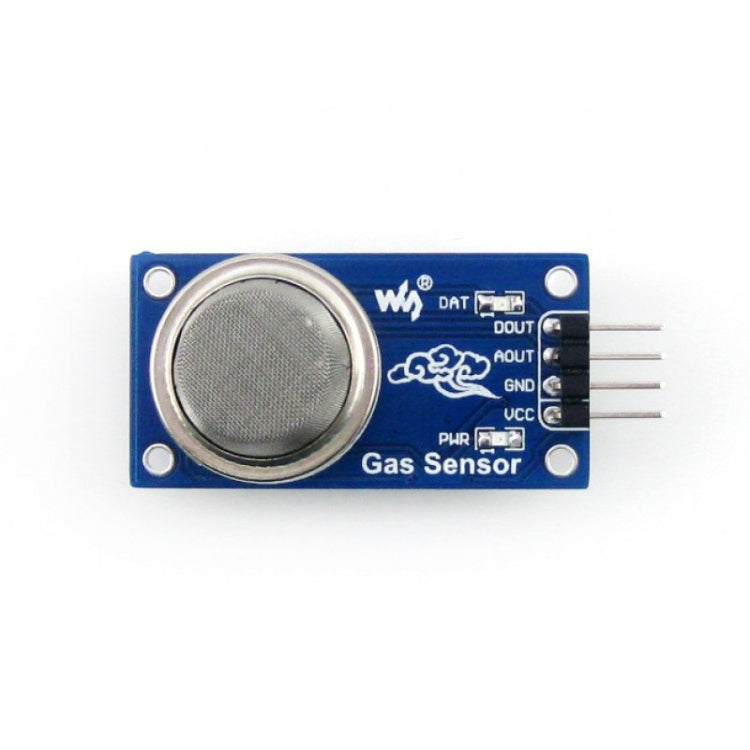

Waveshare MQ-135 Gas Sensor

Regular price
R 143.34
Sale price
R 143.34
Regular price
Sold out
Unit price
per

Overview
1. Sensitive for benzene, alcohol, smoke
2. Output voltage boosts along with the concentration of the measured gases increases
3. Fast response and recovery
4. Adjustable sensitivity
5. Signal output indicator

Specifications
1. Power: 2.5V ~ 5.0V
2. Dimension: 40.0mm * 21.0mm
3. Mounting holes size: 2.0mm

Applications
Air quality monitor

How to Use
In the case of working with a MCU:
1. VCC: 2.5V ~ 5.0V
2. GND: Power supply ground
3. AOUT: MCU.IO (analog output)
4. DOUT: MCU.IO (digital output)

Package Contents
1. MQ-135 Gas Sensor x1
2. 4-pin custom connector jumper wire x1
