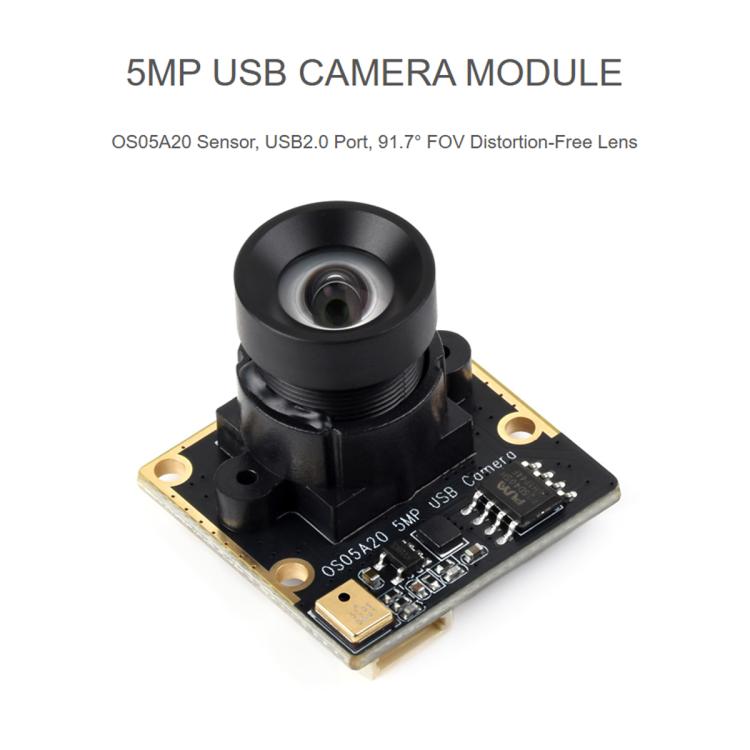

1. OS05A20 5MP USB Camera module, equipped with an OS05A20 5-megapixel sensor chip. The module features a USB 2.0 Type-C interface, plug-and-play, and supports MJPG format 30 FPS output.

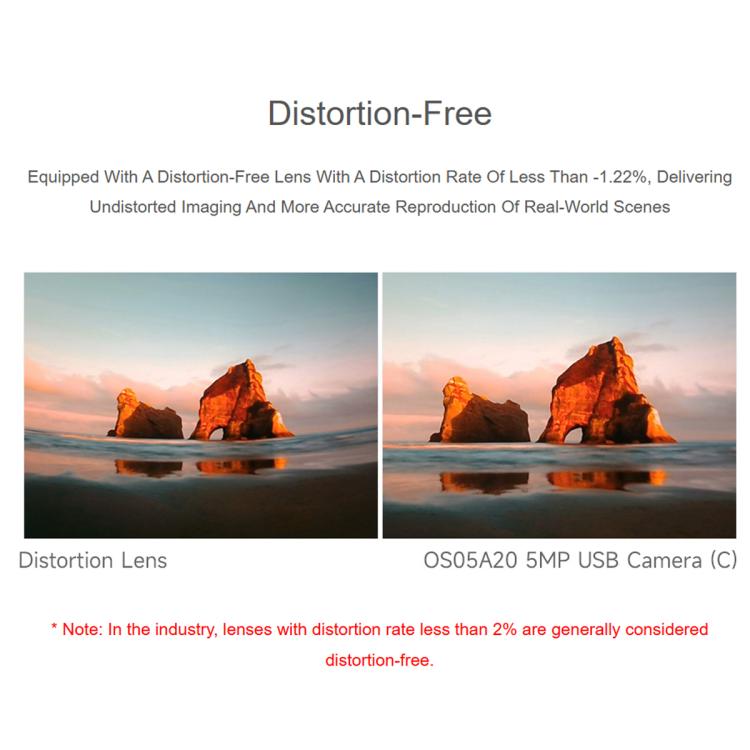

2. Equipped with a 91.7-degree distortion-free lens, reducing image deformation.

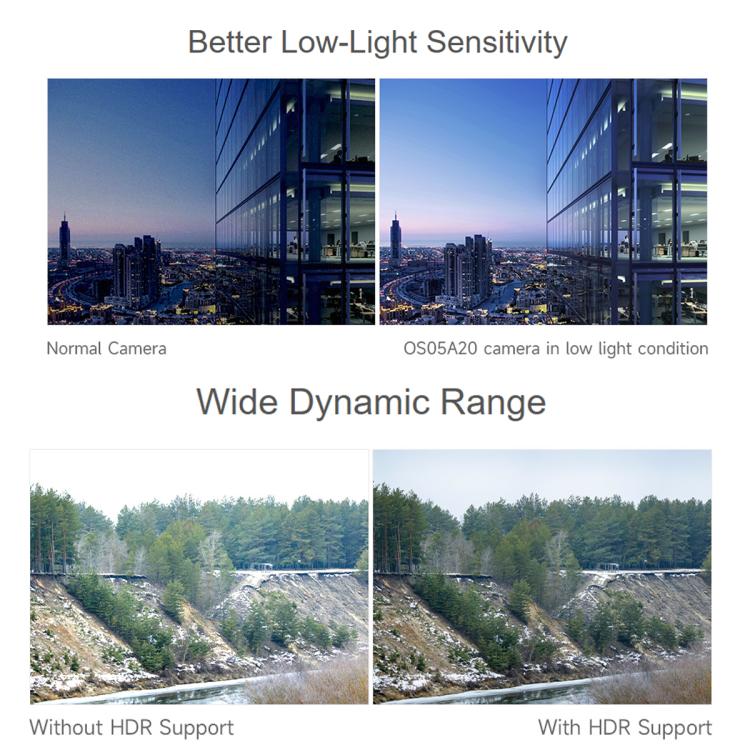

3. Supports dual-exposure on-chip HDR, maintaining image detail even in low-light environments.

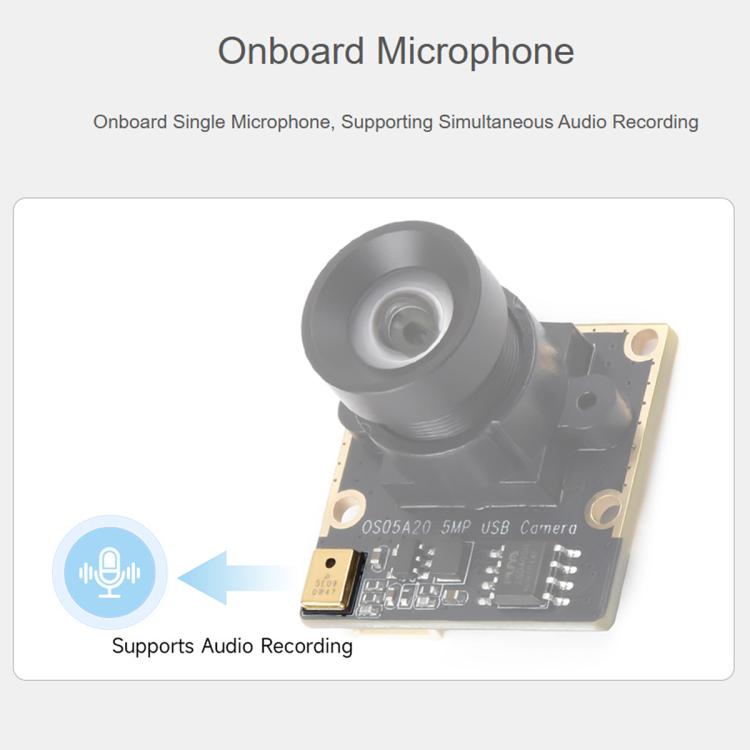

4. Onboard single microphone, supporting USB audio recording.
Specifications:
1. Pixels: 5 MP
2. Sensor chip: OS05A20
3. Interface type: USB 2.0
4. Camera:
-- Sensor size: 1/2.7 inch
-- Aperture (F): 2.4
-- Focal length (EFL): 3.25 mm
-- Field of view (FOV): 91.7 deg
-- Distortion: < -1.22%
-- Focusing method: Fixed focus
5. Lens thread: M12
6. Shutter type: Rolling shutter
7. Image:
-- Supported format: MJPG
-- Still image resolution: 2592 x 1944
8. Video recording support:
-- 30 FPS 2592 x 1944
-- 30 FPS 1920 x 1080
-- 30 FPS 1280 x 720
9. Dynamic range: 74 dB
10. Operating voltage: 5V +/- 5%
11. Operating temperature: -10 to 60 degrees C

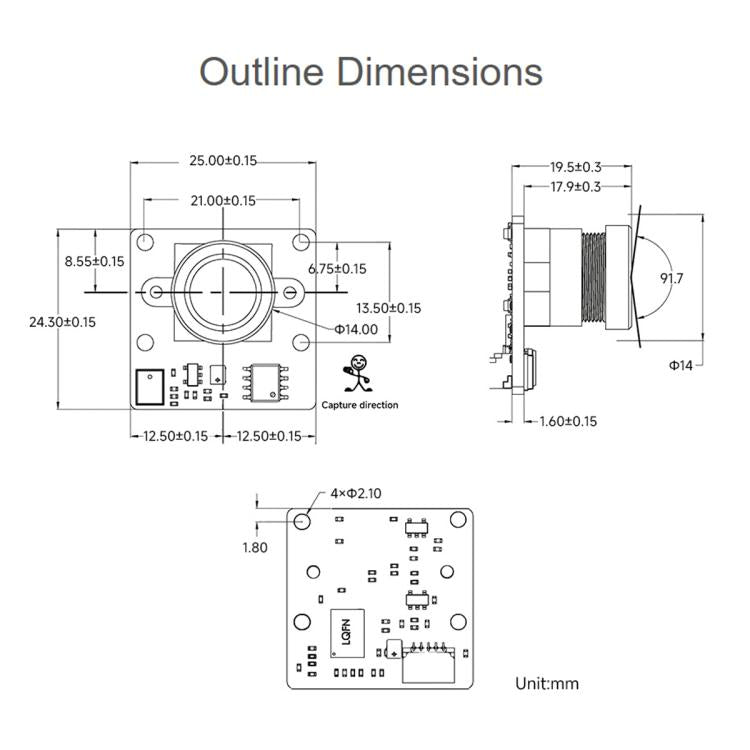

12. Module dimensions: 25 x 24 (mm)
