1. High-performance, highly integrated microcontroller development board
2. Features a compact form factor with an onboard 4-inch high-definition IPS screen, RTC, six-axis sensor (three-axis accelerometer and three-axis gyroscope), and Micro SD card slot, facilitating development and integration into products.
3. Utilizes the Raspberry Pi-designed RP2350B microcontroller chip.
4. Unique dual-core, dual-architecture design, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at up to 150MHz, allowing users to flexibly switch between the two architectures.
5. Built-in 520KB SRAM and 16MB on-chip Flash, with a reserved PSRAM interface.
6. Uses a Type-C interface, eliminating concerns about correct plug orientation.

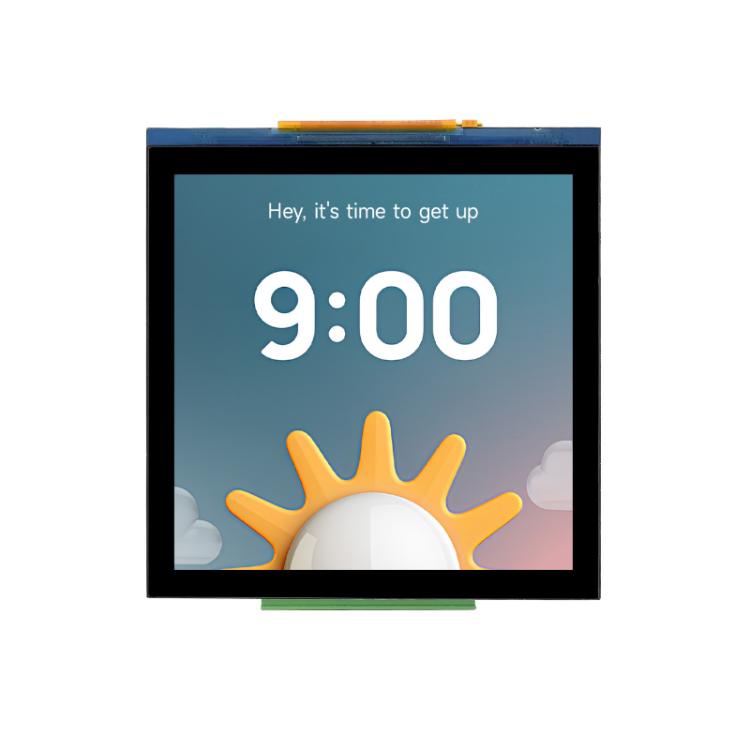

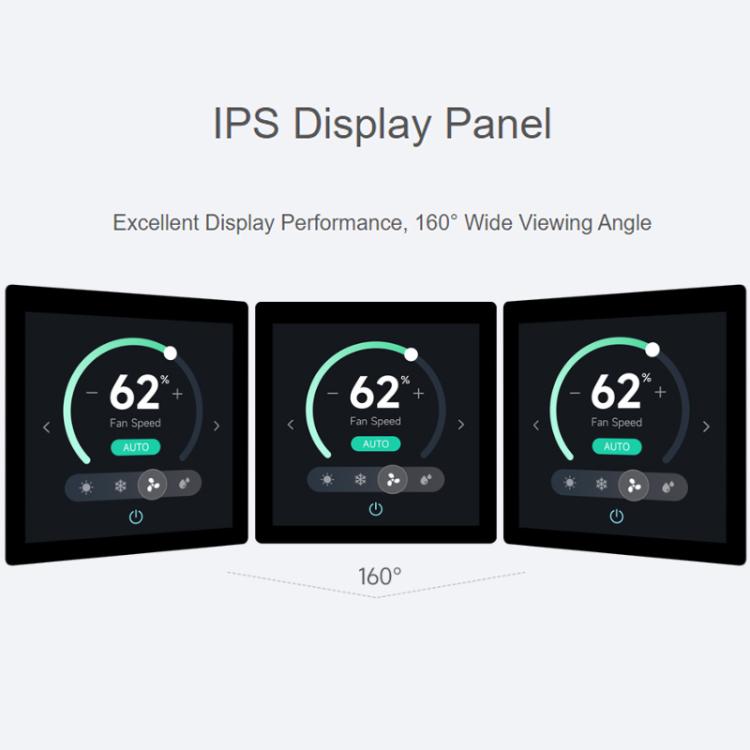

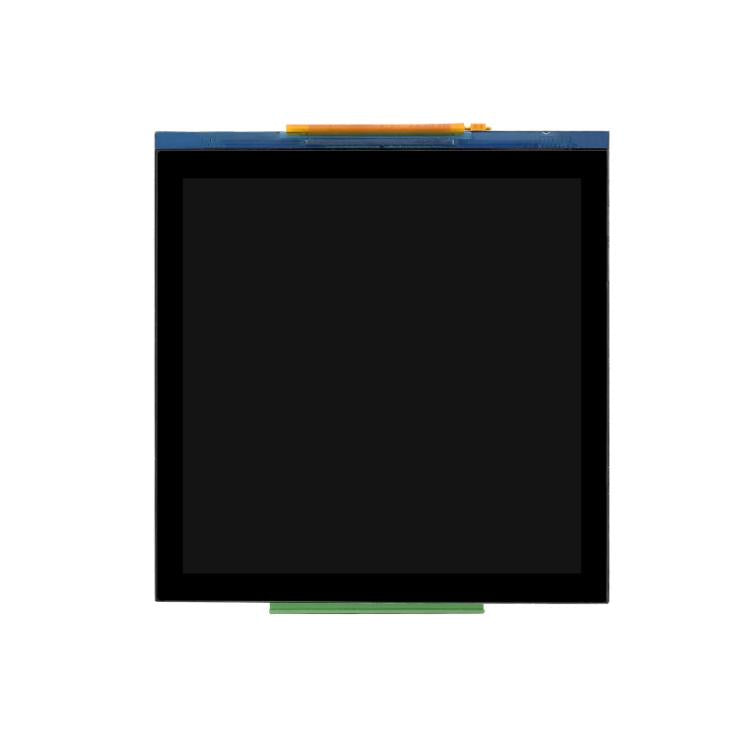

7. Onboard 4-inch LCD screen with 480 x 480 resolution and 65K colors, capable of clearly displaying color images.

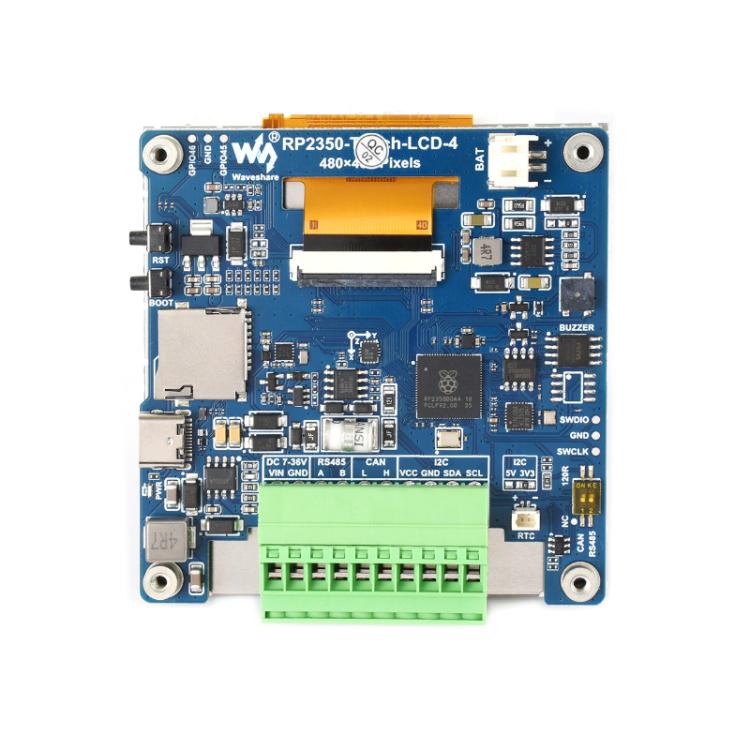

8. Onboard peripherals include CAN, RS485, I2C interfaces, IMU, RTC, and a Micro SD card slot.
9. Onboard 3.7V MX1.25 lithium battery charging and discharging interface.
10. USB 1.1 host and device support, supporting low-power sleep and hibernation modes.
11. Can be recognized as a mass storage device via USB for drag-and-drop program downloading.
12. Accurate on-chip clock and timers.
13. 12 programmable I/O (PIO) state machines for custom peripheral support.
14. More expansion devices can be connected via CAN, RS485, and I2C interfaces.

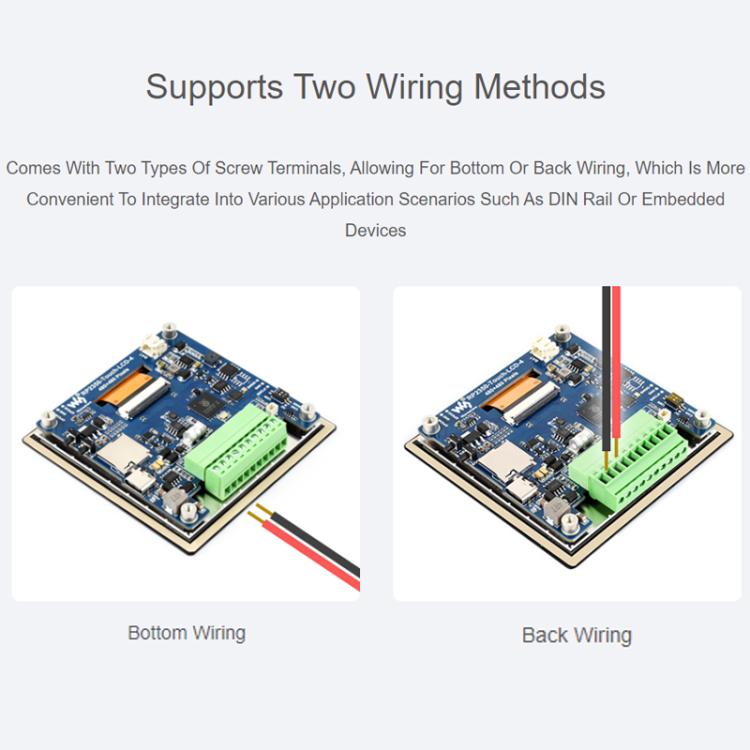

15. Equipped with two types of wiring terminals, allowing for bottom or back wiring options, facilitating integration into various applications such as rail mounting or embedded systems.

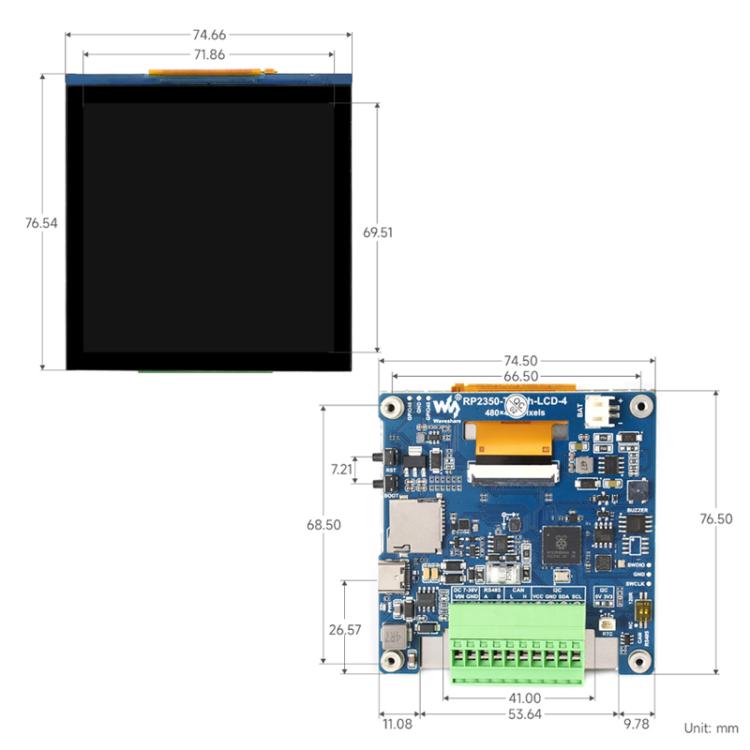

16. Dimensions: 74.66 x 76.54 mm
