Features

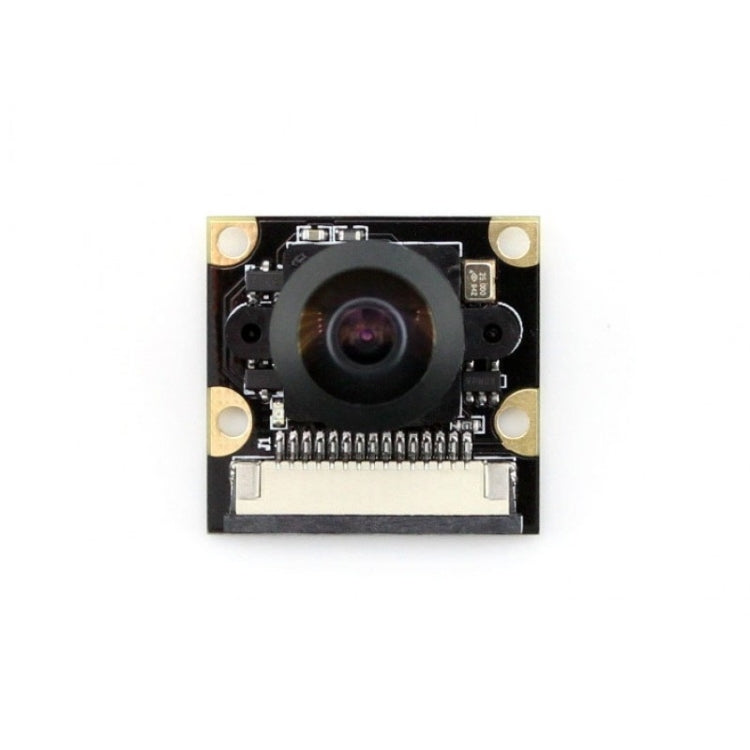

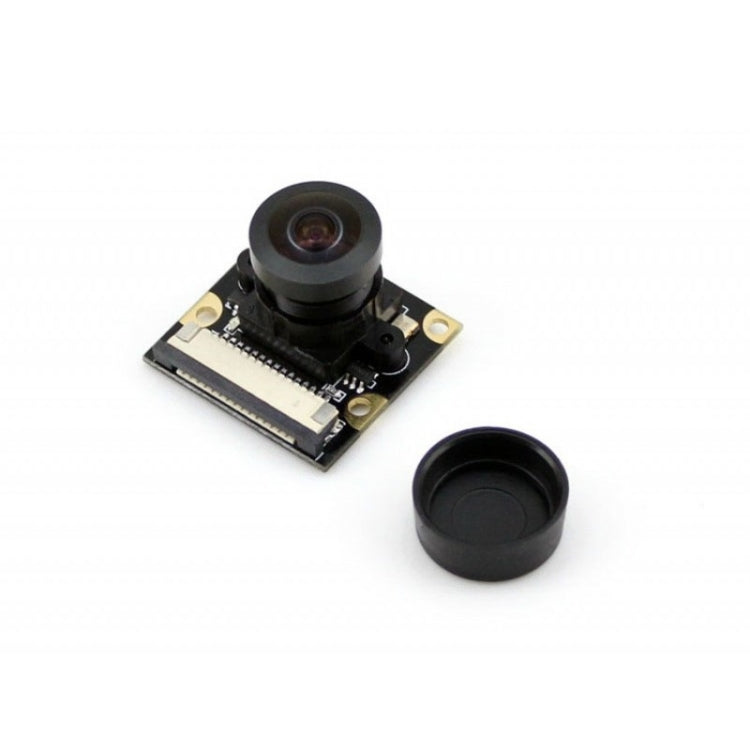

1. Raspberry Pi Camera, supports all revisions of the Pi
2. Fisheye Lens, offers wider field of view

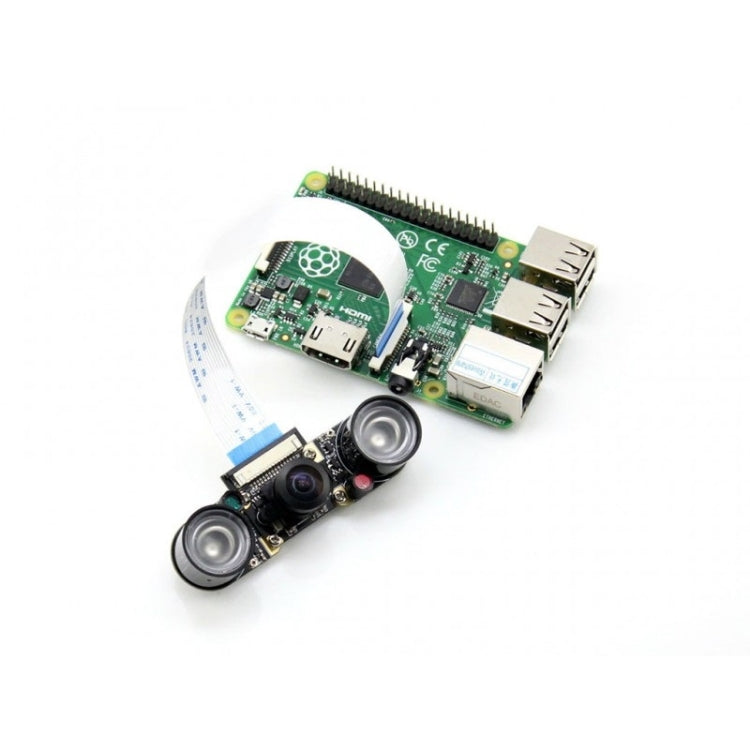

3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
7. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
8. Dimension: 25mm x 24mm
Package Contents
1. RPi Camera (H) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
