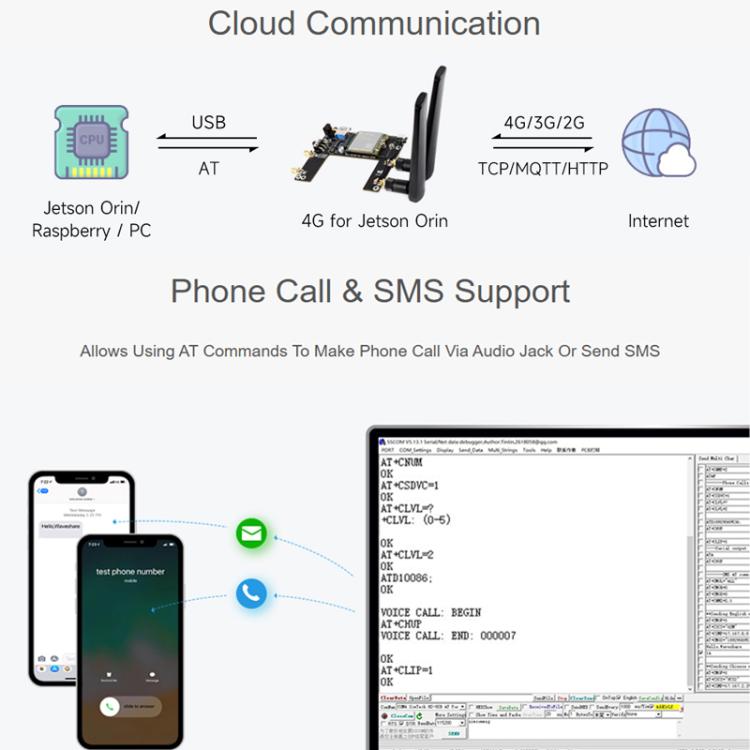

1. Supports functions including dial-up internet access, voice calls, SMS, TCP, UDP, MQTT, HTTP(S) and FTP(S)
2. Supports GPS, Beidou, GLONASS, GALILEO, QZSS and LBS base station positioning

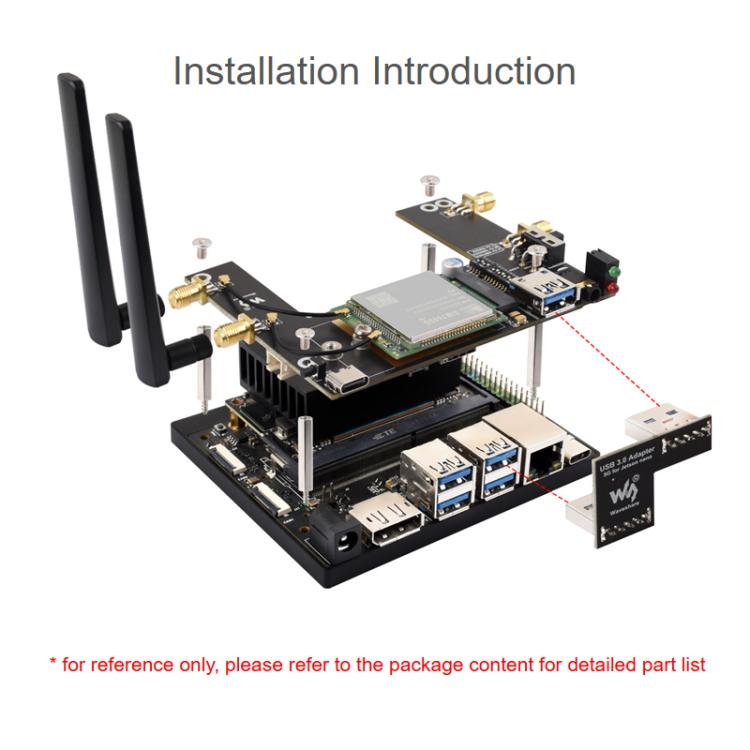

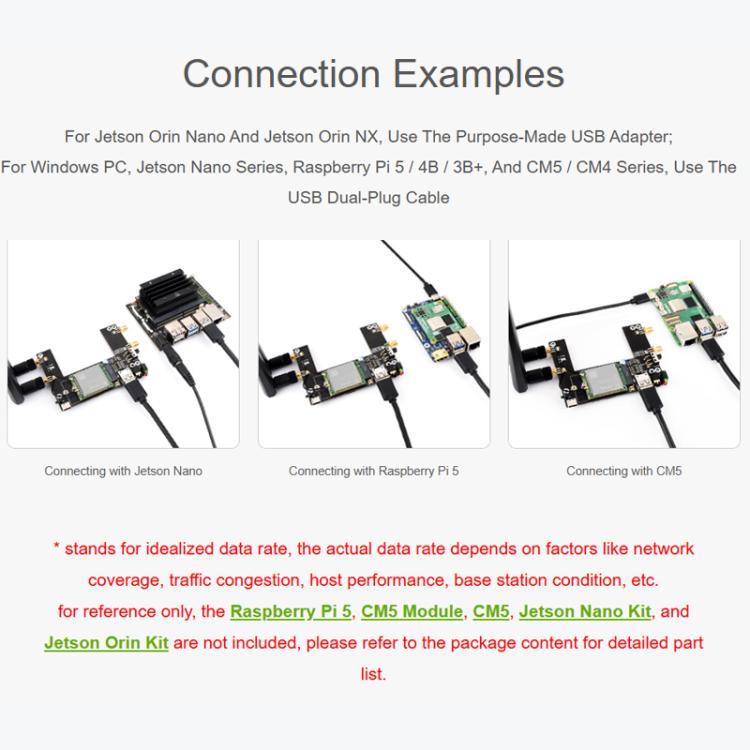

3. On-board USB 3.1 interface, backward compatible with USB 2.0, which can be connected to Jetson Orin motherboard, computer or Raspberry Pi for high-speed 4G internet access

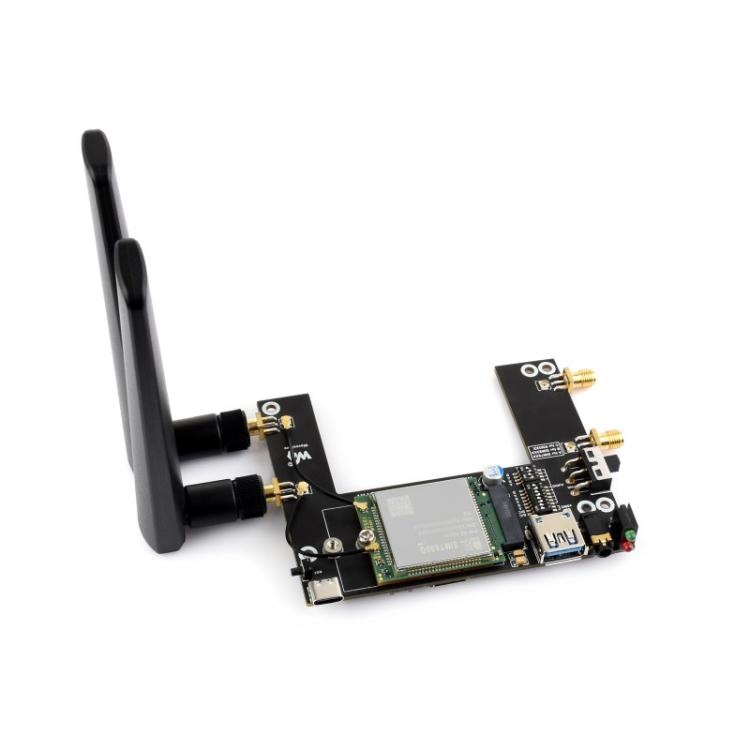

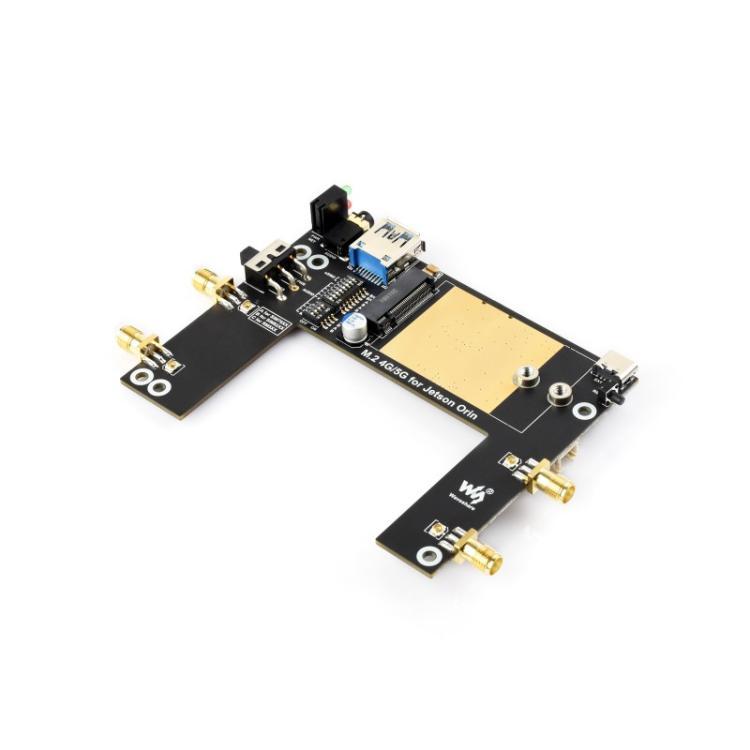

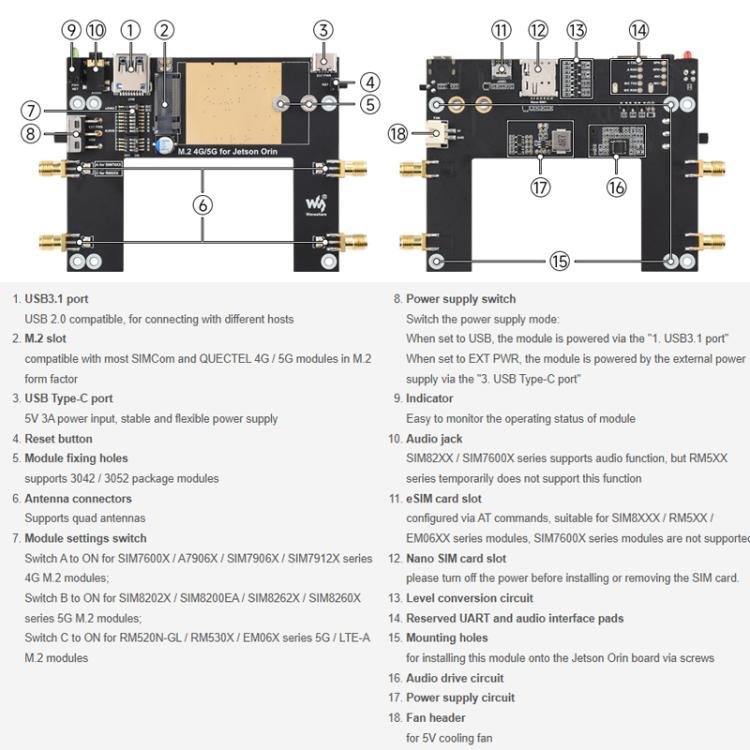

4. On-board M.2 B KEY standard interface and pin setting switch, compatible with optional SIM8260X-M2/SIM8262X-M2 / RM5XX / SIM7600 series modules
5. On-board 4-channel SMA to IPEX antenna conversion interfaces, enabling more convenient antenna installation
6. Reserved UART pad interface, which facilitates data transmission and other functions with certain modules via this interface
7. On-board audio interface and audio decoding chip, applicable for voice operations like making calls with SIMXXX series modules
8. On-board power switch, reset button and LED indicator, making it easy to control the modules on/off status and check its operating condition
9. On-board high-efficiency power circuit, capable of outputting up to 3A current
Specifications:
1. Chip Solution: Qualcomm MDM9607

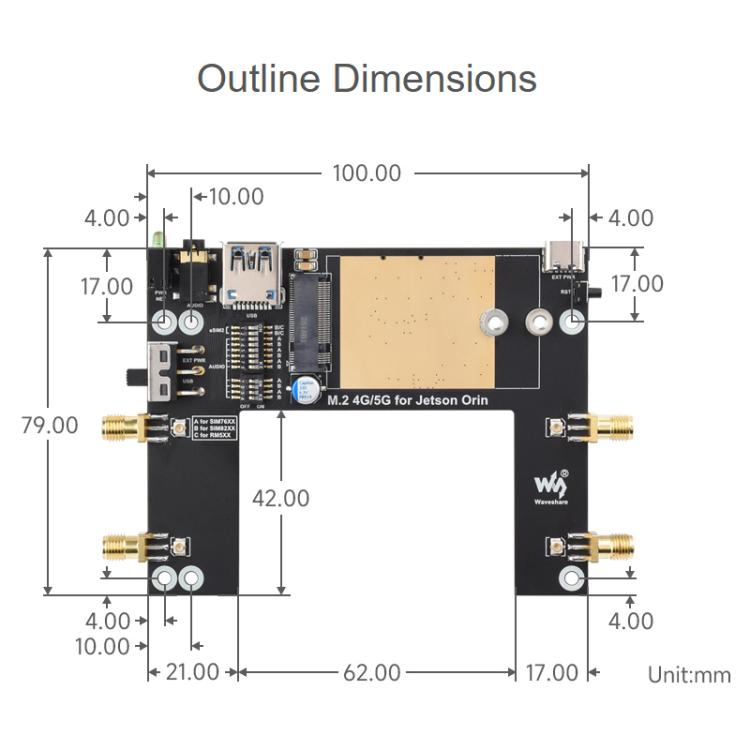

2. Module Dimensions: 42 x 31.4 x 3.8mm
3. Operating Frequency Bands:
--LTE-FDD: B1,B2,B3,B4,B5,B7, B8,B12,B13,B18,B19, B20,B25,B26,B28, B66
--LTE-TDD: B34,B38,B39,B40, B41
--WCDMA: B1,B2,B4,B5,B6,B8, B19
4. Data Transmission Rate: LTE 150Mbps (DL, Downlink) / 50Mbps (UL, Uplink)
