Features

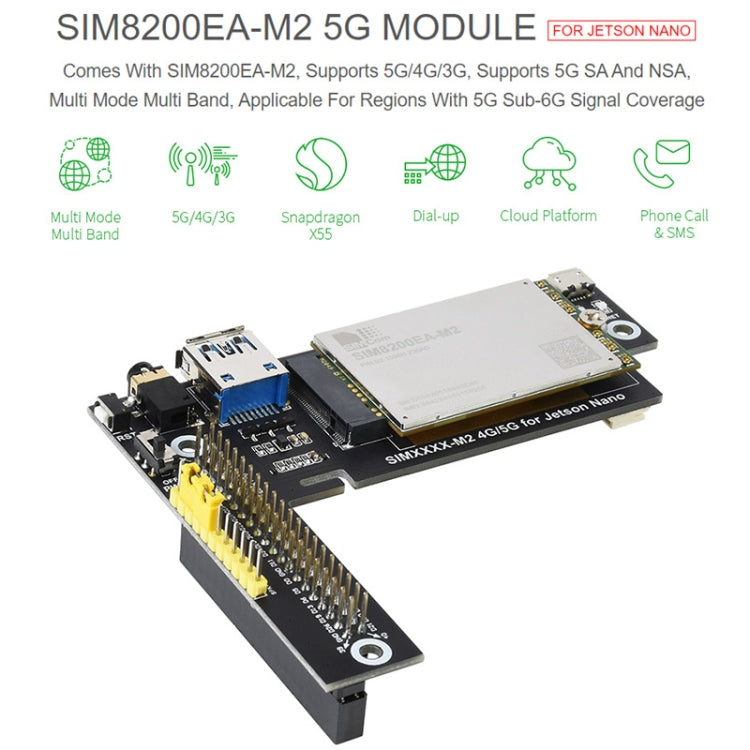

This 5G/4G/3G Jetson Nano communication module adopts SIMCom 5G module SIM8200EA-M2, supports 5G NSA and SA networking, providing data rate up to 2.4 Gbps (DL) / 500 Mbps (UL).

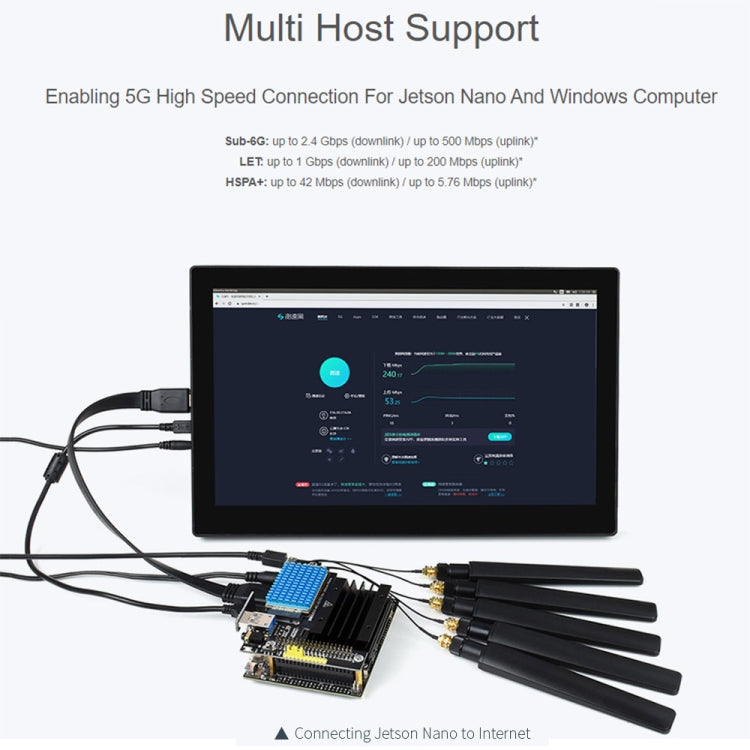

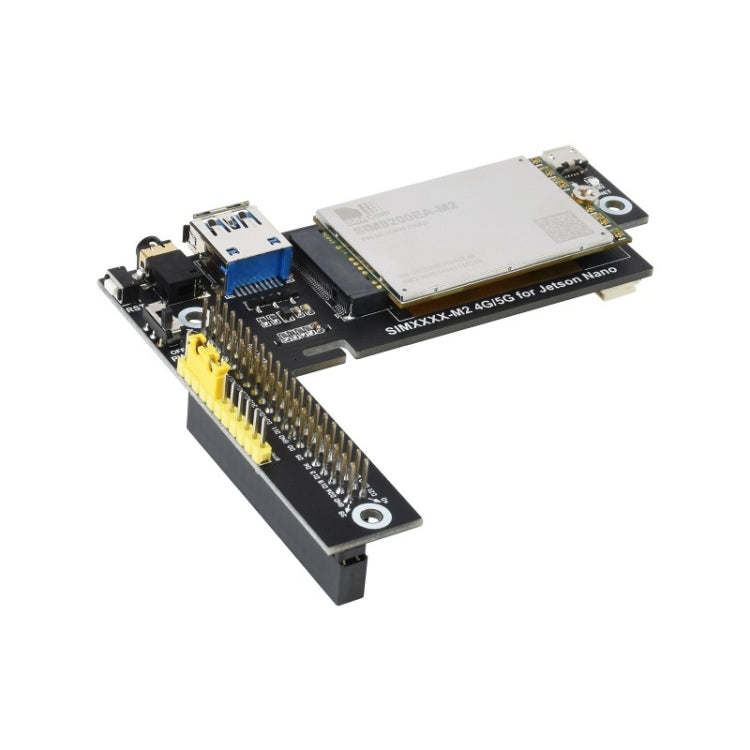

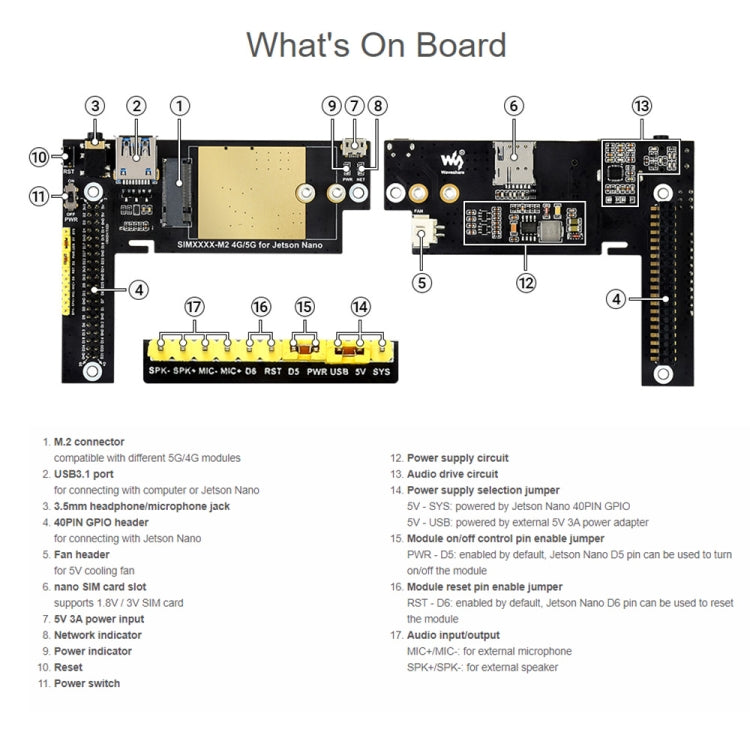

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.
1. Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
2. Come with SIM8202G-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
3. USB 3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.

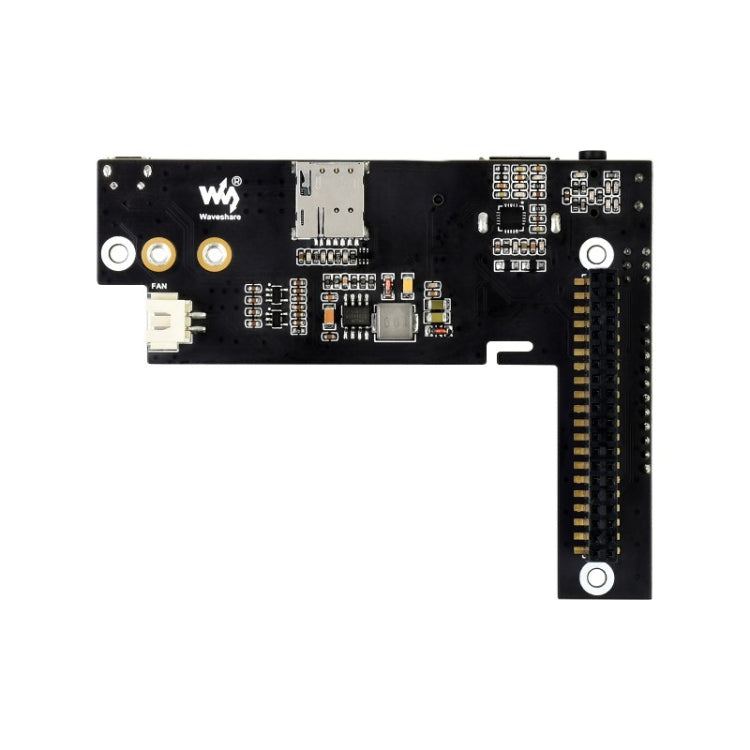

4. SIM card slot, supports 1.8V / 3V SIM card
5. 2x LED indicators, easy to monitor the working status
6. AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
7. Onboard audio jack and audio decoder, allows audio operation like making phone call
8. Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
9. Operating system support: Windows/Linux/Android
Specification
1. Frequency band
- Sub-6G (SA): N1, N2, N3, N5, N7, N8, N12, N20, N28, N38, N40, N41, N48, N66, N71, N77, N78, N79 (N79 is only available for SIM8202G-M2)
- Sub-6G (NSA): N41, N77, N78, N79 (N79 is only available for SIM8202G-M2)
- LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
- LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48
- WCDMA: B1, B2, B3, B4, B5, B8
- GNSS: GPS, GLONASS, Beidou, Galileo, and QZSS
2. Data rate:
- Sub-6G: 2.4 Gbps (DL)/500 Mbps (UL)
- LTE: 1Gbps (DL)/200 Mbps (UL)
- HSPA: 42 Mbps (DL)/ 5.76 Mbps (UL)
3. Software functions:
- Operating systems: Windows/Linux/Android

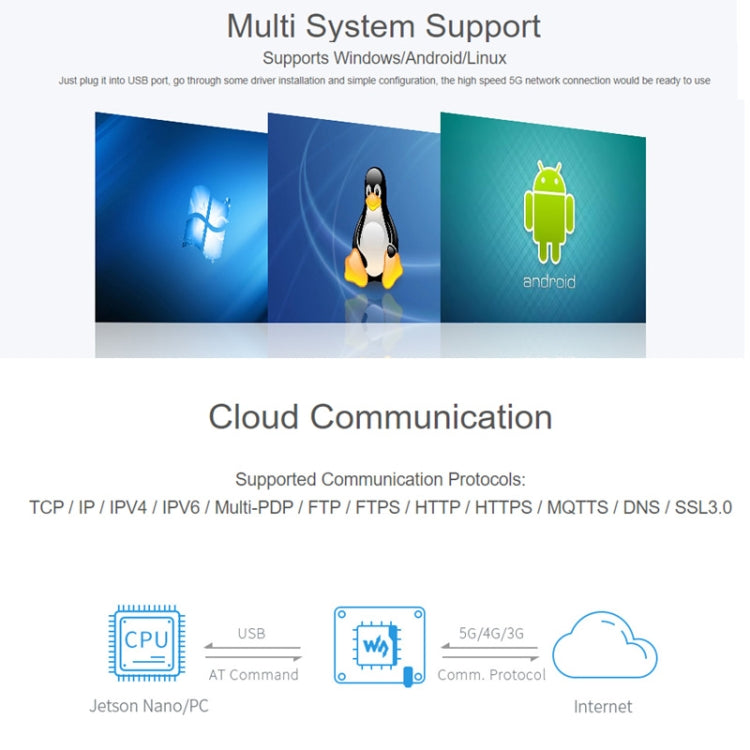

- Communication protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
- SMS: Supports MT, MO, CB, Text, PDU
- Firmware upgrade: Support firmware upgrade via USB port
4. Hardware information:
- SIM card: 1.8V/3.0V
- Power supply: 5V 3A
- Antenna connector: 4x IPEX-4 connector
- Module dimensions: 42.0x30.0x2.3mm
5. Applications:
- Applicable regions: Regions with 5G Sub-6G signal coverage including China, US, Japan, South Kor, Europe, the Middle East, Latin America, etc.

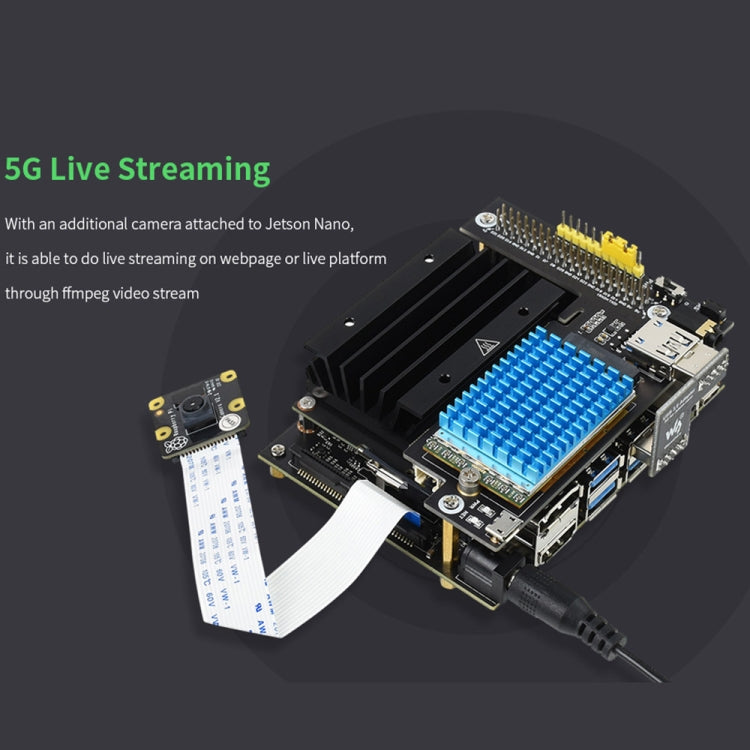

- Application examples: CPE, Smart gateway, Drone, Live streaming, Intelligent security

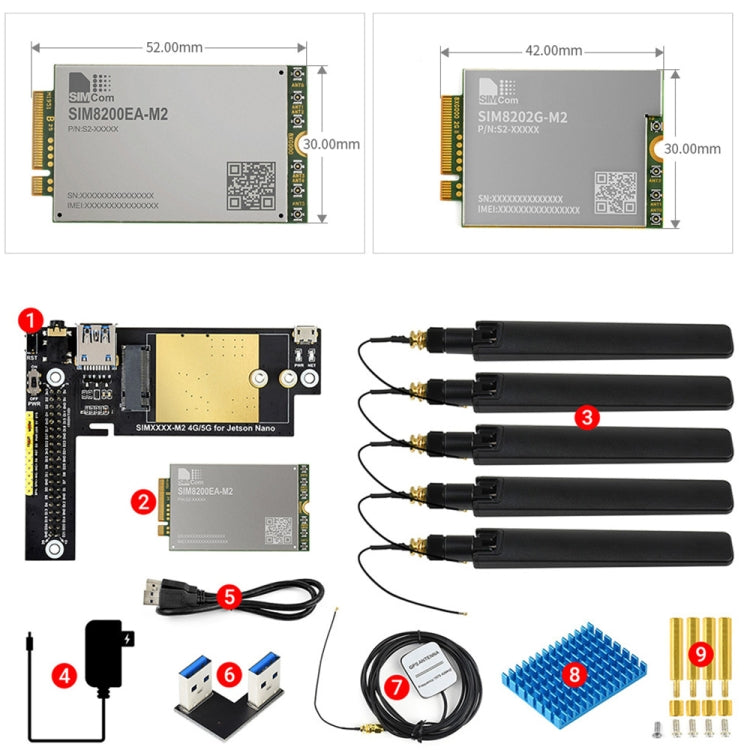

Package List
1. SIMXXXX-M2 4G/5G module base x1
2. SIM8202G-M2 x1
2. 5G External Antenna x4
3. Power adapter 5V 3A x1
4. USB3.0 dual plug cable x1
5. USB 3.0 Adapter (C) x1
6. Heatsink x1
7. Screws pack x1
