1. The SIM7600G-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

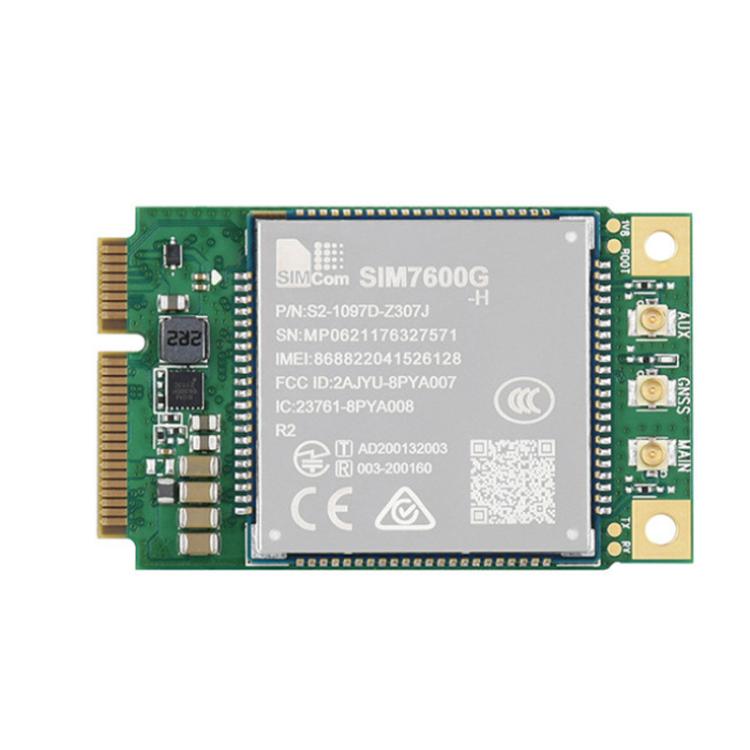

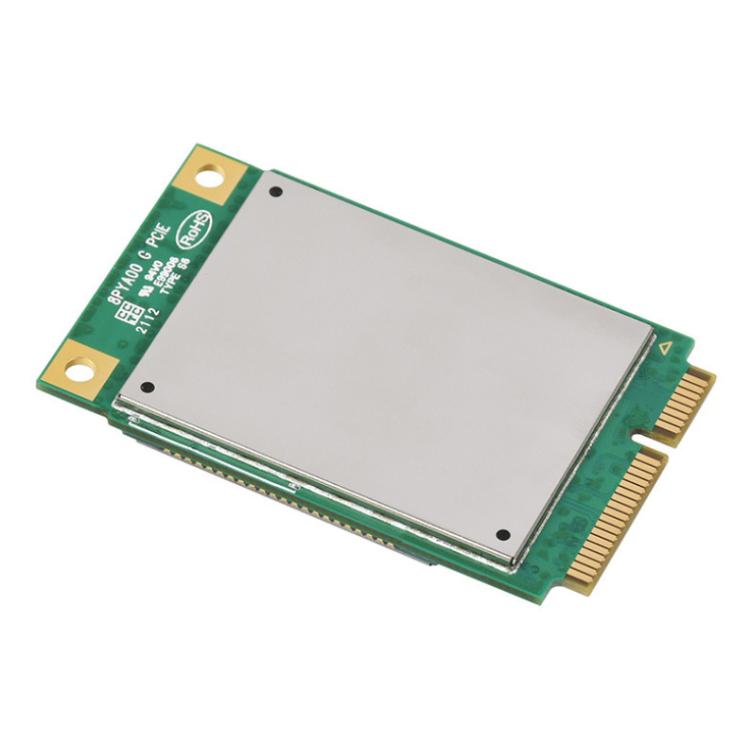

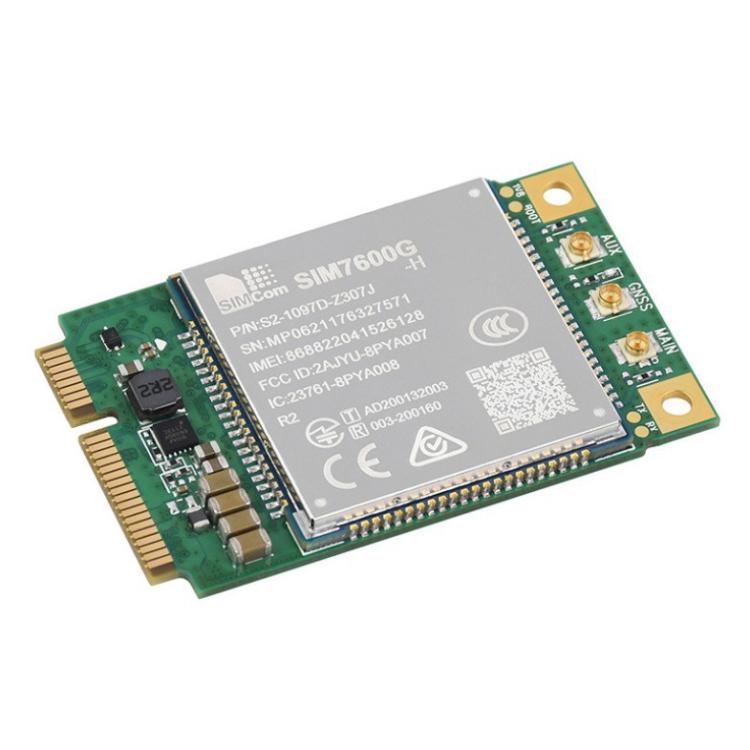

2. The SIM7600G-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate. The SIM7600G-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
3. Mean while the SIM7600G-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Operating Bands:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41
WCDMA: B1, B2, B4, B5, B6, B8, B19
GSM: 850, 900, 1800, 1900 MHz
GNSS: GPS, BeiDou, GLONASS, Galileo, QZSS
Data Transmission:
LTE: 150 Mbps (DL) / 50 Mbps (UL)
HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA: 384 Kbps (DL) / 384 Kbps (UL)
EDGE: 236.8 Kbps (DL) / 236.8 Kbps (UL)
GPRS: 85.6 Kbps (DL) / 85.6 Kbps (UL)
Software Features:
Operating System: Windows/Linux/Android
Communication Protocols: TCP, IP, IPv4, IPv6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
SMS: Supports MT, MO, CB, Text, PDU
Firmware Upgrade: Supports firmware upgrades via USB/FOTA interfaces
Hardware Specifications:
SIM Card: 1.8V/3.0V
Antenna Interface: IPEX Gen 1 (LTE Main Antenna + LTE Diversity Antenna + GNSS Antenna)
Supply Voltage: 3V ~ 3.6V
Form Factor: Mini-PCIe

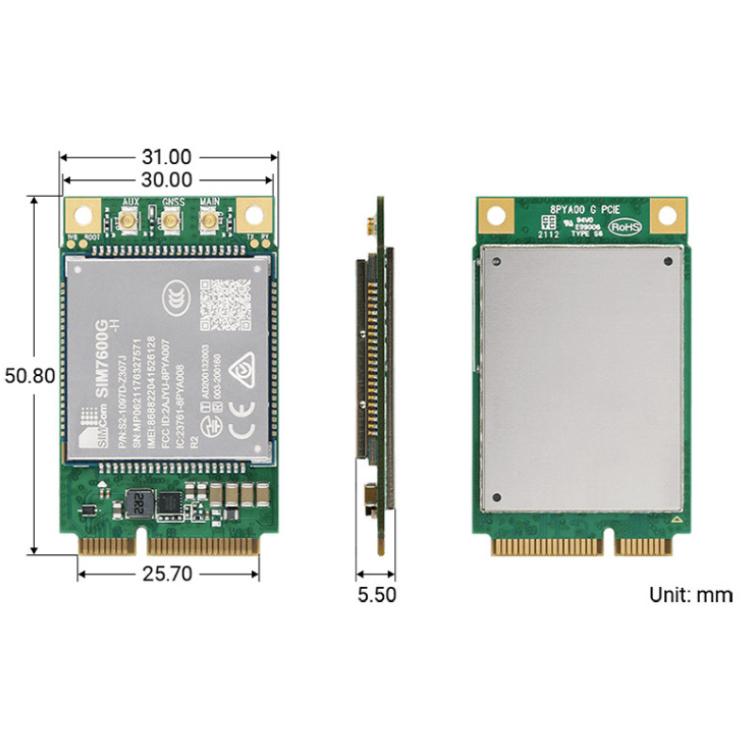

Dimensions: 50.8 × 31.0 × 5.5 mm
