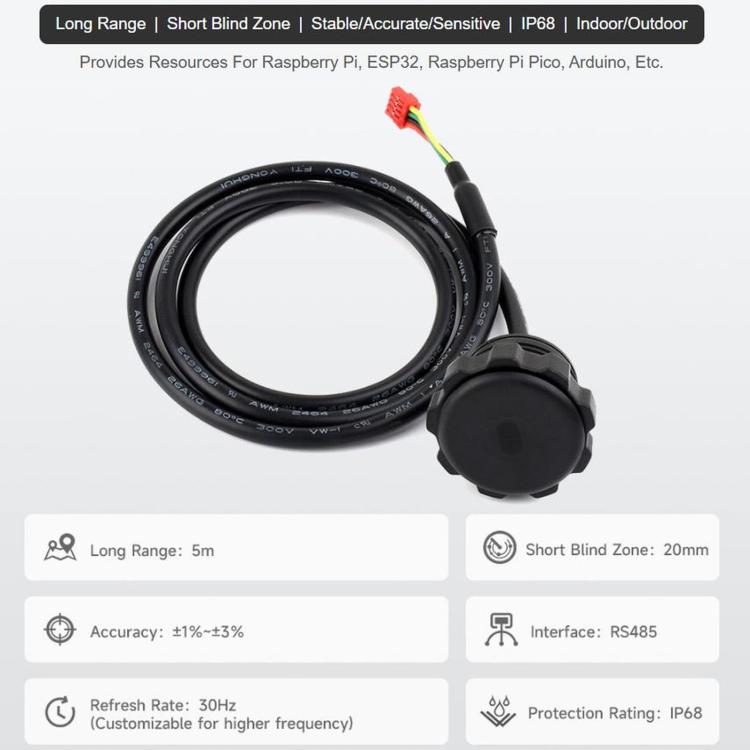

1. Typical measurement range: 0.02m - 5m
2. Ambient light tolerance: 100,000 lux
3. Field of view: 1.48 degrees
4. Refresh rate: 30 Hz

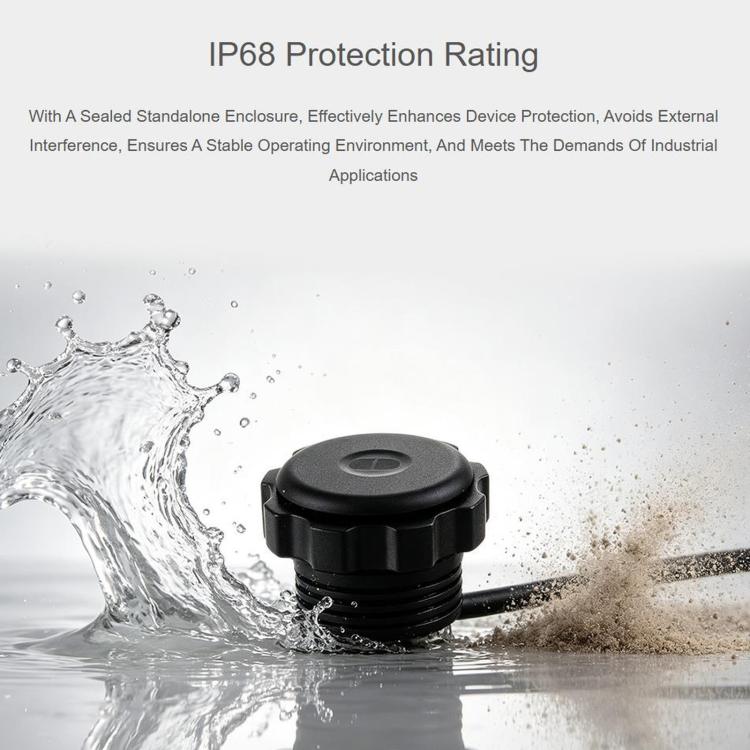

5. Protection rating: IP68
6. Operating temperature: -20 to 70 degrees Celsius
7. Operating humidity: 35%-80% RH
8. Laser safety class: LASER CLASS 1 (IEC 60825-1: 2014)
9. Wavelength: 940 nm
10. Communication Interface: RS485
11. Communication Baud Rate: 115,200
12. Supply Voltage: 4V - 5.6V
13. Power Consumption: 100 mW - 140 mW
14. Average Current/Peak Current: 25 mA/26 mA
15. Housing Material: PC
16. Storage Temperature: -40 to 80 degrees Celsius
17. Weight: Approx. 15.8g

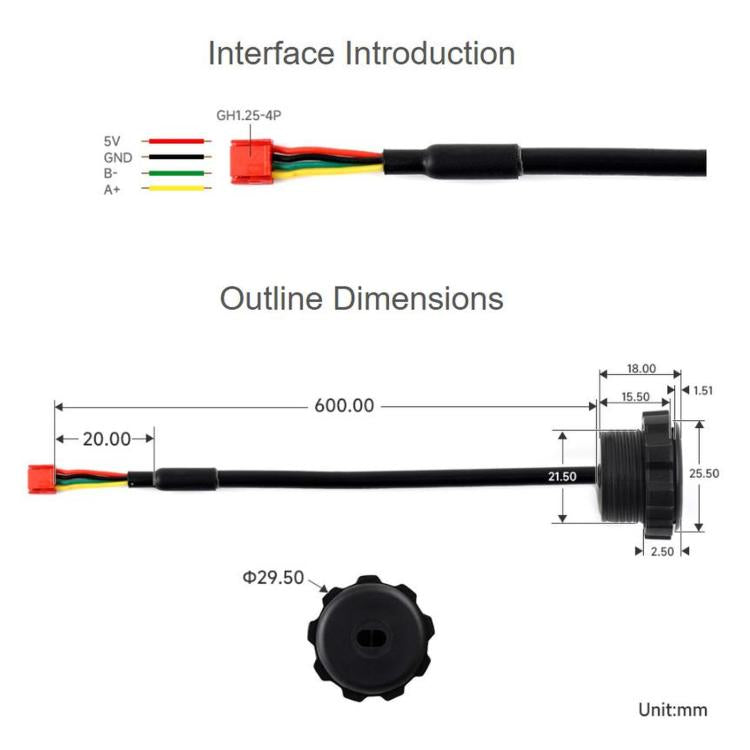

18. Dimensions: Approx. 2.95 x 1.8cm; Cable Length: Approx. 60cm
