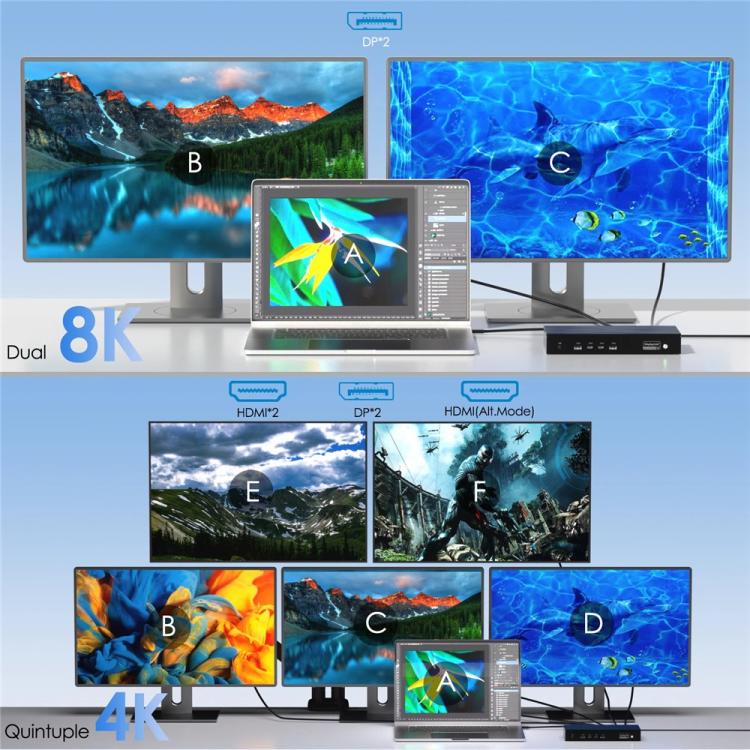

1.Dual 8K or Five 4K Displays:Supports up to 2x8K or 5x4K monitors via 2 DisplayPort 1.4 and 3 HD ports, perfect for multitasking, streaming, and productivity.
2.100W Power Delivery:USB-C host port supports up to 100W PD charging, keeping your laptop powered while expanding connectivity.
3.High-Speed Data Transfer:Comes with 3x USB-A 3.1 (10Gbps) and 2x USB-C 3.1 (10Gbps) ports, offering faster file transfer and versatile device connections.
4.Stable Networking & Audio:Equipped with a 2.5Gbps RJ45 Ethernet port for ultra-fast wired internet, plus a combo audio/mic jack for conferencing or entertainment.
5.Secure & Reliable Design:Features a Kensington lock slot for added security, power switch with LED indicator, ABS housing, and efficient power adapter for stable use.
Specifications:

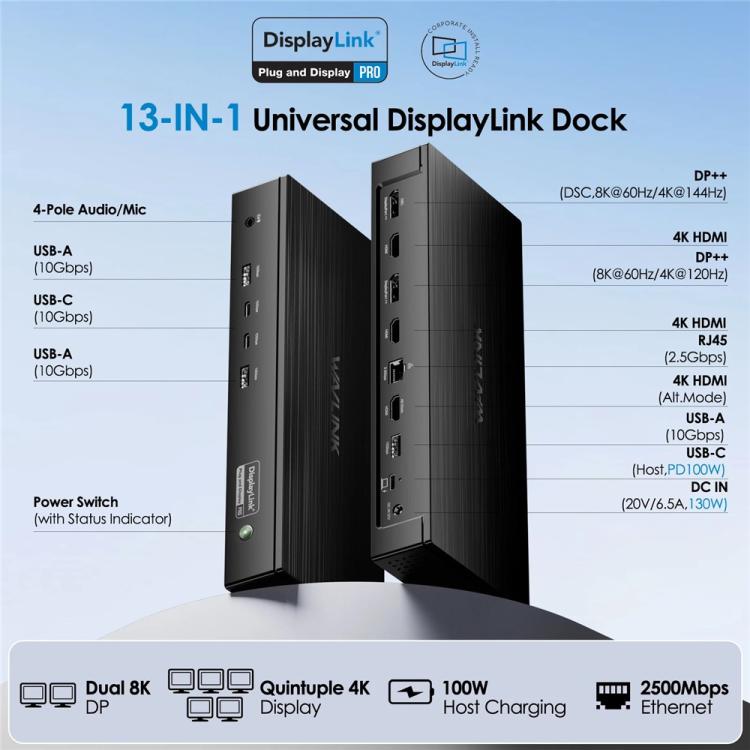

1.Ports (Side 1): 1 x 4-pole audio/microphone, 2 x USB-A 10Gbps, 2 x USB-C 10Gbps

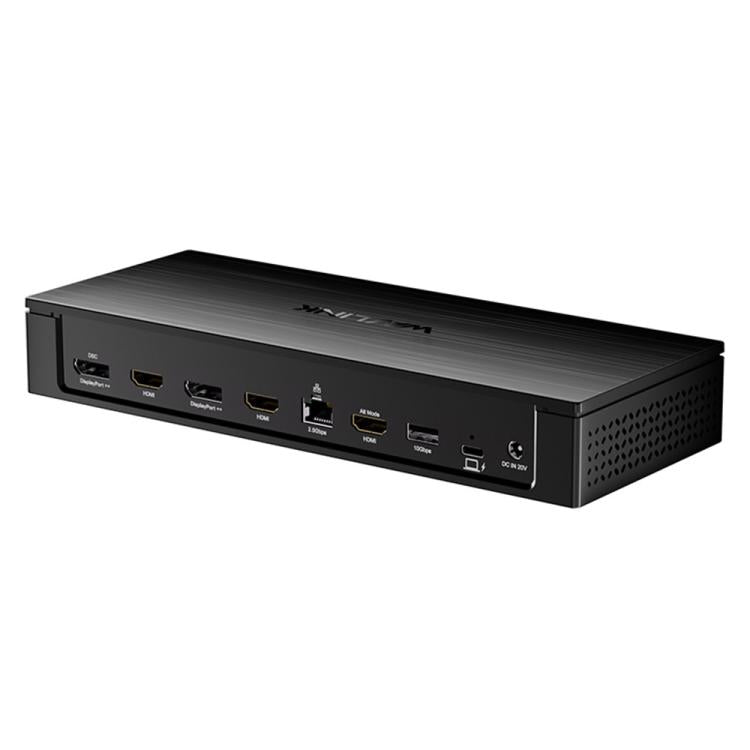

2.Ports (Front/Back): 1 x DisplayPort++ (DSC, 8K@60Hz / 4K@144Hz), 1 x DisplayPort++ (8K@60Hz / 4K@120Hz), 2 x HD (4K@60Hz), 1 x HD (Alt Mode, 4K@60Hz), 1 x RJ45 (2.5Gbps), 1 x USB-A 10Gbps, 1 x USB-C (Host, PD 100W), 1 x DC IN (20V/6.5A, 130W)
3.Button: 1 x Power switch with status indicator LED
4.Dimensions: 24.5 x 9.7 x 3.7 cm / 9.6 x 3.8 x 1.4 in (LxWxH)
5.Cable Lengths: USB-C to C cable 100cm / 39.4in; Power adapter cable (plug end) 150cm / 59in; Power adapter cable (round end) 110cm / 43in
6.Weight: 504g / 17.8oz
7.Material: ABS plastic
8.Power LED: Green / Red
Note:
1.The dock is self-powered and requires connection to the included power adapter.

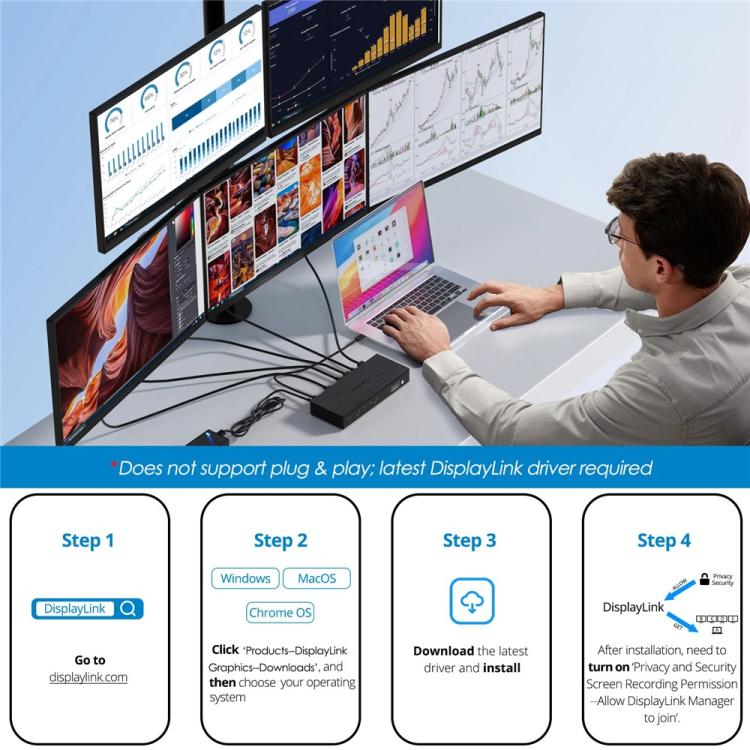

2.Not plug-and-play; driver installation is required. Please download the latest driver at displaylink.com.

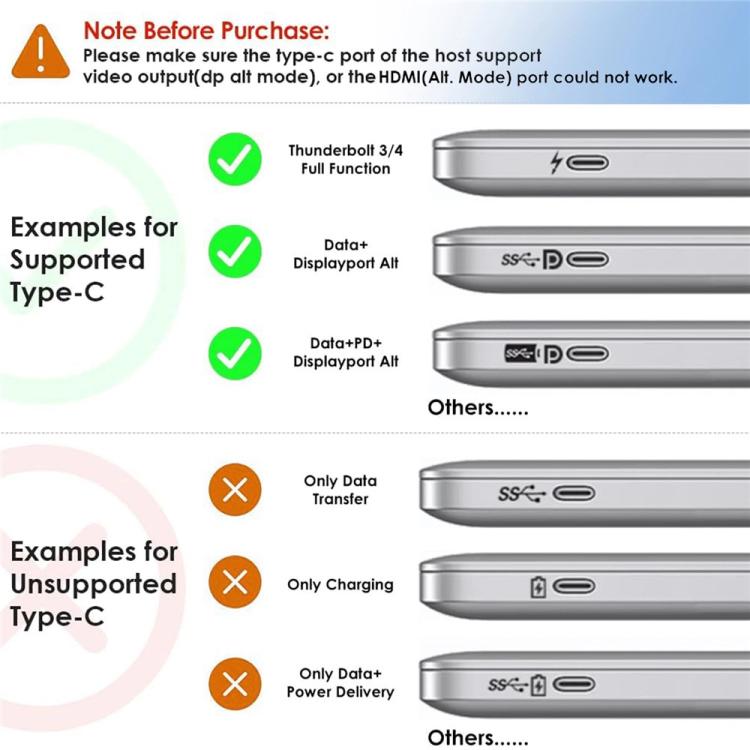

3.Ensure your laptop’s USB-C port supports charging and video output; otherwise, the host charging function and HD (Alt Mode) port may not work.

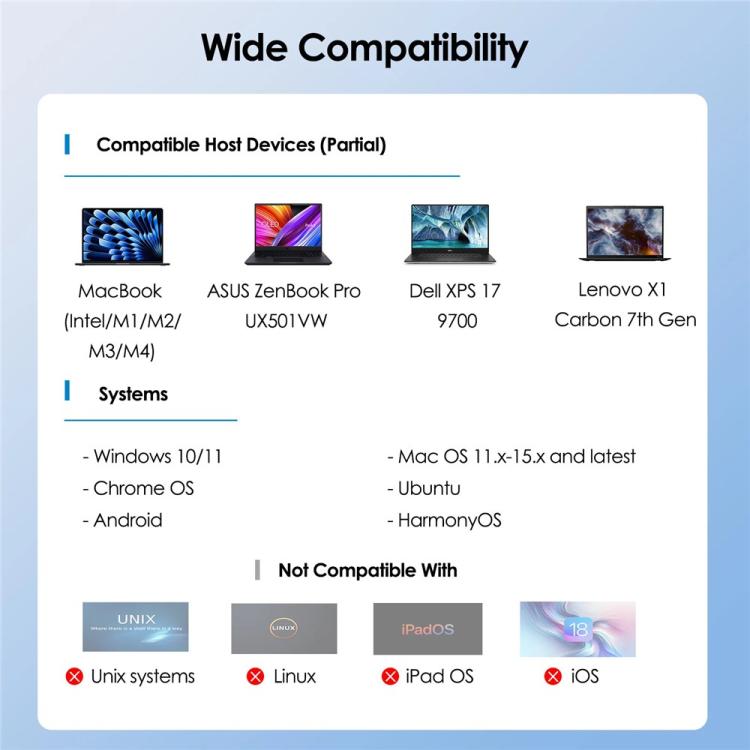

4.Not compatible with Linux, Unix, iOS, or iPadOS systems. Steam Deck is not supported.
5.Windows and macOS (12.x or later) support rotation and flip display modes.
6.Gaming or video editing is not recommended on video ports other than HD 3 (Alt Mode).
7.Does not support HDCP; cannot play encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
8.macOS users must grant DisplayLink Manager screen recording permissions.
9.To achieve 4K@60Hz on HD (Alt Mode), your laptop’s USB-C port must support DP1.4; if only DP1.2 is supported, output is limited to 4K@30Hz.
10.Some Mac computers may not support 8K output due to hardware limitations.
