1. Application: speaker high and low DIY
2. Power: 150W
3. Applicable impedance: 4-8 ohms

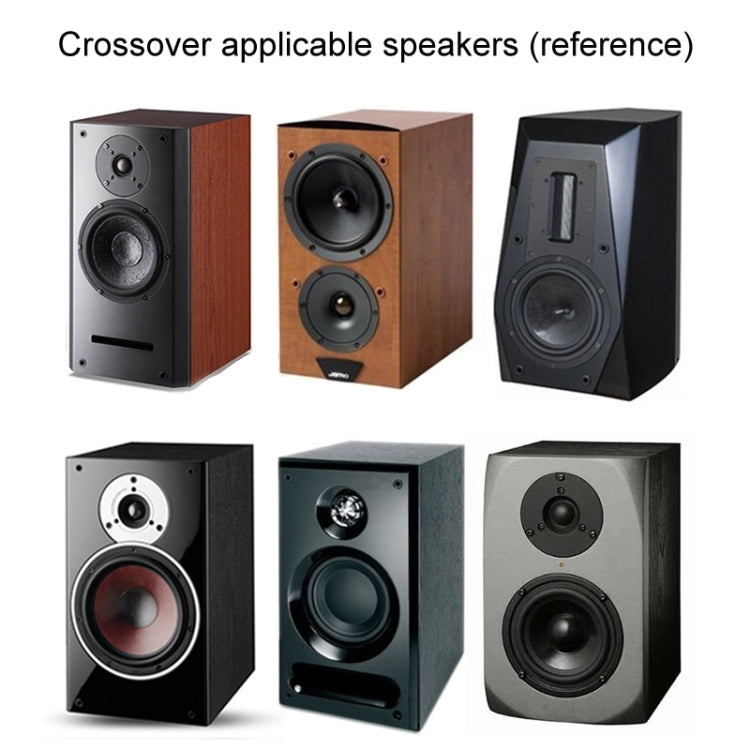

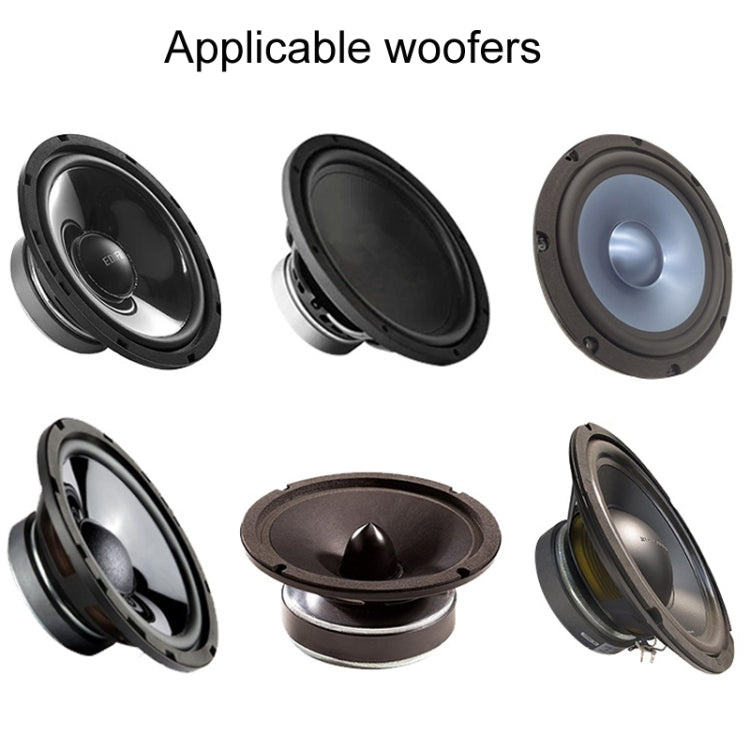

4. Applicable speaker: 5-8 inch
5. Crossover point: 2600Hz (yellow); 3000Hz (red/blue)

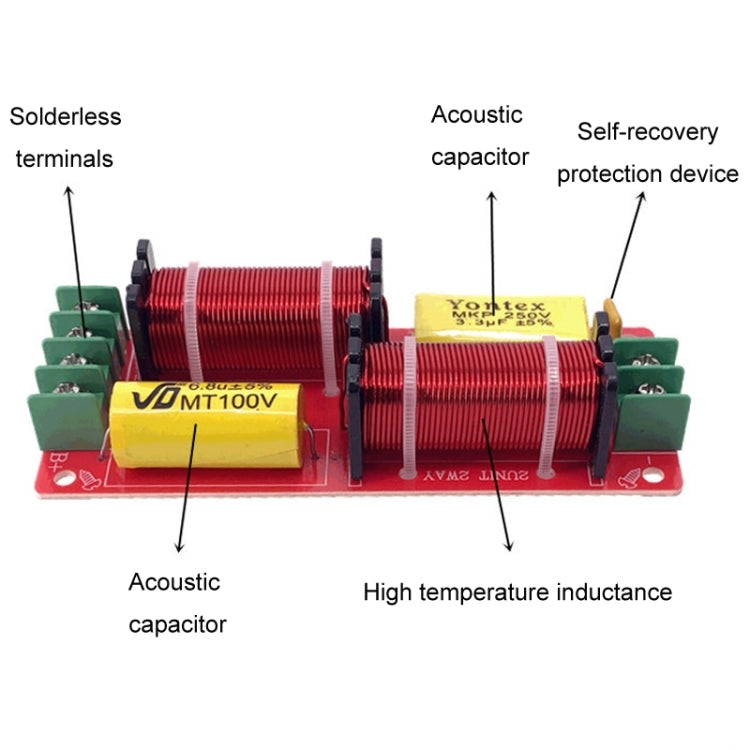

6. The use of dual inductance audio metal film capacitors, also has a treble protection device
7. Inductors fixed with double ties, effectively preventing common vibration

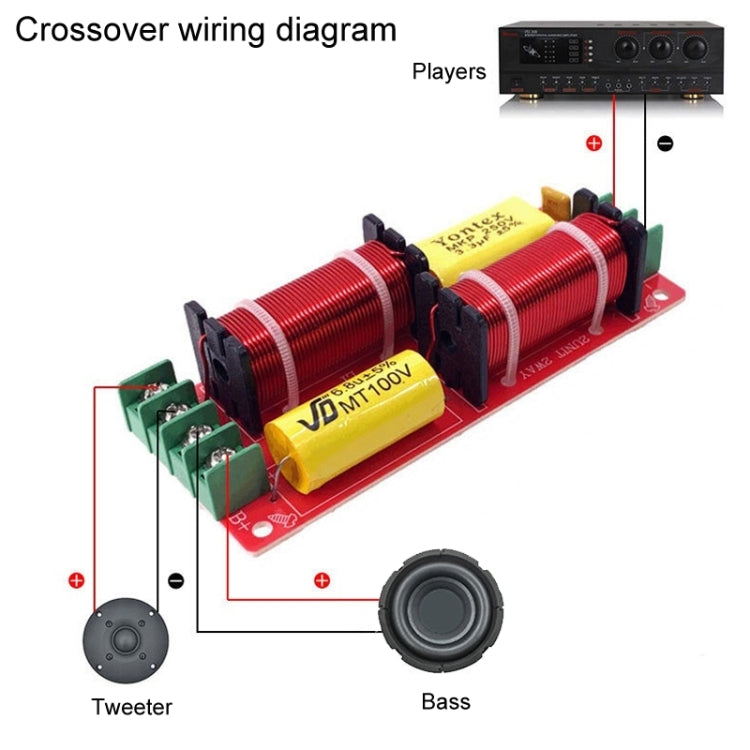

8. Wiring end product identification: IN input, T to the treble, B to the bass, black for the negative pole
9. Non-soldering terminals, very easy to use
10. Size: 113 x 45mm
