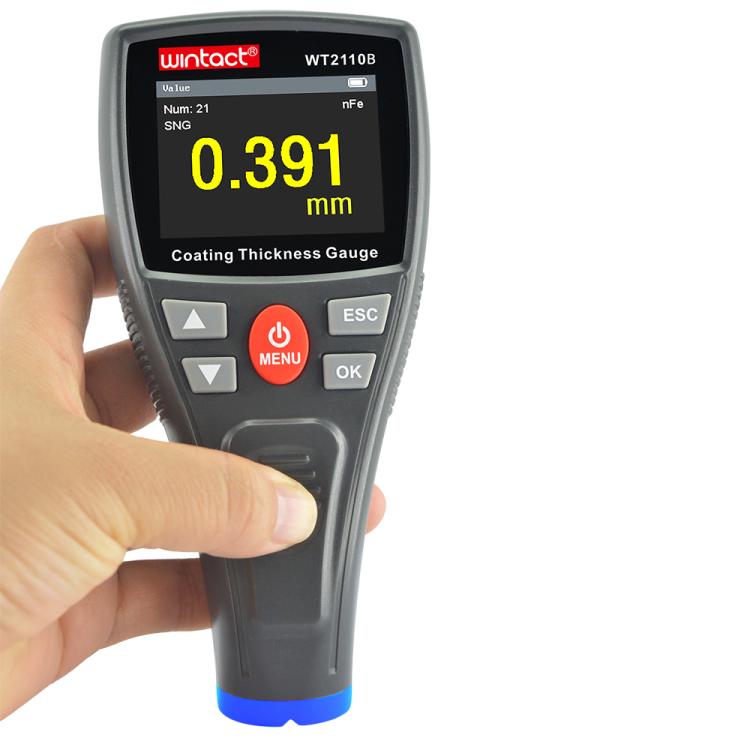

Wintact WT2110B Color Screen Display Coating Thickness Gauge(Black)

1. Menu operation and color-screen HD display.
2. Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.
3. Two measurement methods: single measurement, continuous measurement.
4. Three calibration modes: basic, offset, zero calibration.
5. Metric/imperial unit and storage function.
6. Screen rotation, charge protection, multi-interface displays,screen brightness selection.
7. Bluetooth function(go with corresponding APP).
8. Automatic shutdown.
9. USB transport data(operating with PC software).

Specification:
1. Measurement range: 0~1500 um/0~59mil/0~1.5mm
2. Resolution: (0.1 um(less than 100 um),1 um(more than or equal to 100 um))/0.1mil/0.001mm
3. Measurement error: less than equal to 150 um , +/-5 um, more than 150 um , +/-(3%H+1 um)
4. Minimum diameter of magnetic metal substrate: 12mm
5. Minimum thickness of magnetic metal substrate: 0.5mm
6. Minimum radius of curvature for magnetic convex substrate: 2mm
7. Minimum radius of curvature for magnetic concave substrate: 11mm
8. Minimum diameter of non-magnetic metal substrate: 50mm
9. Minimum thickness of non-magnetic metal substrate: 0.5mm
10. Size: 70.30x38.6x149.59mm
11. Weight: 108g
