Features

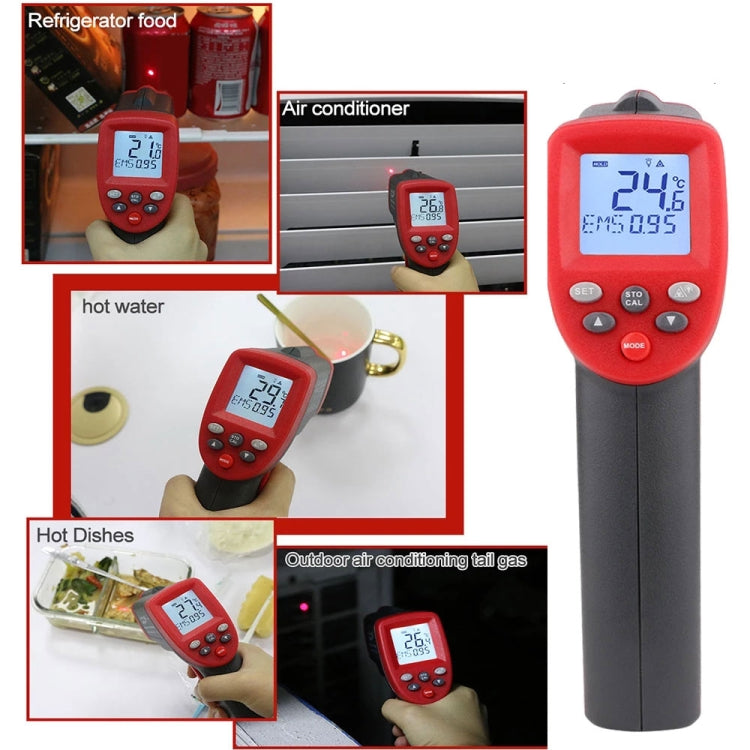

1. This infrared thermometer is used for measuring the temperature of the object surface, which is applicable for various
hot, hazardous or hard-toreach objects without contact safely and quickly.
2. This unit consist of optics, temperature sensor signal amplifier, processing circuit and LCD display. The optics collected the infrared energy emitted by object and focus ontothe Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Specification

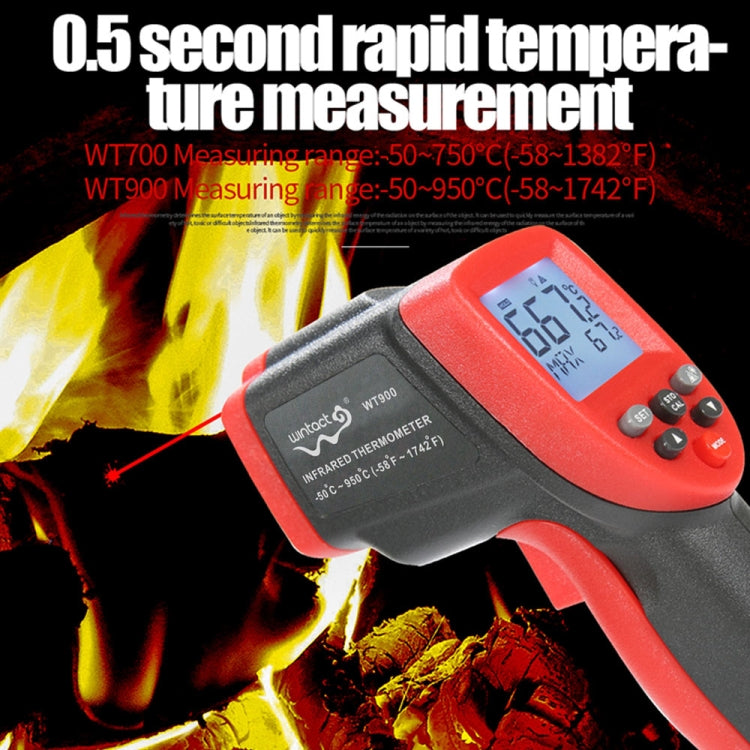

1. Temperature Range: -50 ~ 950 degree C (-58~1742 degree F)
2. Accuracy: +/-1.5% or +/- 1.5 degree C
3. Repeatability: +/-1% or +/- 1 degree C

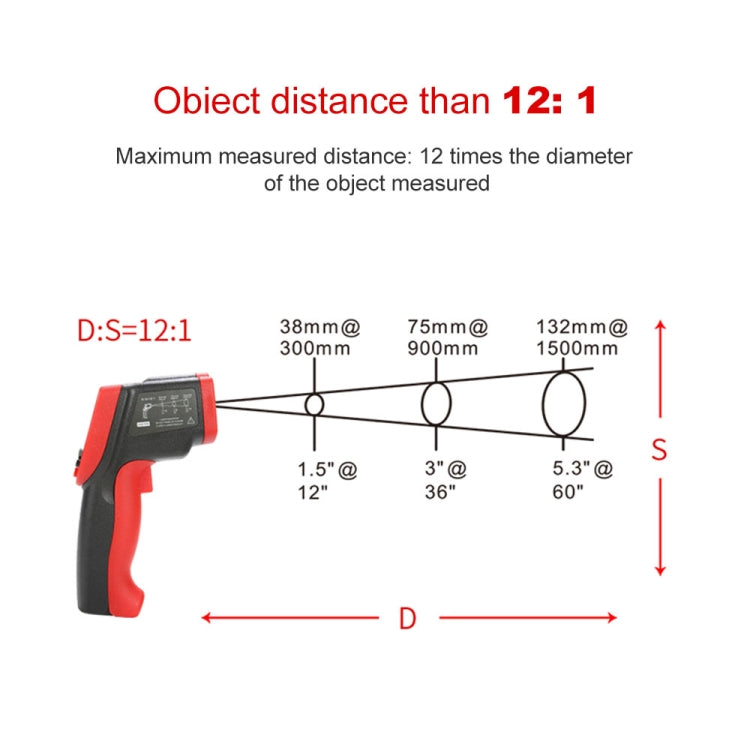

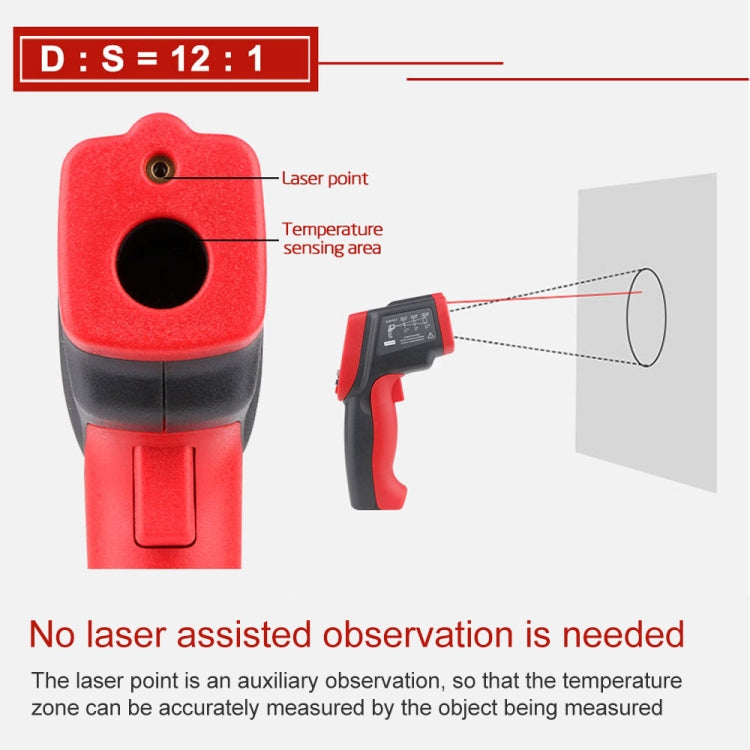

4. Distance to spot size: 12:1
5. Emissivity: 0.1~1.00 Adjustable
6. Display resolution: 0.1 degree C/ degree F
7. Response time: 500ms
8. Wave length: 8-14um
9. MAX/MIN/AVG/DIF Reading
10. High / low temperature alarm
11. Data store / recall function
12. Degree C/ degree F Switch
