1. Input voltage: DC12V
2. Product line length: 108CM (heating film to switch), 146CM (switch to electric door lock)
3. Working temperature: -30 to 100 degrees Celsius
4. Product power: 20W, 15W, 10W
5. Product material: composite fiber heating wire + Kevlar wear-resistant cloth, (L bracket) stainless steel

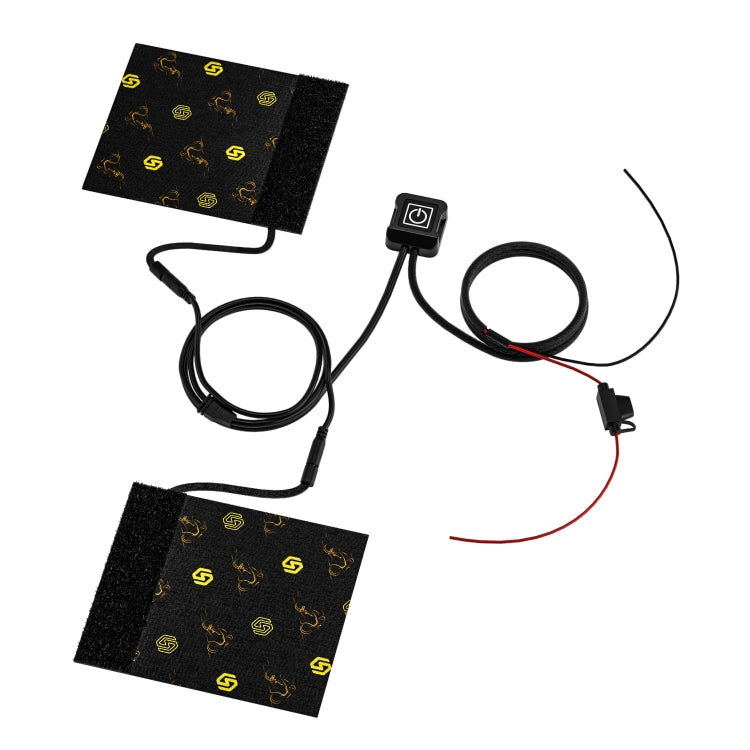

6. Product accessories: 3M glue*1, cable tie*5, stainless steel L bracket*1
7. Installation method: 3M glue sticking and fixing, L bracket lens holder fixing

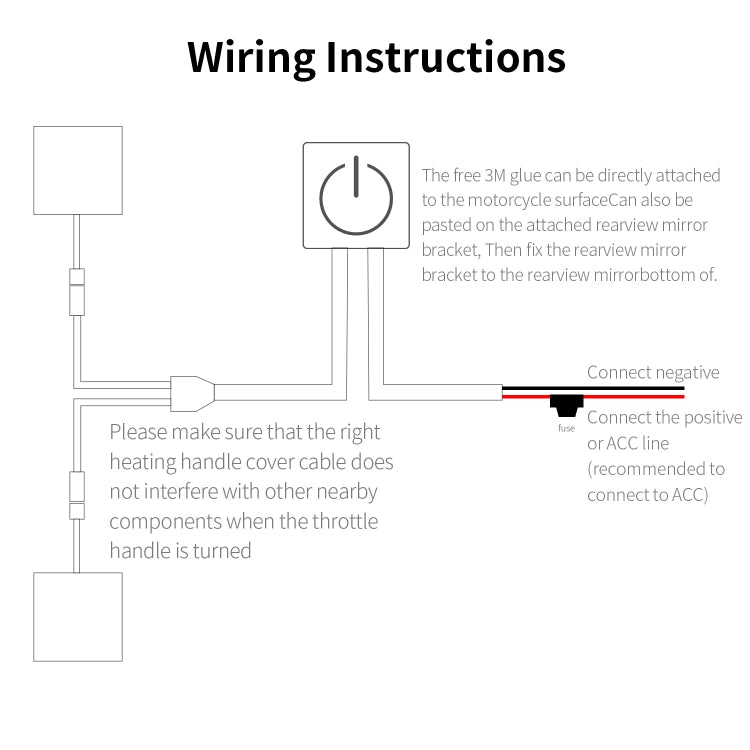

8. Wiring method: red connect to the positive pole, black connect to the negative pole (the lamp does not turn on when the connection is reversed, and only heats up)
9. Operating instructions: power on: red light, blue light and green light each flash once and then go out
10. Standby: the red light flashes in breathing state, the temperature reaches a certain temperature and it will automatically turn into a blue light
11. Click the power button: switch gears
12. Note: the positive and negative poles are connected reversely, the switch cannot be used, and the heating element directly heats up
Product advantages:
1. Kevlar material, heat up faster, heat more evenly, after 8000 times abrasion test successfully

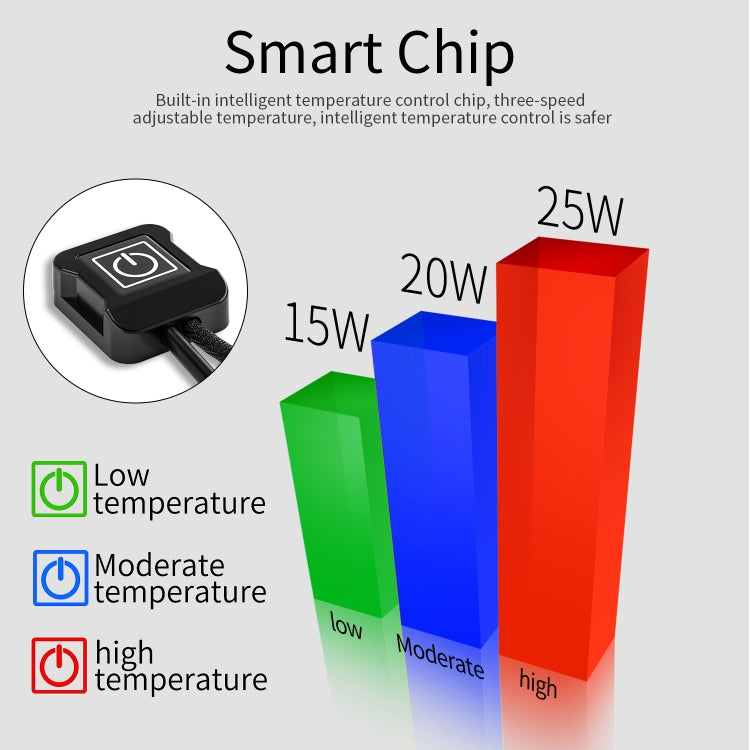

2. Built-in intelligent temperature control chip, three-speed adjustable temperature, intelligent temperature control is safer

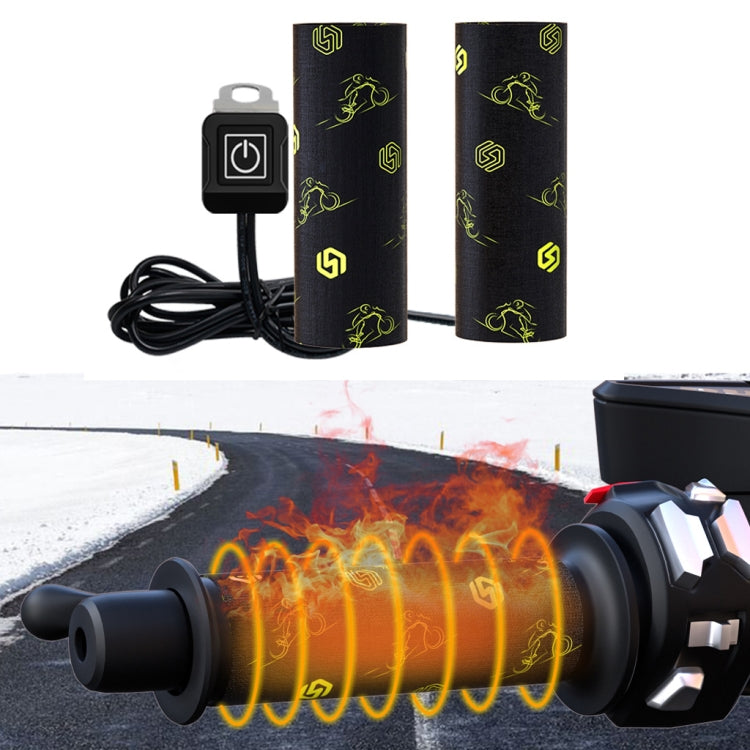

3. 10 seconds rapid heating, large heating area

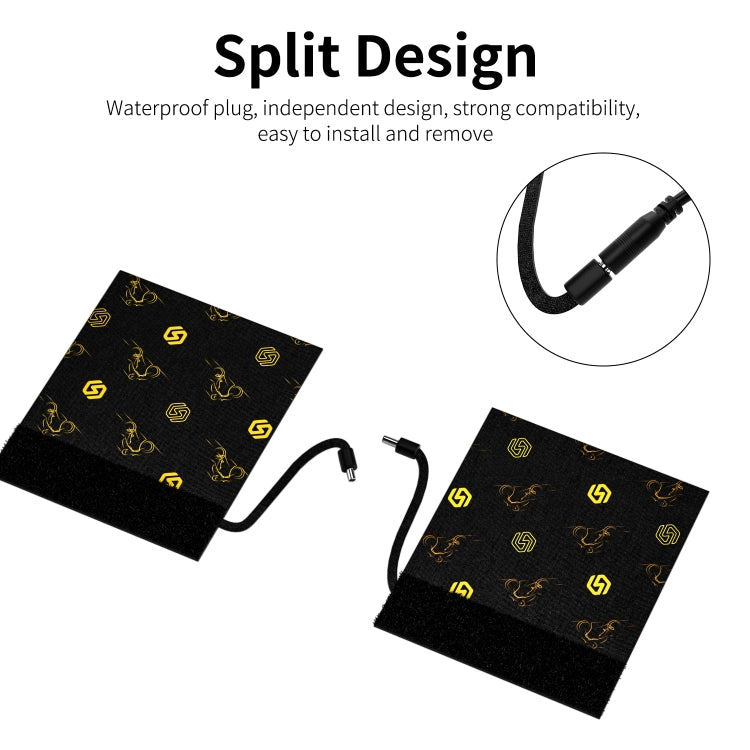

4. The heating sheet is fixed by hook and loop fastener, which is convenient and quick

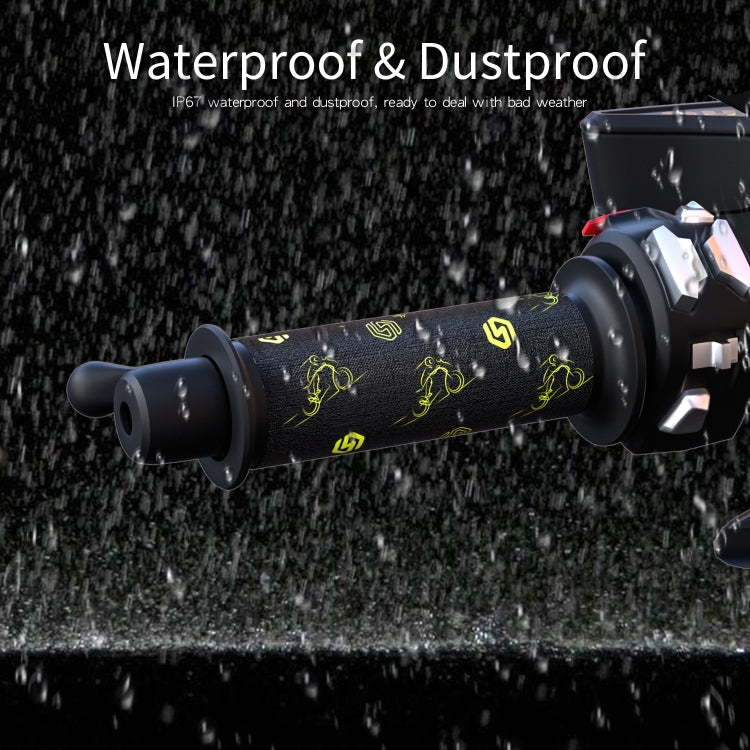

5. IP67 waterproof level, even if the switch and handle cover are soaked in water, they can work normally. When the handle cover needs to be cleaned, only unplug the plug and wash with water, which is very convenient
Pay attention:
1. Please select the appropriate gear according to the ambient temperature. Under low temperature conditions, if the temperature of the electric heating grip cover cannot be sensed in time due to the numbness of the hand, please use the low or medium gear first to prevent high temperature burns.
2. This product is only suitable for motorcycles with 12V battery. Please read the installation diagram carefully before installation. Incorrect wiring will cause damage to the components.
3. This product can only be installed on the handlebars of motorcycles when it is energized. You can use a battery to test whether the product is properly energized before installation.
4. It is strictly forbidden to energize and work when not riding (empty burn), in order to prevent the temperature of the electric handle cover from being too high and damaging the original handlebar
5. It is recommended to connect the electric door lock cable to the wiring. Most models have black positive pole and green negative pole. For specific conditions, it is recommended to use a multimeter to measure
