1. Material: nitrile rubber
2. Input voltage: DC 12V

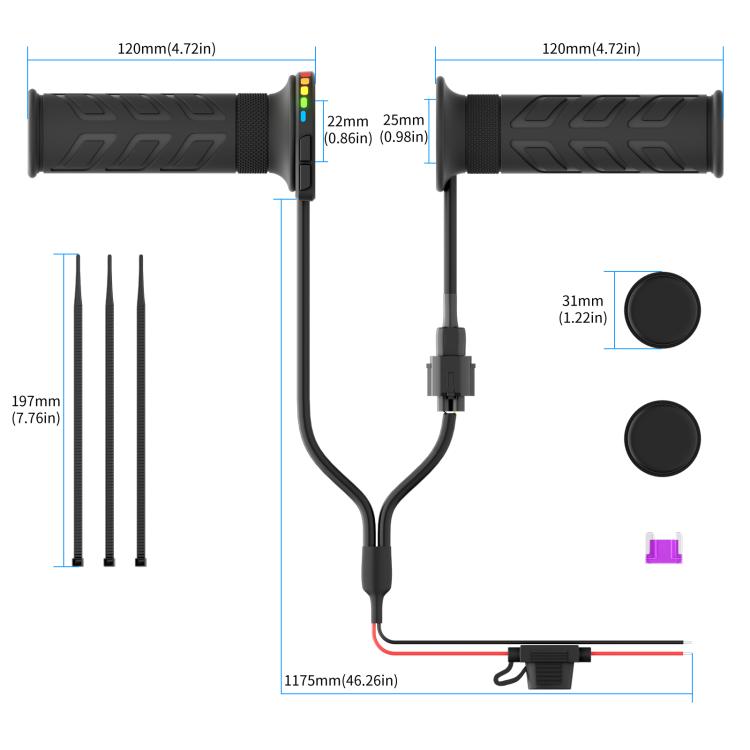

3. Handlebar length: left 120mm; right 120mm (without handlebar plug)
4. Cable length: 1175mm

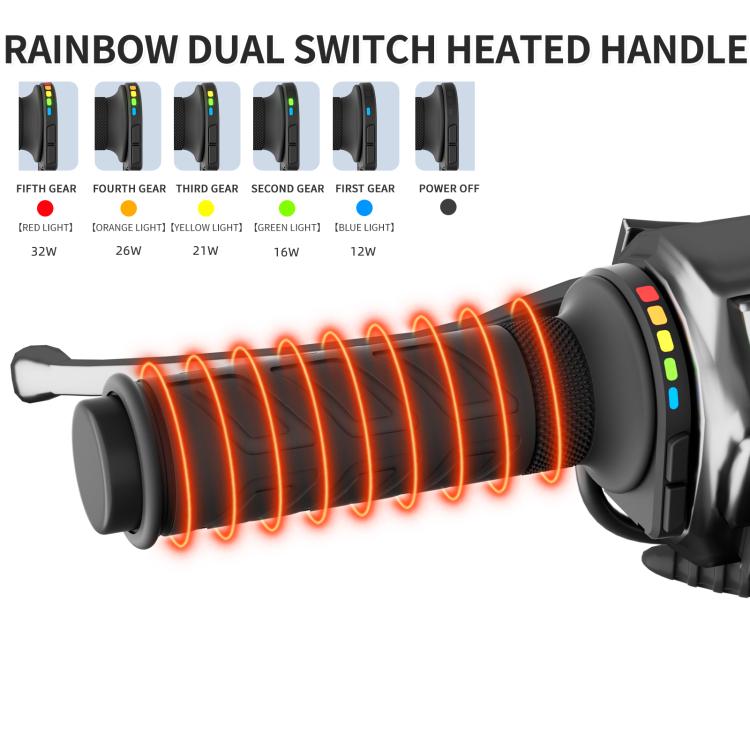

5. Power: five-level red light 32W; four-level orange light 26W; three-level yellow light 21W; two-level green light 16W; one-level blue light 12W (power at 12V)
6. Operating temperature range: -20°C to +50°C
7. Suitable pipe diameter: Left handlebar 22mm, right handlebar 25mm
8. Switch type: five-level memory; adjustable temperature control dual switch
9. Five-level rainbow temperature indicator light design: five lights gradually illuminate when adjusting the temperature to increase, and gradually dim when adjusting the temperature to decrease.

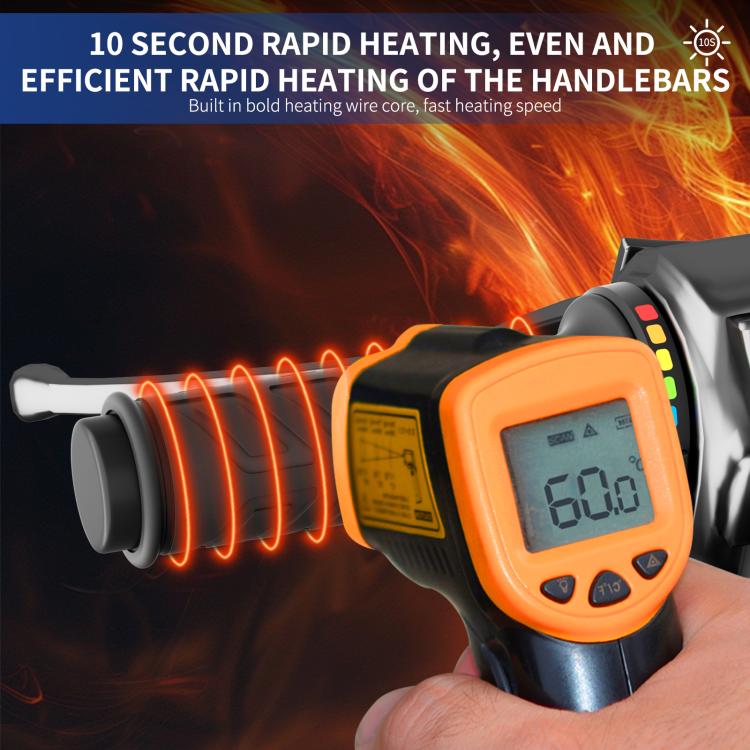

10. Intelligent temperature control: 10-second quick heating, say goodbye to freezing temperatures, enjoy a warm ride. AI intelligent heating chip, ergonomic heating, zoned heating from palm to fingertips, high-power, fast heating.

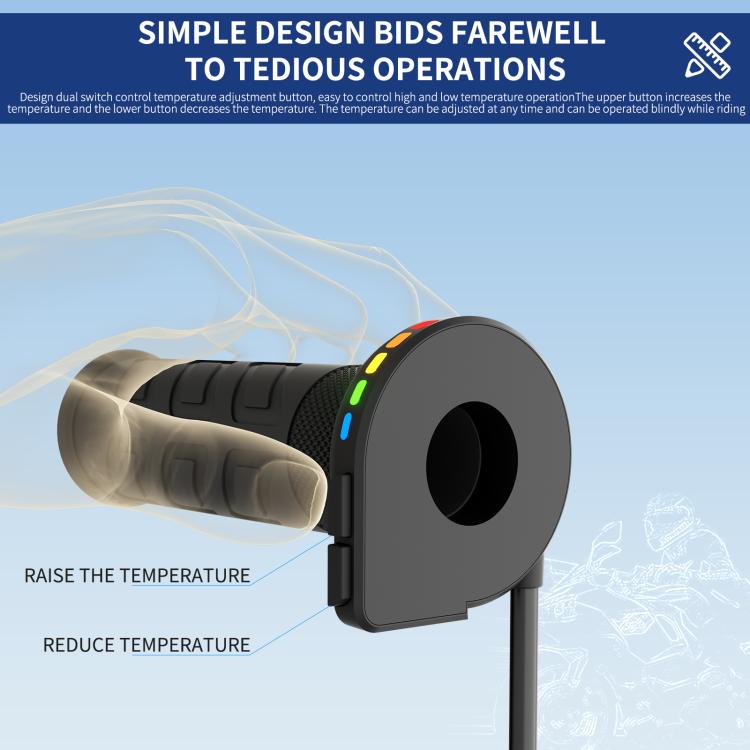

11. Dual-switch temperature control button for easy high and low temperature control: the top button increases the temperature, the bottom button decreases, allowing for on-the-go adjustment without having to worry about the temperature.

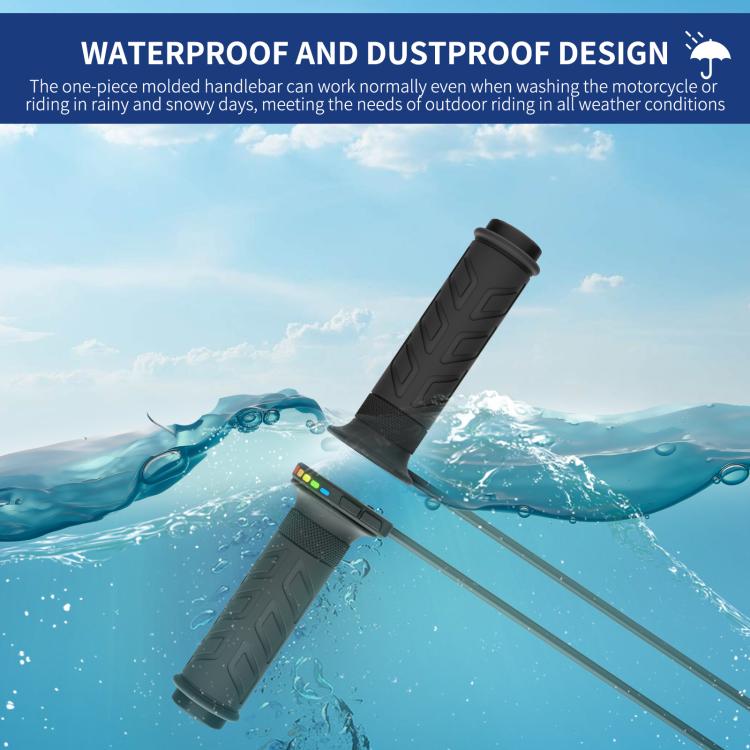

12. IP67-rated waterproof design and one-piece molded handlebars ensure operation even after daily car washes and in rainy and snowy conditions, meeting all-weather outdoor riding needs.
13. A more comfortable and non-slip textured design, made of upgraded rubber material, is non-sticky and durable in summer, ensuring years of durability.

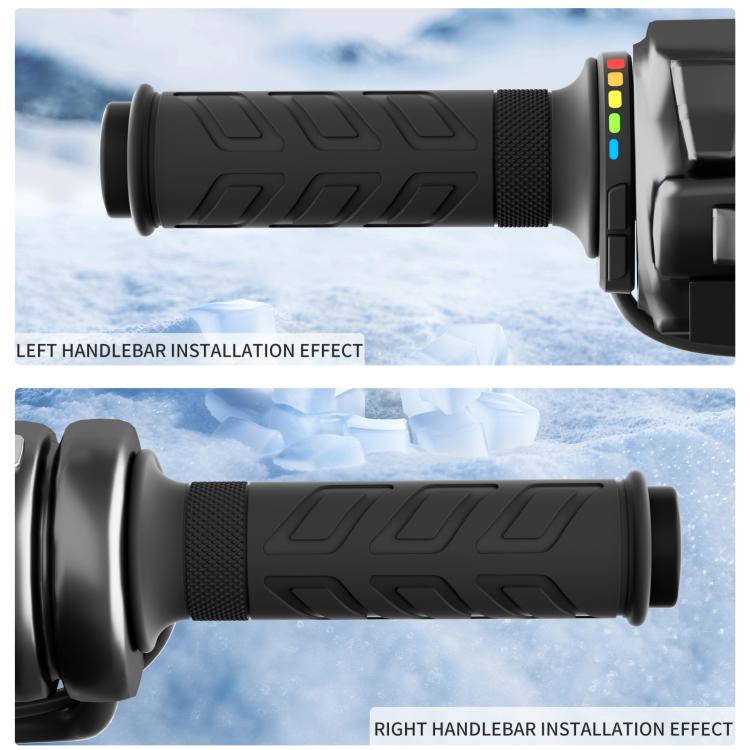

14. Compatible with most models: the left handlebar core is 22mm, and the right handlebar core is 25mm. Suitable for scooters, racing motorcycles, rally cars, and racing bikes. It can also be used on electric vehicles with the specially designed electronic throttle.
15. Net weight: 197g
Instructions
1. Initial startup defaults to electric vehicle mode (if voltage exceeds 13.5V in electric vehicle mode, it automatically switches to motorcycle mode).
2. In electric vehicle mode (normal operation at 12V), all five LEDs light up for one second after powering on.
Button functions:

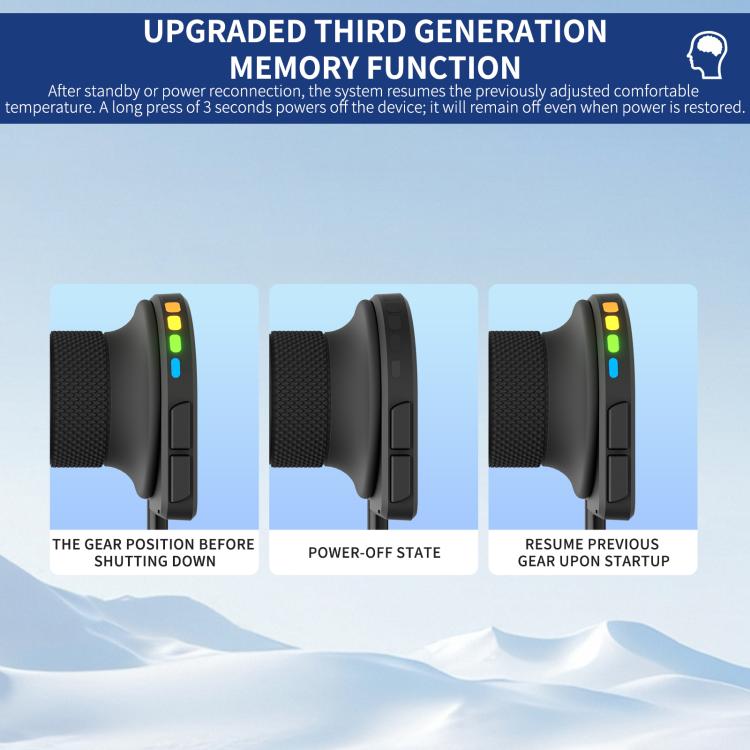

1. Upper switch: when powered on, press and hold for 3 seconds to shut down and memorize the gear position (neutral). When powered off, press and hold for 3 seconds to shift to first gear. Single-touch the upshift button to shift up in the order of blue, green, yellow, orange, and red.
2. Lower switch: when powered on, press and hold for 3 seconds to shut down and memorize the gear position (neutral). When powered off, press and hold for 3 seconds to shift to fifth gear. Single-touch the downshift button to shift down in the order of red, orange, yellow, green, and blue.
3. In standby mode, the power will turn on immediately upon powering on and will operate in the memorized gear position (i.e., the gear position before powering off). It will heat up quickly initially.
4. 5 output power levels and button sequence definitions: 30%-45%-60%-75%-100%; LED The colors indicating different gear positions are 30% blue, 45% green, 60% yellow, 75% orange, and 100% red.
5. The red wire is positive, and the black wire is negative. Do not connect incorrectly, as this may damage the product.

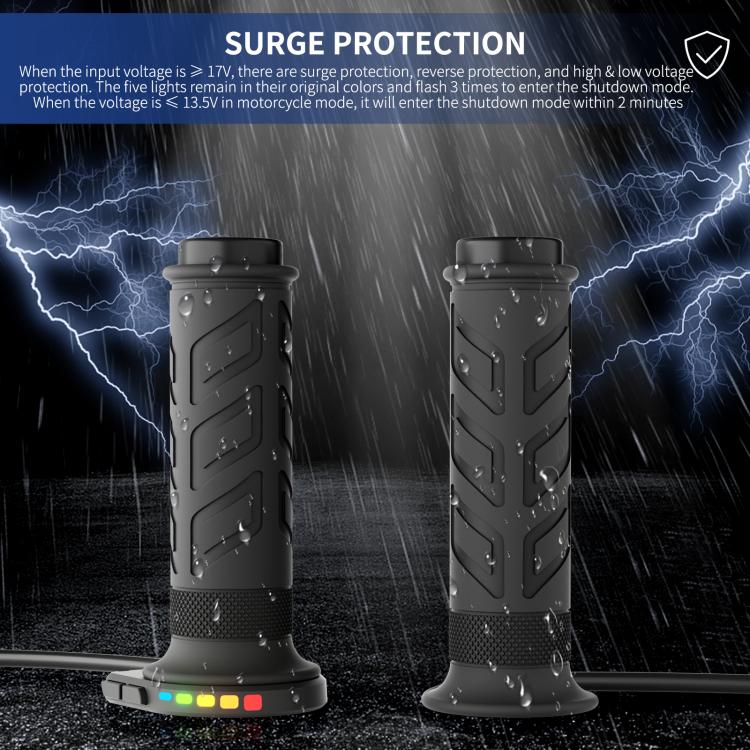

6. Surge protection, reverse polarity protection, and high and low voltage protection are included. When the input voltage is greater than 17V, the five lights flash simultaneously three times in their original colors to enter standby mode. In motorcycle mode, when the voltage is less than 13.5V, the device enters standby mode within 2 minutes.

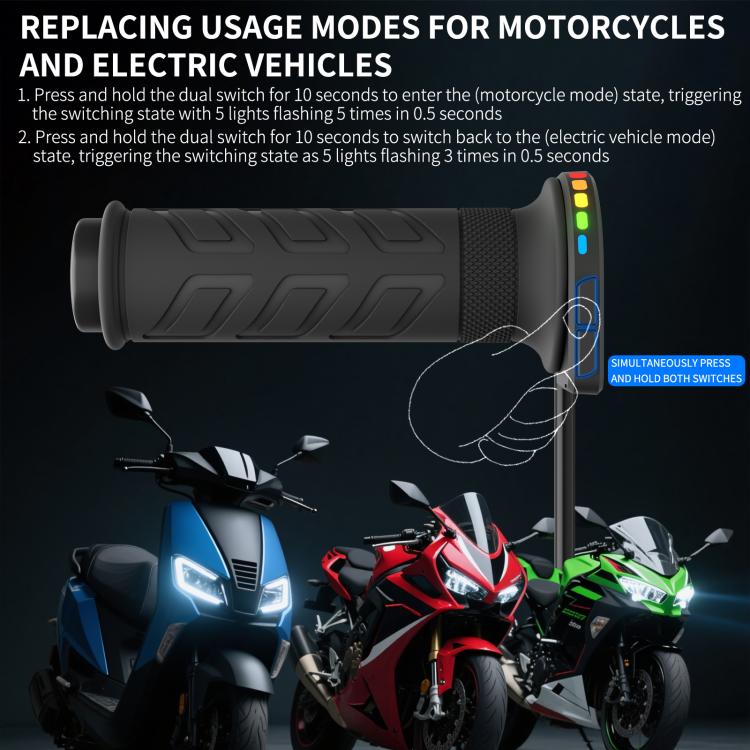

7. To change modes:
- Press and hold the dual switches for 10 seconds to enter motorcycle mode. The five lights will flash five times in 0.5 seconds.
- Press and hold the dual switches for 10 seconds to return to electric vehicle mode. The five lights will flash three times in 0.5 seconds.
