1. Support infrared night vision, mobile tracking, remote monitoring, alarm information push, etc.
2. Support intelligent human detection, quick start recording, two-way voice intercom
3. 6 million resolution, high-definition image recording

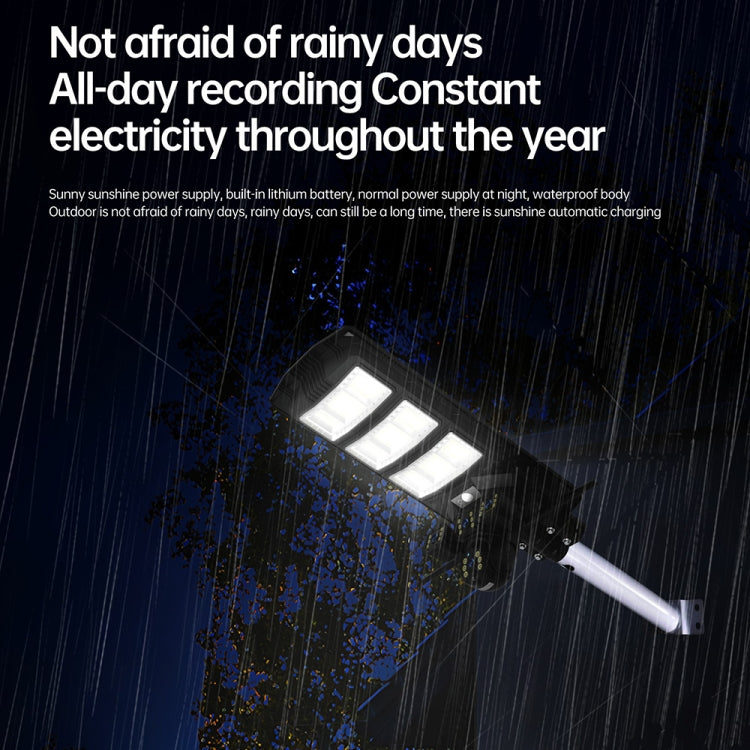

4. IP66 waterproof design, no fear of rain and various harsh weather environments
Camera:
Specifications
1. Sensor: 1/2.8 inch COMS
2. Infrared night vision range: 10m distance, 120 degrees
3. Storage interface: Micro SD card

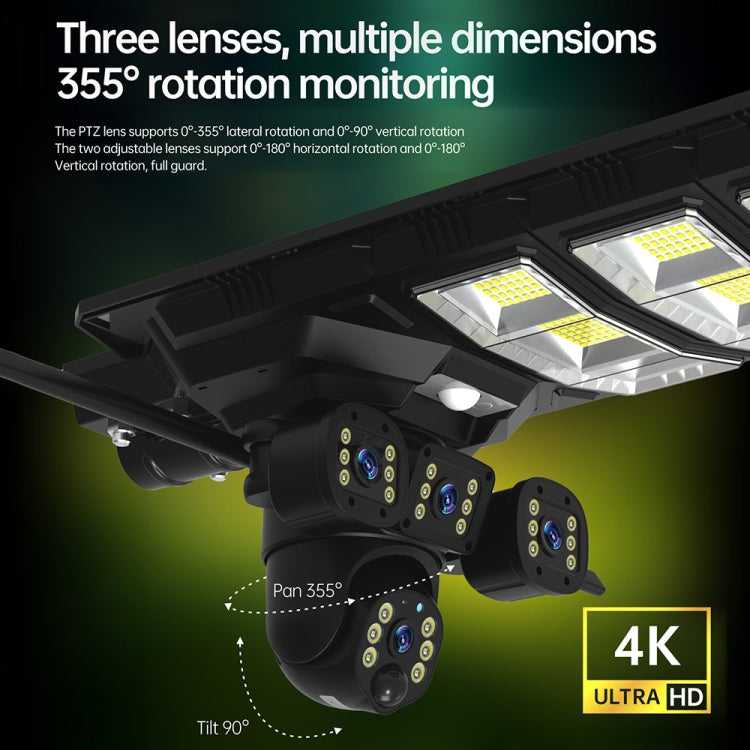

4. PTZ rotation angle: horizontal 355 degrees, vertical 90 degrees
1. Pixels: 6 million
2. Video encoding: H.265 1440P MPEG-2 15fps BT.709 yuv420p
3. Resolution: main stream: 2560 x 1440, sub-stream: 800 x 448
Audio
1. Audio format: audio encoding AAC 16k
2. Fixed bit rate: 32-bit
3. Sampling rate: 16000Hz
4. 3D digital noise reduction: automatic
5. Audio: support microphone and speaker, two-way voice intercom
Network
1. 4G supported frequency bands (Asian version): FDD: B1/B3/B5/B8, TDD: B34/B38/B39/B40/B41
2. 4G supported frequency bands (European version): FDD: B1/B3/B5/B7/B8/B20/B28
3. 4G supported frequency bands (US version): LTE: B2/B4/B5/B12/B13 WCDMA: B2/B4/B5

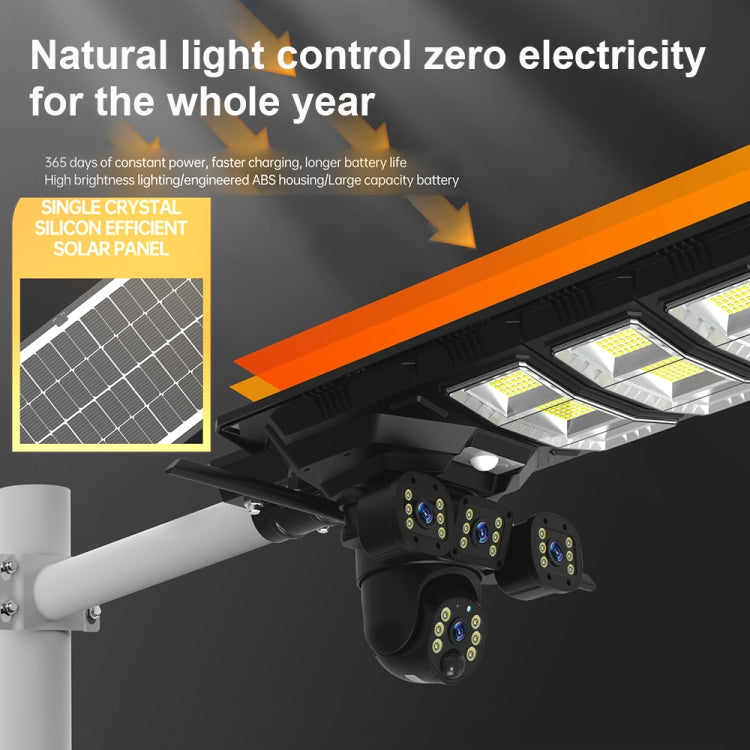

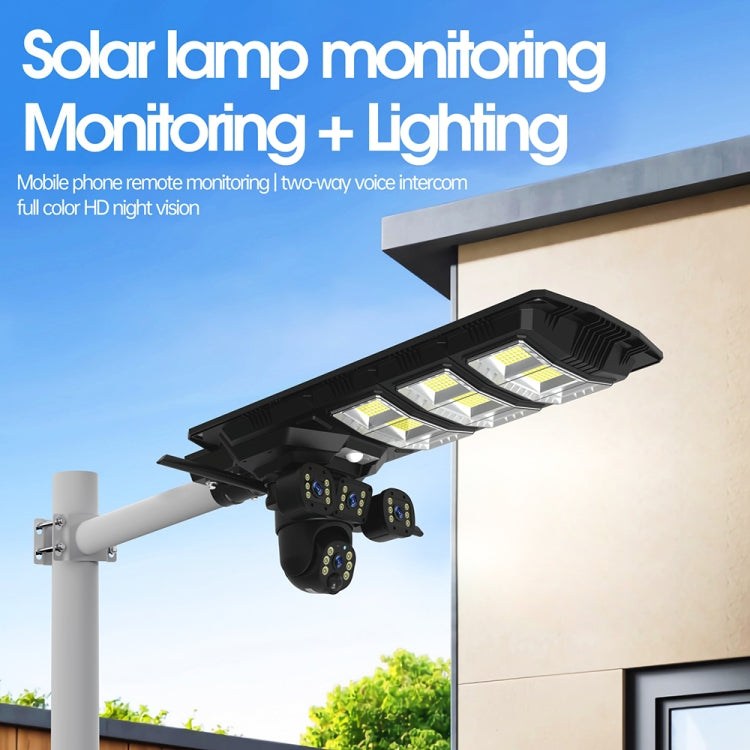

Solar Light Source Panel Parameters:
1. Working voltage: 2.6-3.4V
2. Maximum working current: 2.8A
3. Maximum current of a single lamp bead: 150mA
4. Single lamp working current: 20mA
5. Color temperature: 6500K

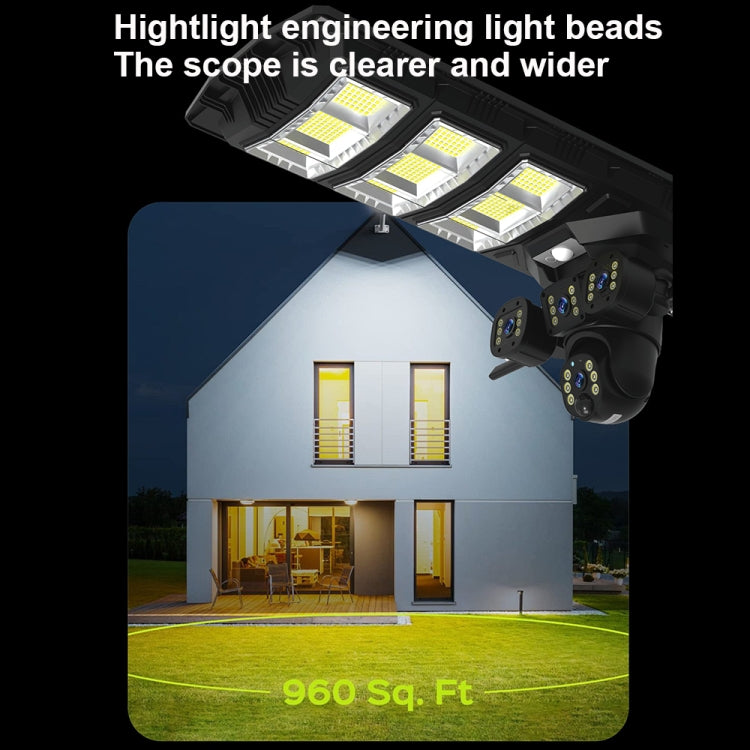

6. Number of lamp beads: 180
7. Battery capacity: street lamp 12000mAh (26700), monitoring 8000mAh (18650)
8. Monitoring sleep current: 80mA
9. Waterproof grade: IP66
Street Light Control Panel Parameters:
1. Maximum charging voltage: 5V
2. Maximum charging current: 3A
3. Radar distance: 8-10m
4. Infrared remote control distance: 8-10m
5. Working temperature: -10 degrees Celsius to 50 degrees Celsius
