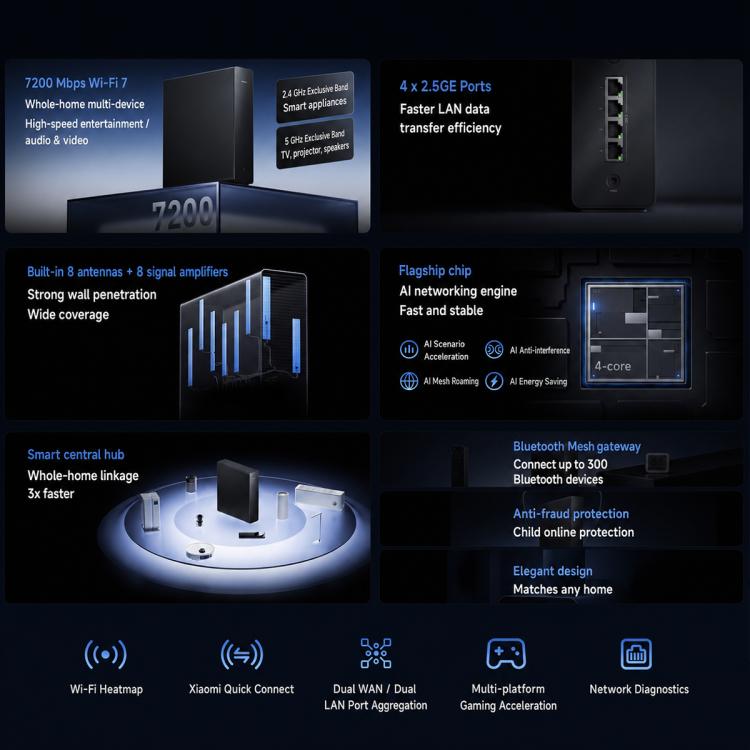

Feature:
1. Wi-Fi 7 protocol: WiFi7 not only has higher speeds and effectively improves throughput, but also has powerful functions such as MLO multi-channel connection technology, which can make full use of channel resources, reduce delays, and improve anti-interference capabilities.

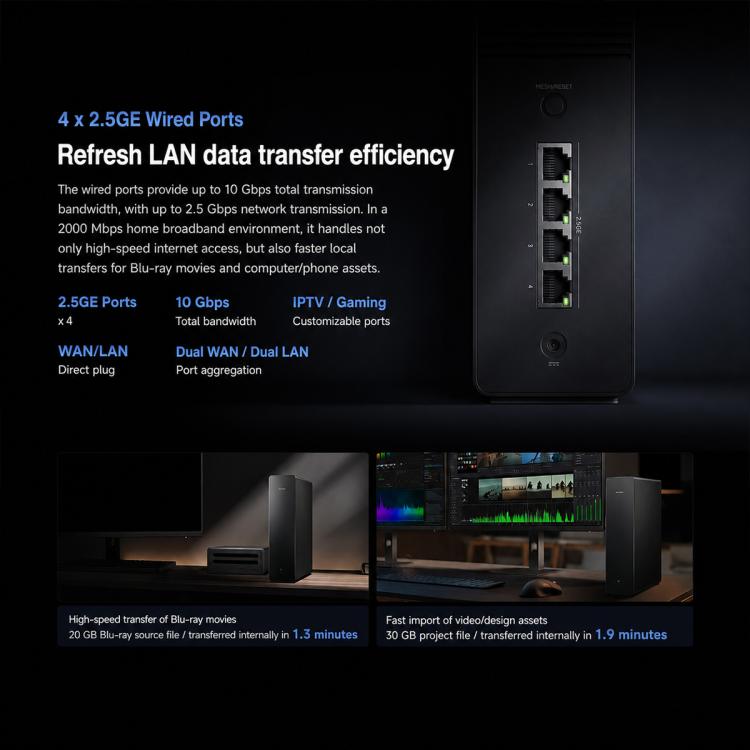

2. Full 2.5GE Ethernet Ports: Adaptive WAN/LAN, Customizable Ethernet Ports.

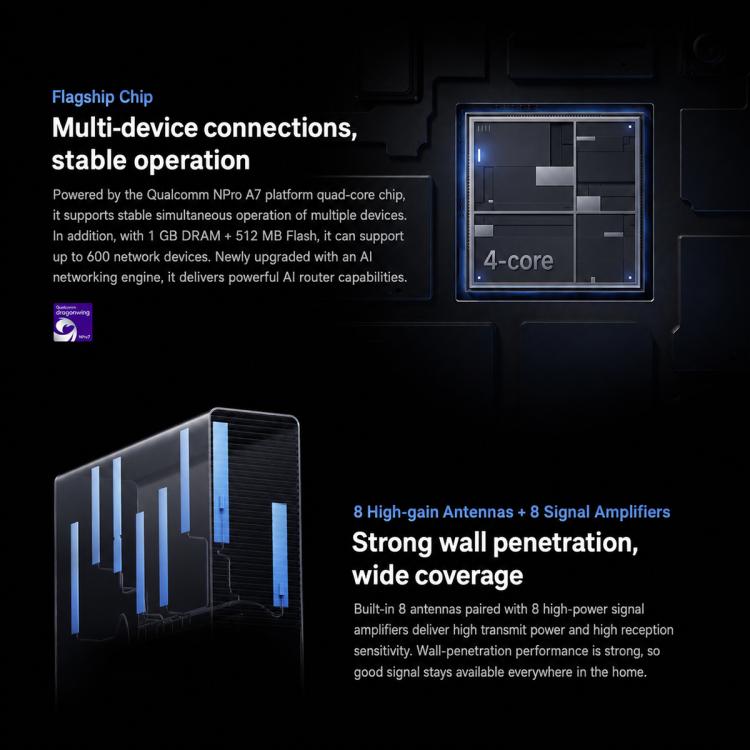

3. Flagship Chip: Powered by the Qualcomm Dragonwing NPro A7 quad-core platform, ensuring stable simultaneous operation for multiple devices.
4. AI Interference Resistance: AI intelligently analyzes home network interference to ensure strong signal strength.

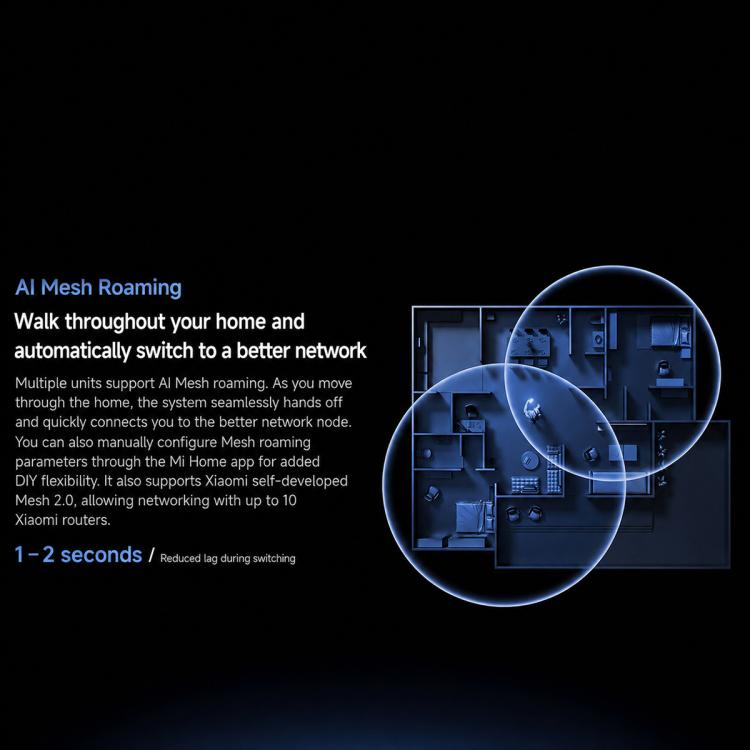

5. AI Mesh Roming: When moving around the house, it can quickly connect to a better network node compared with traditional roaming. You can also manually set the Mesh roaming parameters via the Mi Home App. It also supports Xiaomi's self-developed Mesh technology, allowing up to 10 Xiaomi routers to form a network.
6. Intelligent Central Gateway: Smarter linkage with faster response speed. Even if the network is abnormal, the pre-set automation scenes can still be executed.
Hardware configuration:

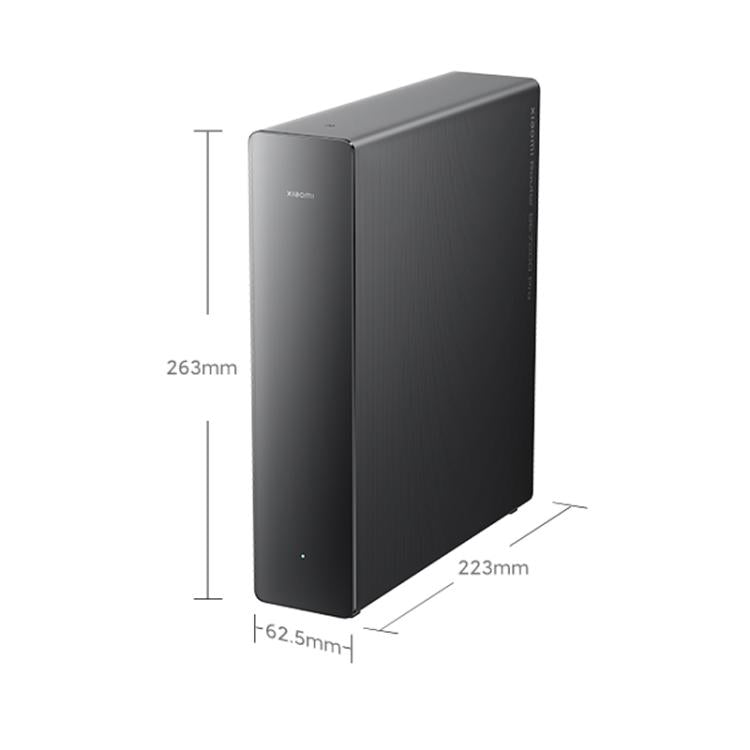

1. Size: 223mm x 62.5mm x 263mm
2. CPU: Qualcomm A55 4-Core 1.8GHz
3. RAM：1GB

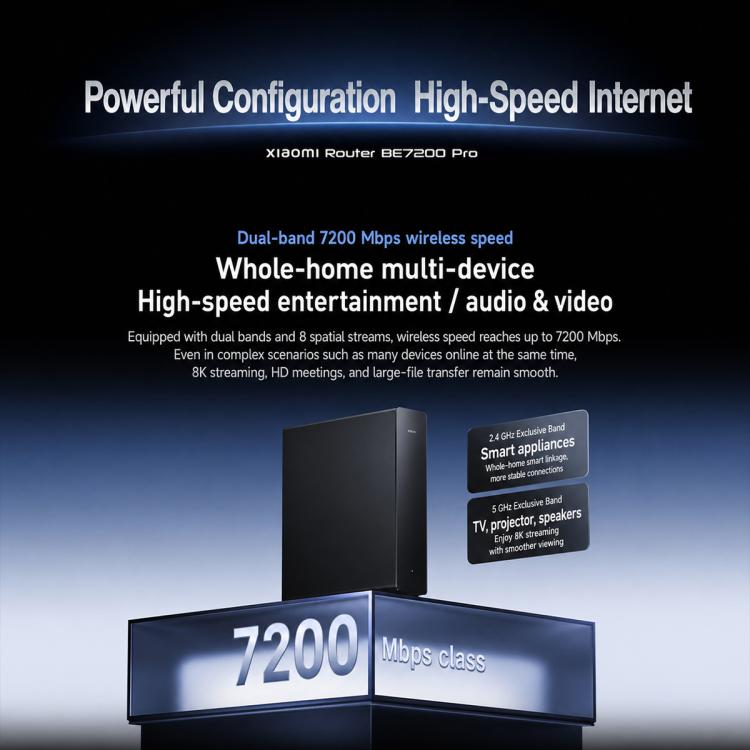

4. 2.4G Wi-Fi: 4 x 4 Theoretical maximum speed 1376Mbps
5. 5G Wi-Fi: 4 x 4 Theoretical maximum speed 5765Mbps
6. Product Antennas: Built-in high-gain antenna + built-in NFC antenna + built-in Bluetooth antenna
7. Central Gateway: Supported
8. Bluetooth Gateway: Supported
9. Whole machine port: 4 x 10/100/1000/2500M adaptive WAN/LAN ports
Wireless parameter:
1. Wi-Fi bands: dual-band, 2.4GHz and 5GHz
2. Wireless channels:
2.4GHz channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5GHz channels: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
Work environment:
1. Operating temperature: 0 ~ 40degree Celsius
2. Storage temperature: 10% ~ 90% RH non-condensing
3. Operating humidity: -40 ~ 70degree Celsius
4. Storage humidity: 5% ~ 90% RH non-condensing
Software parameter:
1. Operating system: MiWiFi ROM
2. Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-fouling network
3. Management application: Support Web, Mihome App (Android&iOS)
